Summary of Contents for Cookology CGL100SS/A

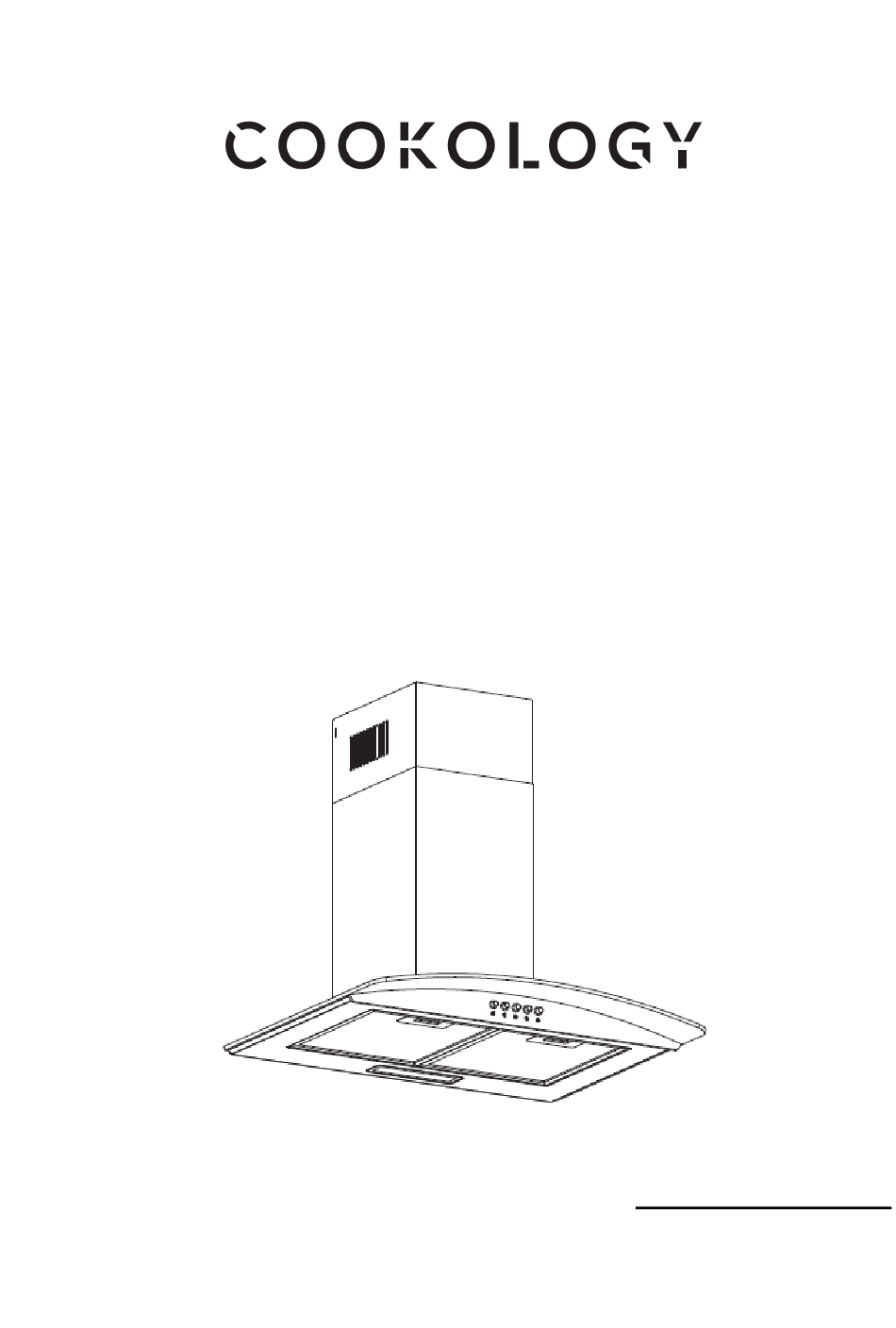

- Page 1 CGL100SS/A CGL100BK/A Cooker Hood Instruction Manual Please register the warranty for this product on www.Cookology.com...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read itcarefully before using even if you are familiar with the product. The manual should be keptin a safe place for future reference. fume extractor, the operation of open Never to do: flued gas appliances should be tested by a competent person to ensure that... - Page 4 understand the hazards involved. ● f the voltage rating of the lamp is less Children shall not play with the than the rated voltage of the appliance, appliance. Cleaning and user the voltage rating of the lamp shall maintenance shall not be made by also be marked on or near the lamp children without supervision.
-
Page 5: Installation
room must not exceed 4 Pa (4 x 10 ● EVER try to extinguish a fire with bar). water, but switch off the appliance and ● ARNING: Danger of fire: do not then cover flame e.g. with a lid or a store items on the cooking surfaces. - Page 6 2. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect. 3. After decide the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 6 φ8 holes(2 for inside chimney bracket, 2 for hanging the hood and 2 for safety screws), and keep the hood level.
- Page 7 6. Dress the inside chimney into the outside chimney. See Pic 4. 7. Make the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker hood with safety screws.Note: The two safety vents are positioned on the back housing, with a diameter of 6mm.See Pic 5.
-
Page 8: Start Using Your Cooker Hood
collection at on end. •Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant. WARNING: ➢ For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. ➢... -
Page 9: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not Refit mains power cable to work, motor does Mains power cable is loose or... - Page 10 Cleaning and maintenance should be carried out with the appliance cold especially when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a clean soft cloth.
- Page 11 2. Take away the steel wire with proper strength, as pic 1 shown. 3. See pic 2,replace the new carbon filter onto the grease filter. 4. Fix the properly-adjusted carbon filter with the small steel wire. 5. Reinstall the grease filter. NOTE: •...
-
Page 12: Environment Protection
➢ Remove the grease filter. ➢ Find out the junction box, unscrew the screws on the junction box cover, then take down the junction box cover(If there is wire pressing plate which pressed the light wire, the wire pressing plate needs to be dismantled first).See pic 1. ➢... - Page 13 At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice. Please register the warranty for this product on www.Cookology.com Cookology Limited Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593...
