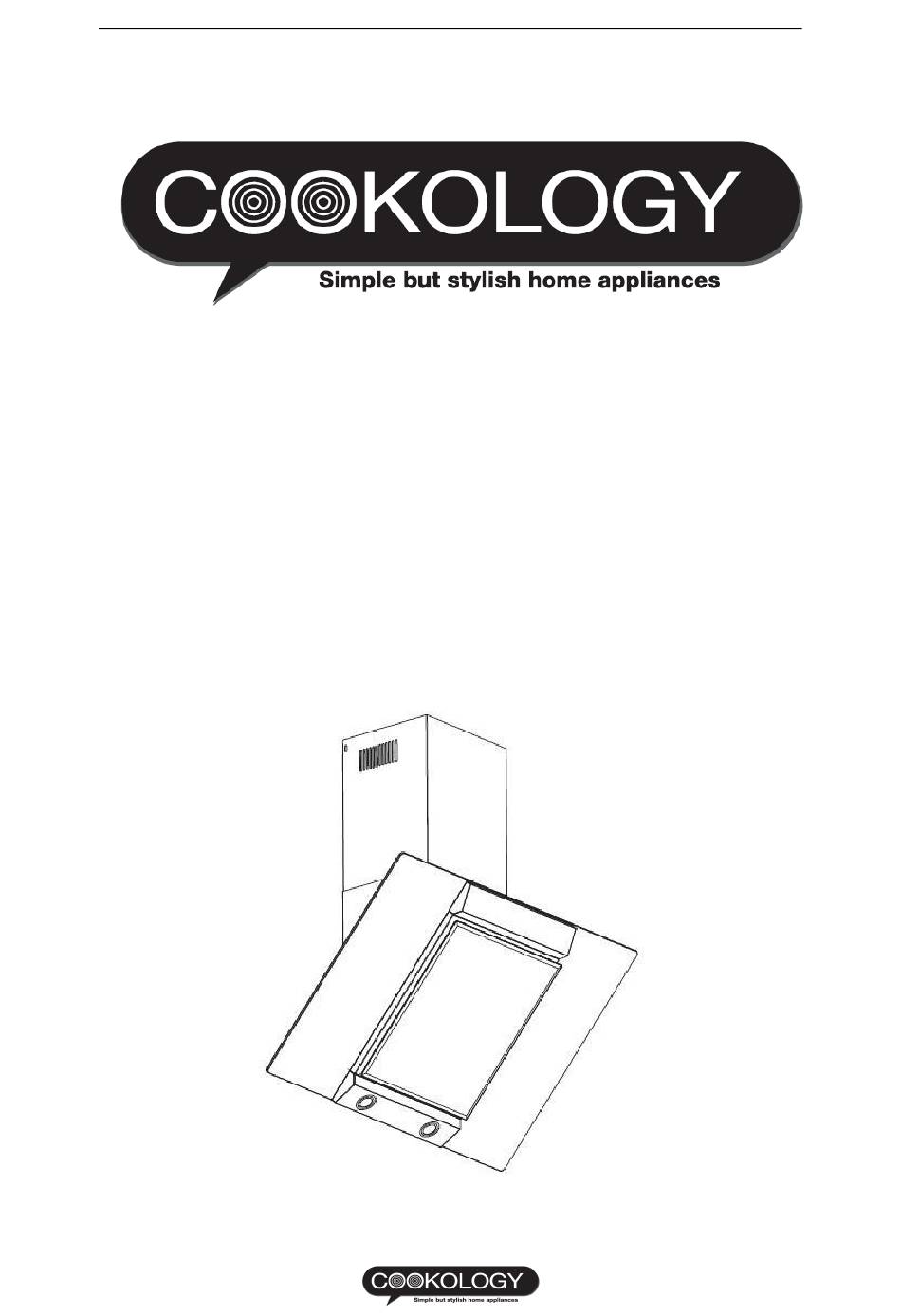

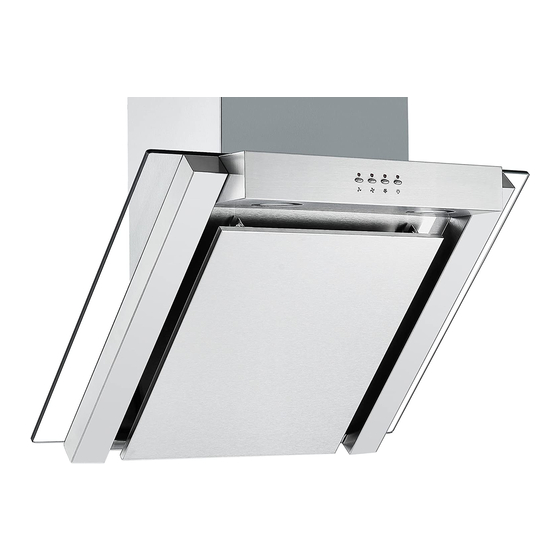

- Page 1 ANG605SS ANG705SS ANG905SS ANG605BK ANG705BK ANG905BK ANG605WH ANG705WH ANG905WH Cooker hood Instruction manual...
-
Page 2: Table Of Contents
CONTENT 1……………………………………….Notice 2……………………………………….Feature 3………………………………………..Installation 4………………………………………..Notice of installation 5………………………………………..Safety Warning 6…………………………………………Speed adjustment 7…………………………………………Maintenance 8………………………………………….. Abnormity and Solution... -
Page 3: Notice
1.Notice This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 The instructions shall state the substance of the following: – there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);...
- Page 5 – CAUTION: Accessible parts may become hot when used with cooking appliances. The installation instructions shall include the substance of the following: – the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);...
- Page 6 discharge of air have to be fulfilled. The installation instructions for range hoods with accessible metallic enclosures of class II construction shall include details that indicate the location and maximum permitted lengths for any fixing or mounting screw or other fixing device that penetrates into the range hood to attach an accessory such as a facia or duct fitting.
-
Page 7: Feature
substance of the following warning. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Feature 1. The cooker hood uses high quality materials, and is made with a streamlined design. 2. -
Page 8: Installation
INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or non-flammable material with an interior diameter of 150mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2. - Page 9 3.Attach the expansion pipe onto the one-way-valve as shown below, and fix the pipe on the valve by cable tie. 4. Drill 3 holes to accommodate the wall bracket. Screw and tighten the wall bracket onto the wall with the screws (4mm x 40 mm) and wall plugs provided.
- Page 10 8. Drill 2 holes to accommodate outside chimney bracket. Screw and tighten the outside chimney bracket onto the wall with the screws (4mm x 40 mm) and wall plugs provided. Note: outside chimney bracket is used to fix the chimney. The below diagram is for reference.
-
Page 11: Notice Of Installation
9. Put the installed chimneys on the cooker hood. Fix the inside chimney bracket to the wall by using 2 (4mm x 40 mm) screws and wall plugs . Pull out expansion pipe till it feeds through the hole on the wall. Lift the inside chimney onto the outside chimney bracket, fix the inside chimney to the outside chimney bracket by using 2 screws (4mm x 8mm). -
Page 12: Safety Warning
3. The bending of ventilation tube should be≥120°, parallel or above the start point and should be connected to the external wall. 4. After installation, make sure that the extractor is level to avoid grease collection at one end. 5. Safety Warning In certain circumstances electrical appliances may be a danger hazard. -
Page 13: Speed Adjustment
• Regarding the instructions for the bulb changing, pls use the same bulb and ILCOS D code for this lamp is DSR-1.5/65-S-64 6. Speed adjustment Five-key electronic button There are five touch buttons: (Low), (Mid), (High), (Light), (Power).See Pic above. 1. -
Page 14: Maintenance
Press middle button again and the motor will stop. Indicator light of middle button and power button will be off,and recycle by circle. 6. Press the (low) button one time, motor runs on low speed, the indicator light of low button and power button will beam. - Page 15 Attention! Keep the motor and other spare parts free from water, as this will cause damage to the appliance. Attention! Before cleaning the appliance please remember to cut off the power. 6. Changing and cleaning the anti-grease filters -Removing the filters as the instruction of picture. You can clean the filter as below measure: Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush.
- Page 16 NOTE: • Make sure the filter is securely locked. Otherwise, it could loosen and cause damage to unit. • When the activated carbon filters are attached, the suction power will be lowered. • The charcoal filter cannot be washed or recycled. It should be changed at three or six months according to the amount of use the hood receives.
-
Page 17: Abnormity And Solution
Abnormity and Solution Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following:... - Page 18 Too much ventilation from Choose a new place and open doors or windows resemble the machine The machine inclines The fixing screw not tight Tighten the hanging enough screw and make it horizontal The hanging screw not tight Tighten the hanging enough screw and make it horizontal...
