CLEANING THE SOLUTION TANK FILTER-CAP

CLEANING THE SOLUTION TANK FILTER-CAP
Thorough cleaning of the solution tank cap - filter ensures better cleaning of the floor, if the cap - filter is clogged
the cleaning solution does not circulate in the water system of the machine, thereby increasing cost savings and an
increase in environmental eco sustainability.
To carry out the cleaning of the solution tank filter - cap, proceed as follows:

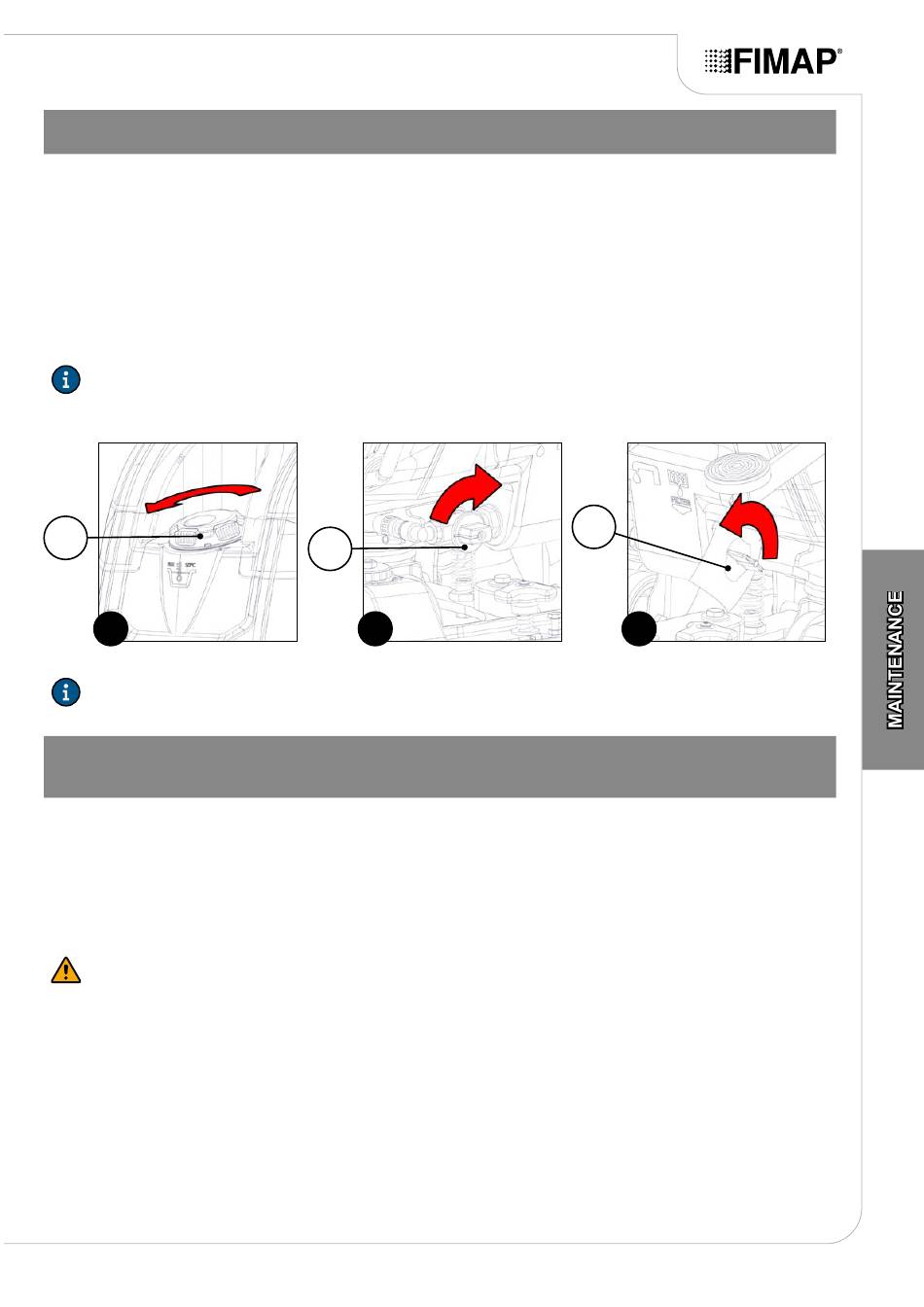

1. Remove the filling plug (1) at the front of the machine (Fig.1).
2. Tighten the detergent solution tap (2) (Fig.2).
3. Remove the filter cap (3) at the rear of the machine (Fig.3).
4. Clean the cap - filter with a stream of running water.
N.B.: if the dirt persists, use a brush with medium hardness bristles.
5. Repeat the operations in reverse order to reassemble all the parts.
1
1
N.B.: before screwing the cap onto the solution tank, check that the gasket is positioned correctly in the cap.
CLEANING DETERGENT CANISTER (VERSIONS WITH FSS SYSTEM – CLEANING DETERGENT CANISTER (VERSIONS WITH FSS SYSTEM –
FIMAP SOLUTION SAVER) FIMAP SOLUTION SAVER)
A thoroughly cleaning of the detergent canister will ensure a cleaner floor, thereby reducing costs and increasing
environmental sustainability.
To carry out the cleaning of the solution tank filter - cap, proceed as follows:
1. Position yourself to the side of the machine, grasp the handle (1) and turn the recovery tank (2) to its
maintenance position (Fig.1).
WARNING: to prevent unintentional rotation of the recovery tank, turn it until the rope (3) is fully tensioned
(Fig.2).
2. Disconnect the delivery hose (4) from the detergent canister (5) (Fig.3), before removing the male quick
coupling (6) from the female quick coupling (7) remember to press the locking lever (8)(Fig.4).
