B.4 Using the Prototyping Board
The Prototyping Board is actually both a demonstration board and a prototyping board.
As a demonstration board, it can be used to demonstrate the functionality of the RCM3400
right out of the box without any modifications to either board.
The Prototyping Board comes with the basic components necessary to demonstrate the
operation of the RCM3400. Two LEDs (DS1 and DS2) are connected to PD6 and PD7,
and two switches (S2 and S3) are connected to PD4 and PD5 to demonstrate the interface
to the Rabbit 3000 microprocessor. Reset switch S1 is the hardware reset for the RCM3400.
The Prototyping Board provides the user with RCM3400 connection points brought out con-
veniently to labeled points at header J1 and J3 on the Prototyping Board. Although header J1
is unstuffed, a 2 × 30 header is included in the bag of parts. RS-485 signals are available on
header J4, and RS-232 signals are available on header J5 (Serial Ports C and D) and header
J6 (Serial Ports E and F). A header strip at J5 allows you to connect a ribbon cable, and a 2 × 5
header is included in the bag of parts for optional installation at J6. The pinouts for these
locations are shown in Figure B-4.
User's Manual
PA0 PA1
PA2 PA3
PA4 PA5
PA6 PA7
PB1 PB2
PB3 PB4
PB5 PB6
PB7 PC0
PC1 PC2
PC3 PC6
PC7 /IORD
/IOWR STAT
SMODE1 SMODE0
PD0 PD4
PD5 PD6
PD7 PE0
PE1 PE2
PE4 PE5
PE6 PE7
PF0 PF1
PF4 PF5
PF6 PF7
PG0 PG1
PG2 PG3
PG5
PG4
PG6 PG7
/RES OUT RESET IN
+3.3 V GND
VBAT +3.3 V
GND GND

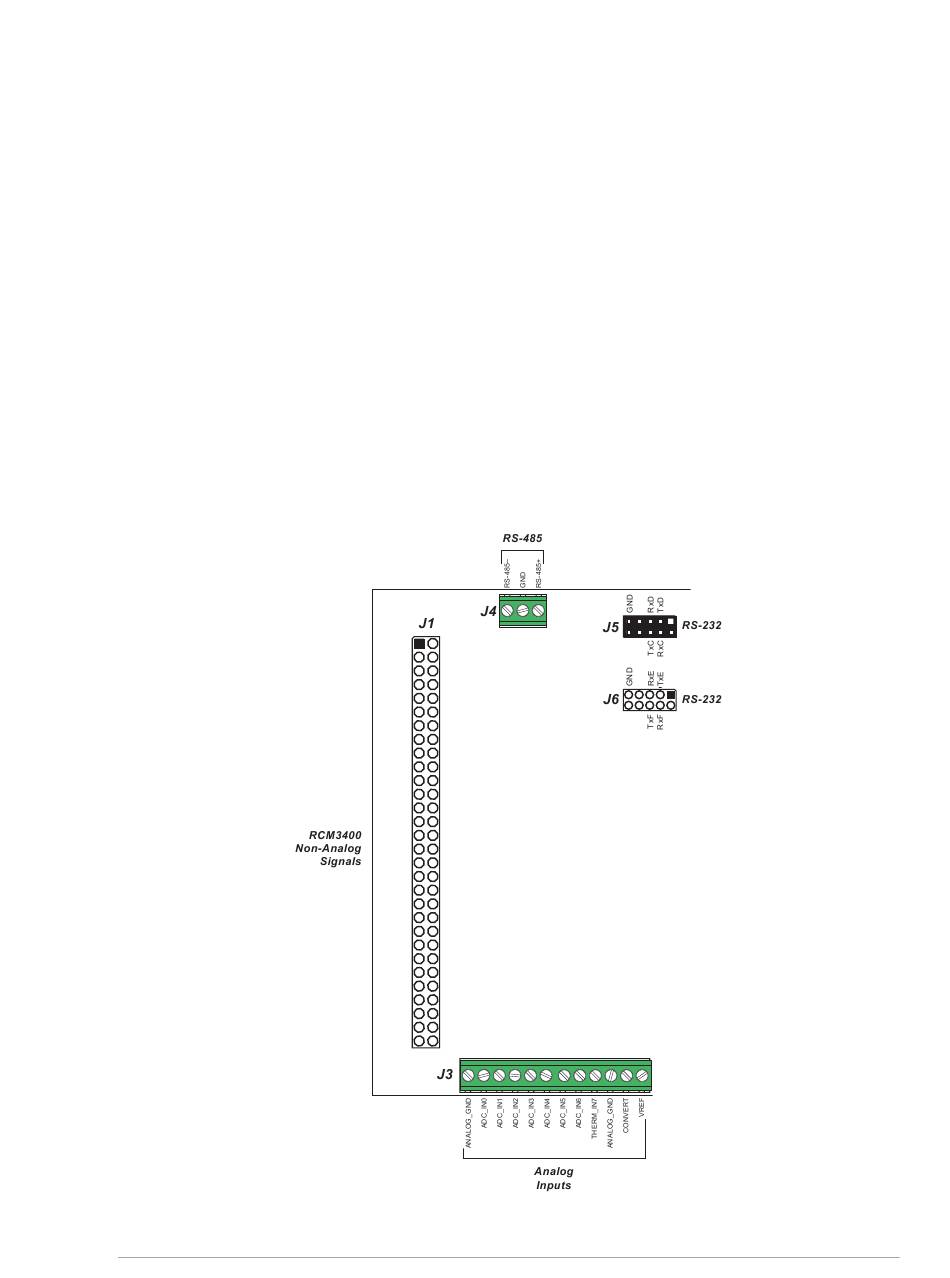

Figure B-4. Prototyping Board Pinout
