4.3 Serial Programming Cable

The programming cable is used to connect the serial programming port of the RCM3400
to a PC serial COM port. The programming cable converts the RS-232 voltage levels used
by the PC serial port to the CMOS voltage levels used by the Rabbit 3000.
When the connector on the programming cable is connected to the programming
PROG
header on the RCM3400 Prototyping Board, programs can be downloaded and debugged
over the serial interface.
The connector of the programming cable may be used on header J2 of the RCM3400
DIAG
Prototyping Board with the RCM3400 operating in the Run Mode. This allows the pro-
gramming port to be used as a regular serial port.

4.3.1 Changing Between Program Mode and Run Mode

The RCM3400 is automatically in Program Mode when the
gramming cable is attached, and is automatically in Run Mode when no programming
cable is attached. When the Rabbit 3000 is reset, the operating mode is determined by the
status of the SMODE pins. When the programming cable's
the SMODE pins are pulled high, placing the Rabbit 3000 in the Program Mode. When the
programming cable's
causing the Rabbit 3000 to operate in the Run Mode.
PC COM port
PA0 PA1
PA2 PA3
PA4 PA5
PA6 PA7
PB1 PB2
PB3 PB4
PB5 PB6
PB7 PC0
PC1 PC2
PC3 PC6
PC7 /IORD
/IOWR STAT
SMODE1 SMD0
PD0 PD4
PD5 PD6
PD7 PE0
PE1 PE2
PE4 PE5
PE6 PE7
PF0 PF1
PF4 PF5
PF6 PF7
PG0 PG1
PG2 PG3
PG4 PG5
PG6 PG7
/RES OUT RESET IN
+3.3 V GND
VBAT +3.3 V
GND GND
C1
IR1
R1
R2
RCM3400
PROTOTYPING
BOARD

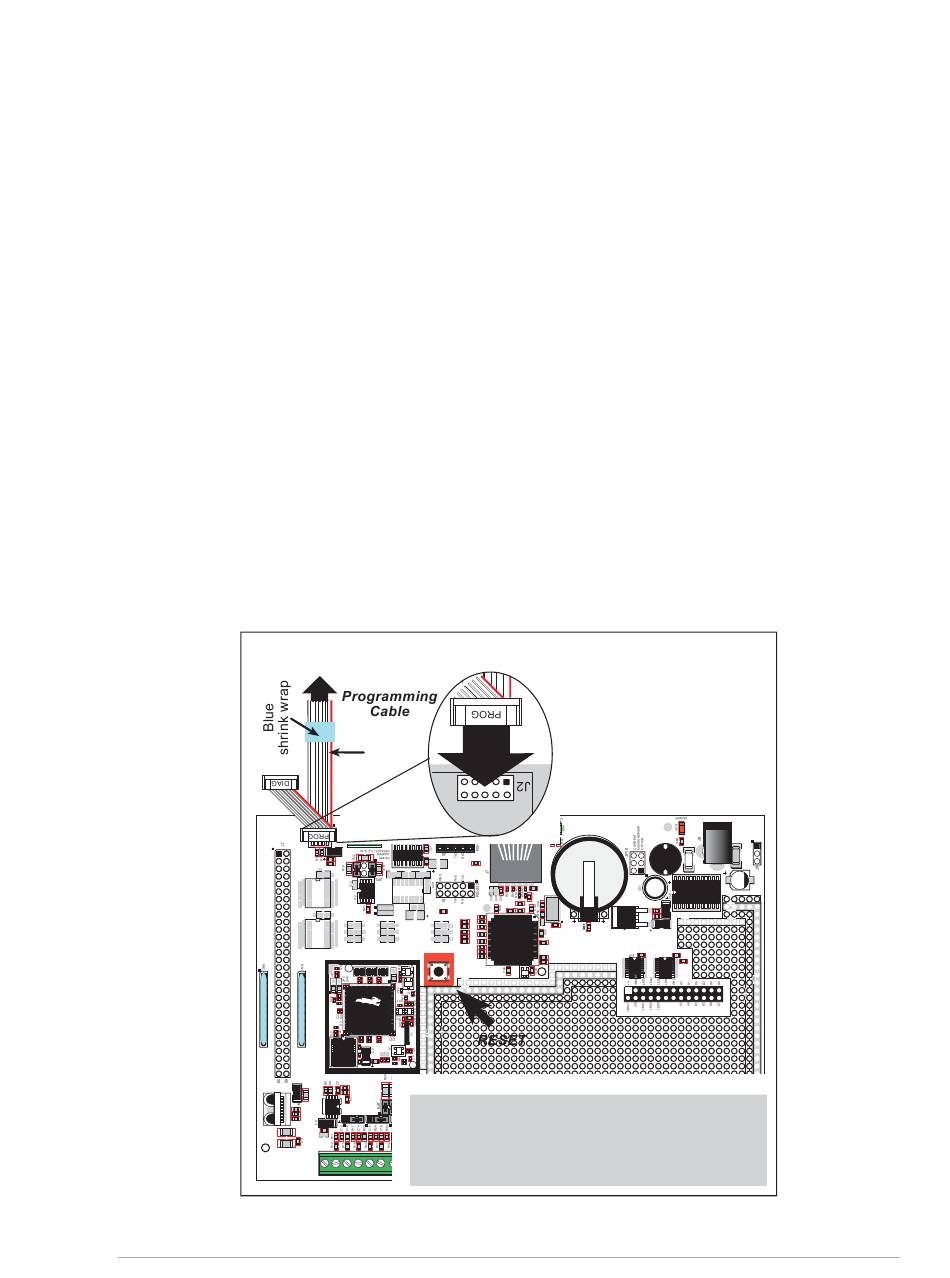

Figure 7. Switching Between Program Mode and Run Mode
