The RCM3400 Prototyping Board comes with a 220 Ω termination resistor and two 681 Ω
bias resistors installed and enabled with jumpers across pins 1–2 and 5–6 on header JP3,
as shown in Figure B-9.
5 3 1
C5
PA0 PA1
R10
PA2 PA3
C7
PA4 PA5
CX2
UX2
PA6 PA7
PB1 PB2
6 4 2
PB3 PB4
PB5 PB6
PB7 PC0
PC1 PC2 CX1
UX1
PC3 PC6
PC7 /IORD
/IOWR STAT
SMODE1 SMD0
PD0 PD4
485+
PD5 PD6
U3
PD7 PE0
PE1 PE2
U2
PE4 PE5
6
2
PE6 PE7
PF0 PF1 R21
PF4 PF5
C39
PF6 PF7
7
6
PG0 PG1
C28
PG2 PG3
PG4 PG5
PG6 PG7
/RES OUT RESET IN
485–
+3.3 V GND
VBAT +3.3 V
GND GND
C1
C3
IR1
R4
R5
R3
C4
R1
R8
R2
J3
RCM3400
PROTOTYPING
BOARD
GND AIN0 AIN1 AIN2 AIN3 AIN4 AIN5 AIN6 THERM GND CNVRT VREF

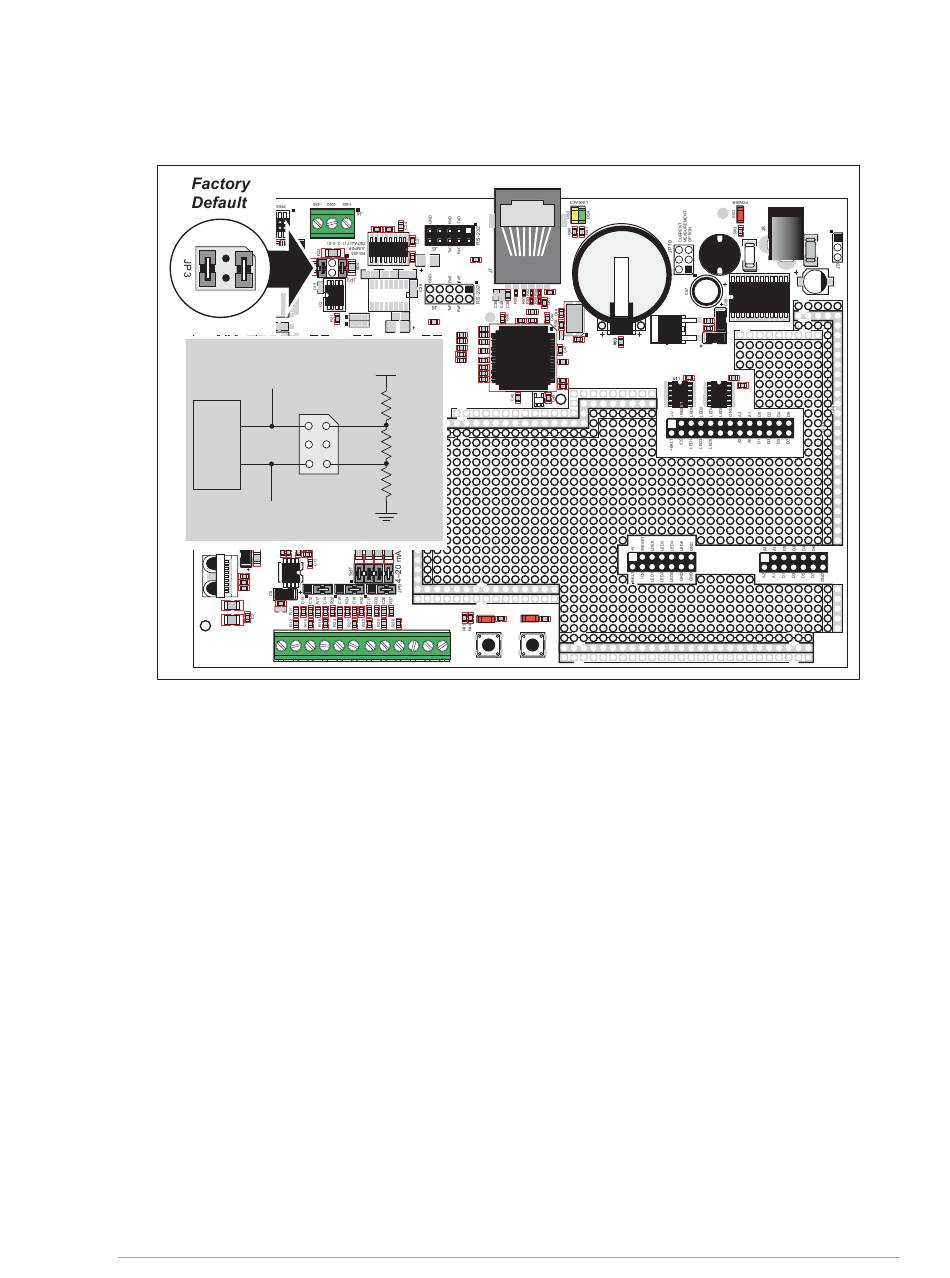

Figure B-9. RS-485 Termination and Bias Resistors
For best performance, the termination resistors in a multidrop network should be enabled
only on the end nodes of the network, but not on the intervening nodes. Jumpers on boards
whose termination resistors are not enabled may be stored across pins 1–3 and 4–6 of
header JP3.
