A.6 Jumper Configurations

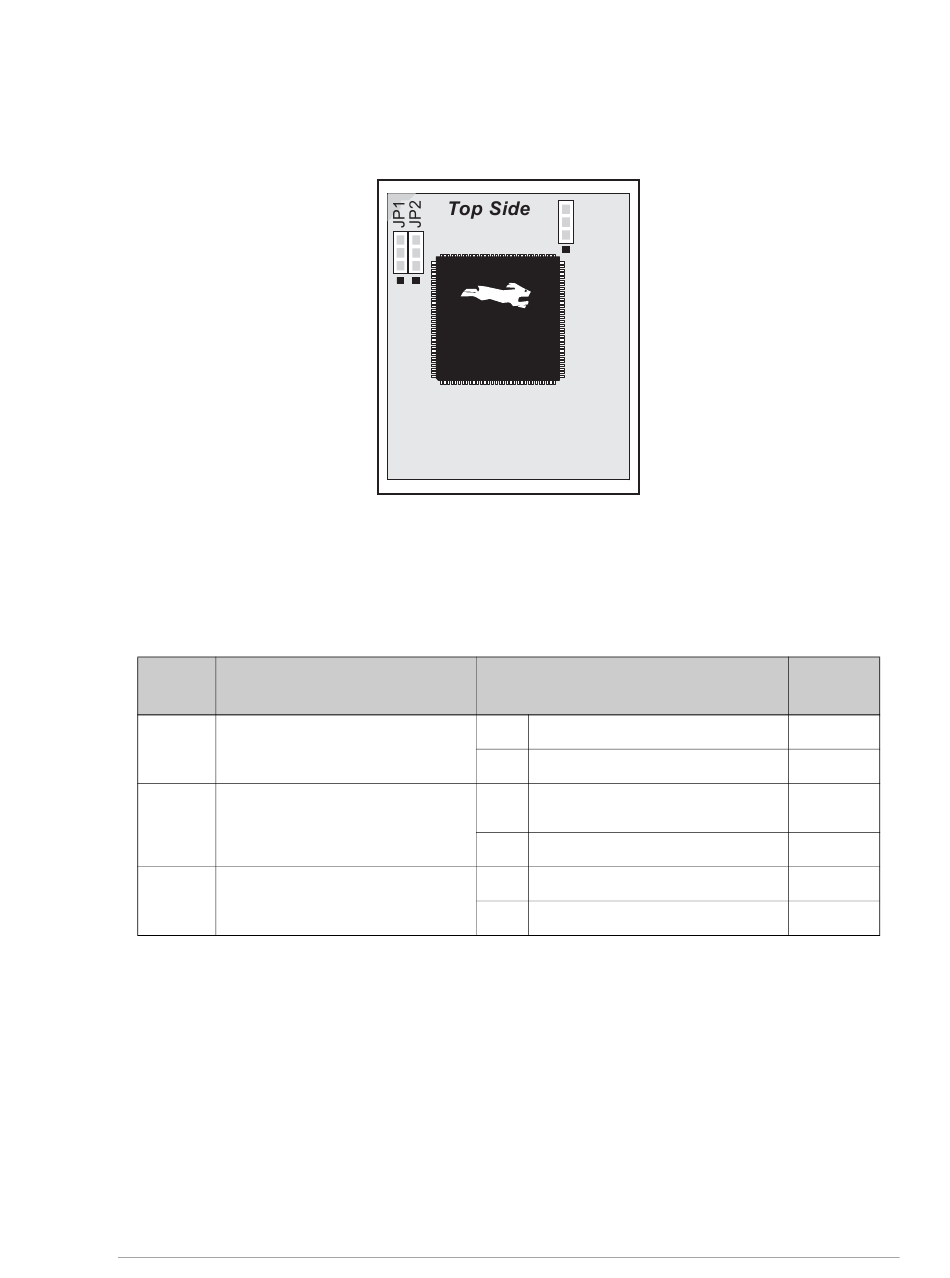

Figure A-6 shows the header locations used to configure the various RCM3400 options
via jumpers.
Figure A-6. Location of RCM3400 Configurable Positions
Table A-9 lists the configuration options.
Header
Description
JP1
Flash Memory Size
JP2
Flash Memory Bank Select
JP3
SRAM Size
NOTE: The jumper connections are made using 0 Ω surface-mounted resistors.
User's Manual
Table A-9. RCM3400 Jumper Configurations
JP3
Pins Connected
1–2 128K/256K
2–3 512K
1–2 Normal Mode
2–3 Bank Mode
1–2 128K/256K
2–3 512K
Factory
Default
RCM3410
RCM3400
×
RCM3410
RCM3400
69
