4. Bluetooth（BTDM，BTMM）
Turn on the Bluetooth on the terminal device, search for the corresponding device based on the Bluetooth
information on the self-check page, and input the password to connect to the device.
Note:
① The "POWER" light of the device will blink within the first 30 seconds after powering on; once Bluetooth is
successfully connected after 30 seconds, this light will stay on.
② Bluetooth information can be set through the settings software.
5. Ethernet
① Insert the Ethernet cable, enter the settings mode, refer to section 2.4.3, item 2, and select "Enable DHCP
with 5-second delay confirmation". The device will automatically obtain an IP address and save it, which will be
used as the device's static IP address thereafter.
② Use the settings software to configure the corresponding IP address.
Note: When the router's network segment changes, or when there is an IP address conflict within the local area
network, the settings need to be reconfigured.

2.3.2 Cash Drawer Interface

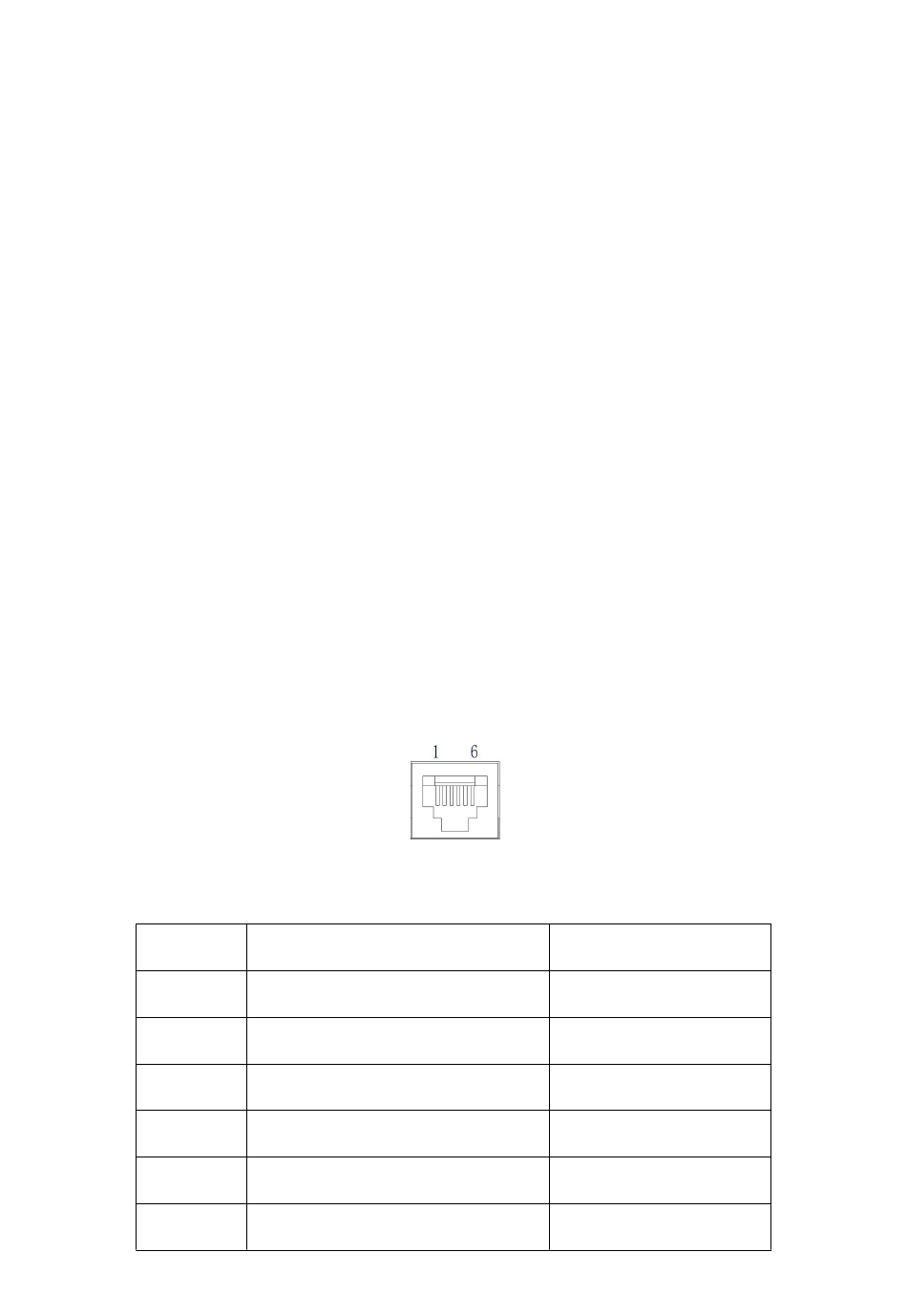

The cash drawer interface of the SP-POS5813 printer adopts an RJ-11, 6-pin socket, as shown in Figure 2-3-1.
The pin definitions are as follows in Table 2-3-2:
PIN NO.
1
2
3
4
5
6
Fig. 2－3－1 Cash drawer interface
Signal
Chassis Ground
Cash drawer driver signal
On/off signal of cash drawer
+12VDC
N.C
Signal ground
Tabel 2－3－2 Definition of Cash Drawer Interface Pin
Direction
---
output
input
Output
---
---
