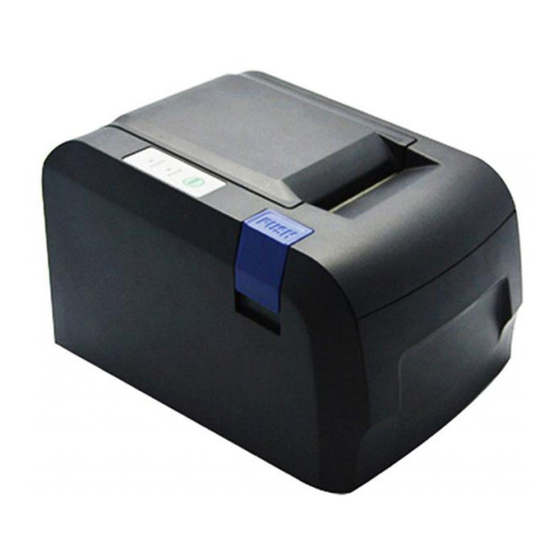

- Page 1 SPRT SP－POS58Ⅳ Line Thermal Printer User’s Manual （VER1.05） Beijing Spirit Technology Development Co, Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
SPRT Content Introduction..............................１ Chapter 1 Characteristic and Specification..................２ 1.1 Printing specification.......................... ２ 1.2 Printing Paper............................２ 1.3 Printing Font............................２ 1.4 Interface............................... ２ 1.5 Printing Control Command........................３ 1.6 Power Supply............................３ 1.7 Operation Environment........................３ 1.8 Outline Dimension..........................３ Chapter 2 Installation and Operation..................... ４... -
Page 3: Introduction
SPRT Introduction SP- POS58IV printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless avoiding the vexation of regular maintenance. SP-POS58Ⅳ printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Chapter 1 Characteristic And Specification
SPRT Chapter 1 Characteristic and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 70mm/s (max) ( 25% printing density) ● Reliability: Printing head life: 60km Using condition: ＊... -
Page 5: Printing Control Command
SPRT ● Bluetooth interface: Support Bluetooth2.0/Bluetooth4.0 (Single mode BLE) ● Cash drawer control DC12V，1A，6-pin RJ-11 socket. 1.5 Printing Control Command ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. -
Page 6: Chapter 2 Installation And Operation

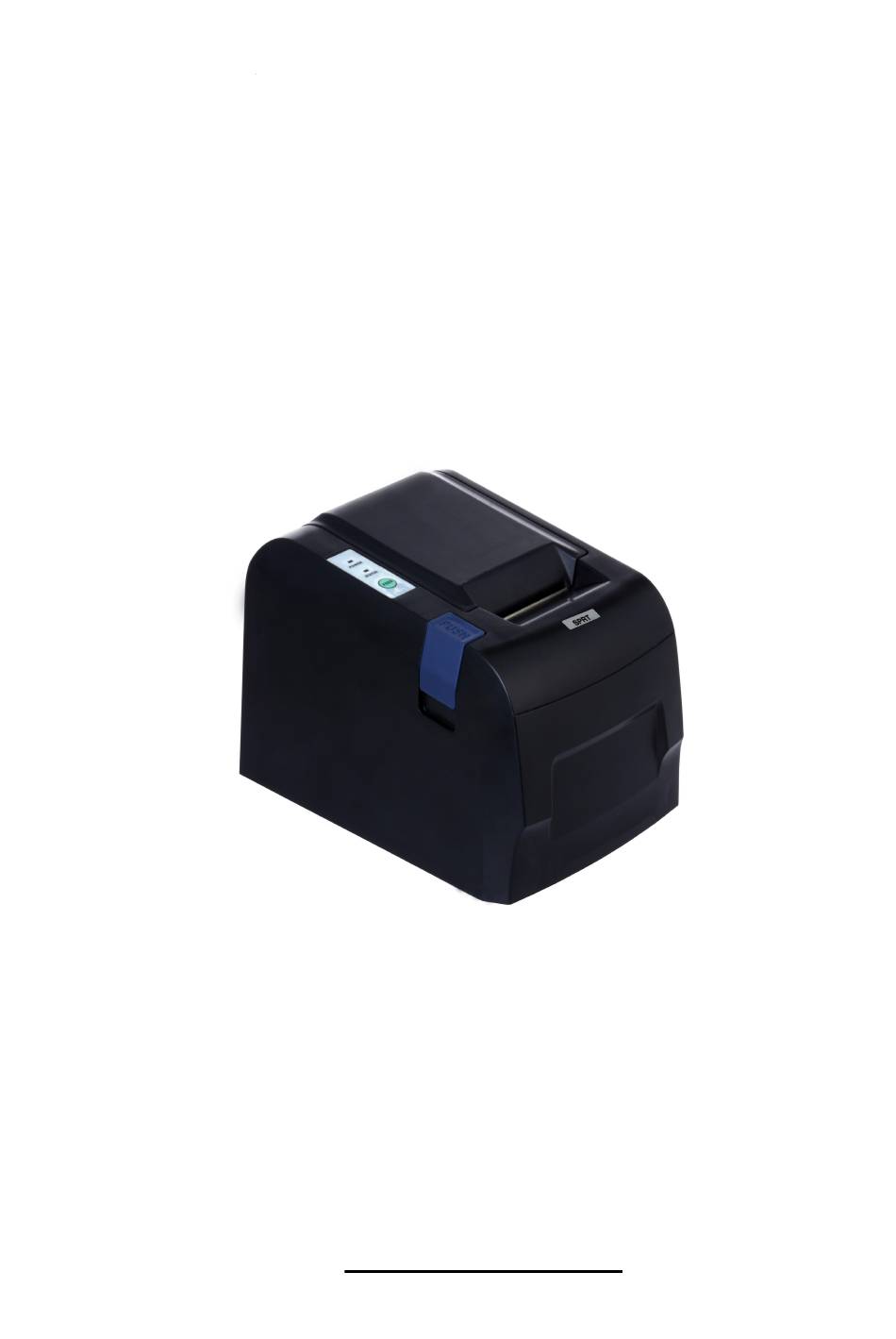

SPRT Chapter 2 Installation and Operation 2.1 Printer Appearance ４... -
Page 7: Paper Installation
Communication interface 2.2 Paper Installation SP-POS58IV adopts 57.5 width thermal paper. The steps of thermal paper installation are as the following: 1. When there is no paper in the print head, pls don’t press【FEED】button to avoid affecting the life of printing head. Opening open button to open the case cover and change paper. - Page 8 The baud rate and data structure in RS232 interface mode are set to 9600bps, 8 data bits, no parity bit and 1 stop bit. The serial interface of SP-POS58IV can be connected with standard RS-232C interface. When connected to IBM PC or compatible machine, connection can accord to the below chart 2-4 shows.
-
Page 9: Parallel Interface Connection
Fig.2-4 Connection between SP-POS58ⅣS and IBM PC Serial Interface 2.3.2 Parallel Interface Connection The Parallel interface of SP-POS58IV printer is compatible with CENTRONICS, supports BUSY and /ACK handshaking protocol, it uses DB25 socket (male), the pin order of serial port is as below chart 2-5 shows Fig2-5. -
Page 10: Usb Interface
SPRT Pulling up to HIGH level signal by a resistor indicates the printer is online. Pulling up to HIGH level signal /ERR by a resistor indicates there is no error. 14,16,17,19 No connection 18、20-25 Grounding logical 0 level Fig 2-2. Pin Assignment of Parallel Interface Note:（1）... -
Page 11: Cash Drawer Interface
SPRT 2.3.5 Cash Drawer Interface The cash drawer interface of SP-POS58IV is RJ-11, 6pin socket, as below, The pin assignment of the cash drawer interface is as follows: Pin No. Signal Direction Chassis Ground Cash drawer driver signal Cash drawer on/off status signal... -
Page 12: Status Indicator Light And Buzzer
SPRT 2.4.5 Status Indicator light and Buzzer During normal working, red STATUS light is off. If the working status is abnormal, the red indicator light will flicker to alarm error. Setting Buzzer can also alarm the abnormal working status. Light status... -
Page 13: Upgrade Mode
1s on and 1s off status. At this time, the printer enters into Upgrade Mode. Chapter 3 Printing Driver Installation Printing driver for SP-POS58IV can be downloaded from the company of our website (www.sprt-printer.com). After downloading, the name of driver software is SP-DRV211. During installing driver software, choose printer model “58 thermal series”. - Page 14 SPRT GB GB2312-80(Chinese): 24×24 dots，3.00（W）×3.00（H）mm. ·RS232 interface: DB25 socket (female), supports XON/XOFF and RTS/CTS protocol. Baud rate: 1200~115200bps optional. Data structure: 1 start bit + 8 data bits + 1 stop bit. Parity optional. ·Parallel interface: DB25 socket (male) or 36pins, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.
