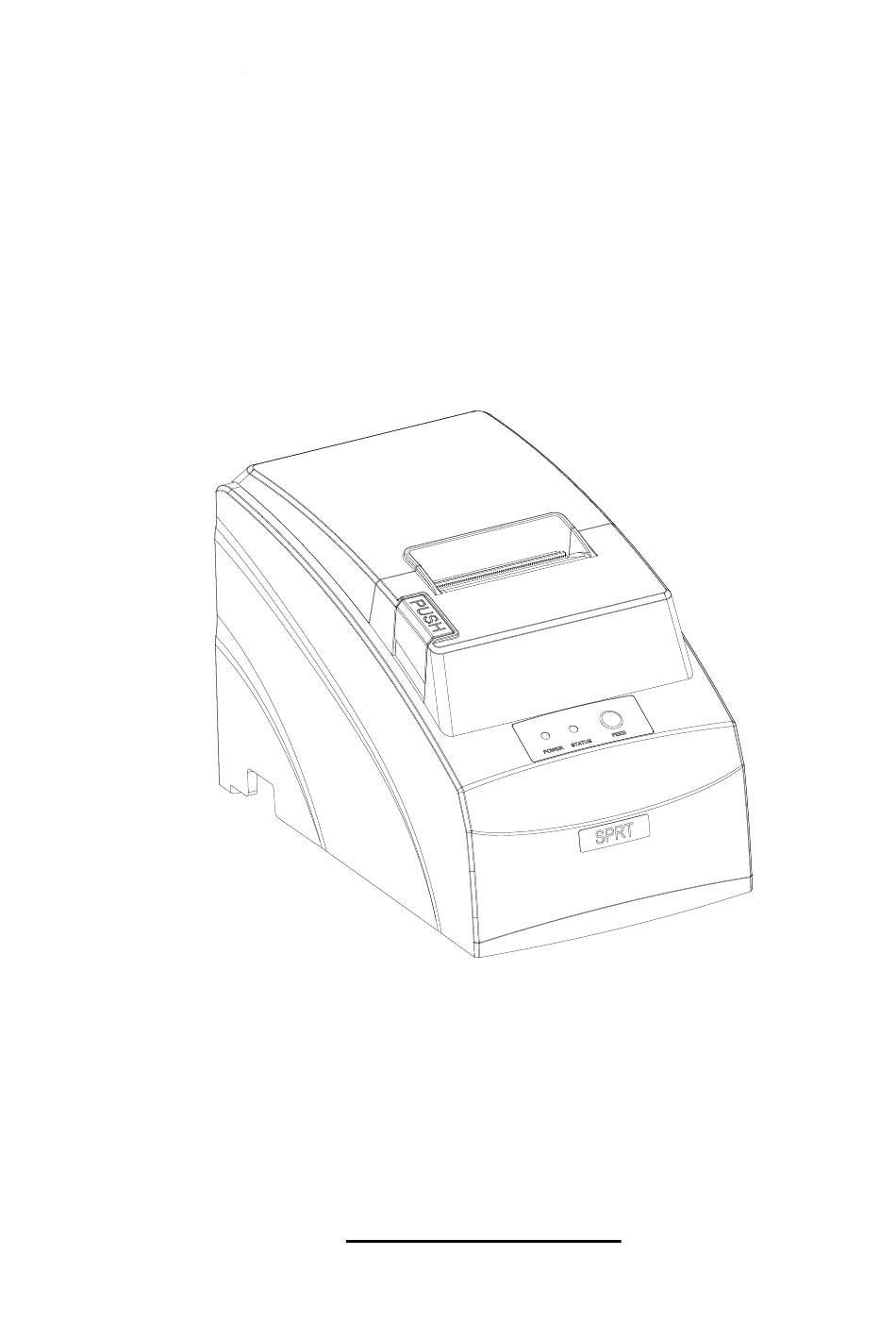

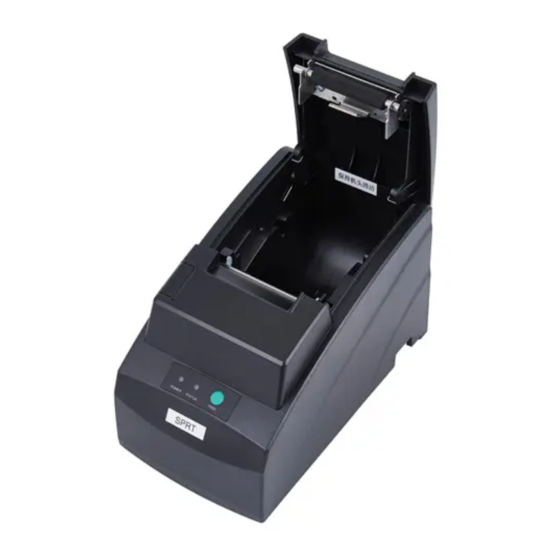

- Page 1 SPRT SP－POS58VI Thermal Printer User’s Manual （VER1.02） Beijing Spirit Technology Development Co, Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction........................... 1 Chapter 1 Characteristic and Specification................2 1.1 Printing specification......................2 1.2 Printing Paper........................2 1.3 Printing Font...........................2 1.4 Interface..........................2 1.5 Printing Control Command....................3 1.6 Power Supply.........................3 1.7 Operation Environment......................3 1.8 Outline Dimension.........................3 Chapter 2 Installation and Operation..................3 2.1 Printer Appearance.......................3 2.2 Paper Installation........................ -
Page 3: Introduction
SP-POS58VI printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC POS, bank POS and all kinds of receipts print... -
Page 4: Chapter 1 Characteristic And Specification
SPRT Chapter 1 Characteristic and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: max 70mm/s (valid content of each line isn’t over 25%) ● Reliability:... -
Page 5: Printing Control Command
SPRT ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print command: supports the printing of bit map graphics with different density ●... - Page 6 SPRT Fig2-1 Printer outer appearance Fig2-1 Printer outer appearance (back) ４...
-
Page 7: Paper Installation
SPRT 2.2 Paper Installation SP-POS58VI adopts 58mm width thermal paper. The steps of thermal paper installation are as the following: 1. When there is no paper in the print head, pls don’t press【FEED】button to avoid affecting the life of printing head. Opening open button to open the case cover and change paper. -
Page 8: Parallel Interface Connection
SPRT bits, no parity bit and 1 stop bit. The serial interface of SP-POS58VI can be connected with standard RS-232C interface. When connected to IBM PC or compatible machine, connection can accord to the below. Fig. Connection between SP-POS58VIS and IBM PC Serial Interface 2.3.2 Parallel Interface Connection... -
Page 9: Usb Interface
Note: （1）“In” denotes inputting to the printer,“Out” denotes outputting from the printer. （2）Signal level is TTL standard. 2.3.3 USB Interface Standard B type USB interface 2.3.4 Cash Drawer Interface The cash drawer interface of SP-POS58VI is RJ-11, 6pin socket, as below, ７... -
Page 10: Power Connection
Cash drawer on/off status signal +12V DC Cash drawer on/off status signal ground 2.3.5 Power Connection SP-POS58VI uses external power supply as 12VDC±10 ％ , 2A, one core model, as below: 2.4 Buttons and Indicators 2.4.1 Power switch Control on/off status of power. -
Page 11: Self-Test
SPRT Flicker 1 time and stay 1s Alarm 1 time Paper out and waiting for loading and stay 1s off paper Print head is overheated and just Flicker 2 times and stay Alarm 2 times waiting for back to normal... -
Page 12: Chapter 3 Printing Driver Installation
Chapter 3 Printing Driver Installation Printing driver for SP-POS58IV can be downloaded from the company of our website (www.sprt-printer.com). After downloading, the name of driver software is SP-DRV211. During installing driver software, choose printer model “58 thermal series”. About other operation, pls refer to the detailed installation manual.
