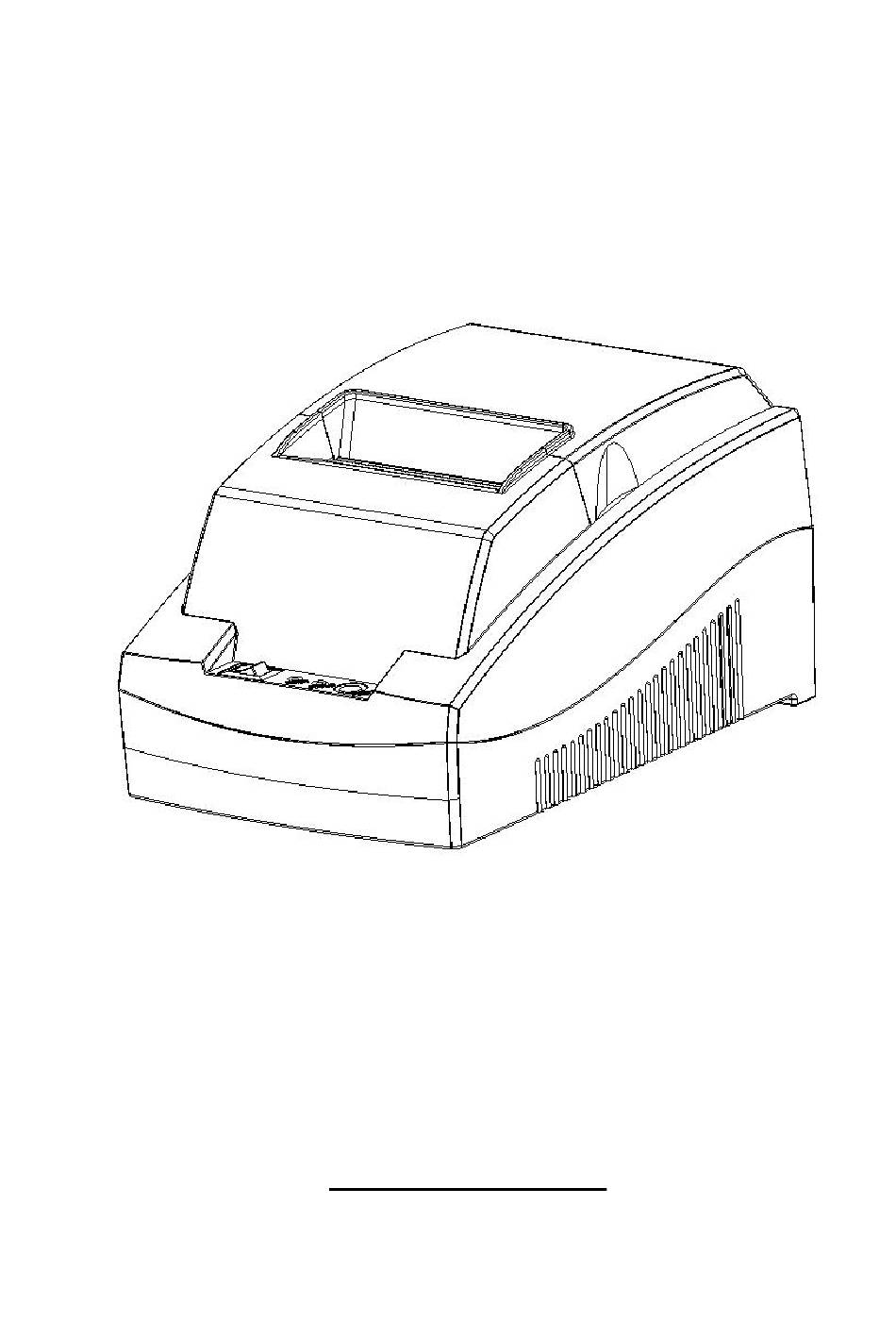

- Page 1 SPRT ® SP-POS587 Thermal Printer User’s Manual （VER1.02） Beijing Spirit Technology Development Co, Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Chapter 1 Characteristics and Specification....................1 1.1 Printing specification........................1 1.2 Printing Paper..........................1 1.3 Printing Font........................... 1 1.4 Interface............................2 1.5 Printing Control Command......................2 1.6 Power Supply..........................2 1.7 Operation Environment.........................2 1.8 Outline Dimension......................... 2 Chapter 2 Installation and Operation......................3 2.1 Printer Appearance........................3 2.2 Paper Installation........................... - Page 3 SP-POS587 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC POS, bank POS and all kinds of receipts print.
-
Page 4: Chapter 1 Characteristics And Specification
Chapter 1 Characteristics and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 60mm/s (valid content of each line isn’t over 25%) ● Reliability: Printing head life:50km Using condition: ＊... -
Page 5: Interface
1.4 Interface ● USB interface: Standard B type USB interface. ● Cash drawer control DC12V,1A,6-pin RJ-11 socket 1.5 Printing Control Command ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. -
Page 6: Chapter 2 Installation And Operation
Chapter 2 Installation and Operation 2.1 Printer Appearance Printer appearance like below Fig 2－1－1,Fig 2－1－2. Printing Paper Case Cover Plastic Case Power Button Power Indicato Status Indicator Feed Fig2－1－1 Printer Appearance... -
Page 7: Paper Installation
Fig2－1－2 Printer appearance（back） 2.2 Paper Installation SP-POS587 adopts 58mm width thermal paper. The steps of thermal paper installation are as the following: 1. When there is no paper in the print head, pls don’t press【FEED】button to avoid affecting the life of printing head. Opening open button to open the case cover and change paper. -
Page 8: Cash Drawer Interface
+12V DC Cash drawer on/off status signal ground Table2－3－2 The pin assignment of the cash drawer interface 2.3.3 Power Connection SP-POS587 uses external power supply as 110VAC~220VAC、 50Hz 、 1A, the power socket is two core model, as below: Fig2-3-3Power Socket... -
Page 9: Buttons And Indicators
2.4 Buttons and Indicators 2.4.1 Power switch Control on/off status of power. is off status. Press “－”is on status. 2.4.2 Feed Button 【FEED】is paper feed button. Print command can enable or disable 【FEED】 status to be on or off. Under enable status, hold down【FEED】, start paper feeding, release the button paper feeding stops. -
Page 10: Self-Test
Flicker 3 times and stay Alarm 3 times Thermal print head damaged, needs 1s off and stay 1s off to repair. Table 2－4 2.5 Self-test The self-test can check the condition of printer. In the self-test, software version, interface type, characters, etc will be printed. If the printer prints out the self-test receipt correctly, it means the printer works normally except the interface with host. -
Page 11: Chapter 3 Printing Driver Installation
Chapter 3 Printing Driver Installation Printing driver for SP-POS587 can be downloaded from the company of our website (www.sprt-printer.com). After downloading, the name of driver software is SP-DRV211. During installing driver software, choose printer model “58 thermal series”. About other operation, pls refer to the detailed installation manual. -
Page 12: Appendix 1 Performance Index
Appendix 1 Performance Index Performance Index Printing Thermal line method Resolution 8dots/mm,384dots/line Printing Printing speed Max:60mm/s（25% Printing Density） Characte ristics Effective Printing 48mm Method Paper Width 57 mm±0.5mm Self-defined Support Character Support Different Density Diagram and Image Downloaded Bitmap Printing Printing Chinese GB18030(Chinese):24×24... - Page 13 Paper type Thermal paper 57×Ø 60mm Paper 0.06mm～0.08mm thickness Paper Paper Supply Spec Drop-in easy loading Method Paper Cutting Manual Method Outline 175mm×117mm×99mm (L×W×H) Dimension Physical Weight 475 g （Without paper roll） Operation 0～50℃（Operation Temp）/10～80%(Relative Temp/Humidity Humidity) Environ ment Storage －20～60℃...
