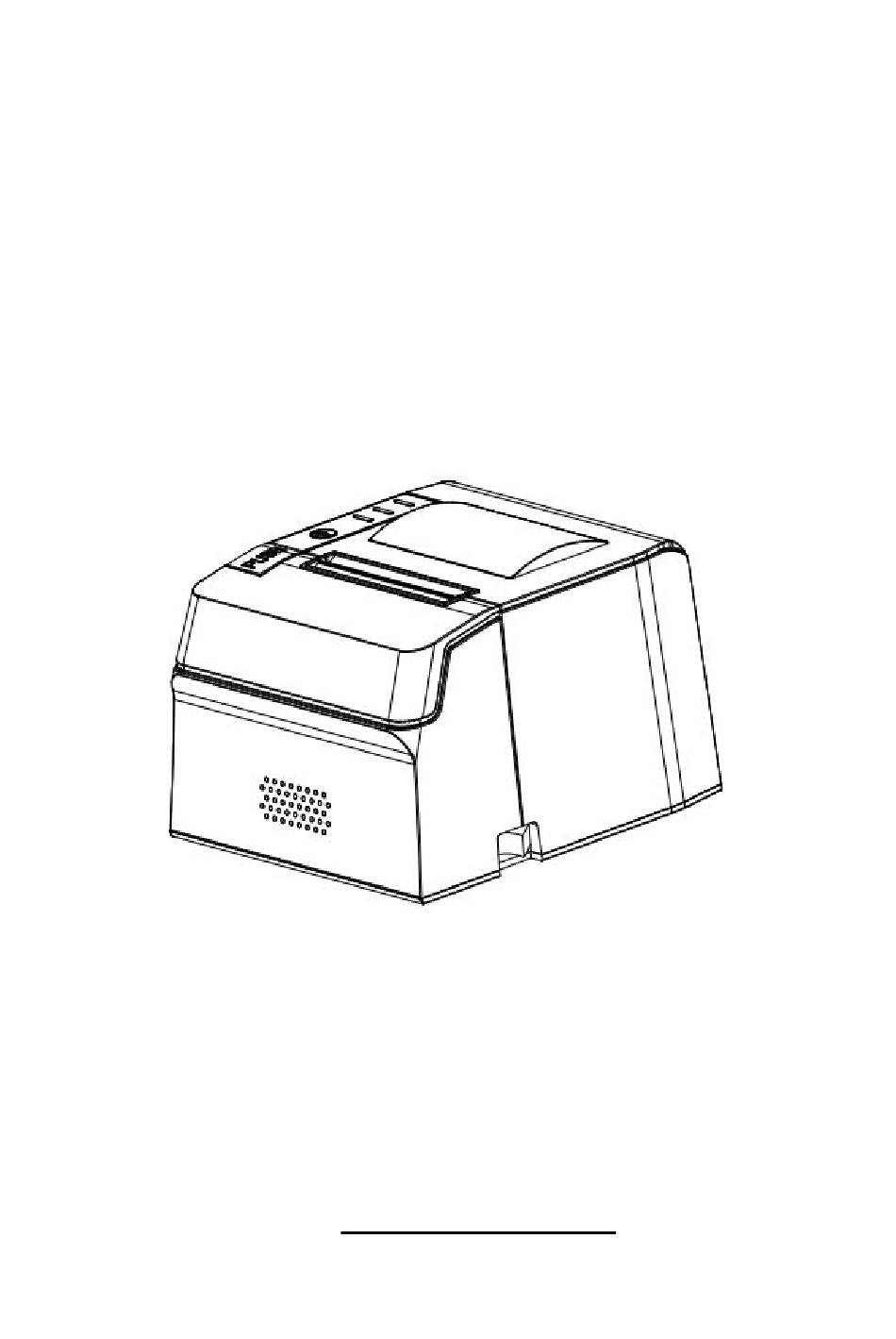

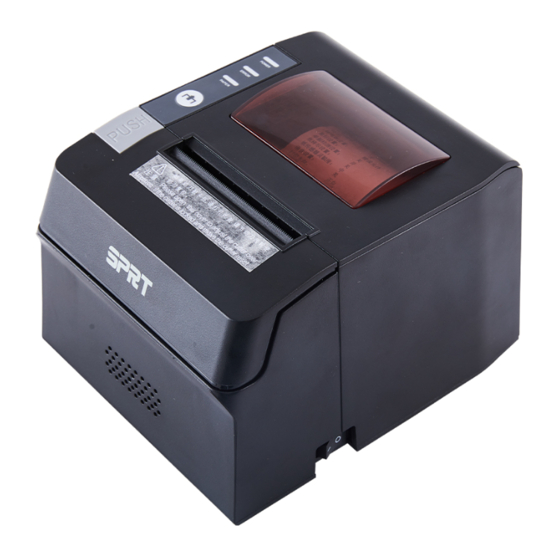

- Page 1 SPRT ® POS Thermal Receipt Printer （SP-POS892） User’s Manual （Ver 1.04） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction................................1 Chapter 1 Feature and Performance.........................1 1.1 Print Performance............................1 1.2 Print Paper..............................2 1.3 Print Font................................. 2 1.4 Interface................................2 1.5 Print Control Commands..........................3 1.6 Power Supply..............................3 1.7 Operation Environment..........................3 1.8 Outline Dimension............................3 1.9 Model classification............................4 Chapter 2 Operation Specification........................4 2.1 Printer Appearance............................ -
Page 3: Introduction
Introduction POS892 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. POS892 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
● Valid print width: 72mm 1.2 Print Paper ● Thermal paper roll model: TF50KS－E (Japan paper co.ltd) AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Paper Type－－Thermal Paper 79.5 xф80mm（max） Inner Diameter－－－13mm (min.) Thickness －－－ 0.06mm～0.08m 1.3 Print Font ● ANK Character Set 12×24 dots,1.5（W）×3.00（H）mm ●... -
Page 5: Print Control Commands
Standard USB interface ● Cash Drawer Control DC24V, 1A, 6-pin RJ-11 socket. 1.5 Print Control Commands ● Character print commands: support double-width, double height print of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density ●... -
Page 6: Chapter 2 Operation Specification
SP-POS892U 220mm/s SP-POS892US RS－232C、USB SP-POS892E 100M Ethernet 200mm/s SP-POS892UEd USB、100M Ethernet Chapter 2 Operation Specification 2.1 Printer Appearance Printer part name diagram:... -
Page 7: Paper Installation
Figure 2-1 Printer Part Name Diagram 2.2 Paper Installation 2.2.1 Paper Loading POS892 adopts 79.5mm±0.5mm width thermal paper roll. Steps of Loading Thermal Paper are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 8: Interface
Cutting Error. 2.3 Interface 2.3.1 Serial Interface The serial interface of SP-POS892 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB9 socket (female). The pin order of the serial port is as Fig.2-2 shows: Signal Pin No. -
Page 9: Ethernet Interface
Signal “MARK” means the host is busy and Printer can not receive data.Signal “SPACE” means the printer is ready to receive data. —— Signal Ground 2.3.2 Ethernet Interface The model with Ethernet interface use RJ45 Network socket. The appearance is as Fig.2-3 shows: Fig2-3 Ethernet Interface 2.3.3 USB Interface... -
Page 10: Power Connection
Fig.2-5 Cash Drawer Interface The pin assignment is as below: Pin No. Signal Direction Chassis Ground —— Cash drawer driver signal 1 Cash drawer on/off status signal +24VDC —— Cash drawer driver signal 2 Signal ground —— 2.3.5 Power Connection POS892 uses the external power supply adopter as 24V±10％,1.5A, power socket is A-1009-3P model, as Fig. -
Page 11: Buttons And Indicators
2.4 Buzzer, Buttons and Indicators There is one button and one inner buzzers and three indicators on POS892 printer. 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【FEED】 button, then the paper presenting driver starts up and paper fed into the printer;... - Page 12 3. Auto-recoverable error, the indicator flickers and the buzzer sounds persistently. 4. Paper out, PAPER OUT indicator lights and the buzzer sounds persistently. When the paper case cover is open, whether the paper is out or not will not be tested, but just testing whether there is paper in printer.
-
Page 13: Power On Status
ERROR Indicator Flickering ERROR Type ERROR Description Type LED Flickers constantly: printing head Auto-recoverabl over-heat; upper case cover opening e error error during printing 2.5 Power on status Paper cover close when power off. Press the power button, the error indicator and paper out indicator flash twice alternately and out, then printer will be on the normal working mode. -
Page 14: Hexadecimal Printing
Fig.2-7 2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover; 2.Hold down 【FEED】 button,and connect with power; wait for the alarm and close the paper cover. 3.The printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump,... -
Page 15: Parameter Setting
This means the printer has entered hexadecimal printing mode, and under this mode, all of the input will be printed out as hexadecimal number, feed one line with single-click of “FEED” button, after 3 times, it will print out “*** Completed ***”, and exit hexadecimal printing mode. - Page 16 Quick enter method: Open the paper case cover firstly when printer is power off. Hold the 【FEED】button and switch on the printer, then release the 【FEED】button quickly, then printer enter the program upgrade mode. At this time, the status indicator flash once a second. Notice: 1.
- Page 17 FEED FEED FEED 9600 19200 38400 57600 FEED FEED FEED FEED FEED 4800 2400 1200 115200 Language: FEED FEED China-BIG5 China English FEED Font: FEED 12×24 9×17 FEED Print density: FEED FEED MEDIUM HIGH FEED Print speed: FEED FEED FEED 250mm/s 220mm/s 150mm/s...
