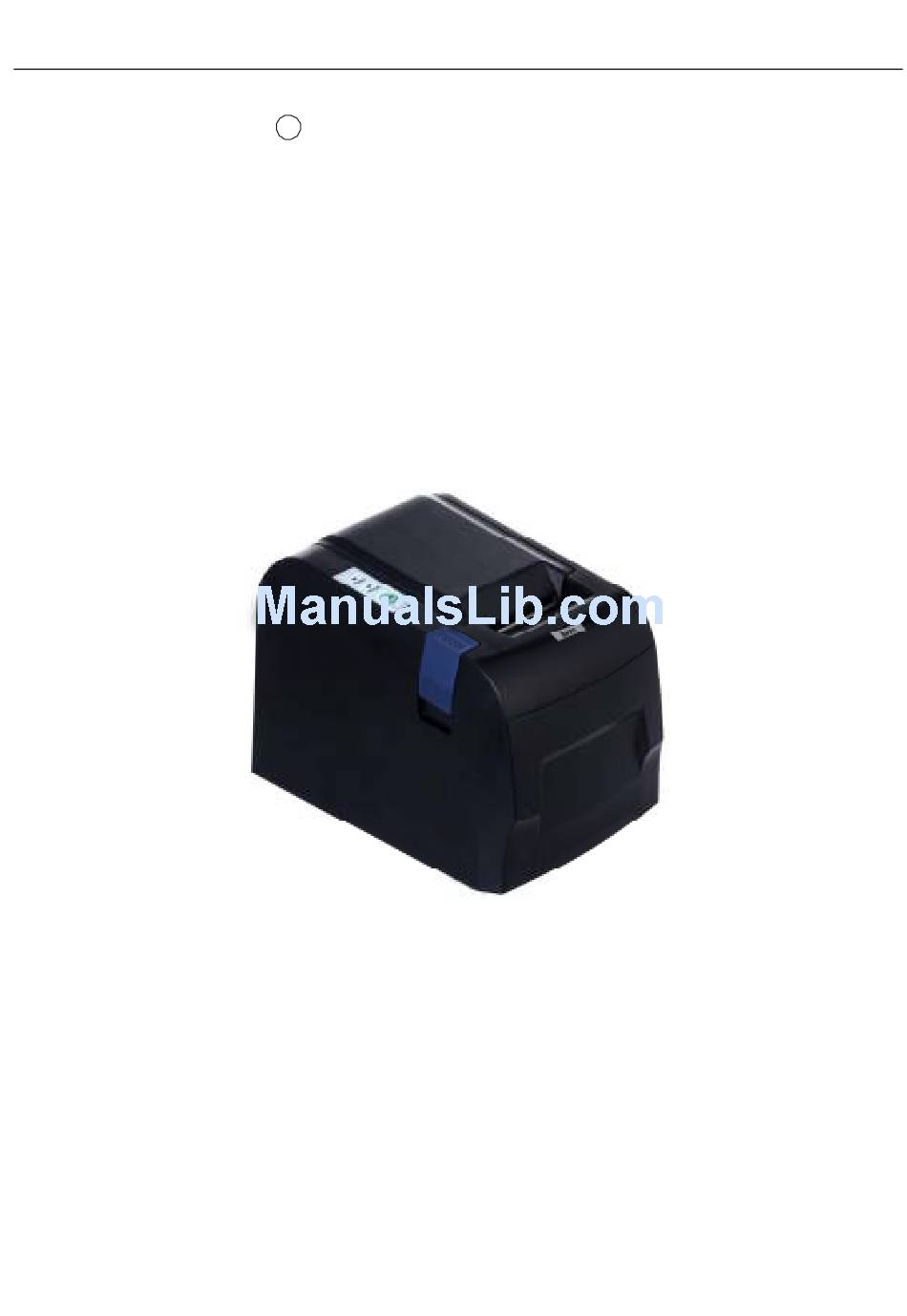

  • Page 1 SPRT SPRT SP-POS58Ⅳ Line Thermal Printer User’s Manual Beijing Spirit Technology Development Co, Ltd.

  • Page 2: Table Of Contents

    SPRT Content Content............................... 3 Introduction............................3 Chapter1 Characteristic Specification ................... 3 1.1 Printing Specification......................3 1.2 Printing Paper ........................3 1.3 Printing Font........................4 1.4 Printing Interface......................... 4 1.5 Printing Control Command ....................4 1.6 Power Supply ........................4 1.7 Operation Environment .......................

  • Page 3: Introduction

    SPRT Introduction POS58 printer is a new type line thermal printer ,it features in fast Ⅳ speed printing, low ribbon needless avoiding the printing noise, high reliability, perfect printing quality and vexation of regular maintenance. POS58Ⅳ printer: small in outline dimension, simple operation, and extensive application,...

  • Page 4: Printing Font

    SPRT Thermal paper: Width－－－－－－－－ 57.5±0.5mm ● Outer Diameter －－－80mm（max.） Inner Diameter －－－ 13mm（min.） Thickness－－－－－－ 53～60g／m Printing Font IBM Character set II (ANK): ● 12×24dots，1.25（W）×3.00（H）mm; GB2312-80(Chinese): ● 24×24dots，3.00（W）×3.00（H）mm. Interface Serial interface (POS58 ● DB25 socket (orifice), supports RTS/CTS protocol, Baud rate: 1200~115200bps. Adjustable.

  • Page 5: Operation Environment

    SPRT ● DC12V±10％，2A，A-1009-3P Power socket Operation Environment Operation temperature:5～40℃ Relative humidity:10～80％ Storage temperature:-20～60℃ Relative humidity:10～90% Outline Dimension ● 138（W）×200×(L)×120(H) mm...

  • Page 6: Chapter 2 System Installation And Operation

    SPRT Chapter 2 Installation and Operation 2.1Printer Appearance Such as figure 2－1，figure 2－2 Figure 2－1 Printer appearance（Planform）...

  • Page 7: Paper Installation

    SPRT Figure 2－2 Printer appearance（back view） 2.2Paper Installation POS58Ⅳadopts57.5±0.5mm width thermal paper. The steps of thermal paper installation are as the following: 1.When there is no paper in the print head, please don’t press【FEED】button ,avoiding to influence the printing head life; as figure2-3，hold down【PUSH】，so open the paper case...

  • Page 8: Interface Connection

    SPRT Figure 2－3 Paper Installation Please don’t draw the paper forwards or backwards with hands . Interface Connection 2.3.1 Serial Interface Connection The serial interface of SP-POS58 Ⅳ printer is compatible with RS232C standard, supports RTS/CTS handshaking protocol, it uses DB25 socket (orifice),the pin order of...
  • Page 9 SPRT Fig.2-4Pin Order of the Serial Port The pin assignment of serial interface is shown in Fig.2-1: Pin No. Signal Source Description Host Printer receives data from host 2 RXD 3 TXD Printer Printer transmits control code X-ON/X-OFF and data to host Signal “MARK”...

  • Page 10: Parallel Interface

    SPRT Fig.2-5Connection between POS58S and IBM PC Serial Interface Sketch Map 2.3.2 Parallel Interface Connection The parallel interface of SP-POS58P printer is compatible with CENTRONICS, supports DB25socket (needle), the pin order of parallel BUSY and /ACK handshaking protocol, it uses port is as Fig.2-6 shows:...

  • Page 11: Parallel Interface

    SPRT The cash drawer interface of POS58Ⅳ adopts RJ-1160 pin socket ,as Fig2-7 shows: Pin No. Signal Direction Description Strobe pulse to latch data, reading occurs at falling /STB edge. DATA1 In These signals represent the 1st DATA2 In bit to 8th bit of the parallel...

  • Page 12: Power Connection

    SPRT Signal Direction Pin No. Cash is Ground Cash drawer driver signal Cash drawer on/off status signal +12VDC Cash drawer on/off status signal ground Figure 2-8 The pin assignment of the cash drawer interface 2.3.5 Power Connection POS58Ⅳ uses external power supply as12V DC±10％,3.5A, power socket is A-1009-3P model, as Fig.2-8 shows:...

  • Page 13: Summary

    SPRT The assignment Status indicator(green) as follows ： Indicator status Introduction bright Online turn off Offline Scintillation 1 times out Lack paper Printer head Scintillation 2 times out over temperature Figure 2－10 Self-test The self-test can check the condition of printer, if the printer prints out the self-test receipt correctly, It means the printer works normally.

  • Page 14: Printing Commands

    SPRT Command Specifications 3.2.1 Printing Command Print and Feed Line Format ASCII: Decimal: Hex: Explanation: Print the content in the buffer and feed paper one line. Only feed paper Forwards one line if the buffer is empty Print and Feed n Line...

  • Page 15: Character Printing Commands

    SPRT Set Line Spacing to n Dot Lines(n/203inch) Format ： ASCII ： Decimal： Hex: Explanation ： Set line spacing to n dot lines .n=0~255 n=0～255。 One dot line is 1/203 inch for POS58Ⅳ, this command sets the dot-line spacing to n/203inch.Default n=10.
  • Page 16 SPRT Explanation: All characters following this command on the same line are printed in double width, this command can be canceled by a carriage return or DC4 command Cancel Double Width Character Print Format ： ASCII ： Decimal ： Explanation：...

  • Page 17: Special Control Commands

    SPRT 3.2.4 Special Control Commands Enable/Disable Switch Button Function ESC c 5 Format ASCII ： ： Decimal ： ： Explanation ： When n=1,button【LF】is enabled; When n=0,button【FEED】is disabled; Default n=0 3.2.5 Graphics Printing Commands Set Bit-map Graphics Format ： ASCII： ESC n1 n2 [d]k Decimal：...
  • Page 18 SPRT ◆ d is the bit map data,for1of bit means the related dot will be printed And for 0 of bit means the related dot will not be printed.(k is the total number of dot m is the selected bit map mode ◆...
  • Page 19 SPRT To define downloading bit-map graphics using GS* command: Bit-map mode Vertical density Horizontal density Normal 203DPI 203DPI Double width 203DPI 101DPI Double height 101DPI 203DPI Double height 101DPI 101DPI And double width...
  • Page 20 SPRT Define download bit-map graphics Format [d]k ： ASCII： Decimal [d]k ： Hex： [d]k Explanation ： This command is used to define download bit-map graphics n1=1～48，n2=1～255，n1×n2<1200,k=n1×n2×8。 d is the bit-map data ◆ 。 The horizontal size of this graphics is n1×8 dots, and vertical size is ◆...
  • Page 21 SPRT Printing barcode ［d］ Format ASCII ： ［d］ Decimal ： ［d］ ： n---Select the printing barcode system ： Barcode EAN-13 EAN-8 Pay attention to the specified character number of each barcode.EAN-13 and EAN-8 can generate parity characters automatically is the printing barcode data.

  • Page 22: Other Commands

    SPRT Explanation: Set the width of printing barcode 。 n＝1～4. When n is different, the width of bar code will be different, as shows in the following tab Narrow size Broad size Its unit is dot. Each dot forPOS58 is1/203 inch or 0.125mm.
  • Page 23 SPRT m=0 or 30H,0＜nl≤n2≤255。 Opening time is nl×2ms,closing time is n2×2ms Transmit Status of Printer Format ： ASCII： Decimal ： ： Explanatio ： Send printer status to the host When printer received the command, it transfers one byte through TXD serial interface.
  • Page 24 SPRT Function Cash drawer on/ High off signal level LOW Undefined ――― ――― Undefined ――― ――― Undefined ――― ――― Not in use Undefined ――― ――― Undefined －－－ －－－ Undefined －－－ －－－ Setting serial command Format: ASCII： Decimal： Hex: [Description]：The command set serial n show serial baud and data format as follows ：...
  • Page 25 SPRT The default is；9600，without check，8 bit data，RTS/CTS SSL The method of this command setup leads for passing printer connecting orifice sending into the command to setup baud rate. Note :when the set is over ,if have not power ,the baud still be the baud before setting, the set baud will be effective until renew give power.
  • Page 26 SPRT n = 1: Printer state Decimal Function Fix as 0 Fix as 1 One or two cash boxes are opening Both of cash boxes are closed Online Offline Fix as 1 undefined Fix as 0 n = 2: Off line state...
  • Page 27 SPRT n = 3: Error state Decimal Function Fix as 0 Fix as 1 Undefined Noun cutter error POS58Ⅳ fix as 0 Cutter error Fix as 1 Noun unrecoverable error，fix as 0 Have unrecoverable error Printer head’s temperature is normal Printer head’s temperature is over range...

  • Page 28: Appendix 1 Performance Index

    SPRT Appendix 1 Performance Index Printing method: Direct thermal Printing width:57.5±0.5mm Valid printing width:48mm Printing density:8dots/mm,384dots/line Printing speed:approx.70mm/sec or 20lines/s. Reliability: Printing head life:100 km Using condition Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly ＊...
  • Page 29 SPRT Operation temperature:5～50℃ Relative humidity:10～80％ Storage temperature:-20～60℃ Relative humidity:10～90℃...

  • Page 30: Appendix 2 Index Of Printing Commands

    SPRT Index of Printing Commands Appendix 2 Command Description Command name Page Print commands Print and feed line ESC J Print and feed n dot lines Line spacing ESC 2 Set character line spacing setting commands ESC 3 Set line spacing to n dot lines(n/203inch) 15...
  • Page 31 SPRT Print barcode GS k Set barcode horizontal size GS w Initialize printer Other commands ESC @ Cash drawer control ESC p Transmit status of printer ESC v Transmit status of equipment ESC u ESC # Serial setting commands State in time...

  • Page 32: Appendix 3 Index Of Printing Characters

    SPRT Appendix 3 Index of Printing Characters...
