- Page 1 SPRT ® SP-POS58V User’s Manual V1.03 Beijing Spirit Technology Development Co, Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Chapter 1 Introduction.........................０ Chapter 2 Characteristic Specification..................... ０ 2.1 Printing specification......................０ 2.2 Printing Paper.........................０ 2.3 Printing Font........................... １ 2.4 Interface..........................１ 2.5 Printing Control Command....................１ 2.6 Power Supply......................... １ 2.7 Operation Environment......................１ 2.8 Noise Standard........................１ 2.9 Outline Dimension......................... １ 2.10 Type............................ -
Page 3: Chapter 1 Introduction

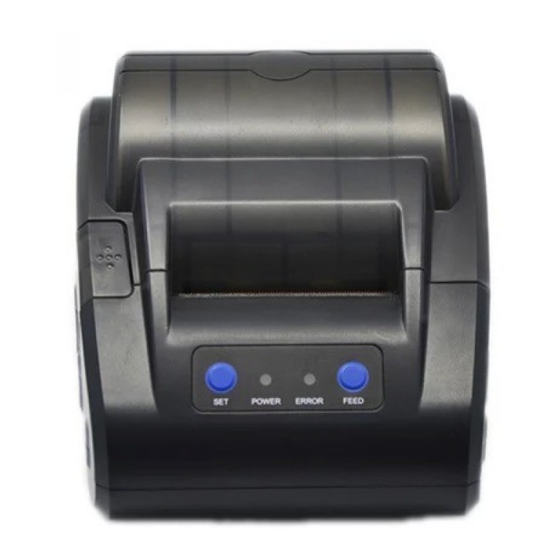

SPRT Chapter 1 Introduction POS58V printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless avoiding the vexation of regular maintenance. POS58 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Printing Font
Operation temperature: 0℃～50℃ Storage temperature: -20℃～80℃ Relative humidity: 10～80％ Storage relative humidity: 10～90% 2.8 Noise Standard Noise of SP-POS58V: ≤60dB (10cm distance to sound source) 2.9 Outline Dimension and Weight ● Dimension: 150（L）×122×(W)×93.5(H) mm ● Weight: 382g (not including paper roll) １... -
Page 5: Chapter3 Interface
Please use the standard distribution power adapter power supply. 3.2 serial interface SP-POS58V printer serial interface and RS - 232c are compatible, support RTS/CTS and XON/XOFF handshake protocol, the interface socket for DB - 9 female socket, each pin definition such as table 3-1... -
Page 6: Usb
SPRT 3.3 USB Use standard USB type B socket. Chapter4 Operating instructions 4.1 Paper Installation POS58V printers use 58 mm wide thermal paper roll. Press 【 FEED 】button to Load paper to the printer. Change paper, follow these steps: Press the cover-open button to... -
Page 7: Self Test
SPRT Caution! 1. When there is no paper in the print head, please don’t press 【LEEF】 button, avoiding to influence the print head life; 2. Please don’t draw the paper forwards or backwards with hands, When returning paper, please cut the extra paper, and press 【LEEF】... -
Page 8: Buttons And Indicators
SPRT software Settings. Has been set up correctly, parameter save to printer, at the next power on the new setting parameters effect. 4.5 Buttons and Indicators POS58V have two light, green POWER indicator for POWER light, red ERROR lamp for state light. power on,... - Page 9 SPRT 2. The mistake can’t be recovered. Light flash sever times then light continuously . Flash times stand for error type . Error type Description ERROR Memory Erros LED flashes once : Memory read - write errors Over Voltage Power voltage is high...
-
Page 10: Appendix: Method To Set The Printer Default Parameters Through Button
SPRT APPENDIX: Method to set the printer default parameters through button Settings items, each click 【 SET 】 key, SET items change for the next item, and print out the current SET value. With the FEED 】 key to choose a set value, each click the FEED 】 key, the set value change for the next value. - Page 11 SPRT Density： FEED FEED Middle High FEED Sensor： FEED FEED Middle High FEED Blackmark FEED FEED Direction： FEED Normal Opposite FEED Union of orders FEED FEED Union Others FEED ８...
Need help?
Do you have a question about the SP-POS58V and is the answer not in the manual?
Questions and answers
WHY WOULD THE ERROR LIGHT FLASH?
The error light on the SPRT SP-POS58V flashes to indicate specific errors. There are two types:
1. Continuous flashing: These are recoverable errors.
- Printer head overheating: The printer will recover automatically once it cools.
- Paper lack: The printer will recover automatically after paper is loaded.
2. Flashing a number of times, then staying on: These are non-recoverable errors.
- 1 flash: Memory read/write error
- 2 flashes: Over voltage
- 3 flashes: Under voltage
- 4 flashes: CPU execution error
- 5 flashes: Temperature detection circuit error
The number of flashes indicates the error type.
This answer is automatically generated
ERORR IS FLASHING AND NOT SURE WHY
When the ERROR light is flashing on the SPRT SP-POS58V, it indicates a problem with the printer. There are two types of flashing:
1. Continuous flashing: This means the error can be automatically recovered. Examples:
- Printer head overheating: The printer will recover when the temperature returns to normal.
- Paper lack: The printer will recover after loading new paper.
2. Flashing a number of times, then staying on: This means a non-recoverable error. The number of flashes indicates the error type:
- 1 flash: Memory read/write error
- 2 flashes: Over voltage
- 3 flashes: Under voltage
- 4 flashes: CPU execution error
- 5 flashes: Temperature detection circuit error
Each type of flashing pattern helps identify the specific issue with the printer.
