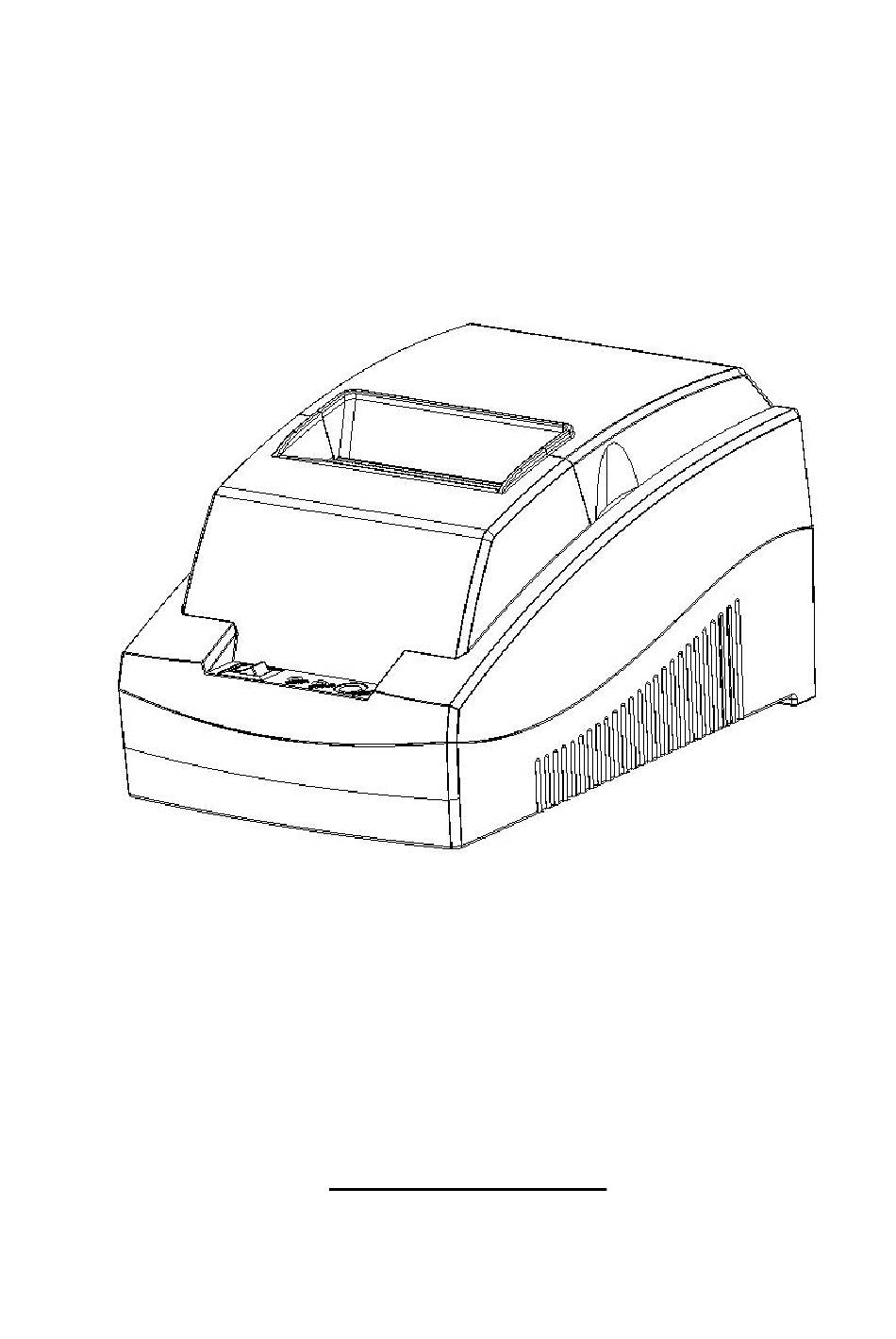

- Page 1 SPRT ® SP-POS5810 Thermal Printer User’s Manual （VER1.00） Beijing Spirit Technology Development Co, Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Chapter 1 Characteristics and Specification....................1 1.1 Printing specification........................1 1.2 Printing Paper..........................1 1.3 Printing Font........................... 1 1.4 Interface............................1 1.5 Printing Control Command......................2 1.6 Power Supply..........................2 1.7 Operation Environment.........................2 1.8 Outline Dimension & Weight......................2 Chapter 2 Installation and Operation......................3 2.1 Printer Appearance........................3 2.2 Paper Installation........................... - Page 3 Introduction SP-POS5810 is a new type thermal line printer. It features in fast printing speed, low noise, good reliability, high quality. And the ribbon is needless, this will avoid the vexation of regular maintenance. SP-POS5810 printer is widely used in many fields because of its small size and simple operation, especially suitable for commercial cash register, PC-POS, bank POS and various receipts printing.
-
Page 4: Chapter 1 Characteristics And Specification
Chapter 1 Characteristics and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 60mm/s (valid content per line isn’t over 25%) ● Reliability: Printing head life span:50km Operating Conditions: ＊... -
Page 5: Printing Control Command
Standard B type USB interface (Female). ● Cash drawer control DC12V, 1A, 6-pin RJ-11 socket 1.5 Printing Control Command ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the space between character lines is adjustable. ●... -
Page 6: Chapter 2 Installation And Operation
Chapter 2 Installation and Operation 2.1 Printer Appearance Printer appearance like below Fig 2－1－1,Fig 2－1－2. Printing Paper Case Cover Plastic Case Power Button Power Indicato Status Indicator Feed Fig2－1－1 Printer Appearance... -
Page 7: Paper Installation
Fig2－1－2 Printer appearance (back) 2.2 Paper Installation SP-POS5810 adopts 58mm width thermal paper. The installation steps are as below: 1. When there is no paper, pls don’t press 【 FEED 】 button to avoid affecting the printing head life span. Press open button to open the case cover and put paper. -
Page 8: Cash Drawer Interface
2.3.2 Cash Drawer Interface The cash drawer interface of SP-POS5810 is RJ-11, 6pin socket, as below, Fig2－3－1 Cash Drawer Interface The pin assignment of the cash drawer interface is as follows: Pin No. Signal Direction Chassis Ground Cash drawer driver signal... -
Page 9: Opening Upper Cover Button
status . Under allowance status, hold down【FEED】to start paper feeding, release the button to stop. 2.4.3 Open Upper Cover Button Hold the paper case cover and pull up to open it. 2.4.4 Power indicator light (Green) Status of the Power indicator light: If the power is on, the indicator light will be on. 2.4.5 Status Indicator light (Red) and Buzzer The indicator light will alarm for error status.Under normal working, red STATUS light is off. -
Page 10: Hexadecimal Dump
1s on and 1s off status.That means the printer has entered into Upgrade Mode successfully. Chapter 3 Printing Driver Installation Printing driver for SP-POS5810 can be downloaded from our official website (www.sprt-printer.com). The detailed path: Home page-- Service-Download-Driver-Windows driver receipt printer series. After downloading, the driver name is SP-DRV2148. -
Page 11: Appendix 1 Performance Index
Appendix 1 Performance Index Performance Index Printing Thermal line method Resolution 8dots/mm, 384dots/line Printing Characte Printing speed Max:60mm/s（25% Printing Density） ristics Effective 48mm Printing Width Paper Width 57.5 mm±0.5mm Self-defined Character Support Bitmap with Different Densities and Image Downloaded Bitmap Printing Printing Chinese GB18030(Chinese):24×24... - Page 12 Paper type Thermal paper 57×Ø 60mm Paper 0.06mm～0.08mm thickness Paper Paper Supply Spec Drop-in easy loading Method Paper Cutting Manual Method Dimension 175mm×117mm×99mm (L×W×H) Physical Weight 475 g （Without roll paper） Operation 0～50℃（Operation Temp）/10～80%(Relative Temp/Humidity Humidity) Environ ment Storage －20～60℃ （Storage Temp） /10～90% (Relative Temp/Humidity Humidity) Life/Reli...
