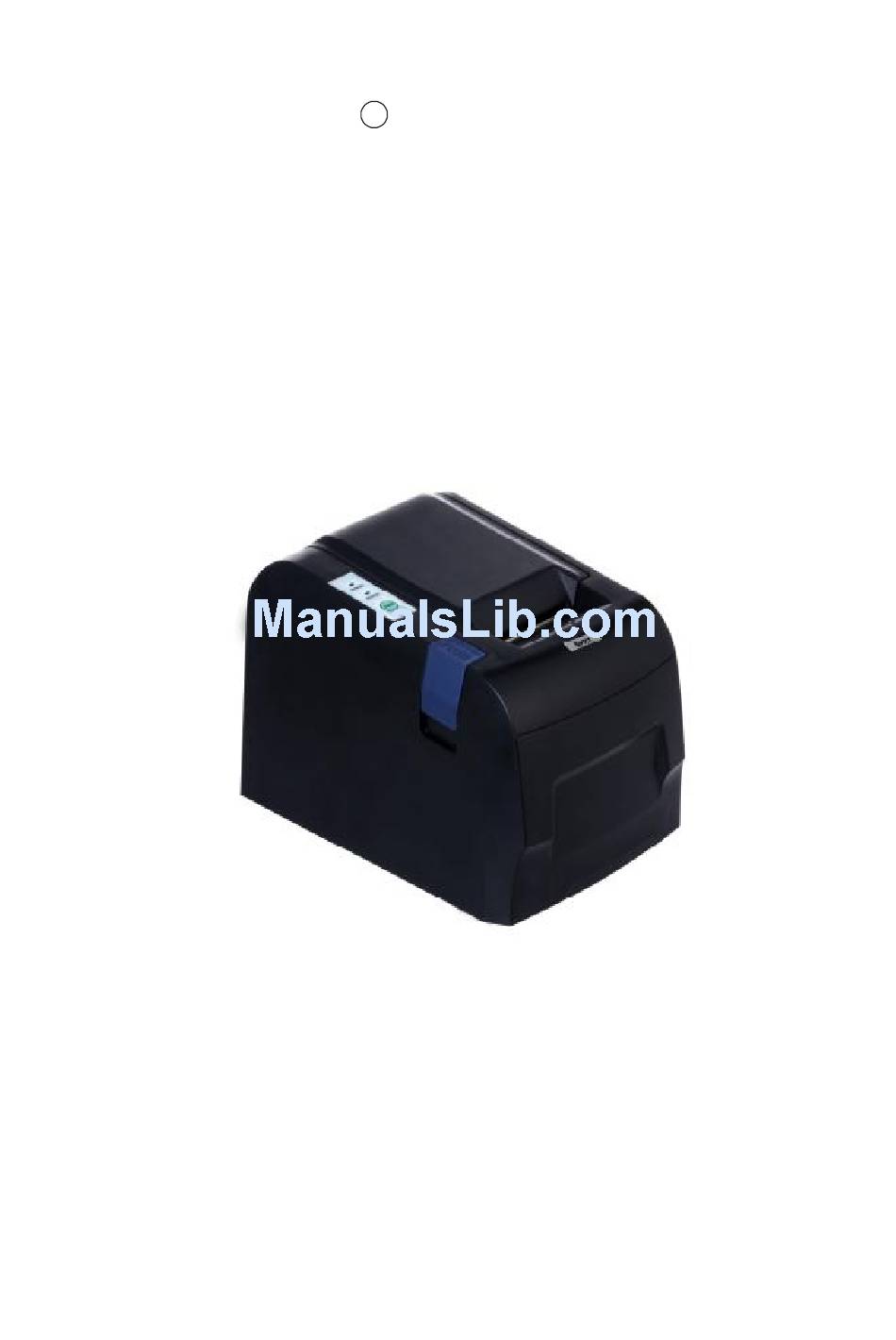

R
SPRT
SP－POS58Ⅳ
Line Thermal Printer
Инструкция
Компания Авиор
www.avior.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-POS58IV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPRT SP-POS58IV

Summary of Contents for SPRT SP-POS58IV

  • Page 1 SPRT SP－POS58Ⅳ Line Thermal Printer Инструкция Компания Авиор www.avior.ru...

  • Page 2: Table Of Contents

    Компания АВИОР SPRT Content Introduction ··································································· 2 Chapter 1 Characteristic Specification ·································· 3 ········································· 3 1.1 Printing Specification 1.2 Printing Paper ·················································· 3 1.3 Printing Font ···················································· 3 1.4 Interface ························································· 3 1.5 Printing Control Command ··································· 4 1.6 Power Supply ··················································· 4 1.7 Operation Environment ·······································...

  • Page 3: Introduction

    Компания АВИОР SPRT Introduction SP- POS58 Ⅳ printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless avoiding the vexation of regular maintenance. SP-POS58 Ⅳ...

  • Page 4: Chapter 1 Characteristic Specification

    Компания АВИОР SPRT Chapter 1 Characteristic Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 70mm／sec. or 20 lines/sec. ● Reliability: Printing head life: 50km...

  • Page 5: Printing Control Command

    Компания АВИОР www.avior.ru SPRT ● RS232 interface: DB25 socket (female), supports RTS/CTS protocol, baud rate: 9600bps. Data structure: one start bit + eight data bits + one or over one stop bit(s), no parity. ● USB interface ● Cash drawer control DC12V，1A，6-pin RJ-11 socket.

  • Page 6: Printer Appearance

    Компания АВИОР www.avior.ru SPRT 2.1 Printer Appearance 2.2 Paper Installation SP-POS58 adopts 57.5±0.5mm width thermal paper. The steps of thermal paper installation are as the following: Hold down the upper cover button, open the movable upper cover, move away the old paper roll, and put the new thermal paper in the paper holder...

  • Page 7: Interface Connection

    Компания АВИОР www.avior.ru SPRT Caution! 1. When there is no paper in the print head, please don’t press 【LF】 button, avoiding to influence the print head life; 2. Please don’t draw the paper forwards or backwards with hands, When returning paper, please cut the extra paper, and press 【LF】...

  • Page 8: Serial Interface

    Компания АВИОР www.avior.ru SPRT HIGH level signal indicates BUSY that the printer is BUSY and can not receive data. HIGH level signal indicates that paper is end. Pulling up to HIGH level signal by a resistor indicates the printer is online.
  • Page 9 Компания АВИОР www.avior.ru SPRT Fig.2-5 Pin Order of the Serial Port The pin assignment of RS232 interface is shown in Fig. 2-6: Pin No. Signal Source Description Host Printer receives data from host Printer Printer transmits data to host Signal “MARK” indicates that Printer the printer is “BUSY”...

  • Page 10: Cash Drawer Interface

    Компания АВИОР SPRT Printer 25pin IBM PC Serial Printer 25pin IBM PC Serial Socket Interface DB-9 Socket Interface DB-25 Fig.2-7 Connection between SP-POS58 Ⅳ S and IBM PC Serial Interface Sketch Map 2.3.3 Cash Drawer Interface The cash drawer interface of SP-POS58 Ⅳ...

  • Page 11: Buttons And Indicators

    Компания АВИОР SPRT Recommend using the power supply that offered by the printer producer, you can plug the power cable into the printer’s power socket, if use other power supply, it should meet the specified voltage and power demands, and the connection should be correct, otherwise it can't guarantee the printer works normally, even may damage the printer.

  • Page 12: Line Spacing Setting Commands

    Компания АВИОР www.avior.ru SPRT 3.2 Command Specifications 3.2.1 Character control commands Print and Feed Line Format: ASCII: Decimal: Hexadecimal: Explanation: Print the content in the buffer and feed paper one line. Only feed paper forwards one line if the buffer is empty.
  • Page 13 Компания АВИОР www.avior.ru SPRT Explanation: Set line spacing to n dot lines. n=0~255. One dot line is 1/203 inch for SP-POS58 Ⅳ , this command sets the dot-line spacing to n/203 inch. Default n=30. Example: n=30, 30 dot spacing (30/203 inch) 3.2.3...

  • Page 14: Special Control Commands

    Компания АВИОР SPRT ESC % Select/Cancel User-defined Characters ％ Format: ASCII: Decimal: Hexadecimal: Explanation: When n=1, select user-defined character set; When n=0, select internal character set. Default n=0 ESC & Define User-defined Characters Format: ASCII： ESC & s n m [a [p]s×a]m-n+1 Decimal: s n m [a [p]s×a]m-n+1...
  • Page 15 Компания АВИОР www.avior.ru SPRT Hexadecimal: 1B Explanation: When n=1, button【LF】is enabled; When n=0, button【FEED】is disabled; Default n=0. 3.2.5 Graphics Print Commands ESC * Set Bit-map Graphics Format: ASCII： [d]k Decimal: [d]k Hexadecimal: 1B [d]k Explanation: Select bit-map command, m is for setting bit-map mode; n1, n2 are for setting number of dots;...

  • Page 16: Bar Code Printing Commands

    Компания АВИОР www.avior.ru SPRT GS / Print Download Bit-map Graphics ／ Format: ASCII： Decimal: Hexadecimal: Explanation: This command is used to print download bit-map graphics. n=0～3 ◆ n is used to select bit-map graphics mode. ◆ To define download bit-map graphics using GS * command:...
  • Page 17 Компания АВИОР www.avior.ru SPRT n2×8 dots. ◆ The definition is valid until re-define, power off or system reset. Format of the download bit-map data is shown as follows: 3.2.6 Bar Code Print GS W Set bar code width Format: ASCII：...

  • Page 18: Other Commands

    Компания АВИОР www.avior.ru SPRT GS H Select/cancel printing HRI characters Format: ASCII： Decimal: Hexadecimal: 1D Explanation: n=0，don’t print HRI characters. Default n=0. n=1，print HRI characters under bar code. GS h Set bar code height Format: ASCII： Decimal: Hexadecimal: Explanation: Set the height of printing bar code.
  • Page 19 Компания АВИОР www.avior.ru SPRT Hexadecimal: Explanation: ESC @ command is to initialize the following contents of the printer: ·Clear the data in the print buffer; ·Restore the default of each print command ·Select character print mode; ·Delete user-defined characters. ESC p Cash Drawer control Format: ASCII：...

  • Page 20: Appendix 1 Performance Index

    Компания АВИОР www.avior.ru SPRT Decimal: Hexadecimal: Explanation: Send the peripheral equipment status to the host: Default n=0 When printer received this command, it transmits one byte through TXD line of the serial interface to the host. Function Value 0 Value 1...
  • Page 21 Компания АВИОР SPRT ·Thermal paper roll model: TF50KS－E（Japan paper co.ltd） AF50KS-E(JUJO THERMAL) · Thermal paper roll Width－－－ 57.5±0.5mm Outer Diameter －－－ 80mm（max.） Inner Diameter－－－ 13mm（min.） －－－ 53～60g／m 2 Thickness ·Print Font IBM Character set II (ANK): 12×24 dots，1.25（W）×3.00（H）mm; GB GB2312-80(Chinese): 24×24 dots，3.00（W）×3.00（H）mm.

  • Page 22: Appendix 2 Index Of Printing Commands

    Компания АВИОР SPRT Appendix 2 Index of Print Commands Command name Command Description Print commands Print and feed line ESCJ Print and feed n dot lines Line spacing setting Set character line spacing to ESC2 commands 1/6 inch Set line spacing to n dot lines...

  • Page 23: Appendix 3 Index Of Printing Characters

    Компания АВИОР SPRT Appendix 3 Index of Print Characters ２２...
