Summary of Contents for SPRT SP-POS5813
- Page 1 SPRT ® POS Thermal Receipt Printer SP-POS5813/POS5814 User's Manual (Ver 1.00) Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Content ............................错误！未定义书签。 Introduction .............................错误！未定义书签。 Chapter 1 Feature and Performance ..................... 错误！未定义书签。 1.1 Print Performance .........................错误！未定义书签。 1.2 Print Paper ................................4 1.3 Print Font ..........................错误！未定义书签。 1.4 Interface ..........................错误！未定义书签。 1.5 Print Control Commands ...................... 错误！未定义书签。 1.6 Power Supply ..............................5 1.7 Operation Environment ............................ -
Page 3: Introduction
Introduction SP-POS5813/POS5814 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. SP-POS5813/POS5814 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Font
1.2 Print Paper Paper Type: Thermal Paper 79.5±0.5mm xф80mm（max） Paper Thickness: 0.06mm～0.08mm Paper Loading Method: Easy loading Paper Cutting Method: Manual 1.3 Print Font ● ANK Character Set 12×24 dots,1.5（W）×3.00（H）mm. ● GB GB2312-80(Chinese): 24×24 dots,3.00（W）×3.00（H）mm. 1.4 Interface ● Communication Interface: USB Interface(Type B, Female) Parallel(DB25, Male) Serial(RS232, P/S2) -
Page 5: Power Supply
characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density ●GS barcode print commands: support UPC-A, UPC-E, EAN-13，EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 1.6 Power Supply ●... -
Page 6: Chapter 2 Operation Instructions

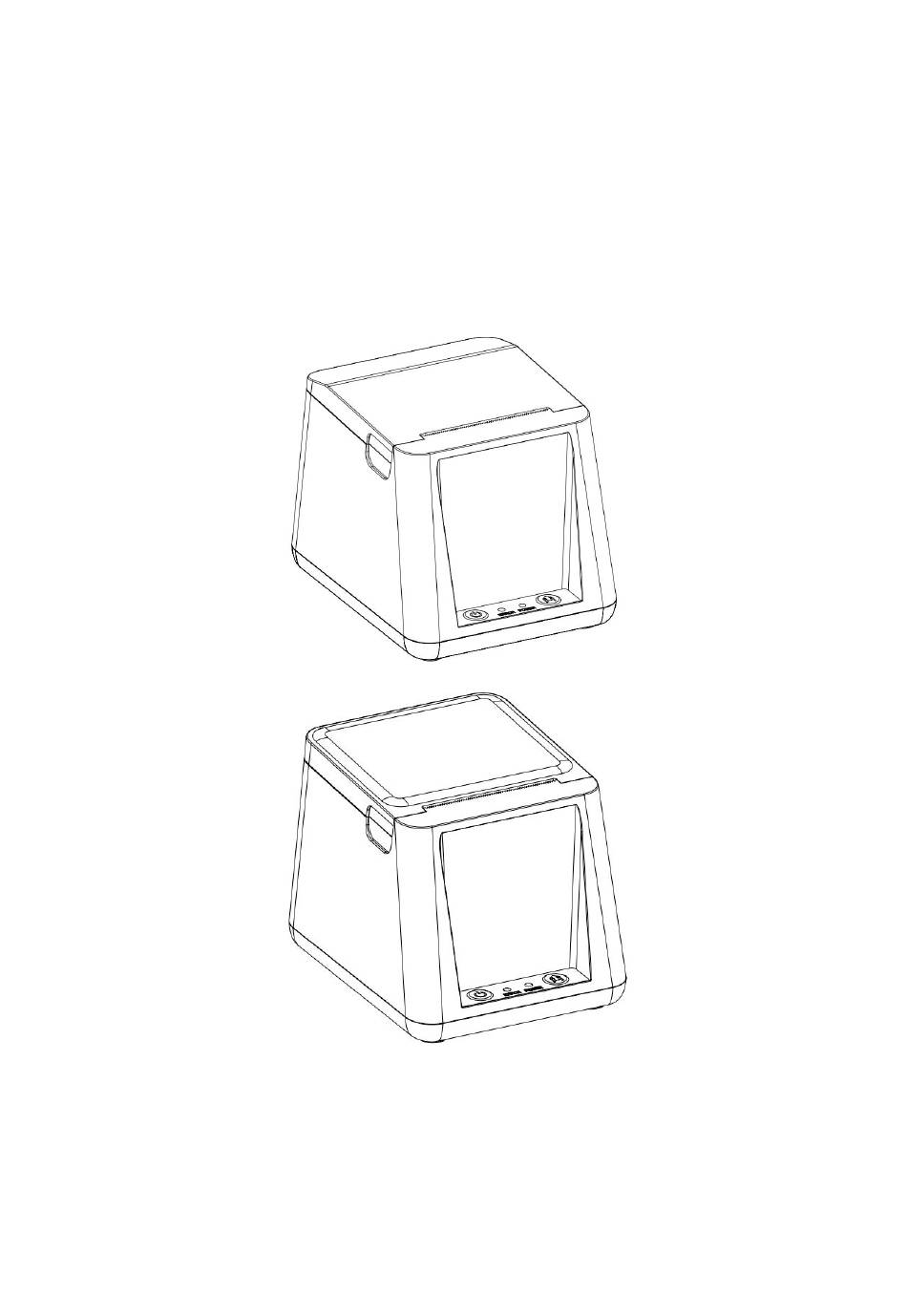

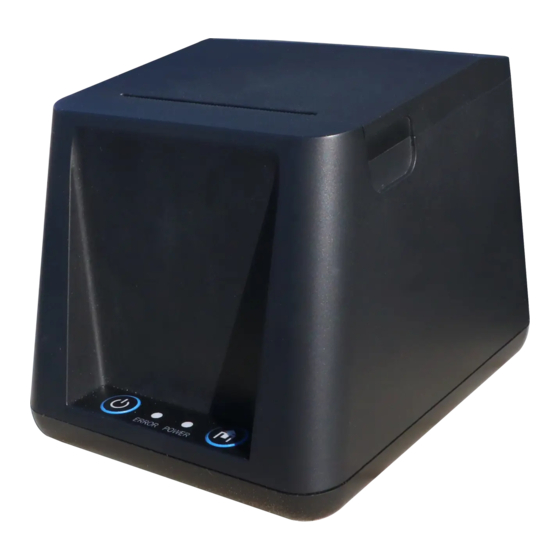

Chapter 2 Operation Instructions 2.1 Printer Appearance Printer appearance As shown in Figure 2-1-1, Figure 2-1-2. Rubber Roller Paper Cover Main Case Feed Button Power Indicator Error Indicator Power Socket Figure 2-1-1... -
Page 7: Paper Installation
USB Cash drawer Power Figure 2-1-2 2.2 Paper Installation SP-POS5813/POS5814 printer adopts 58mm width thermal paper. The thermal paper installation steps are as follows: 1. When there is no paper in the print head, please do not press the feed button to avoid affecting the life of the print head. -
Page 8: Communication Interface
2.3 Interface 2.3.1 Communication Interface 1. Standard Type-B USB. PIN NO Function Note V Bus The power supply is +5V. Data - The data is negative. Figure 2-4 USB Interface Data + The data is positive. Power ground 2. Standard DB25 parallel port connector, male plug. pins Definition Description Pins... - Page 9 The forth bit of data. The fifth bit of data. The sixth bit of data. The seventh bit of data. The eighth bit of data. nACK Response signal BUSY Busy signal, active high Paper Paper signal, active high Select High-level message indicates that...
-
Page 10: Cash Drawer Interface
2.3.2 Cash Drawer Interface The cash drawer interface of the SP-POS5813 printer adopts an RJ-11, 6-pin socket, as shown in Figure 2-3-1. Fig. 2－3－1 Cash drawer interface The pin definitions are as follows in Table 2-3-2: PIN NO. -
Page 11: Power Connection
2.3.3 Power Connection SP-POS5813/POS5814 printers are externally powered by a dedicated DC 8.5V/2A power supply. 2.4 Buzzer, Buttons and Indicators 2.4.1 Power ON/OFF The power switch controls the power on/off status. When the device is turned off, pressing the power button will turn it on. -
Page 12: Self-Test
2.4.4 Indicator lights and buzzer. ①Green: Indicates the power switch status, stays on when the device is turned on. Note: Within the first 30 seconds of turning on, this light will flash; after 30 seconds of turning on, it will stay on constantly once the Bluetooth connection is successful. -
Page 13: Hexadecimal Printing
Reference 2.4.3, item 2, only restore the printing configuration information, do not restore the Bluetooth and network configuration information. Chapter 3: Printer Driver Installation To install the SP-POS5813/POS5814 series printer driver, please download it from our official website at www.sprinter.com.cn. Follow these specific steps: 1. Go to the homepage and navigate to the Download Center. - Page 14 Appendix 1: Performance Specifications Specifications Printing Method Thermal Line Resolution 8 dots/mm (203dpi)/ 384 dots/line Print Performance Printing Speed 90 mm/s Specifications: Effective Printing Width 48mm Paper Width 57 .5mm±0.5mm Custom character Support printing Support for printing graphics with different dot Graphics Printing densities and downloading bitmap images for printing.
- Page 15 Paper Thickness 0.06mm～0.08mm Paper loading Easy paper loading Paper Cutting Method Manual Dimension 120mm×100mm×95mm (L×W×H) Physical properties Weight 275 g （no paper roll） Work environment 0-50°C (working environment temperature) / temperature/humidity 10-80% (relative humidity) Environmental －20～60℃（Save environment temperature） factors Save environment temperature/humidity /10～90% (relative humidity)
