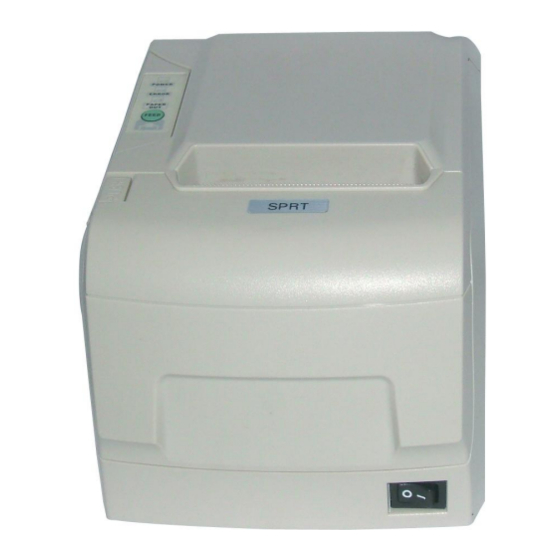

- Page 1 SPRT ® SP-POS88Ⅴ Thermal Receipt Printer User’s Manual （Ver 1.05） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction........................1 Chapter 1 Feature and Performance............... 1 1.1 Print Performance....................1 1.2 Print Paper......................2 1.3 Print Font........................2 1.4 Interface......................... 3 1.5 Print Control Commands..................3 1.6 Power Supply......................4 1.7 Operation Environment..................4 1.8 Outline Dimension&Weight................. 4 1.9 Model classification....................4 Chapter 2 Operation Specification................6 2.1 Printer Appearance....................6 2.2 Paper Installation.................... -
Page 3: Introduction
Introduction POS88V printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. POS88V printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
exceed 11 times ＊Use specified thermal paper （2）Cutter life: 1500,000 cuts ● Valid print width: 72mm 1.2 Print Paper ● Thermal paper roll model: TF50KS－E（Japan paper co.ltd） AF50KS-E (JUJO THERMAL) ● Thermal paper roll:Paper Type:thermal paper 79.5xф80mm (max) Thickness－－－ 0.06mm～0.08mm 1.3 Print Font ●... -
Page 5: Print Control Commands
● USB Interface:USB interface ● Cash Drawer Control DC24V,1A,6-pin RJ-11 socket. 1.5 Print Control Commands ● Character print commands: support double-width, double height print of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density ●... -
Page 6: Model Classification
1.9 Model classification Model Interface SP-POS88ⅤSF RS－232C Serial Interface SP-POS88ⅤPF Parallel Interface SP-POS88ⅤEF Ethernet Interface SP-POS88ⅤUF USB Interface SP-POS88VMF RS－232C Serial Interface, USB Interface, Ethernet Interface SP-POS88VBTF USB Interface, Bluetooth2.0 SP-POS88VBT4F USB Interface, Bluetooth4.0 SP-POS88VBTi USB Interface, Bluetooth with MFI certification... -
Page 7: Chapter 2 Operation Specification

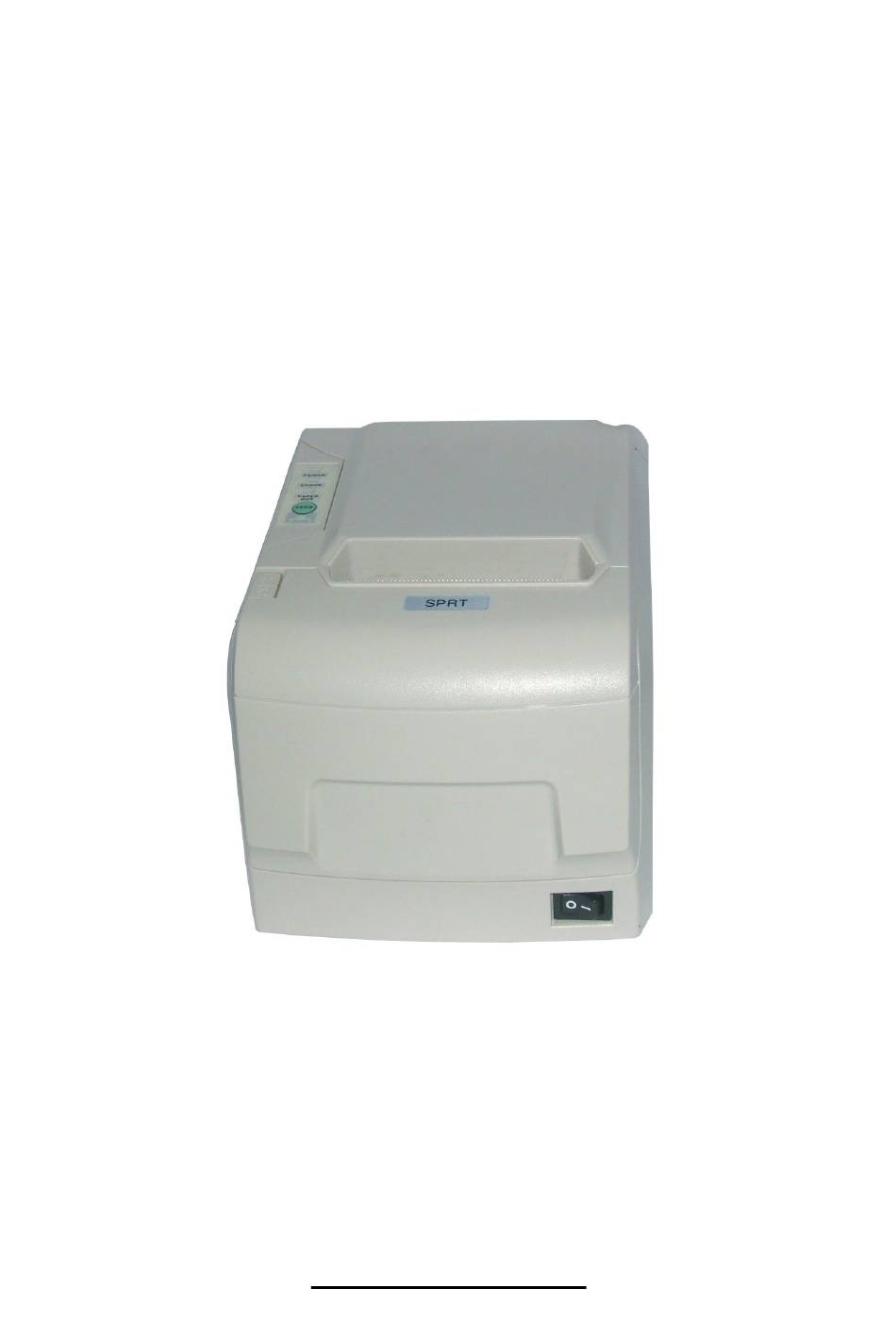

Chapter 2 Operation Specification 2.1 Printer Appearance... -
Page 8: Paper Installation
2.2 Paper Installation 2.2.1 Paper Loading POS88V adopts 79.5mm width thermal paper roll. Steps of Loading Thermal Paper Are as below: Hold down the upper cover button on the left side, open the movable upper cover and put the paper roll into it, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 9: Interface
2.3 Interface 2.3.1 Serial Interface The serial interface of SP-POS88Ⅴ printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB25 socket (female). The pin order of the serial port is as Fig.2-2 shows: Fig.2-2 Pin Order of Serial Port The pin assignment of serial interface is shown in Fig. - Page 10 IBM PC IBM PC 25PIN Socket 25PIN Socket DB25 Socket DB9 Socket Fig.2-4 Connection between SP-POS88V and IBM PC Serial Interface Sketch Map The pin assignment of DB9 interface is as below shows: Pin No. Signal Name Source Description Printer...
-
Page 11: Parallel Interface
Printer The same as CTS Printer Signal “MARK” means the host is busy and can not receive data. Signal “SPACE” means the host is ready to receive data. Signal Ground 2.3.2 Parallel Interface The parallel interface of POS88Ⅴprinter is compatible with CENTRONICS, supports BUSY or ACK handshaking protocol, which uses 36pin CENIRONICS socket (female) The pin assignment of DB25 parallel interface is as Fig. - Page 12 Answer pulse, level signal indicates that data have already been received and the printer gets ready to receive the next data. BUSY HIGH level signal indicates that the printer is BUSY and can not receive data. HIGH level signal indicates that paper is end.
-
Page 13: Cash Drawer Interface
Fig.2-6 Signal Timing Chart of Parallel Interface 2.3.3 Cash Drawer Interface The cash drawer interface of POS-POS88Ⅴ adopts RJ-11 6-pin socket, as Fig.2-7 shows: Fig.2-7 Cash Drawer Interface The pin assignment is as below: Pin No. Signal Direction Chassis Ground ——... -
Page 14: Power Connection
2.3.4 Power Connection POS88Ⅴuses the external power supply adopter as 24V±10％、2A, power socket is A-1009-3P model, as Fig. 2-10 shows: Fig.2-8 Power Socket The pin assignment is as below: Pin No. Signal +24VDC Ground 2.4 Buttons and Indicators There is one button and three indicators on POS88Ⅴ printer.【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【FEED】... -
Page 15: Self-Test
Red indicator of “Paper Out ” is the paper out indicator. When there is no paper in printer head, it will light, and it is off under normal status. 2.5 Self-test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally, except interface with host. -
Page 16: Enter The Program Upgrade Mode
Steps for exiting of parameter setup: Open paper case cover and press the【FEED】 button; then close paper case cover and release the 【FEED】 button. The printer will save the setup of parameters, exit setting mode and enter the normal working mode. The data will not be saved if turn off the printer directly. - Page 17 Appendix A This appendix is the method to set the printer parameter according to button operation. Setting introduction: Press【Paper cover】button to choose setting,when press it once , the set become the next one and it will print the present set value; use 【FEED】button to set the set value, when press it once , the set become the next one and it will print the present set value.
- Page 18 Print speed: FEED FEED FEED 250mm/s 200mm/s 220mm/s 150mm/s FEED Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Paper-out reprint: FEED FEED Black mark mode: FEED close open FEED...
