- Page 1 SPRT ® POS Thermal Receipt Printer (SP-POS894) User’s Manual （Ver 1.01） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction..........................1 Chapter 1 Feature and Performance...................1 1.1 Print Performance..................... 1 1.2 Print Paper......................... 2 1.3 Print Font........................2 1.4 Interface........................2 1.5 Print Control Commands..................2 1.6 Power Supply......................3 1.7 Operation Environment.................... 3 1.8 Outline Dimension.....................3 1.9 Model classification....................3 Chapter 2 Operation Specification..................3 2.1 Printer Appearance....................3 2.2 Paper Installation...................... -
Page 3: Introduction

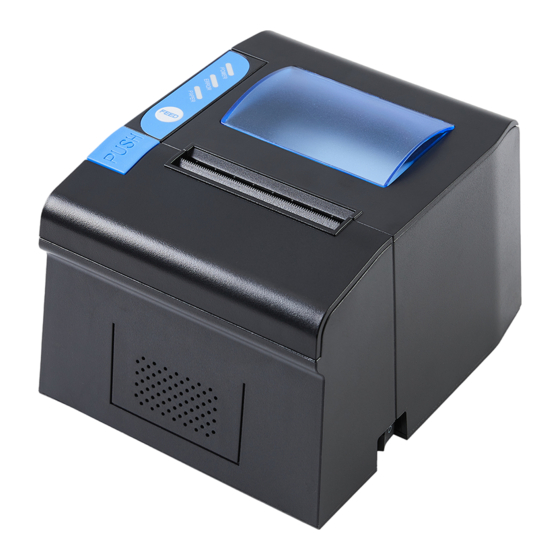

Introduction SP-POS894 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. SP-POS894 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
1.2 Print Paper ● Thermal paper roll model: TF50KS－E (Japan paper co.ltd) AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Paper Type－－Thermal Paper 79.5 xф80mm（max） Inner Diameter－－－13mm (min.) Thickness －－－ 0.06mm～0.08m 1.3 Print Font ● ANK Character Set 12×24 dots,1.5（W）×3.00（H）mm ● GB GB2312-80(Chinese): 24×24 dots,3.00（W）×3.00（H）mm. -
Page 5: Power Supply
bit-map graphics with different density ● GS bar code print commands: support UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128, PDF417, QR code, DATA Matrix code print. 1.6 Power Supply ● DC24V±10％, 2A, A-1009-3P power socket 1.7 Operation Environment ●... - Page 6 Figure 2-1 Printer Part Name Diagram...
-
Page 7: Paper Installation
2.2 Paper Installation 2.2.1 Paper Loading Steps of Loading Thermal Paper are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 8: Interface
Fig 2-1 Ethernet Interface 2.3.2 USB Interface The standard accessories of SP-POS894 printer includes a Mini USB cable with D Type connector which connects printer and main device. The USB type belongs to the slave device type(DEVICE). Pins description of Mini-USB as Fig.2-2 below:... -
Page 9: Power Connection
—— Cash drawer driver signal 2 Signal ground —— 2.3.4 Power Connection SP-POS894 uses the external power supply adopter as 24V±10％,2A, power socket is A-1009-3P model, as Fig. 2-4 shows: The pin assignment is as below: Pin No. Signal +24VDC Ground Fig.2-4 Definition of power socket and pin... -
Page 10: Buzzer, Buttons And Indicators
2.4 Buzzer, Buttons and Indicators There is one button and one inner buzzers and three indicators on SP-POS894 printer. 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【FEED】... - Page 11 1. Unrecoverable errors. The number of flashes of the indicator light and the number of buzzers indicate the type of error, and it will stay on for a period of time. 2. The error can be recovered. The number of flashes of the indicator light and the number of buzzers indicate the type of error, and then it will stay off for a while.
-
Page 12: Power On Status
Recoverable LED Flickers once:Cutter error position error Auto-recoverable error, indicator flickers constantly, including printing head ③ over-heat error and upper case cover opening error during printing. ERROR Indicator Flickering ERROR Type ERROR Description Type LED Flickers constantly: printing head Auto-recoverable over-heat;... -
Page 13: Hexadecimal Printing
Fig.2-5 2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover; 2.Hold down 【FEED】 button,and connect with power; wait for the alarm and close the paper cover. 3.The printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump,... -
Page 14: Parameter Setting
2.8 Parameter Setting There are two ways to set printer parameters: 1. Use the setting tool on the PC side for setting. 2. Set by the button, the specific operation method is as follows. In the shutdown state, first open the [paper compartment cover], press and hold the [FEED] key, then turn on the power switch, and release the [FEED] key after the status indicator and the out of paper indicator flash alternately. - Page 15 Appendix A This appendix is the method to set the printer parameter according to button operation. Setting introduction: Press【Paper cover】button to choose setting,when press it once , the set become the next one and it will print the present set value; use 【FEED】 button to set the set value, when press it once , the set become the next one and it will print the present set value.
- Page 16 Print speed: FEED FEED FEED 250mm/s 220mm/s 150mm/s 200mm/s FEED Buzzer: FEED FEED FEED Cut ON Error ON ALL ON FEED Paper-out reprint: FEED FEED Black mark mode: FEED close open FEED...
