- Page 1 POS Thermal Receipt Printer (SP-POS895) User’s Manual Ver 1.00 Beijing Spirit Technology Development Co., Ltd. www.sprt-printer.com...
- Page 2 STATEMENT The contents of this manual shall not be changed without the consent of SPRT. Beijing Spirit Technology Development Co., Ltd. reserves the right to change the product in terms of technology, parts, software and hardware. If the user needs further comprehensive product information related to the product, please contact Beijing Spirit Technology Development Co., Ltd.
- Page 3 Content Introduction ........................错误！未定义书签。 Chapter 1 Printer Appearance and Models ..............错误！未定义书签。 1.1 Printer Appearance ......................... 4 1.2 Models .............................4 Chapter 2 Feature and Performance ................错误！未定义书签。 2.1 Printing Performance ........................5 2.2 Printing Paper ..........................5 2.3 Printing Font ............................5 2.4 Physlcal Parameters ........................6 2.5 0peration Environment ........................
- Page 4 If the printer emits smoke, unusual odors, or abnormal noises, immediately turn off the printer and disconnect the power. Continuing use may cause a fire. Contact your dealer or SPRT Customer Service Center for assistance. Do not attempt to disassemble the printer yourself. Unauthorized repairs are dangerous and may ...
- Page 5 Storage Precautions Store the printer in an environment with a temperature of -20℃ to 60℃ and relative humidity of 10% to 90%. This is a Class A product. Warning: Operating this equipment in a residential environment may cause radio interference.

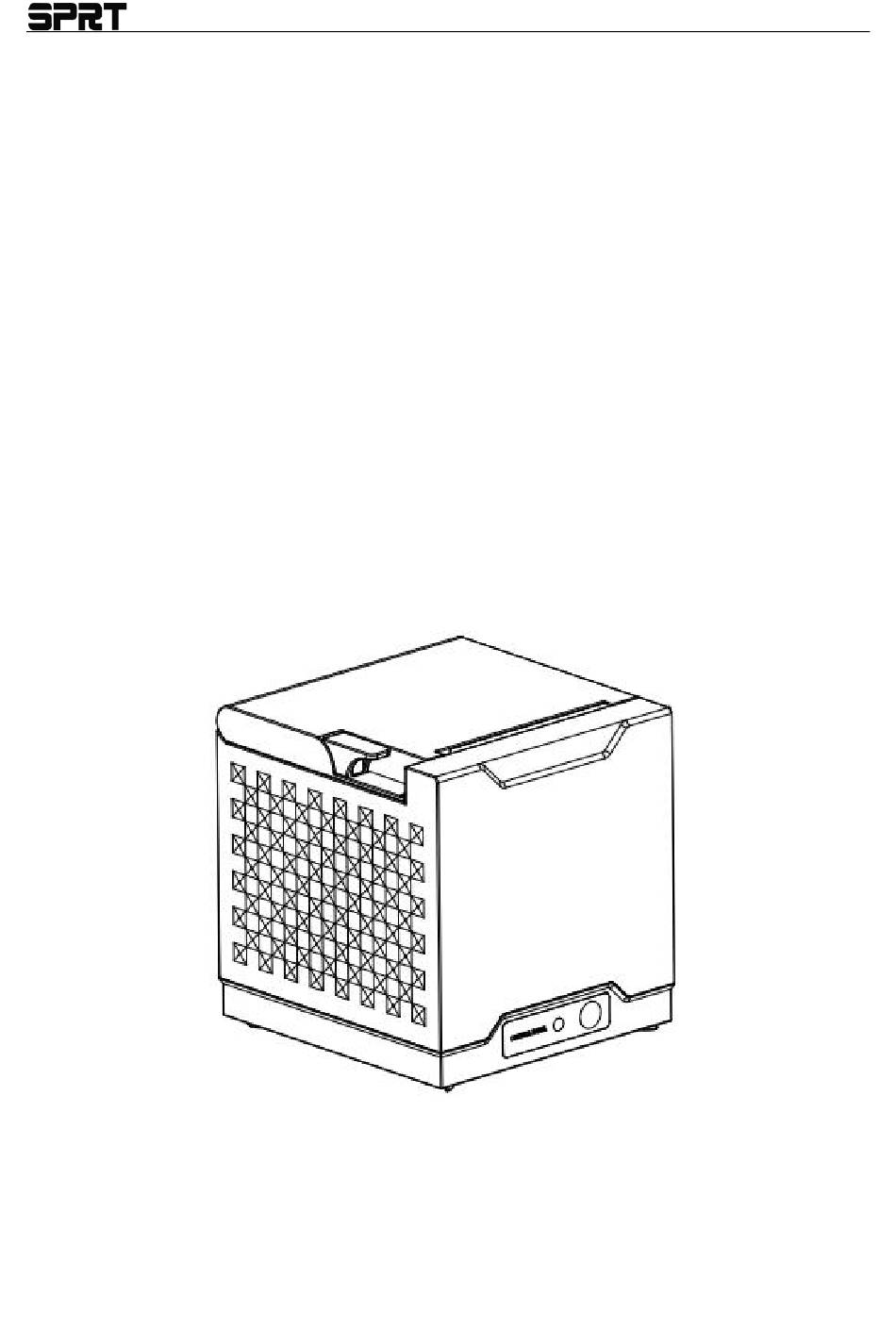

- Page 6 Chapter 1 Printer Appearance and Models 1.1 Printer Appearance SP-POS895 Appearance 1.2 Model Model Description Print Density SP-POS895Ud USB Interface 8dots/mm (203dpi) SP-POS895UEd USB + Ethernet Interface (within 100M)
- Page 7 Chapter 2 Specification & Parameters 2.1 Printier Specification Printing Method: Thermal Line Paper Width: 79.5±0.5mm Effective Printing Width: 72mm TPH: 100Km. Conditions of Use: * Print 12 × 24 Western characters, 50 lines each time, and repeat intermittently. * Use normal thermal paper Cutter Life: 1,000,000 cuts ...
- Page 8 2.4 Physical Parameters Dimension： 125(L)X120(W)X128(H)mm Weight： 565g（Without paper roll） Paper roll diameter：≤80mm Interface： USB, Ethernet 2.5 Environmental parameters Operating Temp：0℃～50℃ Operating Humidity：10%～85% Storage Temp：-20℃～60℃ Storage Humidity：10%～90% 2.6 Other parameters Command：ESC/POS Power Supply ：DC24V±5%,1A ...
- Page 9 3.2 Basic Operation Instruction 3.2.1 Power on In the shutdown state, close the [paper cover], then plug in the power cord and turn on the printer. The cutter performs the reset operation, and the indicator light turns on, then the printer enters the normal working mode.
- Page 10 3.2.4 Paper feeding (manual feeding) Press the [FEED] key to feed paper: short press for short paper feeding, long press for long paper feeding. Note: For paper feeding operation, the time interval between pressing the [FEED] key twice must be longer than 3 seconds.
- Page 11 3.2.6 Hexadecimal Printing Follow the steps below to enable hexadecimal printing mode on the printer: In standby mode, open the paper cover. Within 3 seconds, press the [FEED] button twice quickly, then close the paper cover. At this point, the following 3 lines of content will be printed: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times.
- Page 12 Fig. 3-1 Power socket and pin definition 3.3.2 USB Interface The standard configuration of the SP-POS895 printer is equipped with a standard USB printer cable D-type data connection cable, which is used to connect the printer and the host device. The printer's...
- Page 13 IP cannot connect to the router, DHCP will automatically be enabled to obtain an IP address. 3.4 Buzzer, Indicator Light, and Button Operations The SP-POS895 printer has one button, one built-in buzzer, and one indicator light. [FEED] is the paper feed button. Press and hold the [FEED] button to feed paper. Release the button to...
- Page 14 Chapter 4: Additional Information 4.1 Developer Manual The SP-POS89x Developer Manual is a technical guide designed to assist SP-POS895 printer users in developing printer applications. This manual can be requested from the company. 4.2 Cleaning and maintenance...
- Page 15 Chapter 5: Using the Printer on Windows The SP-POS895 thermal receipt printer driver version is SP-DRV2155Win. The driver and installation instructions can be downloaded from our company website (https://www.sprt-printer.com/). Detailed instructions are not provided here.
