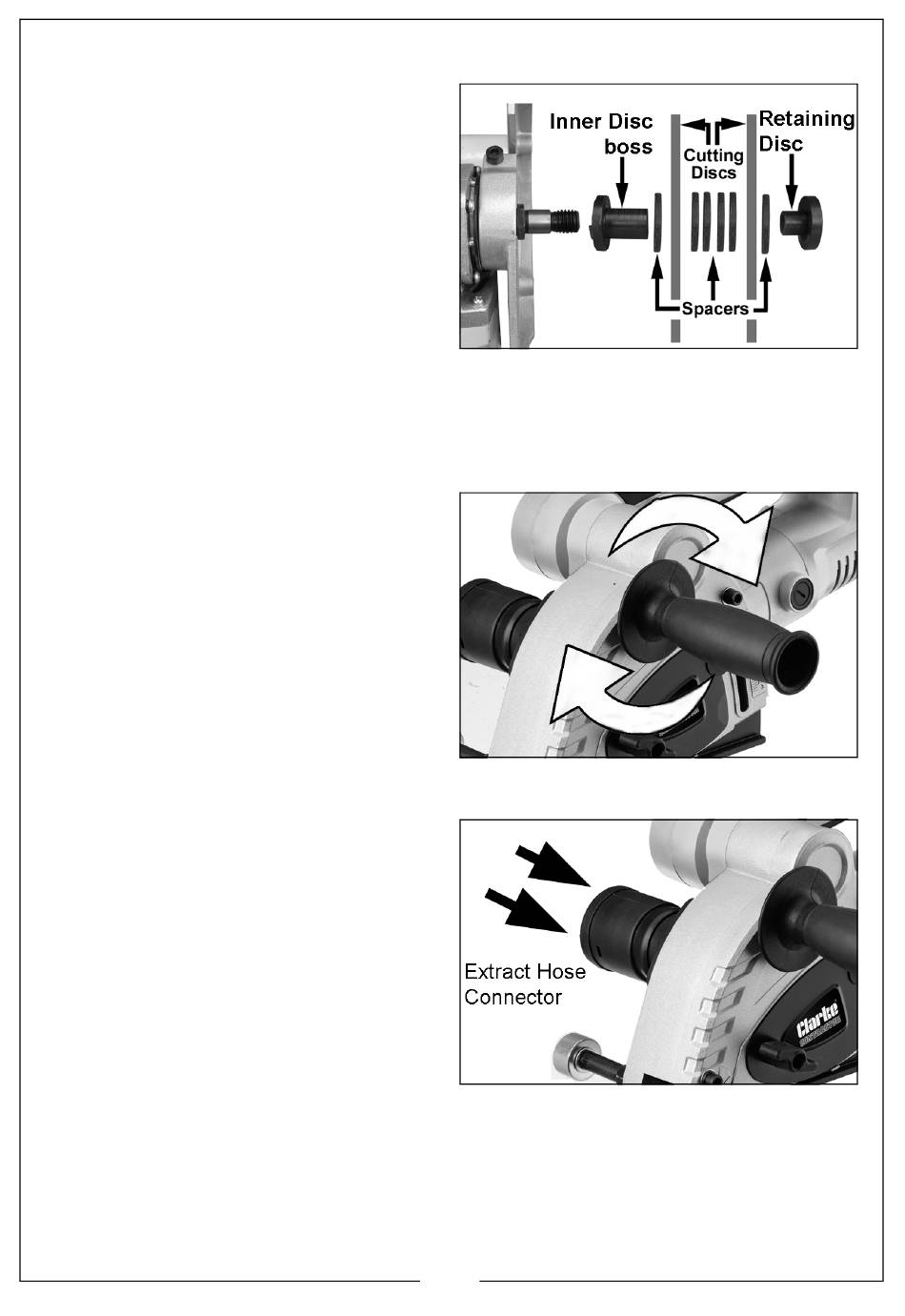

SETTING THE CUTTING WIDTH
The cutting width is determined by
the number of spacer discs you put in
between the discs.
• The cutting width is equal to:
The thickness of the 2 blades (2
x 2.5 mm) + the thickness of the
spacers.
• Make sure that the inner disc
boss is seated properly.
• All spacers must be used to
secure the cutting discs. Position the spacers on the outside of the
cutting discs to make the cutting width narrower.

FITTING THE HANDLE

Screw the handle into the hole shown
(left-hand thread).
FITTING A DUST EXTRACTION TUBE
Connect a suitable dust extraction
hose (not supplied) into the
extraction port (2) and twist to lock
into place.
