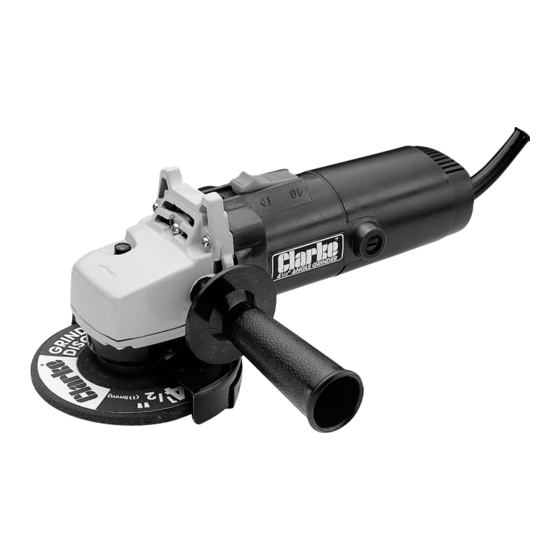

- Page 1 © 0402 Operating & Maintenance Operating & Maintenance Instructions Instructions 4½” (115mm) ANGLE GRINDER Model CAG120 Part Number 6470120...
- Page 2 Spare Parts Diagram (fig 3) Parts and Service For Spare Parts and Servicing, please contact your local dealer, or Clarke International on one of the following Numbers: Parts and Service Tel: 020 89887400 Spare Parts List Parts and Service Fax: 020 85583622 Description Part No.
-
Page 3: Troubleshooting
Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time use. - Page 4 For Your Own Safety Maintenance WARNING: IMPORTANT! Ensure that the grinder is disconnected from the power supply before As with all machinery, there are certain hazards involved with their operation carrying out any maintenance. and use. Exercising respect and caution will considerably lessen the risk of personal injury.
- Page 5 Mounting the Grinding Wheel / Cutting Disc Additional Safety Precautions : For Angle Grinders ( i ) Eye Protection manufactured to the current European Safety Standard should be Unscrew and remove the outer flange : Figure (2) Mounting Discs worn when operating grinding equipment. If it is tight, lock the spindle by pressing the Spindle Lock button and use the tool Ear Protection manufactured to the current European Safety Standard should be...
-
Page 6: Electrical Connections
Figure (1) Overview Electrical Connections Double Insulated Electrical Appliance This appliance is of Double Insulation Construction. Because of this, there is no Earth conductor in the mains supply cable. Connect the mains lead to a standard 230V (50Hz) electrical supply through an approved 13 Amp BS1363 plug, or a suitably fused isolator switch.
