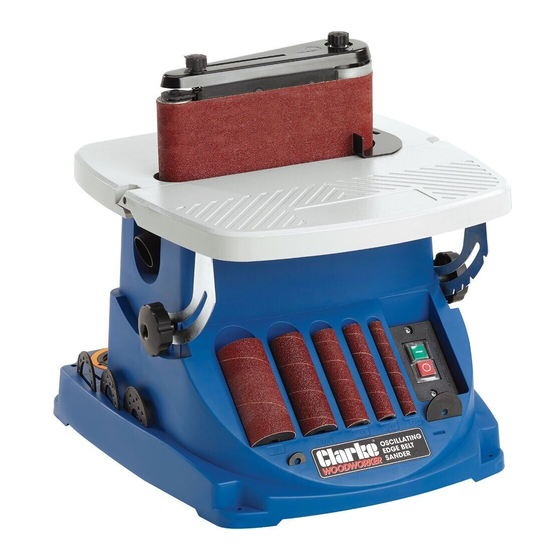

- Page 1 OSCILLATING BELT/BOBBIN SANDER MODEL NO: COEBS1 PART NO: 6500460 OPERATION & MAINTENANCE INSTRUCTIONS LS0416...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES 7. Do not force the tool WARNING: READ ALL INSTRUCTIONS. FAILURE TO • It will do the job better and safer FOLLOW ALL INSTRUCTIONS at the rate for which it was LISTED BELOW MAY RESULT IN intended. ELECTRIC SHOCK, FIRE AND/OR 8. - Page 4 14. Maintain tools with care 19. Stay alert • . • Watch what you are doing, use common sense and do not • Inspect tool cords periodically operate the tool when you are and if damaged have them tired. repaired by an authorized service facility.
-
Page 5: Sander Specific Rules
SANDER SPECIFIC RULES • FIRMLY CLAMP OR BOLT your signs of wear such as grooves, sander to a workbench or table tears or rips. at approximately hip height. • ALWAYS STAY ALERT! Do not allow • NEVER stand or have any part of familiarity (gained from frequent your body in line with the path of use of your sander) to cause a... -
Page 6: Sanding Dust Safety Warnings
SANDING DUST SAFETY WARNINGS Some dust created by sanding, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and •... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. - Page 8 CONTENTS The following items should be supplied in the carton. If any parts are missing, do not operate until the missing parts are replaced. Failure to follow this instruction could result in serious injury. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 9: Securing The Sander To A Workbench
ASSEMBLY SECURING THE SANDER TO A WORKBENCH If sander is to be used in a permanent location, it should be fastened securely to a workbench via the four securing holes (one on each corner). 1. Mark out the position of the holes. 2. -
Page 10: Edge Sanding Setup
EDGE SANDING SETUP INSTALL THE SANDING BELT ASSEMBLY 1. If fitted, remove the fan and table insert from the sander. • Clear the recess of any debris. 2. Slide the fan onto the motor shaft (vanes face down). • You may need to rotate the fan to get it to locate properly, (when correctly fitted the fan rotates with the spindle). -
Page 11: Removing/Installing The Sanding Belt
REMOVING/INSTALLING THE SANDING BELT WARNING: MAKE SURE THAT THE TOOL IS UNPLUGGED BEFORE INSTALLING/REMOVING THE SANDING BELT. 1. Move the belt tension lever fully to the right as shown. 2. Slide the belt over the rollers and centralise the belt. •... -
Page 12: Sanding Belt Tracking
SANDING BELT TRACKING 1. Plug in the power cable. Turn the switch ON and immediately turn the switch OFF again. Note if the belt tends to slide off the drums. • If it did not tend to slide off, it is tracking properly. -
Page 13: Fitting The Bobbin To The Sander
FITTING THE BOBBIN TO THE SANDER WARNING: TO REDUCE THE RISK OF INJURY FROM ACCIDENTAL STARTING, MAKE SURE THE SANDER IS UNPLUGGED BEFORE REMOVING OR REPLACING THE SPACER RING INSERTS, SLEEVES AND DRUMS. 1. If fitted, remove the fan and table insert from the sander. -
Page 14: Using The Sander
USING THE SANDER CAUTION: BEFORE TURNING THE SWITCH ON, MAKE SURE THE BELT OR DRUM AND SLEEVE ARE PROPERLY INSTALLED. WARNING: ALWAYS WEAR SAFETY GOGGLES OR SAFETY GLASSES WITH SIDE SHIELDS WHEN OPERATING POWER TOOLS. FAILURE TO DO SO COULD RESULT IN OBJECTS BEING THROWN INTO YOUR EYES, RESULTING IN POSSIBLE SERIOUS INJURY. -
Page 15: Adjusting The Table Angle
ADJUSTING THE TABLE ANGLE WARNING: BEFORE PERFORMING ANY ADJUSTMENT, MAKE SURE THE SANDER IS SWITCHED OFF AND UNPLUGGED FROM THE POWER SUPPLY. FAILURE TO HEED THIS WARNING COULD RESULT IN SERIOUS PERSONAL INJURY. 1. Loosen the table adjustment knobs (one each side) and move the table to the required angle. -
Page 16: Troubleshooting
TROUBLESHOOTING Trouble Possible Cause Solution Sander will not start Sander unplugged from wall Check all plug connections Fuse blown or circuit breaker Replace fuse or reset circuit tripped breaker Cable damaged Replace the cable Sanding belt does Extension cable too light or too Replace with adequate size not come up to long... -
Page 17: Maintenance
MAINTENANCE WARNING: REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE CARRYING OUT ANY ADJUSTMENT, SERVICING OR MAINTENANCE PERIODICALLY • Keep the ventilation holes clear and free from blockages. • Wipe the unit with a damp cloth, do not use abrasive chemicals to clean the sander. -
Page 18: Specifications
SPECIFICATIONS Model Number COEBS1 No load speed - Spindle 2000 RPM No load speed - Belt 1750 RPM Sanding Table Dimensions: (Depth x Width) 418 x 401 mm Table Height 334 mm Bobbin Length 116 mm Dust Extraction I.D : 36 mm, O.D : 39 mm... -
Page 19: Exploded Diagram And Parts List
EXPLODED DIAGRAM AND PARTS LIST Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 20 Knob KTCOEB1001 Flexible Slider KTCOEB1034 Bearing 604 KTCOEB1002 Square Nuts M6 KTCOEB1035 Sanding Drum KTCOEB1003 Rubber Gasket KTCOEB1036 KTCOEB1004 Dust Guide B KTCOEB1037 Hexagon Nuts M5 KTCOEB1005 Flat Washer KTCOEB1038 Tension Plate Gasket KTCOEB1006 Spring Gasket KTCOEB1039 Cross Recessed Pan KTCOEB1040 Tension Spring KTCOEB1007...
- Page 21 Carbon Brush Spring KTCOEB1071 Socket Head Cap KTCOEB1107 Screws Crimping Board KTCOEB1072 Plastic Washer(4) KTCOEB1108 Internal Tooth Lock KTCOEB1073 Motor Cable Assembly(1) KTCOEB1109 Washers 4 Motor Cable Assembly(2) KTCOEB1110 Flat Washer 4 KTCOEB1074 Plastic Washer(5) KTCOEB1111 Self-tapping Screw KTCOEB1075 Name Plate KTCOEB1112 Rubber Dust Washer KTCOEB1076...
-
Page 22: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 23 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
