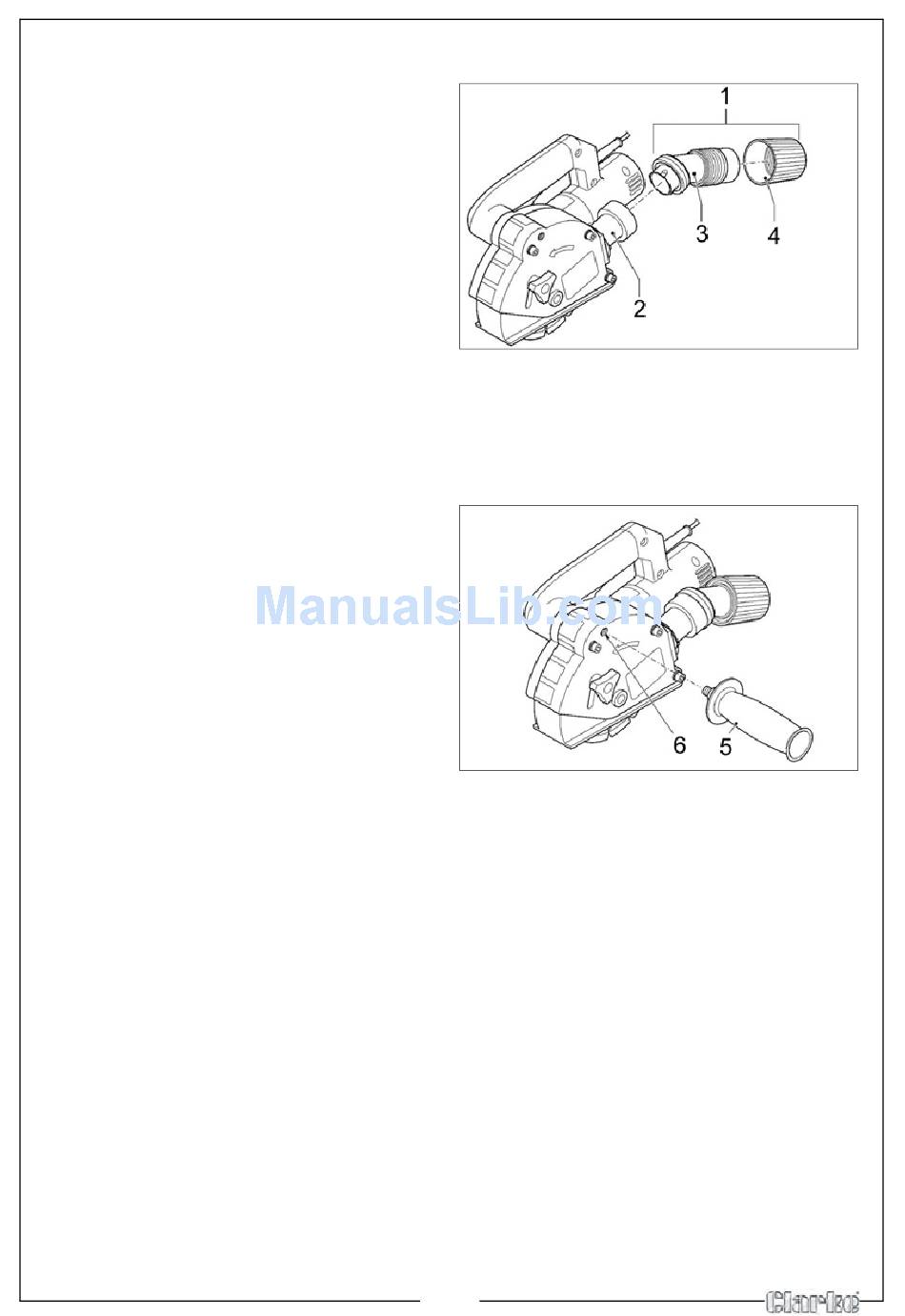

FITTING THE DUST EXTRACTION ASSEMBLY

Attach the dust extraction assembly
to the wall chaser.
• Insert the assembly (1) into the
extraction port (2) and rotate
slightly clockwise to lock into
place.
• Remove the collar (4) and slide
it over the vacuum cleaner
hose.
• Push the hose onto the dust
extraction tube (3).
• Secure in place by tightening up the collar (4).

FITTING THE ATTACHABLE HANDLE

Screw the handle (5) into the hole (6)
shown on the wall chaser.
