Summary of Contents for Clarke CONTRACTOR CON 750
- Page 1 JIG SAW MODEL NO: CON 750 PART NO: 6462180 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC11/22 - Rev 4...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE jigsaw. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR MAINS-OPERATED JIGSAW. Save all warnings and instructions for future reference. 1) WORK AREA SAFETY a. -
Page 4: Personal Safety
3) PERSONAL SAFETY a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 5 f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
-
Page 6: Electrical Connections

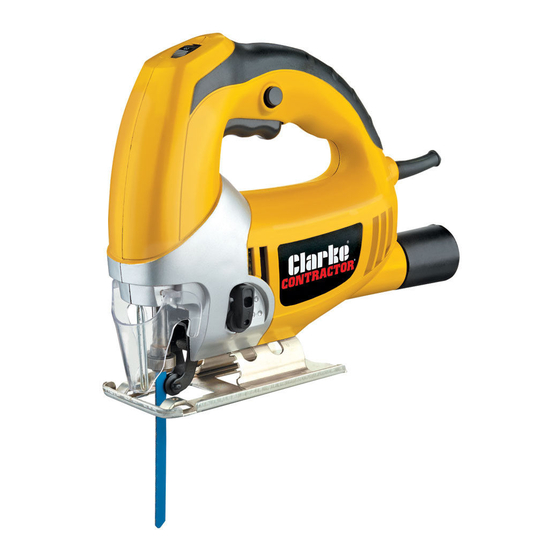

ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. - Page 7 OVERVIEW The CLARKE CON750 is a 750W variable-speed jigsaw fitted with a lock-on button for continuous operation. It is fitted with a dust extract port for connection to a vacuum system and is supplied with 1.8 metres of cable with plug.
-
Page 8: Installing/Changing Blades
INSTALLING/CHANGING BLADES 1. Use only jigsaw blades with the correct T-shank. 2. With the jigsaw disconnected from the power supply, raise the blade guard and press the blade retainer to the right hand side. 3. Select the appropriate blade for the job in hand, and insert it into the blade holder as far as it will go with the teeth facing forwards. - Page 9 5. To start the jigsaw, squeeze the trigger. Wait until the blade is running at speed before attempting to cut the workpiece. 6. Maintain the saw at constant speed by pressing in the lock-on button. • You can then release your finger pressure on the trigger.
- Page 10 2. Adjust the pendulum control to suit the material being cut using the following suggested settings as a starting point if required. NOTE: Do not use the pendulum action for cutting ceramics or metals. • Ceramics • Metal • Plywood, plastics •...
-
Page 11: Maintenance And Servicing
5. Resin and glue on the blade causes poor cutting results. If necessary clean the blade after use. 6. Refer to your CLARKE dealer if internal maintenance is required. REPLACEMENT BLADES Replacement blades are available from your CLARKE dealer as follows:... -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Jigsaw does not operate Damaged cable or fuse. Inspect and have repaired or replaced. Blade jambs, binds or Wrong blade for the Use correct blade for burns the wood material. the material being cut. Blade is worn out Replace blade. -
Page 13: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Component Parts Diagram
COMPONENT PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Component Parts List
COMPONENT PARTS LIST No Description Description Pendulum switch Washer Spring Circlip Screw Drive bush Casing (LH) Hiinge ball Hinge pin Blade carrier Spring Guide block Pendulum Base plate Spiggot Spring Speed controller Retainer boss Trigger Washer Cable clamp Ball Screw Return spring Power cable Blade retainer...
