Navigation System Control Module, Removing And Installing - Volkswagen Golf 2015 Service Manual

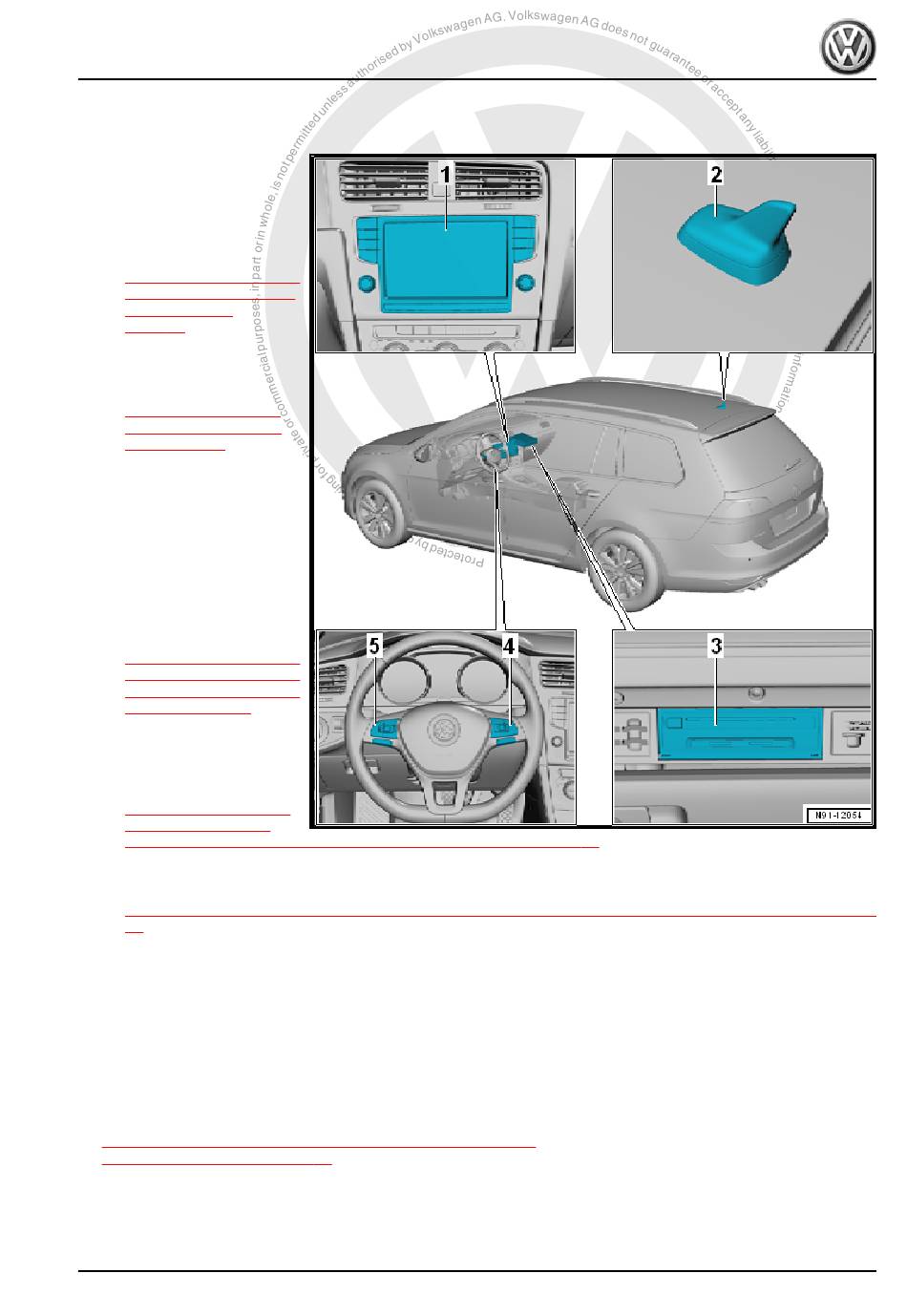

6.2.2 Component Location Overview - Navigation System, Wagon
1 - Front Information Display
Control Head - J685-
❑ Inside the center of the
instrument panel
❑ Removing and instal‐
ling. Refer to
⇒ "1.3 Infotainment Sys‐
tem Display, Removing
and Installing",
page 12 .
2 - Roof Antenna - RX5-
❑ Removing and instal‐
ling. Refer to
⇒ "3.5 Roof Antenna,
Removing and Instal‐
ling", page 35 .
3 - Information Electronics
Control Module 1 - J794-
❑ In the glove compart‐
ment
❑ Connector assignment.
Refer to ⇒ Wiring dia‐
grams, Troubleshooting
& Component locations.
❑ Removing and instal‐
ling. Refer to
⇒ "1.4 Information Elec‐
tronics Control Module 1
J794 , Removing and In‐
stalling", page 13
4 - Right Multifunction Buttons
On Steering Wheel - E441-
❑ Removing and instal‐
ling. Refer to
⇒ "8.3 Right/Left Multi‐
function Buttons On
Steering Wheel E441 / E440 , Removing and Installing", page 56
5 - Left Multifunction Buttons On Steering Wheel - E440-
❑ Removing and installing. Refer to
⇒ "8.3 Right/Left Multifunction Buttons On Steering Wheel E441 / E440 , Removing and Installing", page
56 .
6.3 Navigation System Control Module, Re‐
moving and Installing
The navigation function from the navigation system control mod‐
ule is integrated in the Information Electronics Control Module 1
- J794- .
– Remove the Information Electronics Control Module 1 - J794- .
Refer to
⇒ "1.4 Information Electronics Control Module 1 J794 , Re‐
moving and Installing", page 13
.
.
