Golf 2015 ➤ , Golf Variant 2015 ➤
Communication - Edition 02.2015

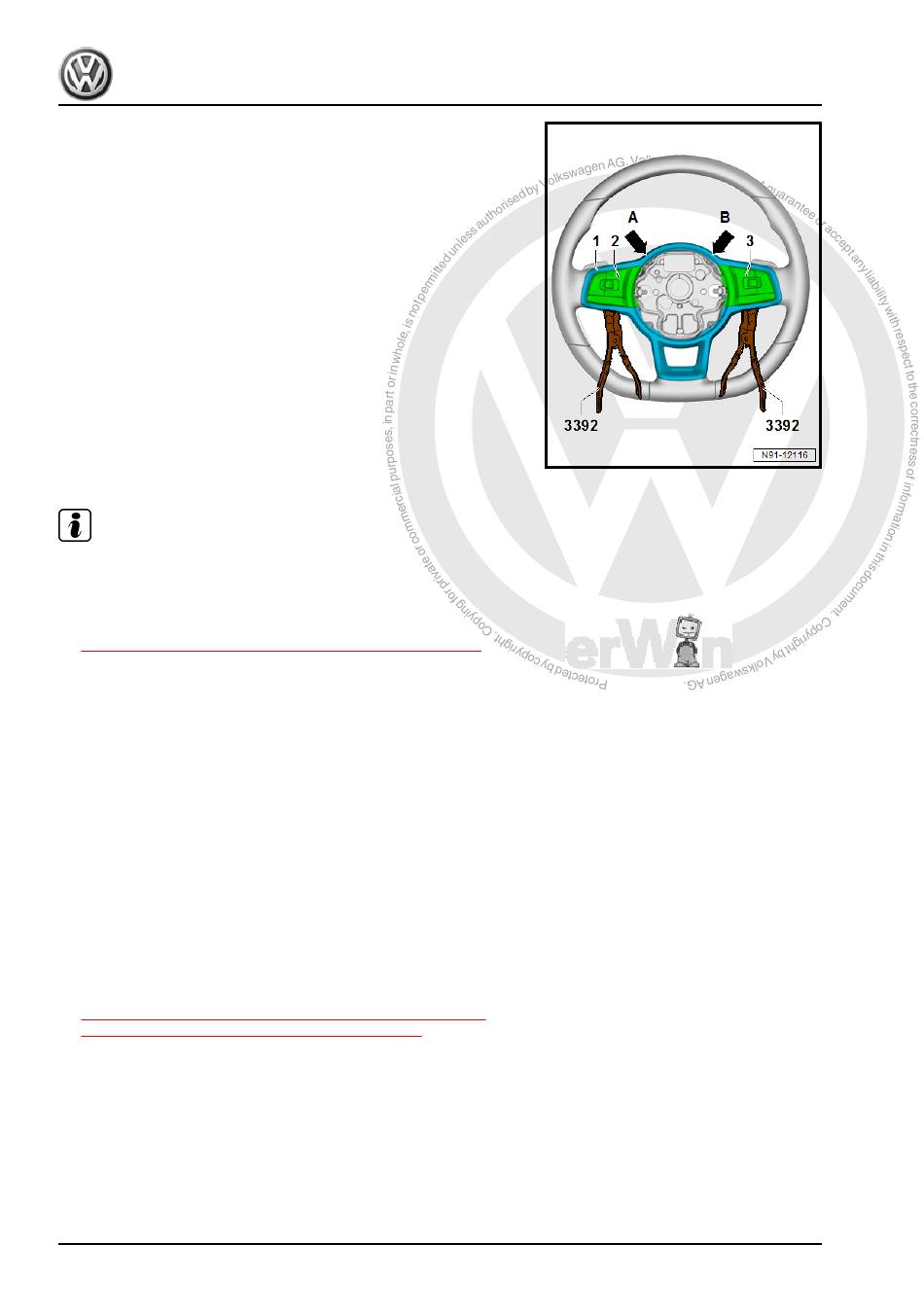

– Remove the trim molding -1- near the Left Multifunction But‐
tons on Steering Wheel - E440- -2- and Right Multifunction
Buttons on Steering Wheel - E441- -3- using the Door Trim
Pliers - 3392- .
– Remove the trim molding -1- near the -arrows A and B- from
the steering wheel.
– Release and disconnect the connectors.
– Remove the trim molding -1- with the Left Multifunction But‐
tons on Steering Wheel - E440- -2- and Right Multifunction
Buttons on Steering Wheel - E441- -3-.
– Remove the bolts for the Left Multifunction Buttons on Steering
Wheel - E440- -2- and Right Multifunction Buttons on Steering
Wheel - E441- -3- on the back of the trim molding -1-.
– Remove the Left Multifunction Buttons on Steering Wheel -
E440- -2- and Right Multifunction Buttons on Steering Wheel
- E441- -3- from the trim molding -1-.
Installing
Install in reverse order of removal. Note the following:
Note
For a better installation, clip in the trim starting from the bottom.
Tightening Specifications
♦ Refer to
⇒ "8.2 Overview - Multifunction Steering Wheel", page 55
8.4 Tiptronic Downshift Button on Steering
Wheel - E439- / Tiptronic Upshift Button
on Steering Wheel - E438- , Removing
and Installing
Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
Removing
The removal and installation is described for the left side. Re‐
moving and installing on the right side is identical.
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the Right Multifunction Buttons on Steering Wheel -
E441- / Left Multifunction Buttons on Steering Wheel - E440- .
Refer to
⇒ "8.3 Right/Left Multifunction Buttons On Steering Wheel
E441 / E440 , Removing and Installing", page 56
58
Rep. Gr.91 - Communication
.
