Information Electronics Control Module 1 J794 , Removing And Installing - Volkswagen Golf 2015 Service Manual

1.4 Information Electronics Control Module
1 - J794- , Removing and Installing
Special tools and workshop equipment required
♦ Radio Removal Tool - T10057-
♦ Fiber-Optic Repair Set - Connector Protective Caps -
VAS6223/9-
If the control module is replaced, select the
tion for the appropriate control module in
using the Vehicle Diagnostic Tester .
ing
Removing

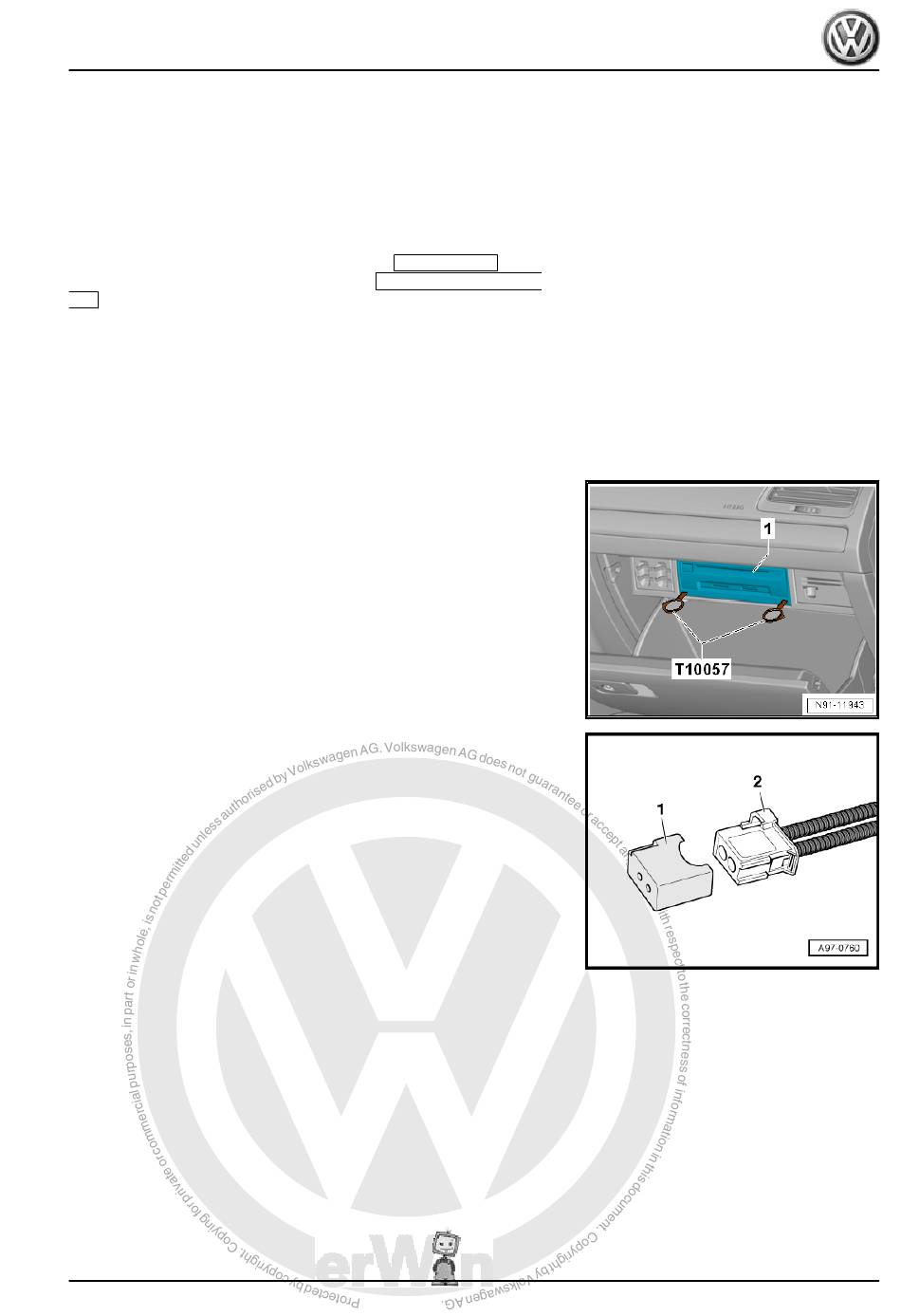

– Open the glove compartment.
– Remove any data storage device still in the Information Elec‐
tronics Control Module 1 - J794- .
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Insert the two clips from the Radio Removal Tool - T10057-
into the slits in the Information Electronics Control Module 1 -
J794- -1- until they lock into place.
The points on grip eyes must face outward.
– Remove the Information Electronics Control Module 1 - J794-
-1- from the glove compartment at the Radio Removal Tool -
T10057- grip eyes.
– Release and disconnect the connectors from the Information
Electronics Control Module 1 - J794- -1-.
Equipment Levels with MOST Bus
– Insert the Fiber-Optic Repair Set - Connector Protective Caps
- VAS6223/9- -1- onto the MOST Bus connector -2-.
All Equipment Levels
– Press the locking tabs on the Information Electronics Control
Module 1 - J794- and remove the Radio Removal Tool -
T10057- .
Installing
Install in reverse order of removal. Note the following:
– Insert the Information Electronics Control Module 1 - J794-
until it engages in the glove compartment.
func‐
Replacement
Guided Fault Find-
Golf 2015 ➤ , Golf Variant 2015 ➤
Communication - Edition 02.2015
1. Infotainment System
13
