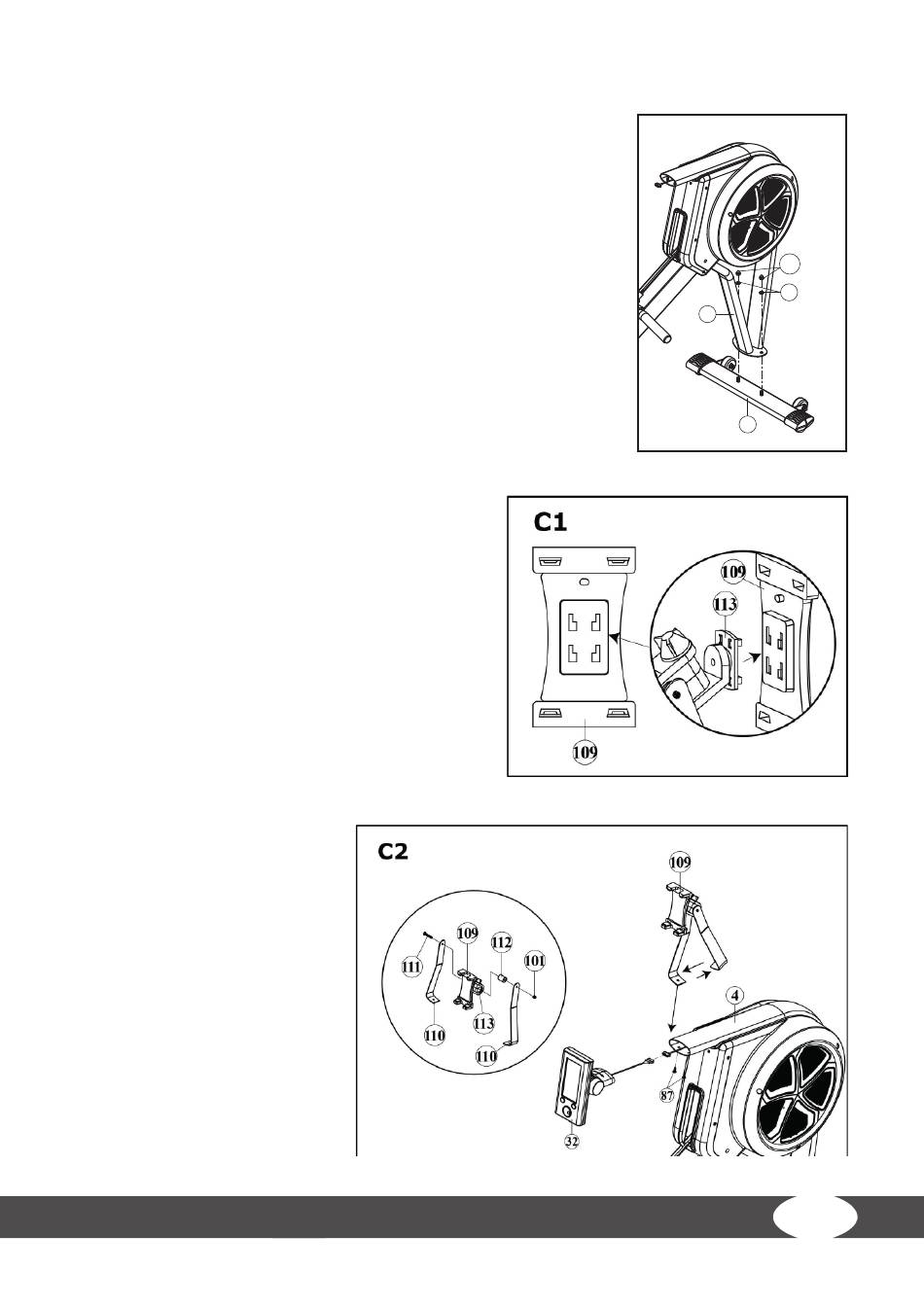

Step 2: Assembly of Front Base
Mount the front base (5) on the front frame (4) with two 3/8" spring
washers (94) and two 3/8" caps for nuts (103) (see fi g. B1). Tighten all
screws.
Step 3: Assembly of Computer und Tablet Stand
1. Attach the plastic bracket (113) to the tablet
stand (109).
2. Unscrew the
mounted screws (87) from
the front frame (4).
3. Align both steel supports
(110) parallell to each other.
4. Insert the computer (32) into
the front frame (4).
5. Assemble the steel supports
(110) to the front frame (4) by
using the two screws (87).
two pre-
B 1
103
94
4
5
15
