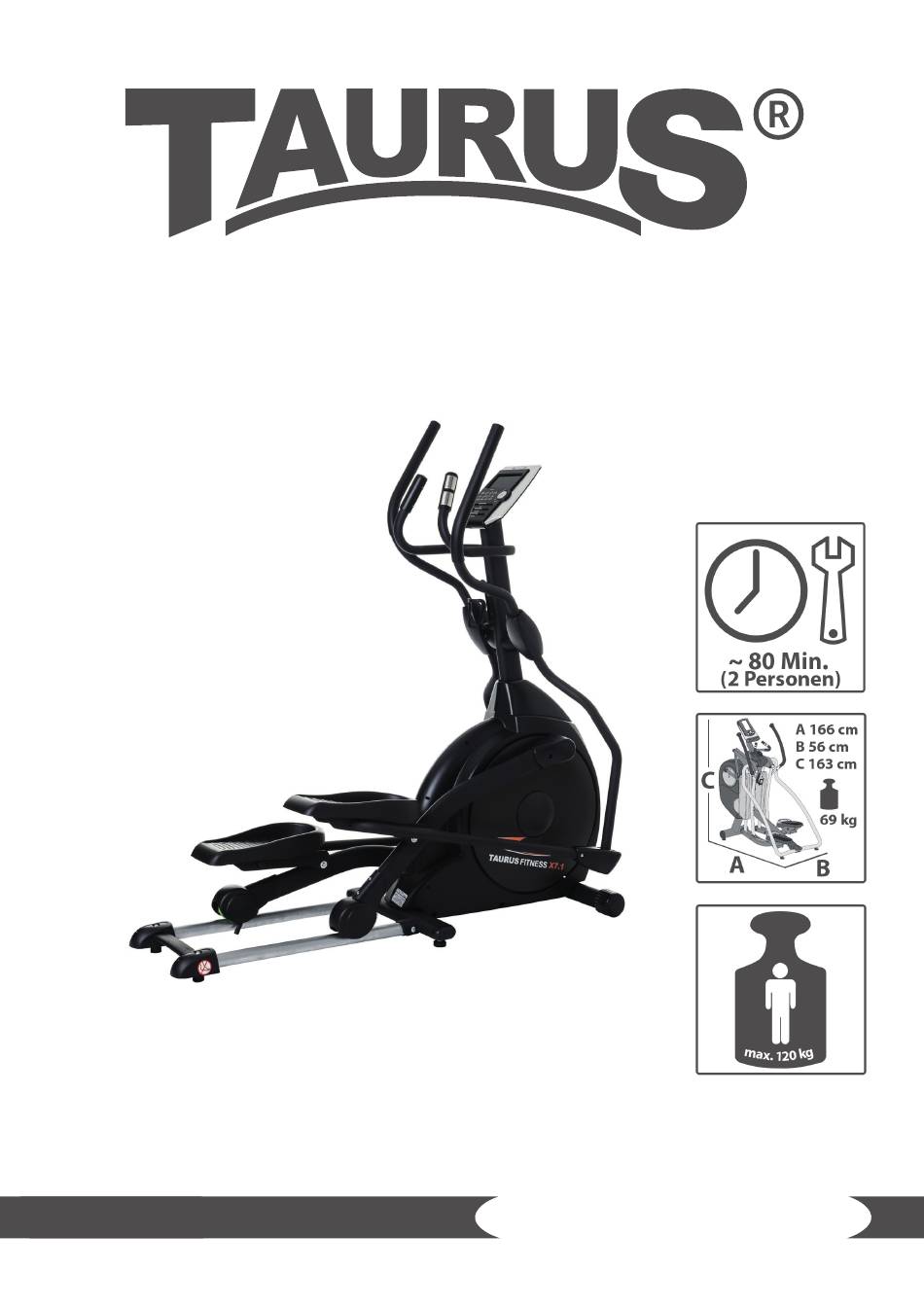

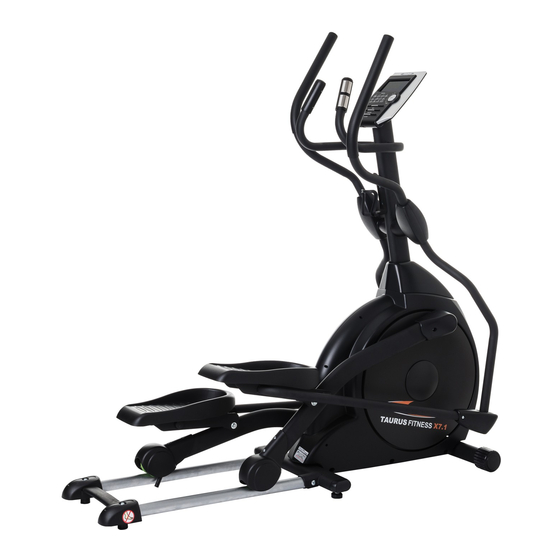

- Page 1 Assembly and Operating Instructions TFX7.01.02 Art. No. TF-X7.1 TF TF- Elliptical trainer X7.1...
- Page 2 X7.1...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Tastenfunktionen Programmes 3.3.1 Quick-Start Programme 3.3.2 Manual programme (MAN) 3.3.3 Default Programmes (PROG) 3.3.4 Heart rate oriented programmes(HRC) 3.3.5 Watt-controlled programme (WATT) 3.3.6 User-defined programme (USER) RECOVERY - recovery frequency... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT X7.1...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LED display of speed in km/h cadence (rotations per minute) training time in min training distance in km calories burnt in kcal heart rate (when using the hand sensors or a chest strap) Watts/Resistance level Resistance system: Electronic magnet brake system Resistance level: Watt: 10 - 350 Watt... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. Make sure that you leave at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the equipment as a training zone. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 13 Screws and tools Step 1: 5/16“ x 15mm M5 x 10mm 5/16“x 23 x 1.5T 5/16“x 23 x 2T Spring screw (70) 6x screw (78) 4x washer (102) 2x Washer (97) 4x (pre-mounted on the console) Step 2: 5/16“ x 15mm hexagon 5/16“...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the console mast Move the console mast cover (41) as far... - Page 15 Step 2: Assembly of the handles Fasten the two washers (101) on the right and left side of the handle axles. Slide the lower left and right side of the handles (4 and 5) on the corresponding side of the axle. Place the two flat washers (97) on the two hexagonal screws (70) and fasten them on the thread holes on the end of the axle.
- Page 16 Step 3: Assembly of the connecting arms Align the hole on the end of the connecting arm (L (7) and R (8)) with the hole in the bracket for the lower handles (L (4) and R (5)). The end of the bar should be in the bracket from the lower handles (L (4) R (5)).
- Page 17 Step 4: Assembly of the covers Mount the covers for the connection arms (L (59) and R (60)) through the connection between the end of the bar and the lower handles (L (4) and R (5)) with four screws (79) and two screws (84).
- Page 18 Step 5: Alignment of the feet If the floor is uneven, you can stabilize the equipment by turning the two setting screws under the main frame. Lift the equipment on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the equipment.
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console display Display of calories in kcal NOTICE The calculation of calories burnt is based on a general CALORIES formula. -
Page 20: Tastenfunktionen
Display of speed in km/h and rotations per minute in SPEED / RPM 5-second intervals DISTANCE Display of training distance in km Watt Display of resistance in watts Load Resistance level 1-16 Program Display of programme profiles Tastenfunktionen ENTER Button to confirm settings UP/DOWN Selection of programmes and input of values RESET... -
Page 21: Manual Programme (Man)
3.3.2 Manual programme (MAN) ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. Select “MAN”... -
Page 22: Default Programmes (Prog)
3.3.3 Default Programmes (PROG) You have 12 default programmes to choose from. Select “PROG” by turning the ENTER key and confirm the selection by pressing the ENTER key. The display shows P1 and changes to the profile programme without further input. To select another of the 12 programmes, turn the ENTER key and confirm the selection by pressing the ENTER key. -
Page 23: Heart Rate Oriented Programmes(Hrc)
3.3.4 Heart rate oriented programmes(HRC) ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. You have four heart rate programmes to choose from. -
Page 24: Watt-Controlled Programme (Watt)
3.3.5 Watt-controlled programme (WATT) During Watt-controlled training, the equipment changes the load level automatically in order to keep the wattage constant. The wattage is a unit for the performed work, which is composed of the step speed and the load level. If you change the speed, the equipment will automatically adjust the load level in order to keep the wattage constant. -
Page 25: Recovery - Recovery Frequency
RECOVERY - recovery frequency This function measures how fast your heart rate recovers after a training session. The faster your heart rate recovers, the better your fitness level. A 60 second countdown will start when you press the recovery button. Hold the hand pulse sensors with both hands and do not train as long as the countdown is running. -
Page 26: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 27: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 28: Maintenance And Inspection Calendar
Eliminate sources of interference (e.g. Sources of interference in mobile phone, WLAN, lawn mower the room and vacuum cleaner robot, etc..) unsuitable chest strap Use a suitable chest strap (see RECOMMENDED ACCESSORIES). Wrong position of chest No pulse display Reposition chest strap... -
Page 29: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 30: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / elliptical trainer Model Name: X7.1 Article Number: TF-X7.1 X7.1... -
Page 31: Parts List
Parts List Name Qty. Name Qty. Main Frame 600m/m_DC Power Cable Pedal Arm (L) Gear Motor Pedal Arm (R) 250m/m_Sensor W/Cable Lower Handle Bar (L) Sensor Rack Lower Handle Bar (R) 850m/m_Handpulse W/Cable Assembly Bushing Housing, Pedal Arm 37~4 Ø3 × 20m/m_Tapping Screw Connecting Arm (L) Power Adaptor Connecting Arm (R) - Page 32 Oval End Cap 3/8" -UNF26 × 9T_Nut EVA Foam for Rail Strap 3/8" × 7T_Nut Handgrip Foam M12_Nut Rubber Foot 3/8" × 19 × 1.5T_Flat Washer 68~1 Drink Bottle(Optional) 5/16" × 35 × 1.5T_Flat Washer 68~2 Drink Bottle Holder 5/16" × 23 × 1.5T_Flat Washer 68~3 M5 ×...
-
Page 33: Exploded Drawing
Exploded Drawing... -
Page 34: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 35 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 36: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 37 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 38 Notes X7.1...
- Page 40 Elliptical trainer X7.1...
