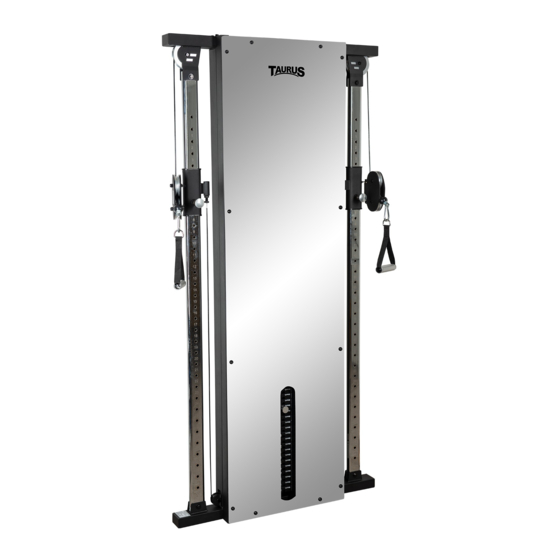

Summary of Contents for Taurus TF-DP-G-66
- Page 1 Assembly Instructions max. 150 kg ~ 120 Min. 135.8 kg L 104 | W 29 | H 208 TFDPG66.01.03 Art. No. TF-DP-G-66 Taurus Design Line Dual Pulley...
- Page 2 Dual Pulley...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Dual Pulley...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Weight block (67.5 kg) Package dimensions (L x W x H) and weight approx.: Nr. 1: 211 cm x 51 cm x 15 cm 71.5 kg Nr. 2: 211 cm x 61 cm x 4 cm 9.2 kg Nr. -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 11 (21) (23) (24) (26) (27) (28) (29) (32) (33) (34) (55) (35) (37) (36) (38) (56) (51) (39) (57) (40) (52) (42) (53) (43)
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE Before installing the base and top frame, make sure that the holes are facing the front. NOTICE First loosely screw all parts together and check that they fit properly. - Page 13 Step 2 WARNING ⚠ Check whether the condition of your walls is suitable for mounting this unit. To do this, contact your contract partner. Mount the Top Frame (2) and the Base Frame (1) to the wall using four bolt sets (38).
- Page 14 Step 3 Attach the two Swivel Pulley Housings (13) to the Right and Left Cable Height Adjuster (11 & 12) using two bolts (39), four washers (51) and two nylon nuts (56). Mount the two Upright Frames (5) to the Base Frame (1) and the Top Frame (2) using four bolts (41), eight washers (52) and four nylon nuts (57).
- Page 16 Step 4 NOTICE The Pulleys (33) are fixed simultaneously with the Cable (35). Mount the Pulley (33) to the Pulley Block (15) using one bolt (42) and one nylon nut (57) and guide the cable upwards, see fig. 1. Mount two Pulleys (33) to the Top Frame (2) using two bolts (42) and two nylon nuts (57) and guide the cable downwards to the right Main Upright Frame (3), see A1 &...
- Page 18 Step 5 NOTICE The Pulleys (33) are fixed simultaneously with the Cable (36). Mount two Pulleys (33) to the Swivel Pulley Housing (13) using two bolts (42) and two nylon nuts (57) and guide the cable upwards, see C1. Mount one Pulley (32) to the Top Frame (2) using one bolt (42) and one nylon nut (57) and guide the cable along the frame, see C2.
- Page 20 Step 6 NOTICE Before installing the longer covers (7) and shorter covers (10), make sure that the holes without thread face towards the device and the threaded holes face towards the acrylic panel (37). Mount the two Longer Covers (7) to the right and left Main Upright Frames (3) using eight bolts (46).
-
Page 22: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 23: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 24: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 25: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 26: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Multi-Gym Model Name: TAURUS DESIGN LINE DUAL PULLEY Article Number: TF-DP-G-66 / TF-DP-G-90 / TF-DP-M-66 / TF-DP-M-90 Dual Pulley... -
Page 27: Parts List
Parts List Name Qty. 1904-1 BASE FRAME 1904-2 TOP FRAME 1904-3 MAIN UPRIGHT FRAME 1904-5 UPRIGHT FRAME 1904-6 GUIDE ROD 1904-7 LONGER COVER 1904-8 REAR COVER 1904-9 GUIDE ROD RETAINER 1904-10 SHORTER COVER 1904-11 RIGHT CABLE HEIGHT ADJUSTER 1904-12 LEFT CABLE HEIGHT ADJUSTER 1904-13 SWIVEL PULLEY HOUSING 1904-14... - Page 28 1904-33 90mm ALUMINUM PULLEY 1904-34 50mm PULLEY 1904-35 WEIGHT STACK CABLE 1904-36 PULLEY COLUMN CABLE 1904-37 ACRYLIC PANEL 1904-38 5/16" X 2-1/2" BOLT SET 1904-39 1/2" X 4-1/4" HEX BOLT 1904-40 3/8" X 2-1/4" HEX THREADED BOLT 1904-41 3/8" X 2" HEX BOLT 1904-42 3/8"...
-
Page 29: Exploded Drawing
Exploded Drawing... -
Page 30: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 31 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 32: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 34 Dual Pulley...
- Page 35 Notes...
- Page 36 Taurus Design Line Dual Pulley...
