Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.

NOTICE
+ First loosely screw all parts together and check that they fi t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diffi culty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the fi le.

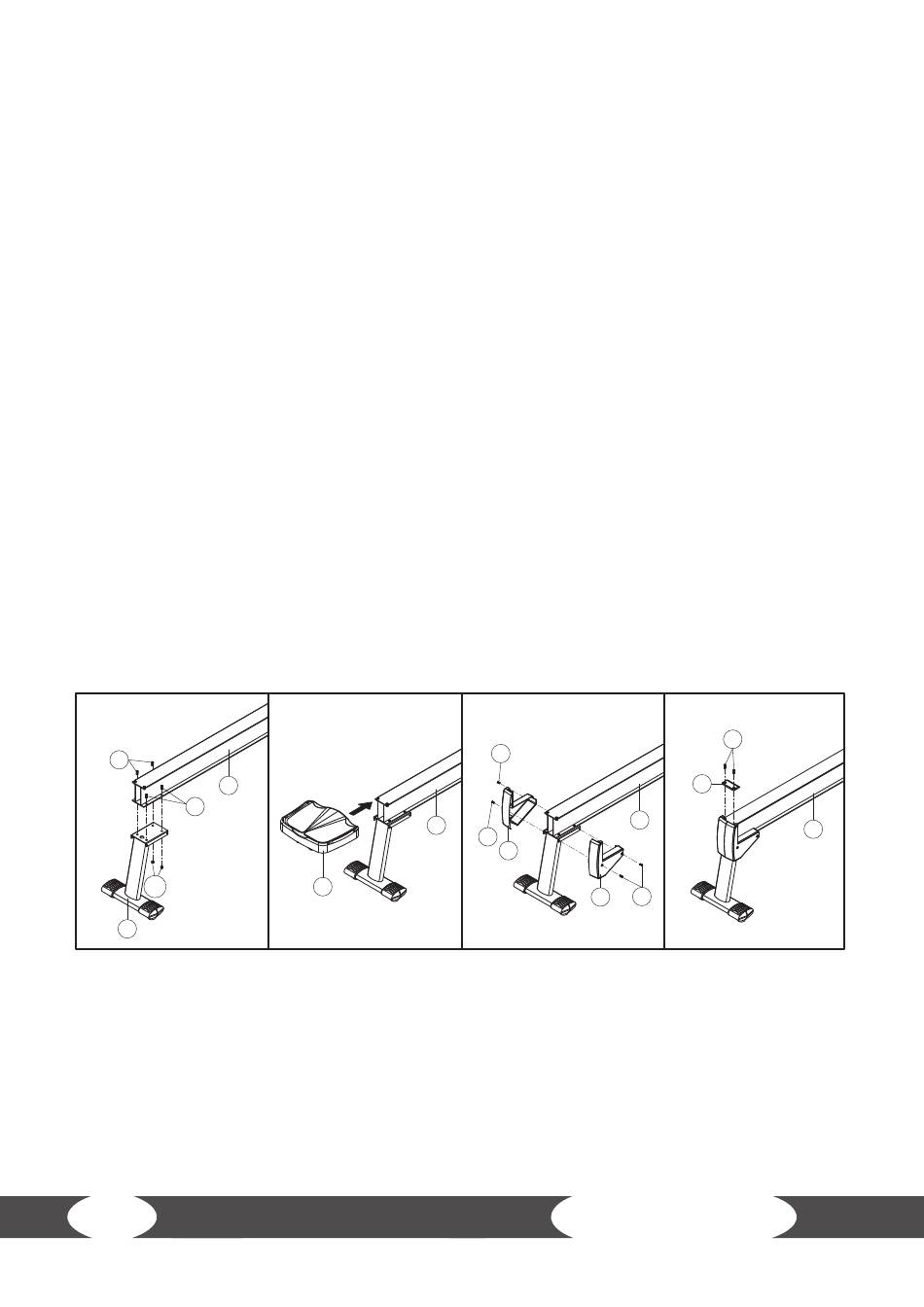

Step 1: Assembly of Rear Base and Monorail
1. Mount the rear base (1) on the mono rail (2) with four hexagon screws (80) and two nylon nuts
(101) (see fi g. A1). Tighten the screws.
2. Slide the seat pad (29) on the mono rail (2) (see fi g. A2).
3. Mount the left (30L) and right rear cover (30R) with four M4 X 12L screws (90) (see fi g. A3).
4. Mount the bumper (47) on the mono rail (2) with two M6 X 16L hexagon screws (80). Please pay
attention to that the left (30L) & right rear cover (30R) are correctly positioned (see fi g. A4). Then
tighten all screws.
