CASE STARTUP / LED LIGHT FIXTURE REPOSITIONING (SERVICE VS. SELF-SERVICE / LED DRIVER)
1. Case Startup
• Case will be energized when plugged into outlet.
• Lights will turn on when rocker switch (located at
case upright) is turned on.

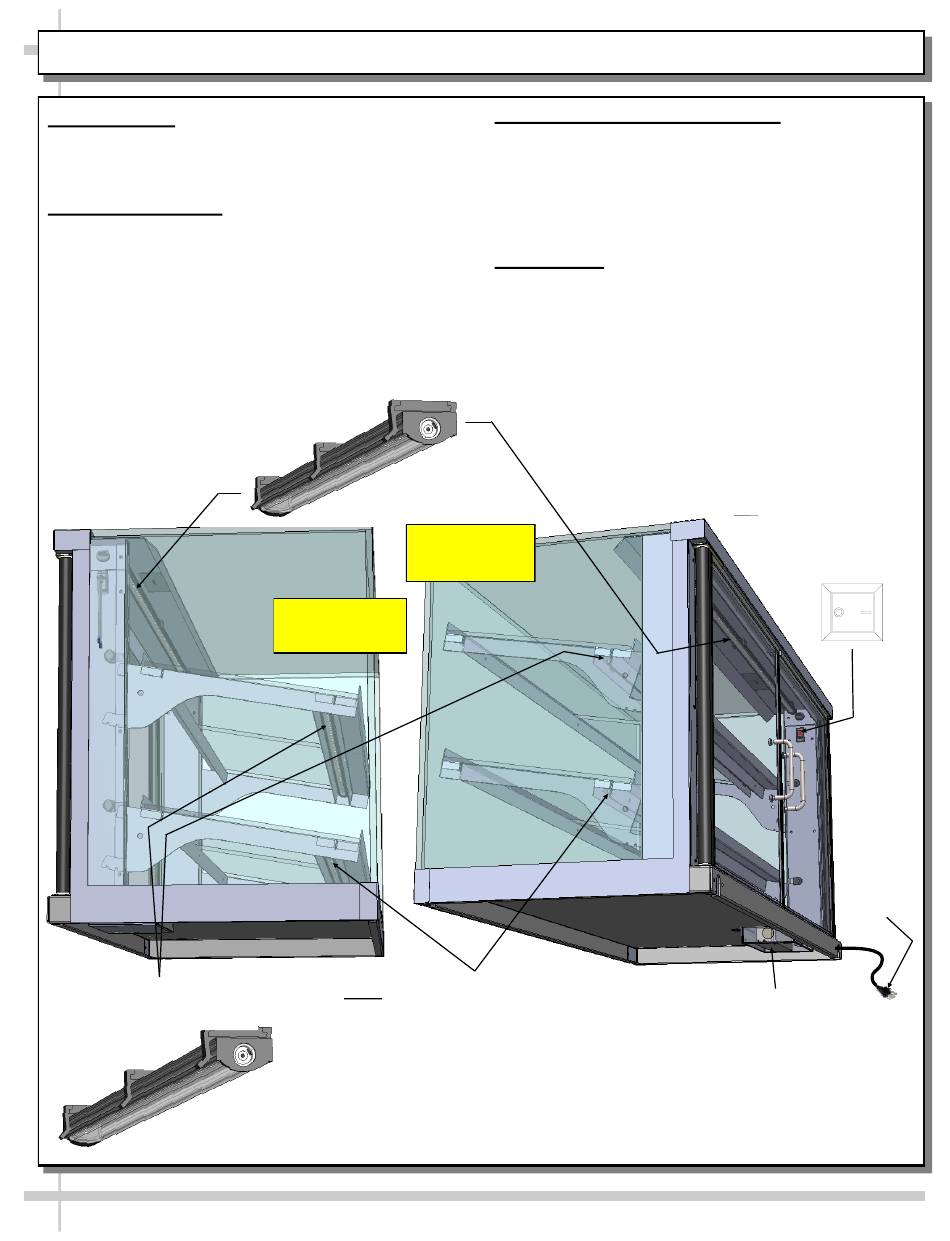

2. LED Light Fixtures
• LED lights are located at both header and shelving
of case (as shown below).
• Check that ALL of the light plugs are properly
connected to the LED light.
• Plug must be inserted ALL THE WAY into the
LED light orifice (with no gap) to work properly.
LED Light
(Under Shelves) Typ.
LED Light (Under Header) Typ.
Self-Service
Case Shown
Service Case
Shown
Note: Lower Shelf LED Light Is An
Optional "Upcharge" Item. It May Be
Ordered As An Aftermarket Piece With
A Harness And Installed In The Field.
6
3. LED Light Fixture Repositioning
• Service cases have LED lights opposite uprights.
• Self-Service cases have LED lights positioned
near uprights.
• Important! You must reposition LED lights if
changing case from service to self service
(or vice versa). See below for illustrations.
4. LED Driver
• LED driver box is located at rear-underside of unit.
• See next page for access instructions.
LED Lights
Rocker Switch
OFF ON
3-Prong
Plug
LED Driver
And Box
