CASE AT SHIPMENT / BLOCK REMOVAL / SEPARATELY SHIPPED SHELVES & THEIR PLACEMENT
Follow These Instructions For Proper Case
Removal From Skid / Shipping Block Removal /
Shelving Component Access & Placement, Etc.

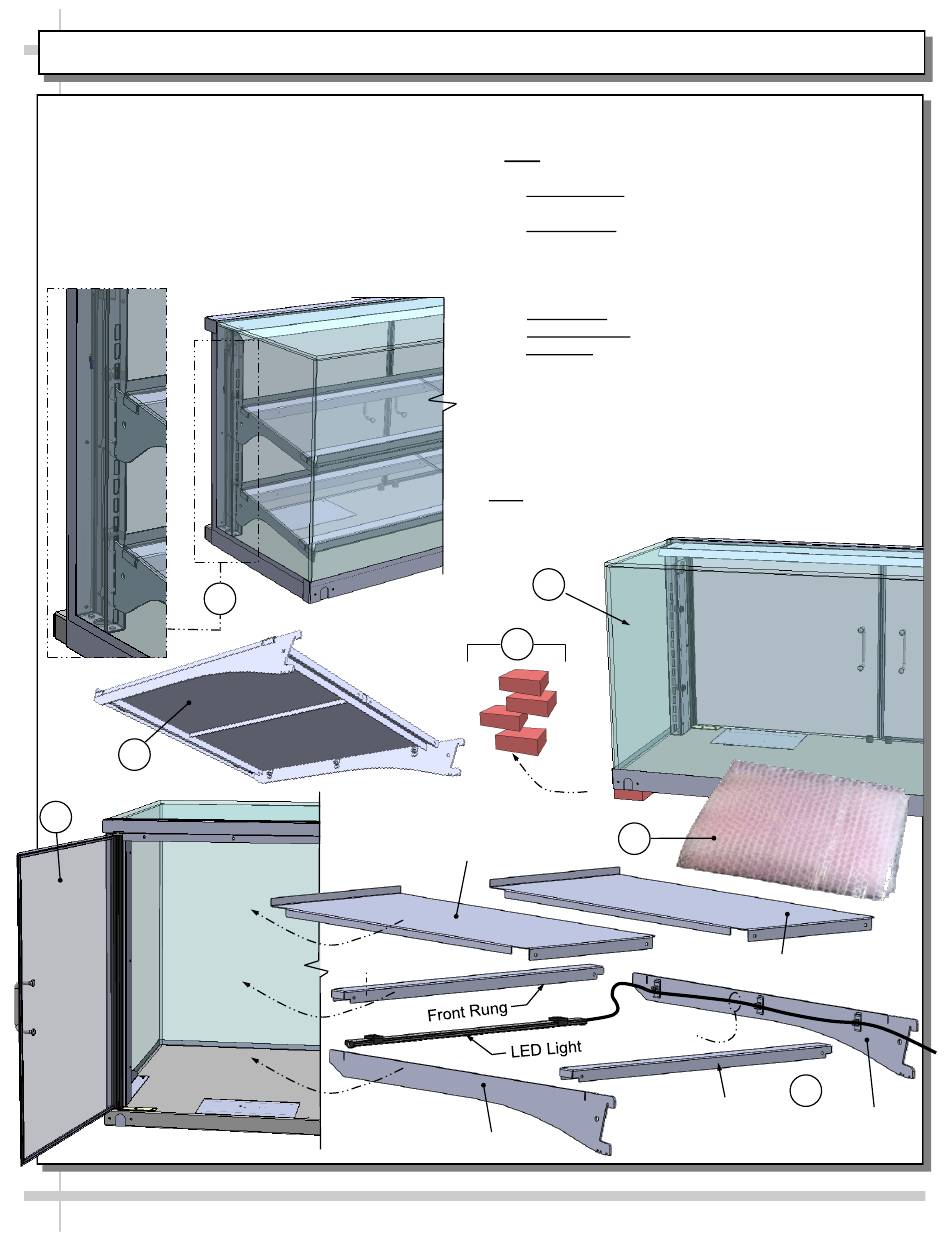

1. View of case at shipment (no shelves installed / skid
not shown).
2. Remove shipping blocks from case underside
(attached to skid with screws). Set case on counter.
3. Carefully remove separately shipped shelving from
its protective bubble wrap.
7
6
5
4. Open case's hinged door. Follow steps A through E to
place shelving components into case ONE AT A TIME.
Note: Insert lowest shelf components first, followed
by top shelf components.
A. Side brackets: Insert into upright slots (following
bracket/slot pattern shown in view #7).
B. Bottom shelf: LED lighting is optional. If LED light is in
kit, attach under front rung. Attach front rung between
shelving brackets. Insert LED plug into light. Route wires into
wire clips that are attached to side bracket. Connect the
opposite-end LED plug into upright connectors.
C. Rear rungs: Attach to shelving brackets.
D. Metal shelving: Attach atop shelving brackets.
E. Top shelf: LED lighting is standard. Follow items A-D
(above) shelving component attachment instructions.
5. View of case awaiting shelving components.
6. View of assembled shelf (for illustrative purposes only).
7. View of recommended slot spacing after shelving has
been properly inserted into case.
> After shelving has been properly placed in case (and
LED lights have been properly connected), turn lights on.
> Note: Service case shown. This process is also applicable
to self-service cases. See next page for slot spacing guide.
1
2
Metal Shelf
Side Bracket
4
3
Metal Shelf
LED Wire
4
Rear Rung
Side
Bracket
