Gas Calibration Procedure - K-Systems G210 InviCell User Manual

Ensure the gas analyser is prepared as per the gas analyser user manual.
Gas flow to the Preparation Chamber should be switched off during gas calibration. (See page
29, Changing the Gas Control Settings).

Gas Calibration Procedure

1. Connect a length of tubing to the gas analyser input.
2. Connect the coupler (K59688) from the supplied accessories to the tubing.

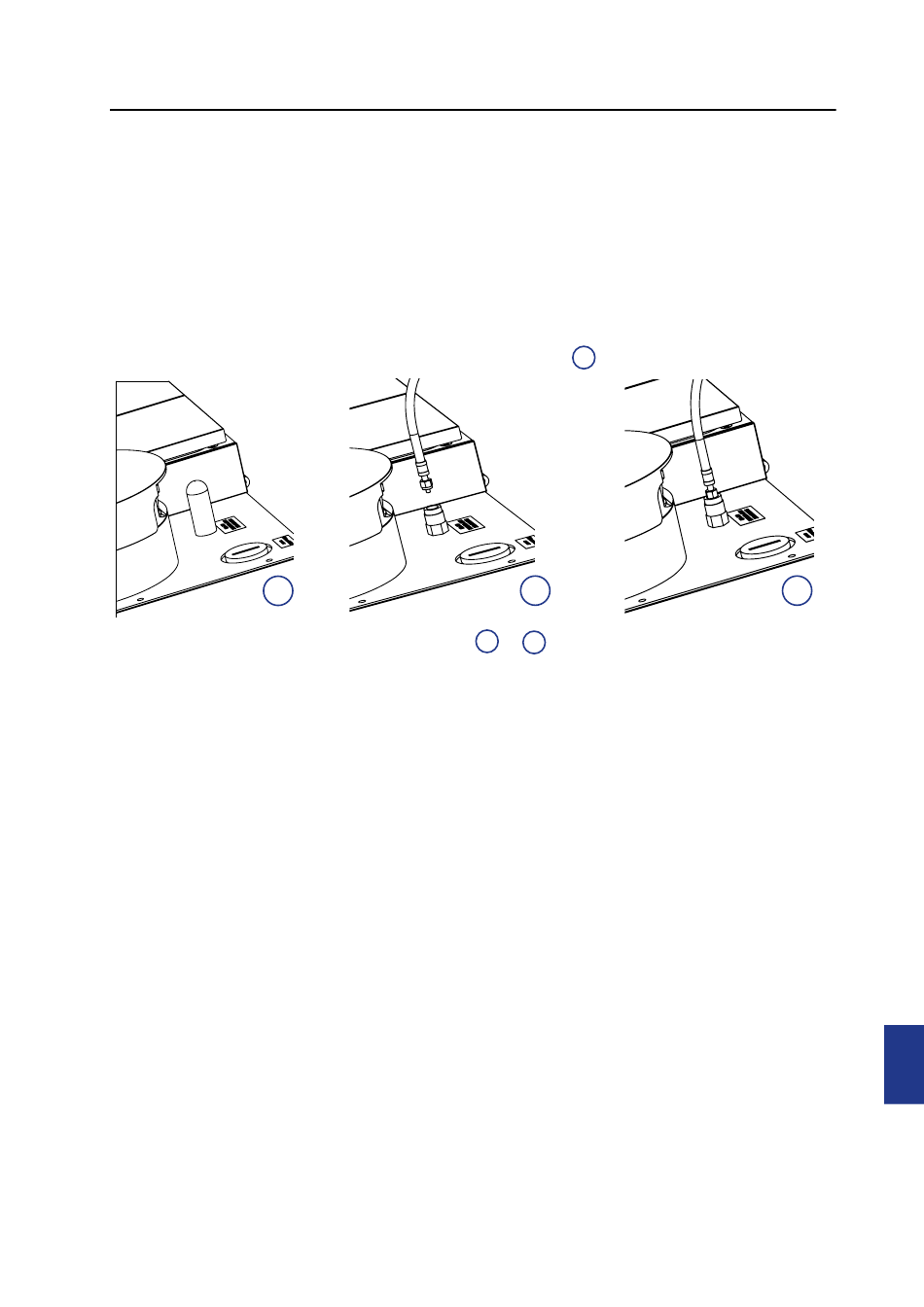

3. Remove the protection cap from the sample port.
1
4. Connect the coupling to the sample port.
5. Collect the gas sample using the gas analyser. Note: wait at least 30 minutes after
powering on the G210, or after any change to gas concentration settings within
Setpoint tab or Calibration tab prior to taking the gas sample.
6. Stop the gas analyser pump.
7. Record the gas concentration reading.
8. Disconnect the coupling from the sample port.
9. Replace the protection cap.
If calibration is needed, adjust the value on the calibration, wait for the gas to stabilise and
re-test.
After calibration the gas flow to the Preparation Chamber can now be switched back on. (See
page 29).
