Summary of Contents for K-Systems G85

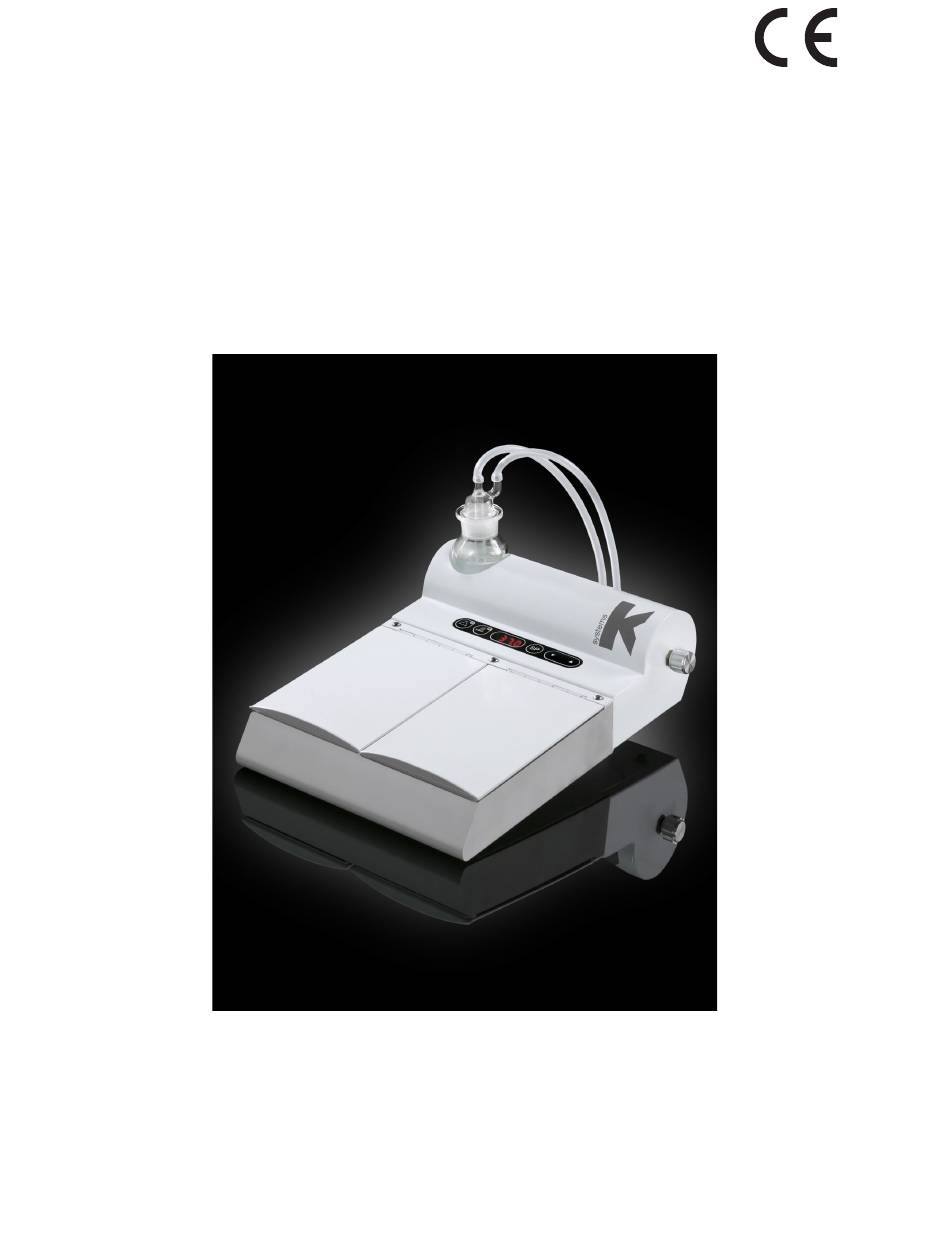

- Page 1 K-Systems G85 Mini Incubator User Manual K22074 Version 3.0...
-
Page 2: Table Of Contents
User Manual - G85 Contents General information & service .......................... 3 Symbols glossary .............................. 4 Unpacking and inspection ..........................5 Parts supplied with incubator ........................... 5 Standard accessories ..........................5 Optional accessories ..........................6 User manual ............................... 7 Intended purpose ............................7 Product description............................. -
Page 3: General Information & Service
User Manual - G85 1 General information & service This manual is protected by copyright, all rights reserved, and no part hereof may be photocopied or reproduced in any form without the prior written, consent of CooperSurgical, Inc. Users of CooperSurgical K-SYSTEMS products should not hesitate to contact us if there are any unclear points or ambiguities in this manual. -
Page 4: Symbols Glossary
User Manual - G85 2 Symbols glossary Source: ISO 15223-1 Meaning Symbol Meaning Symbol Do not dispose of product with In accordance with Low normal waste. Voltage Directive 2014-35-EU Dispose of in accordance with the EU WEEE Directive Consult Serial number... -
Page 5: Unpacking And Inspection
User Manual - G85 3 Unpacking and inspection • Unpack the equipment. Check the packing list to ensure all accessories are there. • • Examine the packing material carefully for separately packed items. Check the incubator for external surface damage. -
Page 6: Optional Accessories
User Manual - G85 Optional accessories The following warming blocks can be purchased for use with the incubator. Warming block B16 Holds two culture dishes B16F – Falcon 353001 Order code:26059 B16N – NUNC 150318 Order code: 26060 Warming block B24... -
Page 7: User Manual
Interchangeable aluminum warming blocks holding a variety of culture dishes are available. The G85 features a built-in digital flow meter with a possible flow of 0 - 29 liters per hour and a humidification system. The G85 has also a purge function enabling a quick CO level recovery within the chambers. -
Page 8: Features And Operation
User Manual - G85 6 Features and operation Set up of apparatus Connect the unit to the PSU and the PSU to the mains wall socket. To power up the unit, press the heat on button on the keyboard. The display will indicate the current temperature. -
Page 9: Keyboard Functions
User Manual - G85 Keyboard functions Purge Heat ON/Off LED Display Setpoint Arrow keys UP/DOWN Alarm... -
Page 10: Operating The Heated Compartment
User Manual - G85 Operating the heated compartment Action Press heat ON/OFF key to show the actual temperature. Temperature setting and control Action Press setpoint key and the set temperature is shown. Press and hold setpoint key. While holding the... -
Page 11: Gas Flow Setting
The reduction valve must be a high-quality unit of the pressure type that can be adjusted precisely in the 0-1 bar range. The flow rate on the G85 must be adjusted to a specific level in accordance with the use of the unit. -
Page 12: Humidifying The Gas Mixture
When adjustment in the flow rate is done on the regulator valve on the side of the G85, no changes can be seen to the flow reading in the display. It will stay at “0” disregarding the... -
Page 13: Purge Function
User Manual - G85 The fault occurs because of under pressure in the gas supply when the G85 is not in use. If the user shuts off the gas supply only on the bottle or the external regulator an under pressure will develop. -
Page 14: Temperature/Flow Alarm
The alarm will also be activated if the flow is “on”, and the heat “off”. In this case the display will show “f.on”. Note: The maximum flow is 29 l/h. The G85 will not be damaged by a higher flow as long as the gas flow is kept below 100 l/h. -
Page 15: Warming Up
When a cold item is placed in either of the chambers it may need up to 40 minutes to stabilize, depending on the thermal mass of the object and the initial temperature. G85 with two warming blocks in one chamber and humidifier is shown on the picture below. Note: Always place a warming block in the chambers during warm up and be careful with the heated area under the humidifier bottle as it will become hot. -
Page 16: Menu Function
User Manual - G85 7 Menu function The user can access a number of advanced functions via the menu. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. The first option “UNIT” will appear in the display. -
Page 17: Overview Of Options
User Manual - G85 The menu consists of the 10 options listed below. For further detail see the description on the following pages. Overview of options... -
Page 18: Unit
User Manual - G85 UNIT In the UNIT option the displayed temperature unit can be set to either degrees Celsius or Fahrenheit. Follow these steps to navigate in the UNIT option Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. - Page 19 User Manual - G85 RS232 The RS232 option is for serial communication and data logging of the temperature and alarm conditions. Follow these steps to navigate in the RS232 option. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu.
-
Page 20: Tune
User Manual - G85 TUNE The TUNE option is for calibration of the displayed temperature. If there is an offset between the value on the display and any measurements made with a high precision external temperature sensor, this can be corrected. -
Page 21: Integral Time (Int.t)
User Manual - G85 Integral Time (INT.T) The INT.T (Integral Time) option is for changing the base value for the PID controller. This should not be attempted by unauthorized persons. If set at a different level the controlling principle will be affected. - Page 22 User Manual - G85 7.7 Start Set (St.St) The St.St (Start Set) option is the timer function for the heat. By using this option, time can be saved as the G85 can be ready for use before procedures start in the morning. Note: This function will only work correctly if the clock is set.
-
Page 23: Heat
User Manual - G85 HEAT The HEAT option is used for the heater to turn on at a certain time. Note: This function only works in conjunction with St.St. If St.St is set to 8.00 and heat function is on, the heater will automatically turn on at 8.00 using 24 hour clock. -
Page 24: Automatic Start (A-St)
User Manual - G85 Automatic Start (A-ST) The A-St (Automatic Start) option is used to repeat the timer (St.St) function every day of the week This function works in conjunction with St.St and HEAT. Note: If St.St.is set to 8.00 and heat function is on, the heater will automatically turn on at 8.00 every day. -
Page 25: Hour
User Manual - G85 7.10 HOUR The HOUR option gives the opportunity to show the time on the display when the heat is off. Follow these steps to navigate in the HOUR option. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. -
Page 26: Rest
User Manual - G85 To change back to temperature. Action Display Press and hold setpoint key. Press the HEAT key one time, then let go of the setpoint key. The display now shows the temperature. Note: The time is shown as a 24-hour clock e.g. 19.30 not 7.30 PM. -
Page 27: User Maintenance
8 User maintenance Cleaning The G85 can be wiped clean with a sterile cloth moist with sterile water. Moisten a cloth with cleaning solution, and wipe all internal surfaces of the chamber. There- after wipe all cleaned surfaces with a sterile cloth moist with purified or sterile water. -
Page 28: Trouble Shooting
User Manual - G85 9 Trouble shooting Symptom Cause Action Temperature alarm Temperature more Check the set is on. than ±0.5°C from temperature. Wait set temperature. for the temperature to stabilize. No heating. Setpoint below Change setpoint ambient. (eg. 37°C). -
Page 29: Technical Data
User Manual - G85 10 Technical data Material Stainless steel (upper parts) Aluminum (lower parts) Weight (without PSU and BLOCK) 5.4kg Overall dimensions (WxDxH) 267x340x95mm Temperature range Ambient to 42°C Spot temperature accuracy ± 0.2°C Flow range 0 – 29 liters/hour... -
Page 30: Warranty Information And Limits On Liability
User Manual - G85 12 Warranty information and limits on liability Please refer to our Terms and Conditions on our website fertility.cooperSurgical.com/commercial-terms-and-conditions/... -
Page 31: Customer Service Contact Details
User Manual - G85 13 Customer service contact details Tel: +45 46 79 02 02 Fax: +45 46 79 03 02 E-mail: sales@coopersurgical.com fertility.coopersurgical.com Customer details for customers in the USA Tel: 800-243-2974 Fax: 800-262-0105 fertility.coopersurgical.com...
