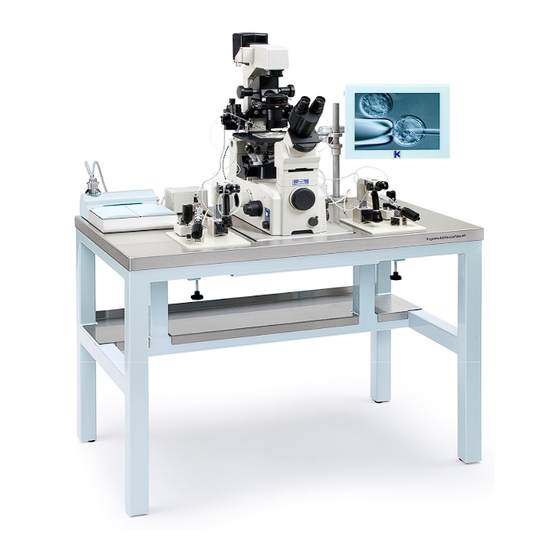

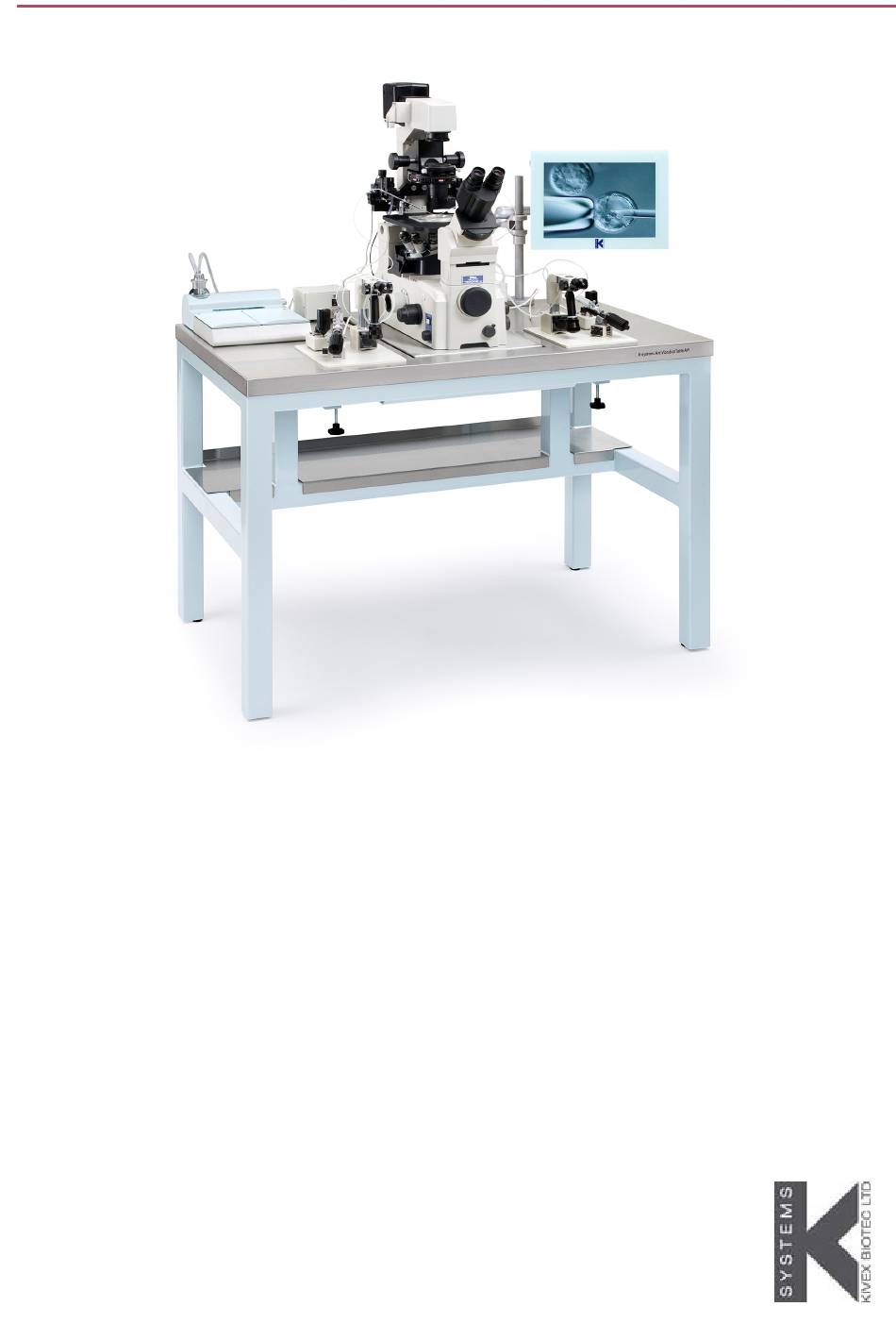

- Page 1 K-SYSTEMS USER MANUAL Anti Vibration Table - AV1 and AV5 Version 05 Manual part no: 33095...
-
Page 2: Table Of Contents
AV1 User Manual Table of contents Unpacking and inspection ......................3 General description ........................3 Assembling the AV1/AV5 ......................4 Weight adjustment ......................... 6 3.1.1 Removing the middle spring ..................7 3.1.2 Adding the Weight Plate ....................8 Trouble Shooting.......................... 9 Maintenance .......................... -
Page 3: Unpacking And Inspection
General description The K-SYSTEMS Anti Vibration tables are designed to meet the requirements of ICSI Procedures. With an isolated microscope platform and a complex anti-vibration system, the table is preventing vibrations from reaching the microscope platform and dampening unavoidable vibrations in the shortest possible time. -
Page 4: Assembling The Av1/Av5
AV1 User Manual Assembling the AV1/AV5 For assembling the AV1 /AV5 please avoid touching the springs. Place the anti vibration table in its required position on the floor. Preferably on a hard floor. Level the table plate horizontally by adjusting the feet on the table legs. To ensure the best result, place the gauge/bulls eye on the table plate and make sure it is leveled. - Page 5 AV1 User Manual The position and height of the floating plate are adjusted by: Loosen the four securing bolts Turn the adjustment screws to the necessary position. Tighten the four securing bolts again.
-
Page 6: Weight Adjustment
Kg) of the equipment, which you will place on the anti-vibration platform. When AV1 or AV5 leaves the factory it is equipped with 3 springs and an extra weight plate. See right column in the table below. The yellow areas indicate the optimal working conditions for the 3 different installation methods. -
Page 7: Removing The Middle Spring
Unscrew the table plate; it is attached with 4 screws on the bottom side (only on AV1). Remove the table plate (only on AV1). Please put on gloves when touching the springs In each side of the table there are metal rods screwed into the frame, unscrew these two metal rods. -
Page 8: Adding The Weight Plate
3.1.2 Adding the Weight Plate AV5 table: AV 1 table: 1) Place the floater on a flat surface 1) Place the floater on a flat surface and remove the screws 2) Remove the screws from the 2) Remove the bottom plate and add bottom plate, remove the plate. -
Page 9: Trouble Shooting
Trouble Shooting VIBRATIONS CAUSED BY ACTION TO BE TAKEN The floater is touching the rest of the table plate Center the floater within the and vibrations are being transferred directly to hole. Air should be all the microscope. around the floater. Loose tightening bolts. -
Page 10: Maintenance
2. If smudges are difficult to clean, wipe them with a soft cloth slightly moistened with a diluted neutral detergent. Technical data AV1 Material ........................Stainless steel Weight AV1 ..........................100Kg Stainless steel plate AV1....................1200x800 mm Height of table plate ......................780 mm Undamped frequency ......................< 4 Hz Maximum deflection. -
Page 11: Warranty - Liability Issues
Kivex Biotec expects that use of the product will be confined to trained and expert users. In no event shall K-Systems Kivex Biotec be liable for any direct or indirect damages including incidental, consequential or special damages, arising out of or in connection with the use or performance of the product. -
Page 12: Replacement
Tel: +45 4599 5600; Fax: +45 4599 5619; email: info@k-systems.dk Technical assistance For more information, contact the K-systems office nearest you. For Denmark, call +45 45995600. Outside Denmark, see your K-systems catalogue for the phone number of the office nearest you or visit our website at www.k-systems.dk...
