Precautions for product specific

Precautions for wiring and cable
Warning
① Installation, adjustment, inspection, or wiring changes should be conducted with the
power supply to this product turned OFF.
Electrical shock, malfunction, or damage can result.
② Never disassemble the cable.
③ Never connect or disconnect the cable or connector with the power ON.
Caution
① Wire the connector securely.
Do not apply any voltage to the terminals other than those specified in the operation manual
"Manifold Controller for Electric Actuators/JXD1-M*".
② Wire the connector correctly.
Check for correct connector wiring and polarity.
③ Take appropriate measures against noise.
Noise in a signal line may cause malfunction.
As a countermeasure, high voltage and low voltage cables should be separated, and keep wiring
lengths short, etc.
④ Do not connect power or high-voltage cables in the same wiring path as the unit.
The product can malfunction due to noise and surge voltage interference in the signal line from
power and high-voltage cables. Separate the wiring of the electric actuator and its peripheral device
from that of power and high-voltage cables.
⑤ Take care that actuator movement does not damage cables.
⑥ Operate with cables secured.
Avoid bending cables at sharp angles where they enter the electric actuator.
⑦ Avoid twisting, folding, rotating, or applying external force to the cable.
Electric shock, wire breakage, contact failure, or a loss of product control may occur.
⑧ Do not move the cables coming out of the actuator.
The motor cable and lock cable are not robot cable.

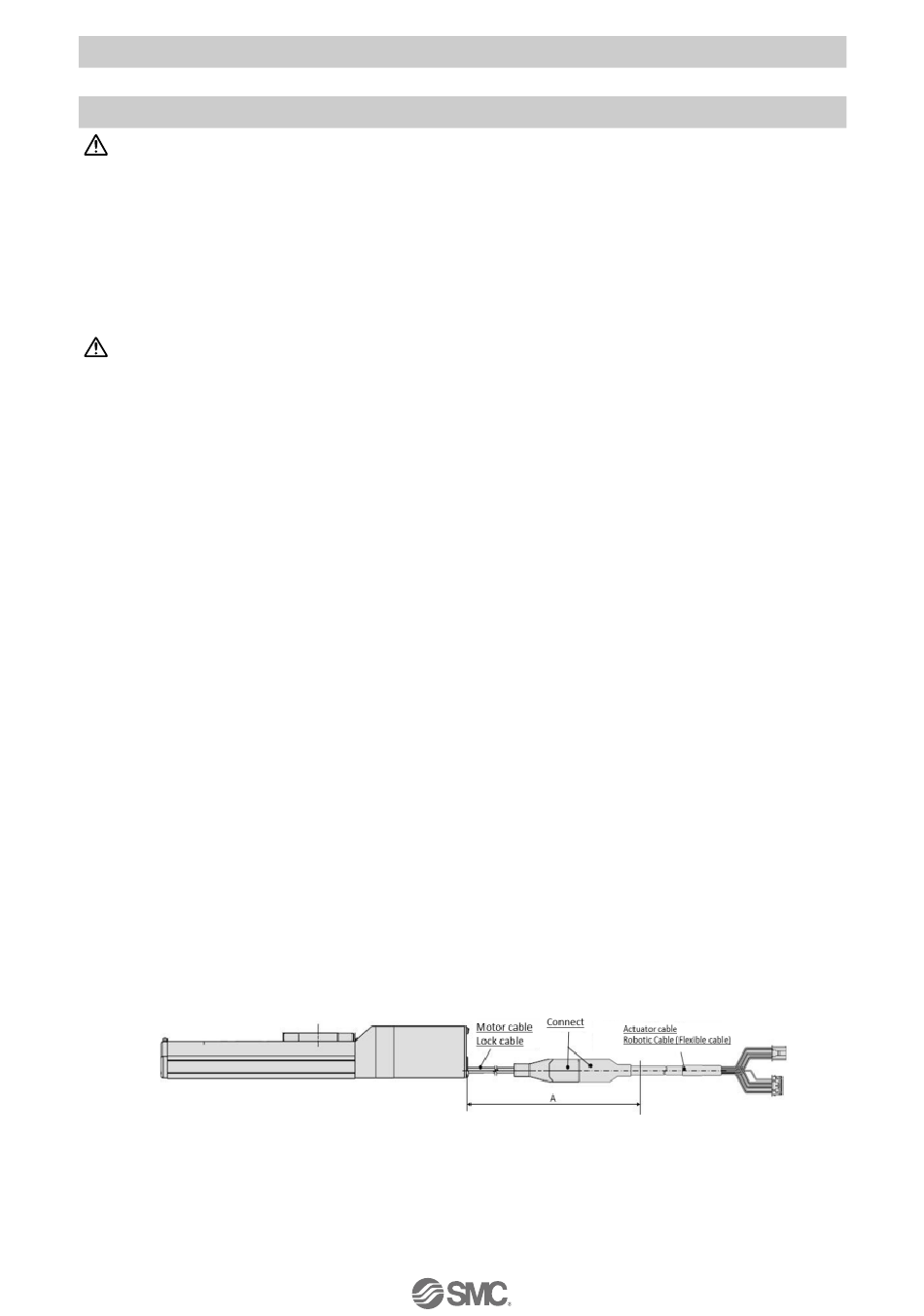

If they are moved, they may break. Fix the part A in the figure below so that it will not move.
