Intellitronix BG6003 Installation Manual page 2

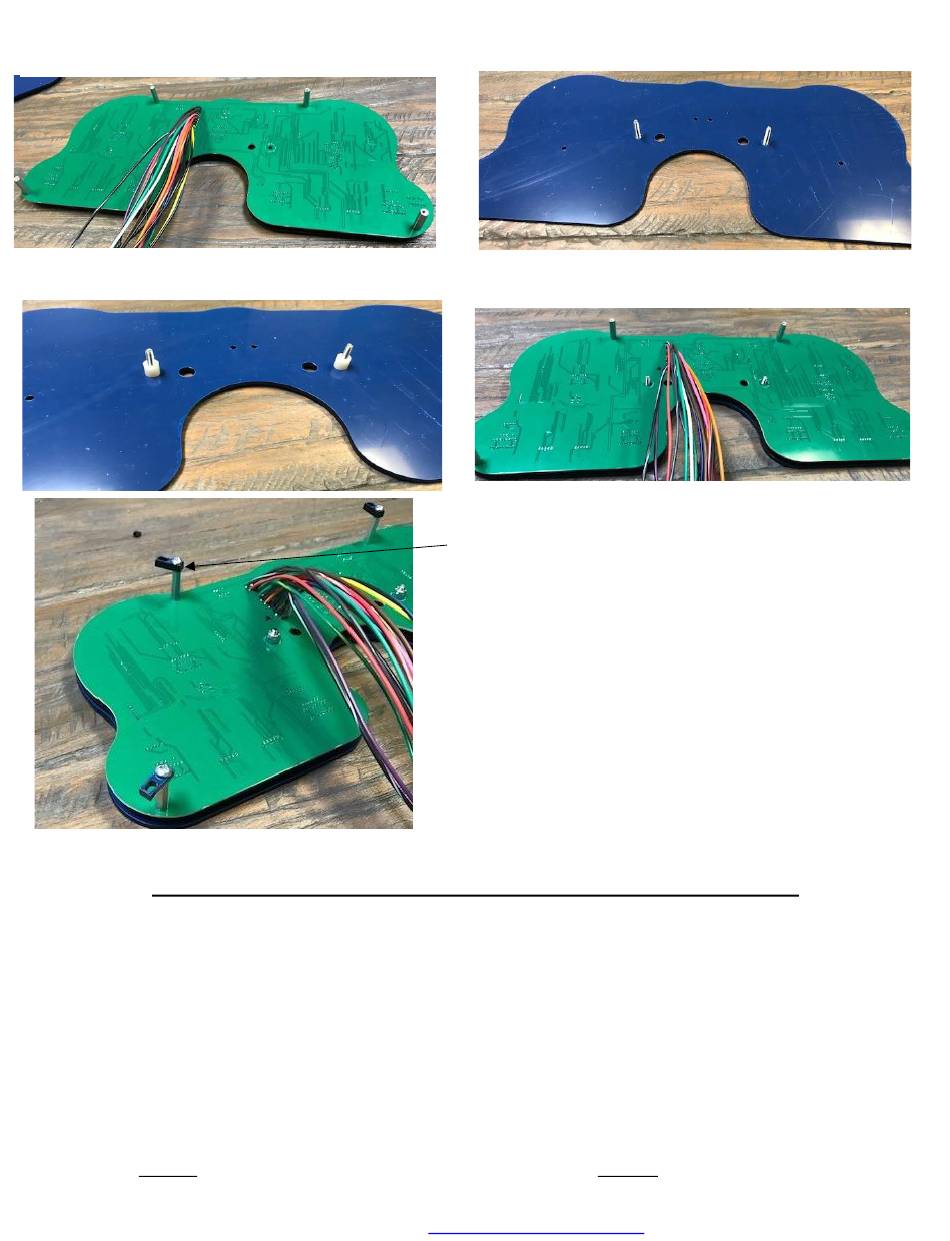

Step 2 Attach the 4 threaded stand offs to the
back of the board
Step 4 Place the ½" Nylon spacers on the
1" screws
NOTE: The install for the DP6003 and BG6003 are the same
Standard Wiring Colors
Color
Red
Pink
White
Yellow
Orange
Blue
Grey with White
Red/White
Brown
Tan
Grey with push button
Orange/White Corvette board only
2 – BG6003
ALL COLORS MAY NOT APPLY
Purpose
12Volts Battery Constant
Ignition 12 volts clock
Speedometer
Fuel
Oil pressure
Water Temperature
Turn Signal (right)
12volt to speed sender
High Beam
Brake
Speedometer/Tachometer
Oil Temperature
rev 1162024
Step 3 Place the 2 #10-32 X 1" screws through
the acrylic
Step 5 place the circuit board on top of the
acrylic and attached using the #10 Nylock
Nuts and washers
Attachment bracket with #8-32 X 3/8"
screw
Step 6 Attach the black attachment
brackets to the threaded stand offs
using the remaining 4 #8-32 X 3/8"
screws
Color
Black
Green/Yellow
Green
Black/Yellow
Black/Orange
Black/Blue
Grey with Black
Black/White
Purple
Brown/Yellow
Red/white corvette board only
www.intellitronix.com
Purpose
Ground
Check Engine
Tachometer
Fuel sender Ground
Oil sender Ground
Water Temperature Ground
Turn Signal (left)
Ground to speed sender
Dimmer
Boost or 4X4
Ground for oil temp
Tech Support (440) 210-7646
