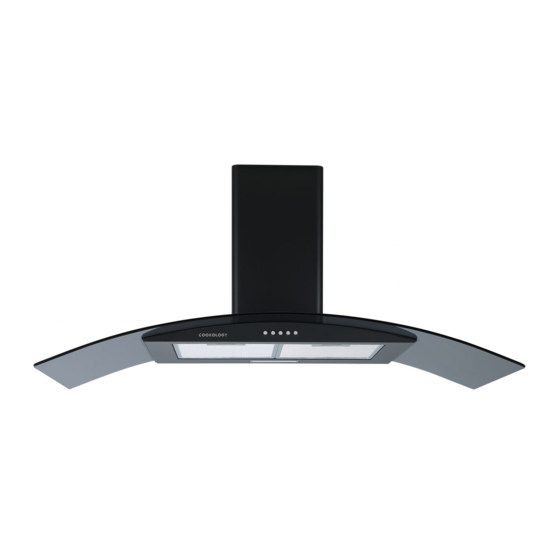

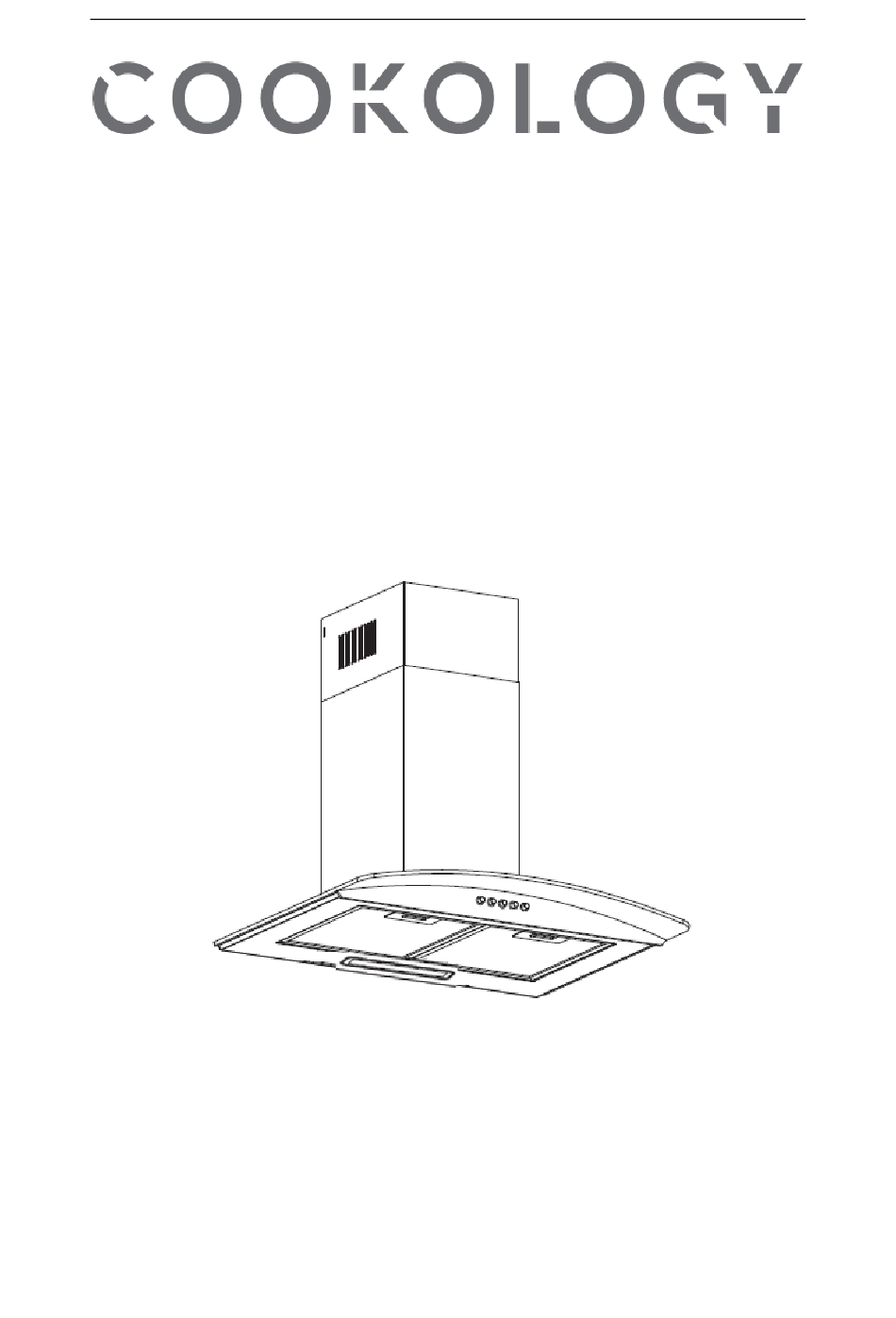

- Page 1 CGL100BK & CGL100SS Cooker hood Instruction manual...
-
Page 2: Table Of Contents
CONTENT 1……………………………………….Notice 2……………………………………….Feature 3………………………………………..Installation 4………………………………………..Notice of installation 5………………………………………..Safety Warning 6…………………………………………Speed adjustment 7…………………………………………Maintenance 8………………………………………….. Abnormity and Solution... -
Page 3: Notice
1.Notice This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 The instructions shall state the substance of the following: – there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);...
- Page 5 – CAUTION: Accessible parts may become hot when used with cooking appliances. The installation instructions shall include the substance of the following: – the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);...
- Page 6 discharge of air have to be fulfilled. The installation instructions for range hoods with accessible metallic enclosures of class II construction shall include details that indicate the location and maximum permitted lengths for any fixing or mounting screw or other fixing device that penetrates into the range hood to attach an accessory such as a facia or duct fitting.
-
Page 7: Feature
substance of the following warning. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Feature 1. The cooker hood uses high quality materials, and is made with a streamlined design. 2. -
Page 8: Installation
INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2. - Page 9 3. After decide the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 4 φ8 holes, 2 for inside chimney bracket and 2 for hanging the hood,and keep the hood level. The fixed position of the inside chimney bracket is the highest place of chimney.
-
Page 10: Notice Of Installation
Note: The two safety vents are positioned on the back housing, with diameter of 6mm. 4.Notice of installation 1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust. 2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. -
Page 11: Speed Adjustment
hood off. Clean the cooker hood according to the instruction manual and keep • the cooker hood from the danger of burning. No fire for drying your cooker hood. • If there is any fault with your cooker hood, please call the service •... -
Page 12: Maintenance
7. MAINTENANCE 1. It is recommended to operate the appliance prior to cooking. 2. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapors and odors. 3. The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter. - Page 13 You can clean the filter as below measure: Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it. Note: Please do not use abrasive detergent for it will damage the hood;...
- Page 14 NOTE: • Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. • When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT Important : The Bulb must be replaced by a competent person.
-
Page 15: Abnormity And Solution
Abnormity and Solution Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following:... - Page 16 Shake of the body The leaf damaged and causes Replace the leaf shaking The motor is not tightly Lock the motor tightly hanged The body is not tightly Fixed the body tightly hanged Insufficient suction The distance between the Readjust the distance body and the gas top too long Too much ventilation from Choose a new place and...
