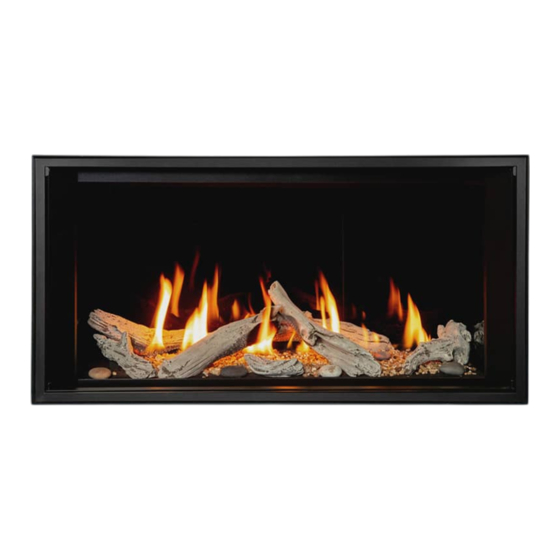

Valor 2700KN Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Manual
LT2
with HeatShift
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
▪
DANGER
4009502-04
Direct Vent Zero Clearance
Gas Fireplace
natural gas
propane gas 2700KP
System
TM
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
2700KN
Installer: Place model/serial number here.
Do not touch any electrical switch; do
▪
not use any phone in your building.
Leave the building immediately.
▪
Immediately call your gas supplier from
▪
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
▪
call the fi re department.
Installation and service must be
performed by a qualifi ed installer, service
agency or the gas supplier.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.

Advertisement

Table of Contents
loading

Related Manuals for Valor 2700KN

Summary of Contents for Valor 2700KN

  • Page 1 Installation Manual Direct Vent Zero Clearance Gas Fireplace natural gas 2700KN propane gas 2700KP with HeatShift System Installer: Place model/serial number here. Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference. Do not touch any electrical switch; do ▪...
  • Page 2 Miles Industries Ltd. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility for any consequential Valor Fireplaces 190–2255 Dollarton Highway damage(s). North Vancouver, BC, Canada V7H 3B1 ©...

  • Page 3: Table Of Contents

    Welcome to Valor ® This appliance has been professionally installed by: Please read this manual BEFORE Dealer Name: ________________________________ installing and operating this Phone:______________________________________ appliance. Fireplace Safety ..........4 Installation ............29 Specifi cations ............. 6 Appliance Preparation ..........29 Unpack Appliance ............29...

  • Page 4: Fireplace Safety

    fi replace. Failure to follow these instructions may result in possible fi re hazard and will void the warranty. Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting valorfi...
  • Page 5 Fireplace Safety Glass windows Intended use • This appliance is designed and approved as a supple-  WARNING mental heater and provides the potential for most energy conservation when used while attended. The Do not operate this appliance with the use of an alternate primary heat source is advisable. glass front removed, cracked, or broken.

  • Page 6: Specifications

    Approval & Codes Supply Gas This appliance is certifi ed to ANSI Z21.88/CSA 2.33 Heater engine 2700KN uses natural gas. American National Standard / CSA Standard for Vented Heater engine 2700KP uses propane gas. Gas Fireplace Heaters for use in Canada and USA, and The supply pressure must be to CGA 2.17-91 High Altitude Standard in Canada.

  • Page 7: Kits & Accessories

    Kits & Accessories Required Kits Information accurate at the time of printing and subject to change without notice. Fuel Beds (choose one) 1700DGM Murano Decorative Glass Kit 1705BLKV2 Birch Logs Kit 1705DWKV2 Driftwood Kit 1705SWKV2 Split Wood Kit 1714RSS Rock and Shale Kit Liners Panels (choose one) 2715FBL Fluted Black Liners...

  • Page 8: Dimensions & Location

    Dimensions & Location Dimensions Top View 57-3/4” [1467 mm] 52” [1321 mm] Zero Clearance Center of vent 18-15/16” 6-5/8” dia. [481 mm] Venting 15-5/8” 9-3/16” [234 mm] HeatShift outlets [397 mm] Header Zero Clearance Center of rear vent Gas line Electrical 49-13/16”...

  • Page 9: Installation Planning

    Installation Planning Before Installing  Caution Only qualified, license, or trained personnel should install this appliance. 1. YOU NEED TO KNOW FROM THE HOMEOWNER: • Height of appliance and shelf, if used; • Thickness and type of wall fi nish around appliance;...

  • Page 10: Overview

    Installation Planning Overview Note: This appliance may be installed in outdoor, weather protected environments as defi ned in the GV60CKO Outdoor Conversion Kit instruction manual. 1/2 inch thick non-combustible board –NOT supplied Required HeatShift plenum (LDK4 pictured) Remote Handset Required HeatShift piping Wall Holder Mantel—See Mantel &...

  • Page 11: Mantel Clearances

    Installation Planning Mantel Clearances Combustible Mantel—Left Side View WARNING HeatShift pipes (4) HeatShift System MUST be installed on this appliance! 45° from outermost Combustible mantels/ corner of trim projections must be kept behind this line Vent 10” [254 mm] 38-3/16” Mantel [971 mm] 6”...
  • Page 12 Installation Planning Mantel Clearances Combustible Sidewall / Mantel Leg—Top View FIREPLACE Face of Finished Wall Fireplace Opening 49-13/16” [1009 mm] Wall Min. 4” [102 mm] to wall or combustible mantel leg or wall...

  • Page 13: Framing

    Installation Planning Framing Framing Dimensions WARNING HeatShift System MUST be installed on this appliance! NOTE: Height of cavity may be 1/2” [13 mm] thick - see page page 20. non-combustible board required above, on each side and below Between underside engine opening (NOT supplied) of header and bottom NOTE: This unit requires a...
  • Page 14 Installation Planning Framing Framing with Partial Shelf—Top Outlet 15-5/8” [397 mm] HeatShift collars 11-5/16” connected to a [288 mm] pair of 5” [127 mm] Max. from 90 deg elbows. back surface to front surface 1/2” [13 mm] thick of appliance non-combustible case w/no board...

  • Page 15: Wall Finish

    Installation Planning Wall Finish Material Specifi cations Non-Combustible Board The LT2 Linear fi replace requires a 1/2” (13 mm) thick Non-Combustible non-combustible board to be used as a wall surface Material which will not ignite and burn. Such materials immediately surrounding the unit’s opening—see are those consisting entirely of steel, iron, brick, tile, diagram for minimum coverage.
  • Page 16 Installation Planning Wall Finish Finishing Over Non-Combustible Board 2775LFB Trim Only the 2775LFB style trim will accept tile, etc. tucked Additional material such as tile, etc., may be applied behind it (up to 1/2” thick for the 2775LFB). over top of the non-combustible board or you may choose to leave it fi...

  • Page 17: Avoiding Cracking Wall Finishes

    Installation Planning Wall Finish Avoiding Cracking Wall Finishes • Behind joints, double up studs or use studs “on the fl at” to add extra support to the joint. Adhesive on If a clean fi nish with no tile, etc. is desired, joints in the the backside of wall board behind any joints can help non-combustible board and the transition to gypsum control diff...

  • Page 18: Venting

    Venting Overview Top or Rear Outlet Framing Vent in Combustible Walls & Ceilings This unit is supplied with a vent outlet which can When penetrating through combustible walls and be installed either as top facing or rear racing. See ceilings, frame a minimum of 10 in x 10 in opening and Appliance Preparation section for more information.

  • Page 19: Co-Axial

    Venting Co-Axial Typical Co-axial Venting Components HORIZONTAL TERMINATION Note: Provide support for vertical pipe runs, particularly at off sets. Do not rely on the appliance for support of long vertical pipe runs. Horizontal pipe 2-PIECE 90˚ ELBOW runs should be supported WALL THIMBLE every 4’...

  • Page 20: Venting Chart

    Venting Co-Axial How to Read the Venting Chart 6. Each 90 degrees elbow installed on the horizontal plane is equivalent to a 3 feet horizontal pipe; The chart below applies to co-axial roof or wall therefore, 3 feet must be subtracted from allowable termination.

  • Page 21: Restrictor Settings

    Venting Co-Axial Restrictor Settings The restrictors are located in the roof of the fi rebox hidden above the top liner panel. Adjust the restrictors before installation of the top liner panel. Should subsequent adjustment be required, you will need to remove the top liner panel—see page 43.

  • Page 22: Horizontal Vent Termination

    Venting Co-Axial Horizontal Vent Termination Horizontal Vent Termination Location air ow or a safety hazard. Local codes or regulations may require greater clearances. • The vent terminal must be located on an outside wall or through the roof. • The vent terminal must not be recessed into a wall or siding.

  • Page 23: Vertical Vent Termination

    Venting Co-Axial Vertical Vent Termination Overhang should not Minimum Roof Pitch "H" (feet) extend beyond vent if within 48” [1220 mm] of Flat to 7/12 Horizontal termination cap Over 7/12 to overhang 1.5' 8/12 Over 8/12 to 2’ 9/12 Over 9/12 to Termination 2.5’...

  • Page 24: Co-Linear Conversion

    Venting Co-Linear Conversion Co-Linear Conversion Installations Note: Co-linear portion of vent system may only be installed within a solid-fuel burning fi replace and chimney. The appliance can be adapted to co-linear applications using an existing chimney. The appliance must not be connected to a chimney fl...

  • Page 25: Installation Partially Into Fireplace Cavity

    Required accessories: co-linear adapter liner liner and approved • Co-axial to co-linear adapter at co-axial Flashing appliance, Valor 1156CLA or equiva- termination lent; • 2 lengths of 2-ply, fl exible chimney Co-linear adapter liner approved for venting gas appli- ances: •...

  • Page 26: Installation Into An Adjacent Chimney

    Venting Co-Linear Conversion Installation Into an Adjacent Chimney Required accessories: • Co-axial to co-linear adapter at chimney face, 46DVA-34CLAA or equivalent; • 2 lengths of 2-ply, fl exible chimney liner approved for venting gas appliances: • 1 x 3-inch diameter for air inlet and •...
  • Page 27 Venting Co-Linear Conversion Installation Into an Adjacent Chimney Required accessories: • Co-axial to co-linear adapter at chimney face, 46DVA-GCL34 or equivalent; • 2 lengths of 2-ply, fl exible chimney liner ap- proved for venting gas appliances: • 1 x 3-inch diameter for air inlet and •...

  • Page 28: Example Of Co-Linear Conversion Accessories

    Venting Co-Linear Conversion Example of Co-linear Conversion Accessories Examples of Co-axial to Co-linear Appliance Adapters 46DVA-GCL34 46DVA-34CLAA Examples of Co-linear Terminal Configurations 10” 10” 7-5/8” dia. collar 3” Inlet & Exhaust A 3” - 4” Collars adapter may be used for exhaust liner.

  • Page 29: Installation

    Installation Appliance Preparation Unpack Appliance Beware of sharp edges! Wear gloves! 1. Unpack the appliance and all material around it. 2. Unpack any loose items from around the appliance. 3. Remove vertical crating walls. 4. Unscrew the 4 tabs retaining the appliance to the pal- let.

  • Page 30: Window Removal

    Installation Window Removal 3. Gently pull the top of the window outward. WARNING Risk of severe burns! Surfaces of the fireplace are very hot during operation. Ensure fireplace has cooled off before touching it. Remove the Window 1. Locate the levers on each side of the window (total of 4) and the window latch hook tool under the fi...

  • Page 31: Window Reinstallation & Check

    All four levers should conditions. now be connected. Damage caused by incorrect window installation is not covered by the Valor Warranty. 4. Pull out top of window to test and ensure spring loaded levers work properly, and repeat at the bot- tom of the window.

  • Page 32: Fit Standoffs

    Installation Appliance Preparation Fit Standoff s Install Vent Outlet The standoff s are supplied fl at on the fi rebox top, and This unit is supplied with a vent outlet which must be are fi xed at one end. fi eld-installed into a rear or top vent confi guration. 1.

  • Page 33: Install Heatshift Take-Off Collars To Appliance

    Installation Appliance Preparation Install HeatShift Take-Off Collars to Appliance Fit Appliance into Framing 1. Install the collars on the holes on top of the appli- 1. Taking great care not to cut your hands on the sheet ance’s case (6 screws each). metal edges, lift the appliance and place it in the framing.

  • Page 34: Electrical Wiring

    Installation Electrical Wiring Install Electrical Wiring • Wiring within the receptacle enclosure must have a minimum 90°C temperature rating. This section provides information to install the electric • Wire nuts not included. pre-wiring required for use with the decorative lighting, or the optional GV60WIFI WiFi Kit.
  • Page 35 Installation Electrical Wiring 4. Pull the inner cover and receptacle (attached) out of 7. Place the inner cover and receptacle in position and the fi replace. secure with 2 screws. 5. Thread the cable through the stud and the strain 8.

  • Page 36: Gas Supply

    Installation Gas Supply Set-up Gas Supply Pressure Test Supply Line The appliance and its individual shut-off valve must be The gas supply inlet disconnected from the gas supply piping system during connection is a 3/8” NPT male any pressure testing of that system at test pressures in connector located on the left excess of 1/2 psig (3.5 kPa).
  • Page 37 Installation Gas Supply Pressure Test Points Valve Inlet Pressure The minimum supply pressure is given in the section Manifold pressure “Specifi cations” on page 6. adjustment screw All piping and connections must be tested for leaks located behind plastic mushroom after installation or servicing.

  • Page 38: Liner Installation

    Installation Liner Installation Ceramic Liner Installation 3. The rear panel is supplied in three sections which are fi tted into each other. Two of the sections are The liners install in the manner outlined below with the identical. Their stepped edges go towards the exception of the 2725RGL—Refl...
  • Page 39 Installation Liner Installation 6. Place the left end panel against the left wall of the 9. Slide the top right panel over the center support, fi rebox. Place the bottom edge in fi rst and carefully then carefully slide it to the right at the end of the press the panel to the outside wall.
  • Page 40 Installation Liner Installation 12. If gapping occurs between the sections of rear panel, gently bend the tabs at each end of the rear rail upward to close the gap. Installation is complete.

  • Page 41: Fuel Beds

    Approved for use only with the fireglass provided with your Valor fireplace or the tempered crushed fireglass brands American Fireglass™ or fi regear. The wider glass plates at the front use of any other products may void your fireplace Top view—glass plates...

  • Page 42: Birch Log Kit 1705Blkv2

    Installation Fuel Beds Birch Log Kit 1705BLKV2 Installation 1. Carefully unpack the kit, as the logs are fragile. Material required 2. Install the steel platform around the burner as • Black steel platform (supplied with appliance) indicated. The openings in the platform should be •...
  • Page 43 Installation Fuel Beds 5. Place one of the rectangular support pieces under 8. Place log L12 on the front left corner of the media the front side of L31 as shown. platform. It will just touch the burner. Support 6. Place log L32 with its bottom cutout around the back right corner of the burner.
  • Page 44 IMPORTANT: Approved for use only with the ceramic area is clear of embers / splinters as embers and splinters provided with your Valor fi re- these could be ingested by small children. place. The use of any other products may void your Vacuum area after installation.

  • Page 45: Driftwood Kit 1705Dwkv2

    Installation Fuel Beds Driftwood Kit 1705DWKV2 Installation 1. Carefully unpack the kit, as the logs are fragile. Material required 2. Install the steel platform around the burner as • Black steel platform (supplied with appliance) indicated. The openings in the platform should be •...
  • Page 46 Installation Fuel Beds 5. Place log L41 with the pin in the hole as shown on 8. Place log L35 on the front of the platform as shown the rear platform. (it should not rest on the burner’s edge). 6. Place log L17 as shown, from the top of the pilot 9.
  • Page 47 IMPORTANT: Use only the vermiculite provided with Vacuum area after installation. your Valor fi replace The use of any other types of ma- terial may void your fi replace warranty.

  • Page 48: Split Wood Kit 1705Swkv2

    Installation Fuel Beds Split Wood Kit 1705SWKV2 Installation 1. Carefully unpack the kit, as the logs are fragile. Material required 2. Install the steel platform around the burner as • Black steel platform (supplied with appliance) indicated. The openings in the platform should be •...
  • Page 49 Installation Fuel Beds 5. Place log 36 as shown, centered between 21 and 28, 8. Place log 31 from groover on the top of 21 to the resting on the rear platform. front platform. 6. Place log 32 with its hole on the pin on log 36. The log will cross the burner and rest on the front platform.
  • Page 50 / splinters as IMPORTANT: Approved for use only with the ceramic these could be ingested by small children. embers provided with your Valor fi replace. The use of Vacuum area after installation. any other products may void your fi replace warranty.

  • Page 51: Rocks & Shale Set 1714Rss

    Installation Fuel Beds Rocks & Shale Set 1714RSS Installation 1. Install the steel platform around the burner as Material required indicated (no screws). The openings in the platform • Black steel platform (supplied with appliance) should be underneath. • Rock & Shale Set, which contains: •...
  • Page 52 Installation Fuel Beds 4. Place the rest of the rocks evenly on the platform Place twig #3 as shown, over the center of the around the burner. burner. Use the bigger rocks to keep the twig off the shale as much as possible. 5.
  • Page 53 Installation Fuel Beds IMPORTANT Use only the ceramic rocks, twigs and shale provided with your Valor fireplace. The use of any other types of rocks, twigs or shale may void your fireplace warranty.  WARNING Choking Hazard! Ensure that the fireplace area is clear of shale pieces as these could be ingested by small children.

  • Page 54: Wall Switch

    Installation Wall Switch Install Remote Battery and Wall Switch Kit 4. Run harness assembly to mounted position of junc- tion box, securing harness to framing using insu- (required) lated staples (not included) The Remote Battery and Wall Switch Kit is provided 5.
  • Page 55 Installation Wall Switch 8. Mount switch plate to junction box with 2 long 11. Feed cable tie through the 2 side slots of battery screws provided. Note: switch position left or right cover assembly. to suit homeowner wishes. 12. Position battery holder to rear face and secure to- gether with cable tie.

  • Page 56: Remote Control

    Installation Remote Control Radio Frequency 918.0 MHz for USA and Canada. This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 57 Installation Remote Control Install Remote Control Handset Wall Holder The remote control kit for this fi replace comes complete with a wall-mounted holder. This holder is not required in all installations but is provided as an optional feature for those customers who wish to mount the remote handset to the wall.

  • Page 58: Checking Operation And Aeration

    Installation Checking Operation and Aeration Checking Operation Locating Aeration Control Turn the fi replace fl ame up and down using the remote control to confi rm that the full range of inputs is achieved—see the remote control operation instructions in “Appendix B—Remote Control Operation”...

  • Page 59: Checking Decorative Lighting

    Installation Checking Decorative Lighting Wear gloves when changing these bulbs.  WARNING Most bulb manufacturers recommend no skin contact as oil from skin can shorten Ensure electrical power is disconnected the bulbs’ lifespan. from the fireplace before commencing work. 2. Remove both old bulbs by pulling them straight out of the light shields.

  • Page 60: Trim & Barrier Screen

    Installation Trim & Barrier Screen Install Trim and Barrier Screen Install the trim chosen by the customer for their fi replace. Install as well the barrier screen which is provided with the trim. Show the customer how to remove the barrier screen and other parts to access the controls.

  • Page 61: Wiring Diagram

    Wiring Diagram Note: Do not use batteries (in wall switch or receiver) if you are installing GV60 Wiring Diagram the optional Wifi kit. AC Power MAN Knob Battery Holder (integral to fireplace) Main Valve Knob Lights RBWSK (option) Combination Control Valve POWER LIGHT black...

  • Page 62: Approved Venting Components

    Approved Venting Components Approved Direct Vent Suppliers for Valor Models 2700 Venting Parts Code / availability by Manufacturer Venting Parts Description Standard Co-axial 46DVA-HC 4DT-AHC TM-4HT 4DHC round 658DVK2 DVR6-HCP Deluxe Co-axial — 4DT-HCR TM-4RHT — — DVR6-HC High Wind Co-axial 46DVA-HC —...
  • Page 63 Approved Venting Components Venting Parts Code / availability by Manufacturer Venting Parts Description Galvanized 46DVA-06 4DT-06 TC-4DL6 DVR6-06 6” long — — Black 46DVA-06B 4DT-06(B) TC-4DL6B DVR6-06B Galvanized 7” long — — — — — Black 4D7B Galvanized 46DVA-09 4DT-09 TC-4DL9 DVR6-09 9”...

  • Page 64: Commonwealth Of Massachusetts

    Commonwealth of Massachusetts State of Massachusetts Carbon Monoxide 4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall Detector/Vent Terminal Signage not approve the installation unless, upon inspection, Requirements the inspector observes carbon monoxide detectors and For all side wall horizontally vented gas fueled equipment signage installed in accordance with the provisions of 248 installed in every dwelling, building or structure used in...

  • Page 65: Appendix A-Lighting Instructions

    Appendix A—Lighting Instructions FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING : If you do not follow these instructions exactly a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand or by remote control. Follow these instructions exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time.

  • Page 66: Appendix B-Remote Control Operation

    Appendix B—Remote Control Operation Initial Pairing Before the remote control can be used with the fi replace, it must be paired. See “Remote Control Initial Pairing” on page 56. Main Display Child Proof Time Signal Indicator Thermostatic Mode Battery Status Fan (if included) (not available) Countdown Timer...
  • Page 67 Appendix B—Remote Control Operation Designated Low Fire and High Fire To deactivate functions: To go to low re, double-click . “LO” 1. Install batteries. All icons are displayed and ashing. is displayed. 2. While the icons are ashing, press the relevant func- tion button and hold for 10 seconds.
  • Page 68 Appendix B—Remote Control Operation Child Proof Light/Dimmer Operation Your handset can be set to lock out all commands to the replace, except OFF. Press is displayed. Light is on at preset level. To turn Child Proof ON: 1. Press and hold simultaneously.
  • Page 69 Appendix B—Remote Control Operation Modes of Operation Thermostatic Mode Thermostatic Mode The room temperature is measured and Press . is displayed. Preset compared to the set temperature. The temperature displays brie y, followed ame height is automatically adjusted by the room temperature. to achieve the set temperature.
  • Page 70 Appendix B—Remote Control Operation Temperature Setting: Off Time Setting (PROGRAM 1) , 1, OFF 1. Press and hold until ashes. are displayed. ALL is ON and set temperature (set in Ther- displayed brie y. Hour ashes. mostatic Mode) is displayed. 2.
  • Page 71 Appendix B—Remote Control Operation Low Battery Indication Low Battery Receiver With low battery power in the battery holder, the system shuts o the re completely. (This will not CAUTION: Do not use a screwdriver or other happen if the power is completely interrupted.) metallic object to remove the batteries from the battery holder or the handset.
  • Page 72 Appendix B—Remote Control Operation Error Codes In the event of an error condition with the handset or replace, the handset will display an error code. Failure Message on Duration of Symptom Possible Cause Code Handset Display 4 sec • No pilot ame within 30 sec •...

  • Page 73: Appendix C-Wall Switch Operation

    Appendix C—Wall Switch Operation The Wall Switch can be used to Adjusting Flame Height control your fi replace. You can Press and hold large fl ame button turn the pilot on or off and you can to gradually increase fl ame height. increase or decrease the fl...

  • Page 74: Appendix D-Heatshift™System

    Appendix D—HeatShift™System LT Series Planning Installation: LT1, LT1A and LT2 with HeatShift ™ Instructions for use with the following Valor Heater Models: 2500K, 2500KA and 2700K only Application Approvals The HeatShift™ system redistributes the warm air ow The LDK1, LDK3, LDK4, LDK7 and LDK9 duct kits are...
  • Page 75 Appendix D—HeatShift™System Kits There are 5 kits to choose from: • LDK1— Plenum, 48” [1220 mm] • LDK3— Plenums (2), includes grilles, 14” [356 mm] • LDK4— Plenum, 38” [966 mm] • LDK7— Duct Termination Plates (2)—for wall valance discharge ONLY •...
  • Page 76 Appendix D—HeatShift™System Optional accessories • LDK2—48” [1220 mm] Finishing Frame, to use with LDK1 • LDK5—38” [966 mm] Finishing Frame, to use with LDK4 • LDK6— 5” [127 mm] dia Aluminum 2-ply Flex Kit— 2 x 10’–0” [3048 mm] lengths, may be cut to required length •...
  • Page 77 Appendix D—HeatShift™System Suggested Con gurations (top view) Corner installations Front wall outlet using LDK1, LDK4 (shown) or LDK9 WARNING The plenum duct kits are approved Rear wall outlet using LDK1, LDK4 (shown) or LKD9 for horizontal discharge ONLY. The Note: Fireplace vent may con ict with plenum. O set vent around plenum.
  • Page 78 Appendix D—HeatShift™System Overview (applies to LKD1, LDK3, LDK4 and LDK9 kits) Ceiling Min. 2-1/2” Flexible or rigid, [64 mm] 5” [127 mm] clearance diameter to ceiling UL-181, Class 1 Air Duct (4) (use LDK6 kit or equivalent) Min. 1” [26 mm] clearance to combustibles around pipe...
  • Page 79 Appendix D—HeatShift™System Overview (applies to LDK7) NOTE Discharge opening must be located in the same room as fireplace when using LDK7. Ceiling Wall Min. 2-1/2” [64 mm] opening Flexible or rigid, 5” [127 mm] diameter UL-181, Class 1 Air Duct (4) (use LDK6 kit or equivalent) Min.
  • Page 80 Appendix D—HeatShift™System Max. Allowable With Plenum Vertical Horizontal Rise LDK 1, LDK 3 or LDK 4 Ceiling Offset 30” 24” 762 mm 610 mm Min. 2-1/2” 8” [64 mm] 36” 36” clearance 914 mm 914 mm to ceiling Min. bend 42”...
  • Page 81 Appendix D—HeatShift™System Plenum Dimensions LDK 1 3-5/8” [92 mm] 11-1/2” [292 mm] 7-7/8” [200 mm] Top View 1/2” [13 mm] wallboard 48” [1220 mm] LDK 1 11-1/2” [292 mm] mounting 1/2” [13 mm] bracket standoffs 3” [76 mm] 2” [51 mm] 8”...
  • Page 82 Appendix D—HeatShift™System Plenum Dimensions (cont’d) 14” [356 mm] 1/2” [13 mm] wallboard LDK 3 11-1/2” [292 mm] mounting 1/2” [13 mm] bracket and standoffs 3” 1-1/2” [38 mm] standoff [76 mm] 6” 8” [153 mm] [203 mm] 1/2” [13 mm] 5”...
  • Page 83 Appendix D—HeatShift™System LDK7 Plates Dimensions Perimeter of plates may be trimmed to suit installation Warning Label 16” [407 mm] Stand-offs Stand-offs Top View (fold down for shipping)
  • Page 84 Appendix D—HeatShift™System Rough Frame Openings LDK 4 = 39” [991 mm] LDK 3 = 15” [381 mm] 4” Min. 1” [26 mm] [102 mm] 8” 5” [203 mm] ceiling [127 mm] LDK 3 LDK 1 = 13” [330 mm] LDK 4 = 11” [280 mm] LDK 1 &...
  • Page 85 Appendix D—HeatShift™System Framing and Clearances—Plenums, front view Rough Frame Opening LDK 1 = 49” [1245 mm] Steel LDK 4 = 39” [991 mm] studs LDK 3 = 15” [381 mm] LDK 9 = 31” [788 mm] See detail Rough Min. 1/2” Frame [13 mm] Opening...
  • Page 86 Appendix D—HeatShift™System Framing and Clearances—Plenums, side view LDK 1 & 4 Min. 2-1/2” [64 mm] clearance to ceiling Steel studs 3” [76 mm] min. clearance to combustibles (top) Ceiling 1/2” [13mm] 1/2” [13 mm] min. clearance to combustibles 5-1/2” 5” rear &...
  • Page 87 Appendix D—HeatShift™System Wall Valance Discharge Opening using LDK7—Duct Termination Plates Minimum length of opening, front Continuous ceiling and sides LT1 - 1500 = 40” [1016 mm] LT2 - 1700 = 50” [1270 mm] 2-1/2” [64 mm] See clearances min. to combustibles Ceiling next page to form plenum...
  • Page 88 Appendix D—HeatShift™System LDK7 Clearances to Combustibles Perimeter of plates may be trimmed to 4” suit installation 4” [102 mm] [102 mm] Stand-off Stand-off 16” Non-combustible [407 mm] zone above plates Top View 4” 4” 4” 4” [102 mm] [102 mm] [102 mm] [102 mm] Stand-offs...
  • Page 89 Appendix D—HeatShift™System LDK Duct Kit LDK 1, LDK 4 with optional 1270RBK Remote Blower Kit (not approved with outdoor installations) Universal take-off supplied with 1270RBK kit. Can mount to either end of plenum. Maximum 1 x 1270RBK kit per plenum. LDK1 or LDK4 plenum* *LDK9 cannot be installed with1270RBK...
  • Page 90 Appendix D—HeatShift™System Install Plenum Kits (LDK1, LDK3, LDK4 & LDK9) 6. Paint the inside surfaces of the plenum using high- temperature at black spray paint for installations —see next page for LDK7 Duct Termination where the inside of the plenums may be visible. Plates Note: The anges of the white nishing frame (when 1.
  • Page 91 Appendix D—HeatShift™System Install Duct Termination Plates (LDK7) Repair Parts List —see previous page for LDK1, LDK3, LDK4 & LDK9 Description Part no. Plenum kits LDK1 48” Quad Hot Air Plenum Kit [1220 mm] 1. Frame a rough opening and platform at the desired 48”...

  • Page 92: Appendix E-Spare Parts

    Red cable to interrupter 4001035 Window assembly 40011453 Wire harness GV60 4001187 Electrical snap-in socket 4006368 Receiver (Valor 10 two way) 4005597 Electrical box cover - inner 4007971 Handset wall holder 4004459 Electrical box access plate - outer 4007973 Valor 10 Handset...
  • Page 93 Appendix E—Spare Parts Part Part Description Description Number Number LH side panel Brown beach pebble 4003082 Fluted Black 4008345 Grey beach pebble 4003083 Refl ective Glass 4008477 Beige beach pebble 4003087 Plain Black 4008345 White beach pebble 4003084 Charcoal Brick 4011456 Black beach pebble 4003085...
  • Page 94 Appendix E—Spare Parts 14 15 26-30...
  • Page 95 Appendix E—Spare Parts 1700DGM 1705SWKV2 1714RSS 1705BLKV2 1705DWKV2 LDK6...
