DANGER

A barrier designed to reduce the risk of burns from the hot

viewing glass is provided with this appliance and shall be

installed for the protection of children and other at-risk

individuals.

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

—— Do not store or use gasoline or other

 ammable vapors and liquids in the

vicinity of this or any other appliance.

—— WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do

not use any phone in your building.

Leave the building immediately.

Immediately call your gas supplier from

a neighbor’'s phone. Follow the gas

supplier’'s instructions.

If you cannot reach your gas supplier,

call the  re department.

—— Installation and service must be

performed by a quali ed installer, service

agency or the gas supplier.

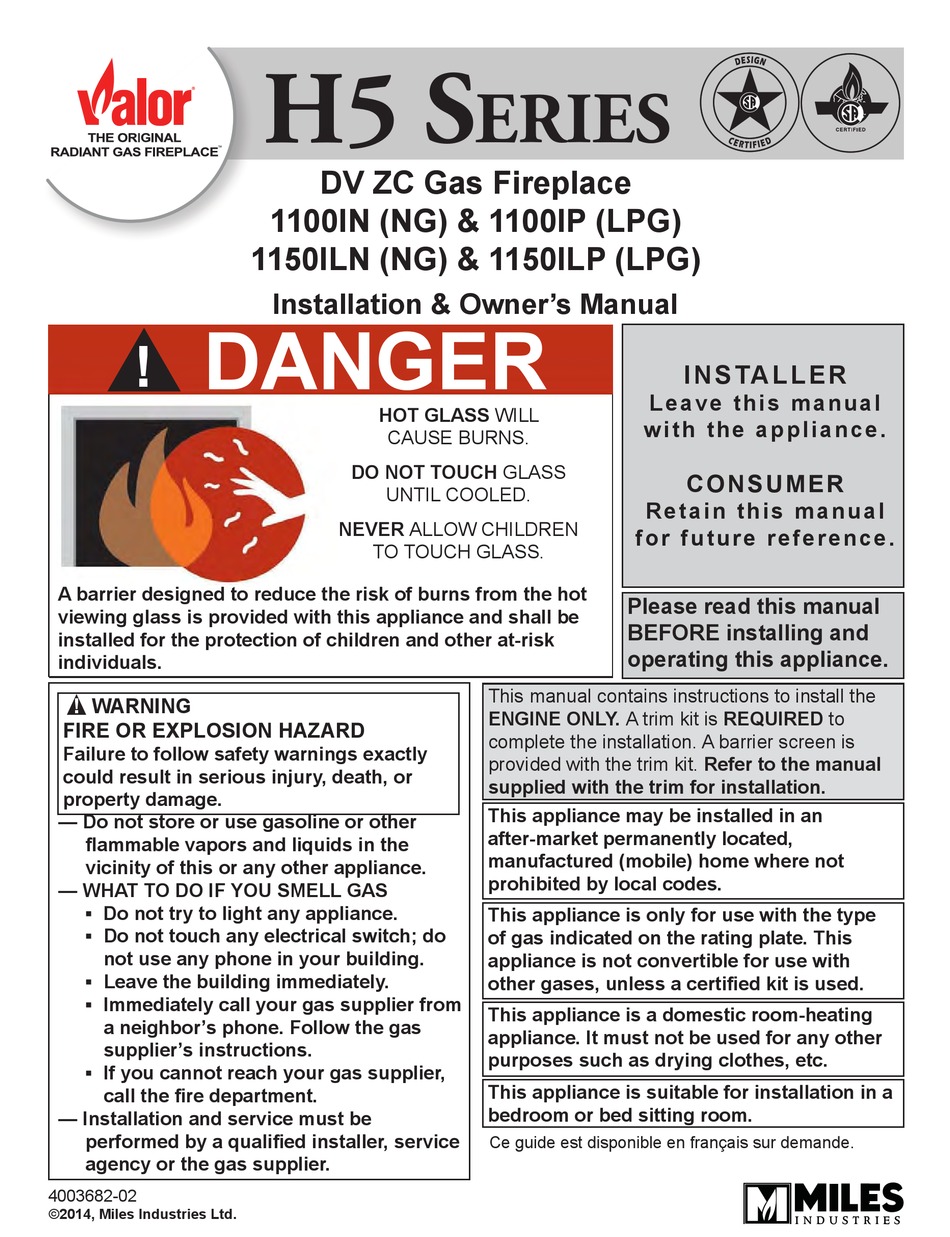

4003682-02

H5 S

DV ZC Gas Fireplace

1100IN (NG) & 1100IP (LPG)

1150ILN (NG) & 1150ILP (LPG)

Installation & Owner’'s Manual

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

ERIES

L e a v e t h i s m a n u a l

w i t h t h e a p p l i a n c e .

R e t a i n t h i s m a n u a l

f o r f u t u r e r e f e r e n c e .

Please read this manual

BEFORE installing and

operating this appliance.

This manual contains instructions to install the

ENGINE ONLY. A trim kit is REQUIRED to

complete the installation. A barrier screen is

provided with the trim kit. Refer to the manual

supplied with the trim for installation.

This appliance may be installed in an

after-market permanently located,

manufactured (mobile) home where not

prohibited by local codes.

This appliance is only for use with the type

of gas indicated on the rating plate. This

appliance is not convertible for use with

other gases, unless a certi ed kit is used.

This appliance is a domestic room-heating

appliance. It must not be used for any other

purposes such as drying clothes, etc.

This appliance is suitable for installation in a

bedroom or bed sitting room.

Ce guide est disponible en français sur demande.

I N S TA L L E R

C O N S U M E R

Table of Contents

Summary of Contents for Valor 1100IN

Page 1 H5 S ERIES DV ZC Gas Fireplace 1100IN (NG) & 1100IP (LPG) 1150ILN (NG) & 1150ILP (LPG) Installation & Owner’’s Manual DANGER I N S TA L L E R L e a v e t h i s m a n u a l HOT GLASS WILL w i t h t h e a p p l i a n c e .
Page 2: Table Of Contents
Designed and Manufactured by / for Miles Industries Ltd. 190––2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valor replaces.com © Copyright Miles Industries Ltd., 2014. All rights reserved.
Page 3: Safety Precautions
Safety Precautions READ and UNDERSTAND all instructions carefully Due to the high temperature, the appliance should be before starting the installation. FAILURE TO FOLLOW LOCATED out of trafﬁ c areas and away from furniture these installation instructions may result in possible ﬁ re and draperies.
Page 4: Safety And Your Fireplace
Child Safety Precautions and Recommendations, A physical barrier is strongly • recommended if there are young Parts of your Valor Fireplace become • children, or at-risk individuals in the extremely hot while in operation. house. Install an approved after- The glass viewing window •...
Page 5: Owner’'Sinformation
For purchasing a Valor by Miles Industries. Your new EXTREMELY HOT!!! radiant gas heater is a technical appliance that must be installed by a qualiﬁ ed dealer. Each Valor ﬁ replace • READ the SAFETY information on pages is fully tested during the production process for your 3 and 4 of this manual BEFORE operating safety and comfort.
Page 6: Cleaning Your Fireplace
OWNER’’S Owner’s Information INFORMATION Cleaning Your Fireplace To remove the window for cleaning: 1. Remove the barrier WARNING screen. Slide the screen up to disengage the DO NOT TOUCH THE GLASS WHILE IT IS HOT! bottom tabs then unhook Let the ﬁ replace cool ﬁ rst before cleaning it. the top tabs.
Page 7 OWNER’’S Owner’s Information INFORMATION To re t the window: 5. Reinstall the side doors sliding them sideways to insert their tabs behind the front face of the trim. 1. Place it in its bottom railing and push its top against the ﬁ...
Page 8: Checking Pilot And Burner Flames
OWNER’’S Owner’s Information INFORMATION Checking Pilot and Burner Flames The appliance area must always be kept clear and free from combustible materials, gasoline and other A periodic check of the pilot and burner ﬂ ames should ﬂ ammable vapors and liquids. be made.
Page 9: Using Handset Wall Holder
OWNER’’S Owner’s Information INFORMATION The Wall Switch can be used to turn on, off and to 3. Slide the receiver battery compartment’s cover off. 4. Replace the batteries with 4 AA alkaline batteries increase or decrease the ﬂ ame height—see the orienting them as indicated inside the compartment.
Page 10: How To Ensure Your Fireplace Cannot Be Turned On Inadvertently
OWNER’’S Owner’s Information INFORMATION How to Ensure Your Fireplace Cannot Be Turned ON Inadvertently You can use one of the two following methods to ensure that your ﬁ replace will not turn on when you don’t want it on. First, ensure your  replace is turned off——including the pilot——and cold BEFORE going ahead.
Page 11: Remote Control Operation
OWNER’’S Remote Control Operation INFORMATION NOTE: Before using the remote control system for Signal Indicator the  rst time, the receiver and the handset must be Time Child Thermostatic Mode Proof paired. See the section Remote Control Initial Pairing Battery on page 61 of this manual.
Page 12 OWNER’’S Remote Control Operation INFORMATION TO TURN OFF FIRE MANUAL MODE (HANDSET) ) NOTICE Handset Press button and hold for four BEFORE OPERATING seconds to turn OFF. Make sure MANUAL knob on the GV60 Valve is in the ON, NOTE: There is a 5 sec delay before full counterclockwise position.
Page 13 OWNER’’S Remote Control Operation INFORMATION COUNTDOWN TIMER THERMOSTATIC MODE ON/SETTING: Press and hold button until Press button. displayed, preset displayed, and hour flashes. temperature displayed briefly, and then 2. To select hour press button. room temperature displayed. 3. T button. Minutes played.
Page 14 OWNER’’S Remote Control Operation INFORMATION Default settings: NOTE: PROGRAM 1 and 2 use the same on (Thermostatic) and ON TIME (Thermostatic) TEMPERATURE: 21°C (70°F) off temperatures for and “Daily Timer” ( , , , , OFF TIME TEMPERATURE: “ ” (pilot flame only) , , ).
Page 15 OWNER’’S Remote Control Operation INFORMATION LOW BATTERY INDICATION Handset alkaline Receiver alkaline AUTOMATIC TURN DOWN Hour No Communication Function Receiver Overheating ° ° ° ° AUTOMATIC SHUT OFF Countdown Timer Low Battery Receiver Five Day Shut Off...
Page 16: Options
1101DWK Driftwood Kit 1103DGM Murano Glass Kit 1104DGS Decorative Glass Set Ceramic Liners (choose one)——1100 and 1150 units 1110VRL Valor Red Liner 1115LSL Ledgestone Liner 1125FBL Fluted Black Liner Trims (choose one)——1100 and 1150 units Barrier Screen Number 1130MTB Minimal Trim...
Page 17: Lighting Instructions
OWNER’’S Lighting Instructions INFORMATION FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a  re or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand, remote control, or wall switch. Follow these instructions exactly.
Page 18: Commonwealth Of Massachusetts
QUALIFIED Commonwealth of Massachusetts INSTALLER State of Massachusetts Carbon Monoxide 3. SIGNAGE. A metal or plastic identiﬁ cation plate shall be permanently mounted to the exterior of the Detector/Vent Terminal Signage building at a minimum height of eight (8) feet above Requirements grade directly in line with the exhaust vent terminal for For all side wall horizontally vented gas fueled...
Page 19 QUALIFIED Commonwealth of Massachusetts INSTALLER (d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ﬂ ue gases, but identiﬁ...
Page 20: High Altitude Installations
This appliance must be electrically grounded in Supply Gas accordance with local codes, or, in the absence of local Heater engines 1100IN and 1150ILN are used with codes, with the National Electrical Code, ANSI/NFPA natural gas. 70 or the Canadian Electrical Code, CSA C22.1.
Page 21: Speci Cations
QUALIFIED Overview INSTALLER Mantel——See Mantel & Hearth Clearances Remote Handset Wall Holder Framing——See Framing Requirements i m m arri i er S creen 1/2 inch thick non- (required) combustible board Supplied as Mini i mal Trim (1130MTB) or equivalent –– vertical outlet, ...
Page 22: Dimensions & Location
QUALIFIED Dimensions & Location INSTALLER Dimensions 38” Note: This dimension is for the 1130MTB Minimal Trim. For all 36-1/8” other trims this is the maximum required and may be reduced 25-1/4” if positioning the unit forward of the framing to accomodate thickness of non-combustible Center material over top of...
Page 23: Mantel & Hearth Clearances
QUALIFIED Mantel & Hearth Clearances INSTALLER Combustible Mantel——Left Side View Ceiling Mantel Projection (from Face of Cement Board) 0 2” 1” 4” 6” 8” 10” 12” 49” Mantel 47” Height 45” (from Bottom 43” of Unit) 41” Do not put furniture or objects within 36”...
Page 24 QUALIFIED Mantel & Hearth Clearances INSTALLER Combustible Sidewall / Mantel Leg——Top View FIREPLACE Shading denotes Face of allowable location Finished for combustible Wall mantel legs Fireplace Opening 34” 3” Wall Depth 1” 2” 3” 4” 5” 6” or greater Clearance 3”...
Page 25: Hearth Requirements
QUALIFIED Hearth Requirements INSTALLER WARNING SAFETY WARNING! The H5 is a very effective radiant heater. The hearth/ﬂ oor in front of the heater can get very hot (in excess of 200ºF). Locating the unit raised above the hearth/ﬂ oor and using the screen front will greatly reduce hearth temperatures.
Page 26 QUALIFIED Hearth Requirements INSTALLER Rules 1. A hearth is not required. However, any hearth/ﬂ oor in front of ﬁ replace within 4 inches vertically of the bottom of the unit must be non-combustible and project a minimum distance as shown on page 27. Hearth/ﬂ oors within 4 inches must have a non-combustible ﬁ...
Page 27 QUALIFIED Hearth Requirements INSTALLER Example: If the  replace is raised 2”” above Unit With Site-Built Non-Combustible Hearth Extending combustible  oor, the non-combustible-  ush-with-bottom-of- replace hearth must When using Optional Trims and project a min. of 6”” in front of the  replace. Front of Fireplace Mantels, Surface of Finished (Surface of Cement Board)
Page 28: Framing Requirements
QUALIFIED Framing Requirements INSTALLER Between underside of header and 1/2” thick non-combustible base of heater. Base of heater must board required above engine be at finished hearth height. (not supplied). See page Increase cavity height accordingly. NOTE: This unit requires a solid platform to support it.
Page 29 QUALIFIED Framing Requirements INSTALLER Minimum Non-Combustible Board Dimensions Minimum coverage area of non-combustible board. Any wall ﬁ nish applied to shaded area must be non- combustible. We recommend extending the non- combustible board well beyond the size shown to avoid cracking due to differential shrinkage —see page Non-combustible board required...
Page 30 QUALIFIED Framing Requirements INSTALLER Framing with Partial Shelf——Top Outlet 13-3/4” (349 mm) Approx. 9-1/4” (235 mm) from back surface of wall finish to front surface of appliance case w/no vent offset 1/2” thick non-combustible board Min. 1” (25.4 mm) clearance to combustibles around vertical...
Page 31 QUALIFIED Framing Requirements INSTALLER Venting Considerations——Vertical Takeoff Notes——ALL venting considerations • Dimensions of venting are based on using Dura-Vent elbows. Elbow curve 12” pipe section radius dimensions will vary when using other brands. In general, other brands have slightly bigger radius. •...
Page 32: Venting
QUALIFIED Venting INSTALLER Top or Rear Outlet Framing Vent in Combustible Walls & Ceilings This unit is supplied with a 45 degrees top vent outlet which can be ﬁ eld-converted to a rear vent outlet. See When penetrating through combustible walls and Installation section for more information.
Page 33: Co-Axial Venting
QUALIFIED Co-axial Venting INSTALLER Typical Co-axial Venting Components HORIZONTAL TERMINATION VERTICAL TERMINATION 2-PIECE WALL THIMBLE PIPE STORM LENGTH COLLAR 90˚ ELBOW FLASHING PIPE LENGTH 90˚ ELBOW ATTIC INSULATION SHIELD ATTIC FIRESTOP CEILING FIRESTOP PIPE Rear Vent HORIZONTAL LENGTH TERMINATION 2-PIECE WALL THIMBLE PIPE PIPE...
Page 34 QUALIFIED Co-axial Venting INSTALLER How to Read the Venting Chart be used. Excludes the 45 degrees take-off elbow shipped with the appliance. The chart below applies to co-axial roof or wall 6. Each 90 degrees elbow installed on the horizontal termination.
Page 35 QUALIFIED Co-axial Venting INSTALLER Restrictors The restrictors are not required when less than 1’-0” vertical rise in vent system. Install the restrictors in the roof of the ﬁ rebox behind the top liner panel. Adjust the restrictors before installation of the top liner panel. Should subsequent adjustment be required, you will need to remove the INSTALL HERE top liner panel—see page 52.
Page 36 QUALIFIED Co-axial Venting INSTALLER Horizontal Vent Termination • The vent terminal must be located on an outside of the airﬂ ow or a safety hazard. Local codes or wall or through the roof. regulations may require greater clearances. • This direct vent appliance is designed to operate •...
Page 37: Co-Linear Venting
The appliance must not be connected to a chimney ﬂ ue Co-linear serving a separate solid-fuel burning appliance. adapter Requires the Valor Co-Axial to Co-Linear appliance Adapter 1156CLA, two lengths of 2-ply, one 3” and one 3” min. bend radius for intake liner and 4”...
Page 38 4” 29” 1-1/2” 4” exhaust collar adapter Dimensions with co-linear adapter Dimensions shown are with Valor 1156 co-linear adapter. Installation 25-1/4” 16-1/4” For installation of the adapter to the appliance, see the instructions supplied with the 1156CLA. Example of co-linear terminal con gurations...
Page 39: Installation Planning
QUALIFIED Installation Planning INSTALLER Installer——READ THIS FIRST Appliance Height in Framing Only quali ed licensed or trained personnel should install this appliance. 1. YOU NEED TO KNOW FROM THE HOMEOWNER: - The height of the unit and hearth if used; - The thickness and type of the wall ...
Page 40: Plan Wall Finish
QUALIFIED Installation Planning INSTALLER Plan Wall Finish Non-combustible cement board Min. 39-1/2” The H5 ﬁ replace requires a 1/2” (13 mm) thick (1003 mm) non-combustible cement board or equivalent, Gypsum board to be used as a wall surface immediately above up to perimeter of the unit—see diagram for minimum coverage.
Page 41 QUALIFIED Installation Planning INSTALLER Cracking If a clean ﬁ nish with no tile, etc. is desired, joints in the non-combustible board and the transition to gypsum board will require special attention if future cracking is to be controlled. Shrinkage and differential movement of the framing and non-combustible wall board can transmit cracking through to tiles, etc.
Page 42: Installation
QUALIFIED Installation INSTALLER Unpack Appliance Convert from Top to Rear Outlet (if required) Beware of sharp edges! Wear gloves! This unit is supplied with a top vent outlet which 1. Remove the cardboard wrapping and the wood can be ﬁ eld-converted to a rear vent outlet. pallet from the appliance and discard.
Page 43: Remove Window
QUALIFIED Installation INSTALLER Remove Window The window is held in place by a spring-loaded lever on each side. 1. To remove the window, locate the levers on each Window frame side of the window towards the top. Using your ﬁ nger, pull the lever towards you and unhook it from the window frame bracket.
Page 44: Install Appliance For 1130 Minimal Trim
QUALIFIED Installation INSTALLER Install Appliance for 1130 Minimal Trim Appliance Depth in Framing——with 1130 Minimal Trim • The 1130 installs to the appliance during the framing stage and the appliance’s position is ﬁ xed in the framing. Wall ﬁ nishes are then applied over top of the ﬂ...
Page 45 QUALIFIED Installation INSTALLER Install Appliance with 1130 Minimal Trim Kit RH side panel Upper panel LH side door side panel RH side door 1130MTB Minimal Trim Kit Removable panel Part of the 1130 Minimal Trim Kit installs at the time of framing the appliance.
Page 46 QUALIFIED Installation INSTALLER Installation 5. Install the upper panel as indicated (2 screws). 1. Unpack the 1130 kit checking that you have all the pieces on hand. 2. On the top of the appliance’s case in front of the stand-offs, remove the positioning brackets (2 screws each);...
Page 47: Install Appliance For 3 And 4-Sided Trim, Doors Or Cast Mantel
QUALIFIED Installation INSTALLER Install Appliance for 3 and 4-Sided Trim, Doors or Cast Mantel Appliance Depth in Framing——with 3 and 4-Sided Trims, Doors • The 3 and 4-sided trims are adjustable to accomodate up to an additional 3/4” of tile or other over top of the 1/2”...
Page 48 QUALIFIED Installation INSTALLER Install Appliance for 3 or 4-Sided Trims and Hearth considerations Fronts You need to know whether there will be a hearth or not in front of the appliance and some rules must be The 3-sided trims 1135, 4-sided trims 1140, double considered: doors 1149 and cast mantel 1147 are ﬁ...
Page 49 QUALIFIED Installation INSTALLER Fit Appliance to Framing 1. Install stud brackets on each side of the appliance (2 screws per bracket). Use the hole or the slot according to the thickness of the wall ﬁ nish—see page 47. 2. Taking great care not to cut your hands on the sheet metal edges, lift the appliance out of its packing base and place it in the framing.
Page 50: Install Electrical Wiring
QUALIFIED Installation INSTALLER Install Electrical Wiring (for optional fan or power adapter kit) This section provides information to install the electric pre-wiring required for use with the 1195CFK Circulat- ing Fan Kit or GV60PAK Power Adapter Kit. All wiring must be done by a quali ed electrician in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/ NFPA 70 or the Canadian Electrical Code, CSA C22.1.
Page 51: Connect Gas Supply
QUALIFIED Installation INSTALLER Connect Gas Supply The gas supply inlet connection is a ” 3/8” NPT male connector located on / 1 6 4 - 5 the right hand side of the ﬁ rebox. ( 1 1 The unit is supplied with a stainless steel ﬂ...
Page 52: Install Liners
QUALIFIED Installation INSTALLER Install Liners side visible, in front of the rear ceramic panel, held in place as well by the bottom rail retainers. The following guidelines apply for all liners. 1. Inside the ﬁ rebox, on the top of each side, release the screw of the side panel anchors if necessary so they can rotate freely (one per side).
Page 53: Install Driftwood Kit 1101Dwk (1100 Models)
QUALIFIED Installation INSTALLER Install Driftwood Kit 1101DWK (1100 models) 2. Place the right log on the right side of the ceramic burner inserting the two pegs of the log in the holes Material required of the burner. The rear end of the log rests on the •...
Page 54 QUALIFIED Installation INSTALLER 4. Carefully spread shale in the cavity of the ceramic burner. You can also add some shale on the edge outside of the burner plate cavity. NOTE: Ensure the area within the pilot shield is clear of shale pieces. Pebbles Place the pebbles on the platform as shown below.
Page 55: Install Decorative Glass Murano 1103Dgm (1100 Models)
QUALIFIED Installation INSTALLER Install Decorative Glass Murano 1103DGM 3. Carefully spread the glass on top of the burner within the platform opening. (1100 models) Material required • Decorative Glass Murano kit, which contains: • 1 glass platform • 2 platform retainers •...
Page 56: Install Decorative Glass Set 1104Dgs (1100 Models)
QUALIFIED Installation INSTALLER Install Decorative Glass Set 1104DGS 4. Carefully ﬁ ll the metal tray with ﬁ reglass, leveling it with the top of the tray’s ﬂ ange. (1100 models) Material required • Decorative Glass Set, which contains: • 1 metal tray •...
Page 57: Install Traditional Logs (1150 Models)
QUALIFIED Installation INSTALLER Install Traditional Logs (1150 models) Material required • Log set included with the appliance, which contains: • 8 logs • Gloves, if desired Installation Unpack the ceramic logs very carefully to avoid damaging them. Each log has keys to help you locate them on the ceramic burner platform.
Page 58 QUALIFIED Installation INSTALLER 3. Place the right-hand middle log locating its notch on 5. Place the center base log locating its notch on the the key in the ember bed as indicated. key in the ember bed as indicated. 4. Place the left-hand base log on the platform locating it on the key as indicated.
Page 59 QUALIFIED Installation INSTALLER 7. Place the left-hand cross log locating its notch on the key on the top of the rear log as indicated. Rest the front end of the log on top of the left base log as indicated. 8.
Page 60: Reﬁ T And Check Window
QUALIFIED Installation INSTALLER Re t and Check Window 1. To reﬁ t the window, place it in its bottom railing and push its top against the ﬁ rebox. Ensure there is no glass or shale particles in the bottom railing. 2.
Page 61: Remote Control Initial Pairing
QUALIFIED Installation INSTALLER Remote Control Initial Pairing The receiver and the handset of the remote control sys- tem must be initially paired before the ﬁ rst use. 1. Insert two 1.5 V AAA alkaline batteries in the handset. 2. Locate the Reset button on the front side of the receiver.
Page 62: Check Operation
QUALIFIED Installation INSTALLER Check Operation Air Shutter Turn the ﬁ replace ﬂ ame up and down using the To access the air shutter, very carefully remove the remote control to conﬁ rm that the full range of inputs ceramic fuel bed. The air shutter is located under the is achieved—see the remote control operation ceramic fuel bed at the back as shown.
Page 63: Install Remote Control Handset Wall Holder
QUALIFIED Installation INSTALLER Install Remote Control Handset Wall Holder The remote control kit for this ﬁ replace comes complete with a wall-mounted holder. This holder is not required in all installations but is provided as an optional feature for those customers who wish to mount the remote handset to the wall.
Page 64: Wiring Diagram
QUALIFIED Wiring Diagram INSTALLER MAN-Knob Main Valve Knob Combination Control Valve Interruptor Block terminal Optional Wall Switch Kit 8-Wire Cable 1265WSK Thermocouple Electrode Cable Yellow Connector SPARK SPARK Thermocurrent Interruptor Block Pilot Receiver 4 AA Batteries Battery Compartment Button “RESET: Optional Fan 1195CFK Control...
Page 65: Approved Venting Components
QUALIFIED Approved Venting Components INSTALLER Approved Direct Vent Suppliers for Valor Models 1100, 1150, 1200 , 1500, 1600 and 1700 Venting Parts Code / availability by Manufacturer Venting Parts Description Standard Co-axial 46DVA-HC 4DT-HC TM-4HT — — 4DHC round 658DVK...
Page 66 ﬁ nishes: a) aluminium; b) black powder coated; c) solid copper. 5. Miles Industries Valor Co-linear adapter 1156CLA cannot be used with models 1200 and 1600. Use only with models 1100, 1150, 1500 and 1700. 6. Only Miles Industries Valor Co-linear adapter 1156CLA can be used with models 1700.
Page 67: Warranty
OWNER’’S Warranty INFORMATION If you have a problem with this unit, please contact your dealer or supplier immediately. Under no circumstances should you attempt to service the unit in any way by yourself. The warranties in paragraphs 1 and 2 are provided only to the ...
Page 68: Spare Parts
OWNER’’S Spare Parts INFORMATION Part Part Code Description Code Description Number Number Heat shield 4004460 GV60 valve assembly NG 1100 4004498X 45 degrees ﬂ anged elbow 0945JM GV60 valve assembly LPG 1100 4004499X Elbow gasket 4002999 GV60 valve assembly NG 1150 4004500X Top stand-offs (2) 4004469...
Page 69 Spare Parts INFORMATION Part Code Description Number Reﬂ ective Glass Liner - 1100 1105RGL Liner panels - complete sets Valor Red Brick Liners 1110VRL Ledgestone Liner Set 1115LSL Fluted Black Liner Set 1125FBL Rear panel Valor Red Brick 4003264 Ledgestone...
Page 70 OWNER’’S Spare Parts INFORMATION 62 63 64...
Page 71 Thank You ... For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical appliance that must be installed by a qualiﬁ ed installer. Please  ll in the information below. The information provided will be used for customer records only.
Page 72 Tape Shut Fold here Postage needed Miles Industries Ltd. 190 - 2255 Dollarton Highway North Vancouver, BC V7H 3B1 Canada Online Warranty registration at www.valor replaces.com Thank you for choosing a Valor Product...
