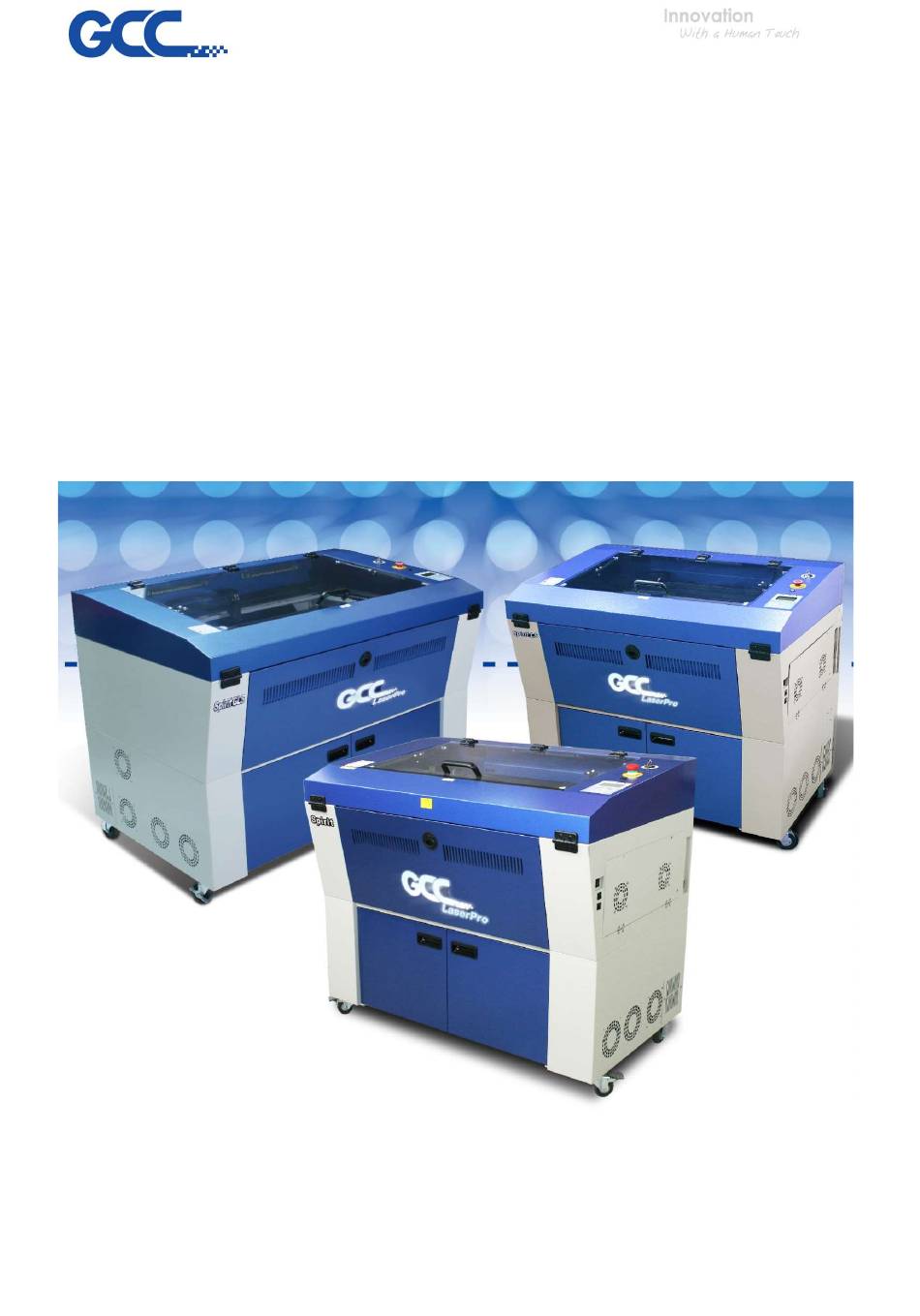

Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6
Maintenance Manual
Spirit/Spirit LS/Spirit GLS/GLS Hybrid
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spirit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GCC Technologies Spirit

Summary of Contents for GCC Technologies Spirit

  • Page 1 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Maintenance Manual Spirit/Spirit LS/Spirit GLS/GLS Hybrid...

  • Page 2: Table Of Contents

    X Axis Assembly ..................... 39 Y Axis Assembly ..................... 41 Pen Carriage ......................45 VII Mirror 1 and Laser Tube Assembly ................. 47 2-3 Spirit GLS & GLS Hybrid ................... 49 Top Cover for GLS & GLS Hybrid ................49...
  • Page 3 2-4 A comparison table for GCC laser power supplies ..........74 Chapter 3 – Electrical System (5272 V3 M/B) ..............75 3.1 Spirit GLS Hybrid (CO2) .................... 75 3.2 Spirit GLS Hybrid (Fiber + CO2) ................76 3.3 Spirit ......................... 77 3.4 Spirit LS ........................78 3.5 Definition of Pin ......................
  • Page 4 5.3.2 Basic Beam Alignment ..................105 5.3.3 Beam Alignment for GLS Hybrid (Dual Tubes) ..........107 5.4 Setting tickle pulse on Spirit Series machines equipped with Synrad laser sources. . 109 Chapter 6 - Software ......................110 6.1 How to upgrade firmware ................... 110 6.2.
  • Page 5 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 9 FAQ ........................157 9.1 For laser machines, what factors affect cutting throughput?........157 9.2 When cutting thick material (10mm acrylic for example), why the cutting edge is slant? ............................160...

  • Page 6: Chapter 1：Overview

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 1：Overview 1.1 Introduction This manual is prepared for distributors to maintain or repair Spirit seies. Briefly, Chapter 1 is the introduction of contents, safety and operating enviroment   Chapter 2, we have diagrams to show the part number for every part in different sections.

  • Page 7: Safety Measures

    Always keep machine clean after job finished. NOTE Each Spirit, Spirit LS, and Spirit GLS is shipped with a single pair of safety goggles. If additional safety goggles are required, please contact GCC directly or an authorized GCC distributor. If you wish to purchase one on your own, please make sure the safety goggles...

  • Page 8: Operating Environment

    Please follow the guidelines when considering a suitable location to set the LaserPro Spirit Series. Improper work environments may lead to operational malfunction and/or unsafe working conditions. The LaserPro Spirit Series should be placed and operated in a standard office-type environment.
  • Page 9 • Select a location in which there is a short, direct path to the fume exhaust system. • Set the LaserPro Spirit Series on a floor surface that is completely even. • Make sure your smoke or fire detection system in the immediate area is functioning.

  • Page 10: Chapter 2：Mechanical System

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 2：Mechanical System 2-1 Spirit Top Cover...
  • Page 11 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Top Cover – Parts List Item no. Part no. Description 24403854G Top cover 26500166G Window Hinge 23500013G Nut(M3xt2.4xS5.5) 257000970G Double pulls out Key Switch (E3K2V2A.V) 22803194G windows 24404034G Window Support Bracket 26500165G Window Handle...

  • Page 12: Mid Section

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid Section...
  • Page 13 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid Section – Spare Parts List Item no. Part no. Description Please order this item 20200120G main unit Assembly - Spirit 24400984G Z axis top Limit modulate seat 25700002G Lever Switch (VM3-04N-80S-U3 (390)) 25200017G Truss head machine screw(M3X15L)
  • Page 14 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 24401002G Door-Retaining fixing plate 22800956G Y slideway actions revise seat 23100017G STEPPING MOTOR DSH56EL4HA4L0100 26000018G Spring washer.(d4xD7 SUS) 24700013G Rubber Packing for Z Motor 24403500G Z Motor Braclcet 25200214G Socket head set screw.(M4*12L)
  • Page 15 22000130G PC board interval(MCB-6) 25200144G Truss head machine screw(M3*10L) 25200260G Pan head machine screw(M4*35L) 23500015G Nut(M4xt3.2xS7) 25700015G Magnetic Switch MainBoard TO LASER DIODE CABLE - Spirit & 20900993G 29003657G S290 20900640G Flat cable 850mm 1.0*12PIN 20900196G 2.54 4Pin40cm OAK XmotorEncoder 29002537G 20900197G 3.96 2Pin 40cm OAK XmotorDriver...

  • Page 16: Base Section

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 III. Base Section...
  • Page 17 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section – Parts List ITEM PART NO Description 24500037G power supply 150W LPP-150-12 24401897G base Chassis 24400978G base Left door 24400979G base Right door 24401634G base protect board 24400991G plank hinge 23300372G filter fabric...
  • Page 18 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description 25200159G Socket head set screw.(M3*16L) 20900624G Front FAN to Laser Statics Cable 23300305G buckle door magnet(02-10-101-10) 25200115G Truss head machine screw(M3*6L SUS). 24401477G 12V power fixed board Rocker Switch- Black...
  • Page 19 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description 25200262G Pan head machine screw(M4*45L) 20900039G Fan to M/B Cable 2.54-2pin 5cm. 25200200G Truss head machine screw(M4*8L sus). 23300387G Plastic Embedded Pulls 26500210G Rubber Foot TNF-1 26500236G Stand wheel. STC-75-EM-60KG 26500237G Stand wheel with break.

  • Page 20: Axis Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 IV. X Axis Assembly...
  • Page 21 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 X Axis Assembly – Parts List Item Part no. Description Please order this item 22800923G X axis slideway 22800923G 22800928G Tension pully shaft 29005867G 22800931G X Axis left side mount annex 29002538G 25200104G Dish flat head machine screw...
  • Page 22 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item Part no. Description Please order this item 29002601G Air Assist Tube 1100mm 23100022G DC MOTOR(TS3727N75E5) 29002537G 22800960G X-axis 20 gear 29002537G 25200090G Socket headness set screw.(M3*3L) EMI CORE(CR-0175-RH001) / 21800003G 29002537G (RH17.5*28.5*9.5) 20600076G X motor belt_2GT-180-10 25200115G Truss head machine screw(M3*6L SUS).

  • Page 23: Y Axis Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Y Axis Assembly...
  • Page 24 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Y Axis Assembly Item no. Part no. Description Please order this item 25500047G Wheel spring 29004278G 22800937G actions wheel stable axleP 29004278G 22800942G Y axis transmit shaft 22800943G Y axis mid belt wheel 22800935G 8mm coupling...
  • Page 25 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 25500047G Wheel spring 29004278G 22800937G actions wheel stable axleP 29004278G 22801860G 4*9 both sides wheel(J) 29004278G 20700038G Bearing 684ZZ 29004278G 24401001G guiding plate of spring 25200081G Socket head set screw_M2.5x6L...

  • Page 26: Pen Carriage

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VI. Pen Carriage Pen Carriage – Parts List Item Part no. Description Please order this item 29005888G Lens carriage Assembly 22802972G Lens carriage base 22800917G belt retainer...
  • Page 27 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description 22800951G 4*4.5 interval pillar 22801859G 4*9 unilateral Wheel(J) 20700038G Bearing 684ZZ 22800952G 4*11 small roller screw 25500047G Wheel spring 22800937G actions wheel stable axleP 22801860G 4*9 both sides wheel(J)

  • Page 28: Mirror 1 And Laser Tube Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VII. Mirror 1 and Laser Tube Assembly...
  • Page 29 25200138G Socket head set screw.(M3*10L su 25200054G Socket head set screw.(5/32"*3/8 26000036G Spring Washer (d6xD11xt1.4)sus 25200300G Socket head set screw.(M6*12L) 24500089G Power Supply (RSP-1000-27 (30V)) MainBoard TO LASER DIODE CABLE - Spirit & 20900993G 29003657G S290 20900101G Ground wire of Power Supply...

  • Page 30: Spirit Ls

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 2-2 Spirit LS Top Cover...
  • Page 31 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Top Cover – Parts List Item No. Part no. Description 24403854G Top cover 26500166G Window Hinge 23500013G Nut(M3xt2.4xS5.5) 25700094G Key Switch (E3K2I2A.V) 29003833G Pc Window Assembly 24404034G Window Support Bracket 26500165G Window Handle 24400130G Top Cylinder Bracket 22000045G Magnet MC-12 25200299G Socket head set screw.(M6*12L)

  • Page 32: Mid. Section

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid. Section...
  • Page 33 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid. Section – Parts List Item No. Part no. Description Please order this item 20200120G main unit Assembly - Spirit 29002517G Z axis up Limit Switch Assembly Lever Switch (VM3-04N-80S-U3 25700002G 29002517G (390)) Truss head machine...
  • Page 34 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description Please order this item 24401002G Door-Retaining fixing plate 22800956G Y slideway actions revise seat 29005784G Z MOTOR ASSEMBLY 26000018G Spring washer.(d4xD7 SUS) 29005784G 24700013G Rubber Packing for Z Motor...
  • Page 35 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description Please order this item Fan finger 22000053G guard(matchAD08024US-A70GL)(G08A5-4HA) MEAN WELL Power Supply ADS-15540 24500022G 40V/5V 29002510G Y Motor PCB 20600024G Z-axis belt (5GT-2910-9) 21800007G EMI Filter YE10T1L2 22000108G Varistor (CNR-14D471K-TRK)

  • Page 36: Base Section

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 III Base Section Item No. Part no. Description 24500037G power supply 150W LPP-150-12 24401897G base Chassis 24400978G base Left door 24400979G base Right door 24401634G base protect board 24400991G plank hinge 24401633G T Series power supply fixture...
  • Page 37 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section – Parts List Item No. Part no. Description Power Supply (RSP-1000-27 (30V)), for T60/T100 24500089G after S/N J50682 Power Supply (RSP-1000-48 (48V)), for Ti100(2 24500048G units needed) after S/N K51416 Power Supply (RSP-1000-48), for Ti60/Ti80 after...
  • Page 38 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description 25200101G head set screw_M3x6L 26000039G Flat washer (d6.4*D16.8*t1.6) 26000026G External toothed lock washer (M4-Ni) 25200200G Truss head machine screw(M4*8L sus). 25200303G Socket flat head set screw.(M6*14)NI 23500015G Nut(M4xt3.2xS7) 25200262G Pan head machine screw(M4*45L)

  • Page 39: Ivx Axis Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 IV X Axis Assembly X Axis Assembly Item No. Part no. Description Please order this item 228033381G Left Stoper Linear Guide 233013550G 290070721G (MR9MNSU1V1P-800L-10-10) 22802302G Adjust screw 29006039G 22800929G strain stable screw 29006039G 22803055G...
  • Page 40 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description Please order this item 228035050G X-Axis Slideway 290070721G 228033310G X Axis between top axle bracket 228033351G X-axis Mid Belt Wheel (P48) 24403742G X motor dust-proof lid 20600159G Close Kevlar Belt (U2GT-180-10)

  • Page 41: Y Axis Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Y Axis Assembly...
  • Page 42 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Y Axis Assembly – Parts List Item No. Part no. Description 29004278G Wheel spring Assembly(J) 22800937G actions wheel stable axleP 22800942G Y axis transmit shaft 228036660G Y-axis Mid Belt Wheel (P72) 22800935G 8mm coupling...
  • Page 43 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description 24400997G Stopper board 24401001G guiding plate of spring 22802955G X Axis double side mount 22800951G 4*4.5 interval pillar 25200081G Socket head set screw_M2.5x6L 22801859G 4*9 unilateral Wheel(J) 20700038G Bearing 684ZZ...
  • Page 44 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item No. Part no. Description 228036650G Y axis transmit belt wheel (P30) 25500048G wire ring φ8 29002533G Tension idle pulley Assembly. 20700053G Bearing (687ZZ) 22800927G Tension pully core 25500049G Wire ring D=7 24900002G E-shape retaining ring.D11*d5*t0.6...

  • Page 45: Pen Carriage

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VI Pen Carriage Pen Carriage – Parts List Item No. Part no. Description Please order this item 22802108G Lens carriage roconnect board 29005506G 22801996G Lens carriage Assembly-V2 - C180 22802046G Carriage reflector hold board...
  • Page 46 29004737G 24402538G lens spring assem 29004737G 244040540G Lens Carriage Top Shingle 29005108G AAS I terminal board Module - Spirit Hexagonal Post of Female Screw Type 233000070G L18*M3+Male Screw Type L6*M3 29005770G Plate Lens carriage Assembly w/o lens and mirror (for...

  • Page 47: Mirror 1 And Laser Tube Assembly

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VII Mirror 1 and Laser Tube Assembly...
  • Page 48 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mirror 1 and Laser tube Assembly Item No. Part no. Description Please order this item 25200214G Socket head set screw.(M4*12L) 22801773G Laser main base 22900048G Synrad v30 Laser Tube 22801470G T60 laser reconnect board...

  • Page 49: Spirit Gls & Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 2-3 Spirit GLS & GLS Hybrid Top Cover for GLS & GLS Hybrid...
  • Page 50 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Top Cover - Parts List Item no. Part no. Description 24403981G Top cover 26500166G Window Hinge 23500013G Nut(M3xt2.4xS5.5) 25700094G Key Switch (E3K2I2A.V) 22802392G windows 24404033G Window Support Bracket 26500165G Window Handle 24402675G BKT CYLINDER...

  • Page 51: Mid. Section For Gls & Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid. Section for GLS & GLS Hybrid...
  • Page 52 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mid. Section – Spare Parts List Item no. Part no. Description Please order this item 20200184G main unit Assembly - Spirit 24400984G Z axis top Limit modulate seat 25700002G Lever Switch (VM3-04N-80S-U3 (390)) 25200017G Truss head machine screw(M3X15L)
  • Page 53 21800003G EMI CORE(CR-0175-RH001) / (RH17.5*28.5*9.5) 25200149G Socket head set screw.(M3*12L) 26000002G Spring washer.(d3xD5.5xt0.8)sus 25200119G Socket head set screw.(M3*8L)SUS 290071360G Spirit main board with Spirit GLS firmware 25200115G Truss head machine screw(M3*6L SUS). 24400987G Mirror Bracket 202003240G prism mounts Assembly 25700014G ON/OFF SW...
  • Page 54 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 22000108G Varistor (CNR-14D471K-TRK) 24401455G induced draft box 23300307G Top Cover left fixed stick 23300308G Top Cover right fixed stick 22000130G PC board interval(MCB-6) 25200144G Truss head machine screw(M3*10L) 25200260G Pan head machine screw(M4*35L) 23500015G Nut(M4xt3.2xS7)

  • Page 55: Base Section For Gls

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 III. Base Section for Base Section – Spare Parts List Item no. Part no. Description Please order this item 24500037G power supply 150W LPP-150-12 24402277G base Chassis 24402293G base Left door 24402294G base Right door...
  • Page 56 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item Power Supply (RSP-1000-27 (30V)), for 24500089G T60/T100 after S/N J50682 Power Supply (RSP-1000-48 (48V)), for Ti100(2 24500048G units needed) after S/N K51416 Power Supply (RSP-1000-48), for Ti60/Ti80 after...
  • Page 57 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 26000026G External toothed lock washer (M4-Ni) 25200200G Truss head machine screw(M4*8L sus). 25200303G Socket flat head set screw.(M6*14)NI 23500015G Nut(M4xt3.2xS7) 25200262G Pan head machine screw(M4*45L)

  • Page 58: Base Section-1 For Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 IV. Base Section-1 for GLS Hybrid...
  • Page 59 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section-1 – Spare Parts List ITEM PART NO Description 244054820G Base Chassis 290068190G 100Ti Power Supply Assembly 229000880G Synrad Ti100 air-cooled laser 22801470G T60 laser reconnect board 25200410G Socket head set screw.(#8-32 UNC*1/2"L)

  • Page 60: Base Section-2 For Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section-2 for GLS Hybrid...
  • Page 61 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section-2 – Spare Parts List ITEM PART NO Description 228040040G Laser Base Plate 22801367G Laser fixing rod 26000039G Flat washer (d6.4*D16.8*t1.6) 25200297G Socket head set screw.(M6*12L white) 25200214G Socket head set screw.(M4*12L) 228040070G...

  • Page 62: Base Section-3 For Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VI. Base Section-3 for GLS Hybrid...
  • Page 63 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Base Section-3 – Spare Parts List ITEM PART NO Description 228040050G Laser front board 22801471G Laser front bracket 25200214G Socket head set screw.(M4*12L) 228040100G Beam Combiner Bracket 25200138G Socket head set screw.(M3*10L sus+coating) 202003240G...

  • Page 64: Axis Assembly For Gls & Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VII. X Axis Assembly for GLS & GLS Hybrid...
  • Page 65 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 X Axis Assembly – Spare Parts List Item no. Part no. Description Please order this item 228032941G Stoper 233013410G Linear Guide (MR9MNSU1V1P-1000L-10-10) 290070710G 22802302G Adjust screw 22800929G strain stable screw 22803055G Tension pulley shaft...

  • Page 66: Y Axis Assembly For Gls & Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 VIII. Y Axis Assembly for GLS & GLS Hybrid...
  • Page 67 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Y Axis Assembly – Spare Parts List Item no. Part no. Description Please order this item 25500047G Wheel spring 29004278G 22800937G actions wheel stable axleP 29004278G 22802116G Y axis transmit shaft 228036660G Y-axis Mid Belt Wheel (P72)
  • Page 68 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 25200081G Socket head set screw_M2.5x6L 22801859G 4*9 unilateral Wheel(J) 29004278G 20700038G Bearing 684ZZ 22800952G 4*11 small roller screw 22800917G belt retainer 25200101G head set screw_M3x6L...
  • Page 69 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 24900002G E-shape retaining ring.D11*d5*t0.6 22800929G Strain stable screw 22800957G Tension fixing screw 24400997G Stopper board 25200205G Socket head set screw_M4x10L 22802955G X Axis double side mount 22800951G 4*4.5 interval pillar...

  • Page 70: Carriage For Gls & Gls Hybrid

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 IX. Carriage for GLS & GLS Hybrid...
  • Page 71 II-VI P/N#488614 ZnSe Lens 0.75"dia. × 2.0"FL ET=0.08" 22802047G focusing lens hold board 24402538G lens spring assem 244040540G Lens Carriage Top Shingle 29005108G AAS I terminal board Module - Spirit Hexagonal Post of Female Screw Type L18*M3+Male 233000070G Screw Type L6*M3 29006011G AUTOFOCUS C Module...

  • Page 72: Mirror 1 Assembly And Laser Tube Assembly For Gls

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mirror 1 Assembly and Laser Tube Assembly for Mirror 1 Assembly and Laser Tube Assembly – Parts List Item no. Part no. Description 25200214G Socket head set screw.(M4*12L) 22801773G Laser main base 22900048G Synrad V30 Laser Tube...
  • Page 73 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Item no. Part no. Description Please order this item 22801471G Laser front bracket 22801482G Laser front board 22800921G Red beam fixed base 25200149G Socket head set screw.(M3*12L) 22800907G 0.5" beam expander assembly 29002528G 23600002G II-VI P/N#107113 ZnSe Lens 0.50...

  • Page 74: A Comparison Table For Gcc Laser Power Supplies

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 2-4 A comparison table for GCC laser power supplies For machines need to change the power supply, in order to avoid the compatibility issue (we changed the supplier of power supply, and the new power supply is not compatible...

  • Page 75: Chapter 3 - Electrical System (5272 V3 M/B)

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 3 – Electrical System (5272 V3 M/B) 3.1 Spirit GLS Hybrid (CO2)

  • Page 76: Spirit Gls Hybrid (Fiber + Co2)

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 3.2 Spirit GLS Hybrid (Fiber + CO2)

  • Page 77: Spirit

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 3.3 Spirit...

  • Page 78: Spirit Ls

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 3.4 Spirit LS...

  • Page 79: Definition Of Pin

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 3.5 Definition of Pin 5206e M/B 5272 V1 M/B The definition of pin JCP1 Driver Board JCP1 (N/A) Paralle port (Black) JP34 Driver Board JP5 3 pin (White) Driver Board JS1 RJ45 JP25 Driver Board JP4...
  • Page 80 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 5206e Mainboard 5272Mainboard V2 (Red is mainboard, Green is Driver Board)
  • Page 81 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 5272 Mainboard V2 The difference of outlook between 5272 main board and 5272 V2 main board are below. Most of the cables connect to 5272 and 5272 V2 main boards are the same (same position). The upgrade process below shows only the difference cable connections.
  • Page 82 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 5272 mainboard V3 A.1 J67 : RS-232 port-3 A.2 J68 : RS-232 port-4 A.3 U43 : Fiber Connector A.4 J69 : Extender I/O port A.5 J70 : Extender I/O port A.6 J59 : UART port for Debug A.7 J54 : Ethernet...
  • Page 83 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 3.6 Upgrade process from 5272 V1 main board to 5272 V2 main board The parts for upgrading to 5272 V2 main board are below: 209027890G M5272 V2 main board to 209027890G USB disk board cable...
  • Page 84 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Remove the original USB adaptor and change to USB disk board adaptor The mounting screw (red circles) use original two screws. Use Truss head screws (25200115G_GCC send) to mount the USB disk board (see 4 red...
  • Page 85 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 M5272 V2 main board to USB disk board cable (209027890G) is connected on below position. (see two yellow circles below)The Wafer cable (209027890G) is connected to below position (see the green arrow pointed) It needs to remove the cover of extension power set first.
  • Page 86 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Before plug in Fiber cable (221000060G) into USB disk board and 5272 V2 main board, the red cap (see the yellow circle below) should be removed. The end of Fiber cable should be separated for 6cm, so the fiber cable can plug all the way down into fiber connector. And then push the black lid (red arrow pointed) inside so the fiber cable can connect to fiber connector tightly.
  • Page 87 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 To make sure the fiber cable is connected correctly. Turn on machine and see if the fiber connector LED connects to Off and Off connects to On.

  • Page 88: Chapter 4 - Components Replacement

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 4 – Components Replacement 4.1 Control Panel Changing Process  Dismount 2 screws of top cover(M4 *8)
  • Page 89 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Li ft t he t op cover  P lease t urn t he sa f e t y lock swi t ch t o L O C K s t a t us according t o t he direc t ion shown on t he...
  • Page 90 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Dismoun t 4 screws f or cover o f con t rol panel and ground cable screw Aft er con t rol panel cover is removed , t here are 4 screws needs t o be removed and t he f ive ...

  • Page 91: Power Supply Changing Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 4.2 Power Supply Changing Process  Dismount 3 screws on the back panel (see red circle below)  Loosen the screws and remove the 2 power supply AC side cable (blue circle below) ...

  • Page 92: Motor & Auto Focus Cable Changing Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 4.3 X Motor & Auto Focus Cable Changing Process  Dismount 2 screws of top cover(M4 *8)
  • Page 93 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Li ft t he t op cover  P lease t urn t he sa f e t y lock swi t ch t o L O C K s t a t us according t o t he direc t ion shown on t he...
  • Page 94 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Dismount 3 screws of x motor cover (M3 *6)  Dismount 3 screws of x motor idle pulley (Blue circle below). Dismount 4 screws of X motor (M3 *10,red arrow below) and the x motor cable be removed and changed.
  • Page 95 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  For changing auto focus cable, first remove the auto focus cable from x motor pcb (see red circle below).  On lens carriage side, remove the auto focus cable also (it is tight, so use tweezers...
  • Page 96 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Pull out some joint will be easier to change auto focus cable.

  • Page 97: Rollers Changing Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 4.4 X Rollers Changing Process  The estimated life of a set of rollers is about 500 working hours. Dismount 4 screws on the top cover of carriage (see red arrows below) To change rollers, simply remove the hex bolts using a size 2 Allen key as shown below.
  • Page 98 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Unscrew the following screws to remove the A roller.

  • Page 99: Y Motor Belt Dismount Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 4.5 Y Motor Belt Dismount Process  To remove the y axis synchronizer bar (the red arrows pointed) need to remove the screws of synchronizer bar holders and they are at the bottom (the yellow arrow pointed).

  • Page 100: Y Rollers Changing Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Now the whole y axis synchronizer bar can be move up a little. So the y motor belt is loosen also and can be removed. The y motor belt can move cross the synchronizer bar and holders.
  • Page 101 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6  Unscrew the following screws to remove the A roller.

  • Page 102: Gls Hybrid Ccd Installing Process

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 4.7 GLS Hybrid CCD Installing Process  Prepare CCD and two screws and open the top cover of lens carriage.  Mount the CCD on the grooves(top and bottom) of x axis rail and tighten the top screw of...
  • Page 103 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Mount two screws (the two red circles below) and connect CCD to lens carriage. Connect CCD two cables to top of CCD pcb. See two circles below:...

  • Page 104: Chapter 5 - Laser System

    Chapter 5 - Laser System 5.1 Type of Laser Tube There are three types of laser sources used with the Spirit/Spirit LS/Spirit GLS, namely Coherent and Synrad. There are 30W, 60W, 80W and 100W models with Synrad laser tubes and also there are 30W, 40W models with Coherent Deos laser tubes and 80w ,100w with GT series.

  • Page 105: How Does The Laser Beam Travel To The Working Area

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 5.3 How does the laser beam travel to the working area ? The laser beam generated by the laser source is reflected and guided by 4 optical lenses on to the working area. Therefore the proper adjustment and maintenance of them are crucial.
  • Page 106 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Step 2: Place a piece of masking tape over the tube opening that leads to Mirror 2. Fire the laser and see if it leaves a burnt mark in the center of the hole. Also check that the burnt mark left by the laser beam is circular in shape.

  • Page 107: Beam Alignment For Gls Hybrid (Dual Tubes)

    5.3.3 Beam Alignment for GLS Hybrid (Dual Tubes) The beam alignment for GLS Hybrid has few more steps than other Spirit series. First press Auto Focus key + Turn On machine together and go to hardware testing mode.(See Chapter 7.3.4 Hardware Test for detail). Then choose Fiber laser test and tune 1064 nm mirror and let Fiber red beam pass through and hit the center of the hole on CO2 mirror panel.
  • Page 108 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 1064nm Mirror panel Mirror 1064nm Mirror 1064nm mirror part number： Mirror Assembly：29005029G Put double side adhesive to let 1064nm red beam hit Mirror 1 the center hole of mirror panel. Make sure the beam combiner will not block CO2 laser beam: Put beam combiner into prism mount and then fire CO2 laser and make sure laser beam will pass through beam combiner without being blocked.

  • Page 109: Setting Tickle Pulse On Spirit Series Machines Equipped With Synrad Laser Sources

    Then put back CO2 mirror 1 into prism mount and then follow the same steps on 5.3.2 Basic Beam Alignment above. (From step 1 to step 4). 5.4 Setting tickle pulse on Spirit Series machines equipped with Synrad laser sources.

  • Page 110: Chapter 6 - Software

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 6 - Software 6.1 How to upgrade firmware GCC machines require a firmware uploader program to upload the firmware of machine through USB/Parallel port. 6.1.1 The Firmware Uploader can be downloaded from GCC Distributor Club website :...
  • Page 111 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 6.1.2. Firmware can be downloaded from GCC Distributor Club http://gccf.gcc.com.tw/distributor/login.aspx 6.1.3. Check the version of firmware installed on the machine and the mainboard type first. a. Press F4 to enter “Func” page...
  • Page 112 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 b. Select “Information” c. Press “Down” arrow key to enter the information page, the firmware version and mainboard type will show.
  • Page 113 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 6.1.4 For older machines: For machines with 5272V1 mainboard equipped which have older firmware installed(*1) , and all machines with 5206E mainboard equipped, please follow below step 1 ~ step 5 to finish the firmware upgrade.
  • Page 114 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Step 2. Connect the USB / LPT cable between PC and Laser machine then run firmware uploader Step 3. Pull down the dropdown list of “Select a port”, select the port you want to use to upload the firmware (according to what you did on Step 1) Step 4.
  • Page 115 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Press “Open” to select the firmware file Firmware file is selected. Step 5. Press the “Start” button, the upgrading process will start, wait until the process is done, the machine will reboot automatically.
  • Page 116 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 6.1.5 For new version machines (only USB is supported) For machines with 5272V1 mainboard equipped which have new firmware installed (refer to the dividing line chart at 6.1.4) , and machines with 5272V2、5272V3 mainboard equipped, please follow below step 1 ~ step 5 to finish the firmware upgrade.
  • Page 117 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Step 3. Pull down the dropdown list of “Select a port”, select “Common USB-XXXX” Step 4. Press the button “Browse” and select the firmware file you want to upload. Press “Open” to select the firmware file...

  • Page 118: How To Set The Proper Usb Mode On Gcc Laser Machine And Printer Port Setting Of Windows System ? (For Older Machine Only, Refer To 6.1.4)

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Firmware file is selected. Step 5. Press the “Start” button, the upgrading process will start, wait until the process is done, the machine will reboot automatically. 6.2. How to set the proper USB mode on GCC Laser Machine and printer port...
  • Page 119 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Step 2 Set the proper USB mode on both the machine and printer port setting of windows system according to following table : Loader Windows XP/Windows Vista/Windows 7 Laser series version 32 bit 64 bit...
  • Page 120 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Select “Machine setting” III. Select “Usb setup wizard”...
  • Page 121 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 IV. Choice the USB mode you want to use and save it.  Printer port setting I. StartSettingsPrinters and Faxes to enter “printers page”...
  • Page 122 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 II. Right click on the printer you want to set the port and select “Properties” III. Turn to “Port” tab, select the proper port you want to set (in this case, it’s GCC USB)

  • Page 123: Chapter 7 - Trouble Shooting & Diagnostic

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 7 - Trouble Shooting & Diagnostic 7.1 Firmware Error Message Message Laser Tube Error Laser tube is overheat press any key to stop Cause V30 laser tube responses the over-temp signal for a period of time, and firmware recognizes the laser tube is over temperature.
  • Page 124 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message Working table has reached the limit, please lower the table. Platform reach the top limit Cause Platform reach the bottom limit Certain object touches the limit switch Limit switch malfunction Solution 1. UP/Down platform to avoid the limit level...
  • Page 125 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message No Language Data Please upload proper language data first While using multi-language, precise language file is not imported. Cause Solution Import correct language pack file. Message SmartMEMORY is full.Please remove some file SmartMEMORY buffer is full...
  • Page 126 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message Z motor malfunction For service please contact your local distributor Z motor is abnormal Cause Solution Verification: Check if the cable connections of Z motor are correct Check if there were any abnormal sounds from Z motor...
  • Page 127 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message WARNING!The CCD unitis not detected. Press Back to leave CCD offset mode. CCD is not installed Cause Solution Install the CCD Message WARNING! No CCD Please remove include CCD command file CCD is not installed...
  • Page 128 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message Fail to locate registration mark. Align red beam to the first mark The first registration mark can’t be recognized Cause Solution Move the red beam to the first mark and do the recognition again.

  • Page 129: Gt Series Error Message And Machine Settings

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Message Drive Not Found!! USB storage dose not plug. Cause Solution Confirm if USB storage is plugged or try to replug again. Message No Valid File!! File name is Chinese version or there is no prn and/or plt file mode Cause under the folder.

  • Page 130: Error Lights

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Machine Status Page allows user to check the status of the machine and laser tube via control panel in real time. System will show the laser warning message on the control panel to remind users when the voltage or temperature is abnormal.
  • Page 131 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 The LED circled in green is the 5V light. This light should always be “ON“ showing that there is a 5V supplied to the mainboard. Check that the power supply next to the mainboard that provides the 5V power is working properly if it is not “on”.

  • Page 132: 5272 Mainboard

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.3.2 5272 mainboard D1 : LED for USB Connection Indicator LED on : USB Connection LED off : USB Disconnection D2 : FPGA Download Done Indicator LED on : FPGA Download Done LED off : FPGA Download not ready...
  • Page 133 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 RESET Indicator LED on : M/B RESET LED off : normal mode D.1 D8 : M/B RESET Indicator D.2 D9 : D/B RESET Indicator Light : M/B RESET Dark : normal mode Power Ready Indicator...
  • Page 134 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 E.2 D9 : M/B 2.5V Power Indicator E.3 D10 : M/B DDR 2.5V Power Indicator E.4 D13 : D/B 5V Power Indicator...
  • Page 135 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 E.5 D12 : D/B 3.3V Power Indicator Door Open Indicator LED on : Door Close LED off : Door Open F.1 D20 : Door Open Indicator 1...
  • Page 136 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 F.2 D21 : Door Open Indicator 2 F.3 D22 : Door Open Indicator 3...

  • Page 137: Gt Series Laser Tube Led Indicators

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.3.3 GT series laser tube LED indicators Indicator LEDs Indicator Illumination Convention Image Color LASER Lights (cw) when the laser controller is ready Green READY for operation Lights (cw) when the RFPA is getting too...

  • Page 138: Burn In Test

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.4.3 Burn In Test Pressing and holding “Start/Stop” key and turn on machine; after the machine is boot, a file with name “Burn_In_Test” will be generated and output automatically, this file will permanently run unless user stop it .
  • Page 139 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Contents of Hardware Test (Pressing 「Enter」 to start test): FPGA Test X Motor Test X motor test checks that the X motor is FPGA test checks if FPGA chipset is working functional by asking user to use the keys on...
  • Page 140 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Rotary Motor Test Hard Stop Test Hard Stop test checks that the X and Y Rotary Motor Test checks if the motor of the sensors are functional by asking the user to optional Rotary attachment is functional.
  • Page 141 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 AutoFocus Test Door Switch Test Door Switch Test checks if the door switches AutoFocus Test checks if the AutoFocus Pin are all functional.The system buzzer will beep probe is functional. and the yellow door led on control panel will...
  • Page 142 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 AFocus Sensor Test Laser Test AFocus Sensor Test checks if the sensor of Laser test allow you to fire the laser tube at a AutoFocus pin is functional, the sensor will detect if selected laser power. (This is also the utility the AutoFocus pin is well installed on the AF seat.
  • Page 143 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 LCM Key Test LCM Interface Test LCM Interface test will display a series LCM Key test will test the functionality of the of different shapes on the LCM to allow user keys on the keypad to detect any malfunction on the display unit.

  • Page 144: Diagnostic Process For Random Shifting Problem

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.5 Diagnostic process for random shifting problem Symptom 1: Y axis shifting during a matrix job When the machine is engraving or cutting a matrix job (some rows and columns of logos or texts), sometimes one row of job is shifting to y axis (shift to upper or lower than normal position).
  • Page 145 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Diagnostic process: Check if the x motor flat cable is broken somewhere or change another x motor flat cable. Check if the screws under x motor cable are too sharp or too high and rub the x motor flat cable.

  • Page 146: When Turns On Machine, Control Panel Shows "X Motor Malfunction" (See Picture Below) And Machine Cannot Finish Initialization

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.6 When turns on machine, control panel shows “X motor malfunction” (see picture below) and machine cannot finish initialization. Diagnostic process: Every GCC laser x/y table machine will have initialization process when machine turns on.

  • Page 147: When Machine Is Doing An Engraving Job, But There Are Some Extra Vertical Lines On The

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 7.7. When machine is doing an engraving job, but there are some extra vertical lines on the both sides of engraving job. See the picture below (the 4 red circles are the extra lines).
  • Page 148 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 When machine is entered to hidden function, the control panel will show below and then choose the second function “Laser Tube Model” and then press Enter key. The default Frequency is 5Khz, if the 5Khz still has extra lines, it can change to be 4Khz or 3Khz.

  • Page 149: Charper 8 Basic Maintenance

    Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Charper 8 Basic Maintenance 8.1 Suggested Cleaning and Maintenance Supplies Cleaning / Maintenance Tool Special notes Soap Solution or All-Purpose Cleaner Paper Towels Cotton Cloth Denatured Alcohol DO NOT use alcohol on any painted surface, plastic, or the laser system.

  • Page 150: Maintaining Motion System - Lubrication Of The X & Y Rails

    PS2 grease to a paper or cotton towel and apply to the X rail of Spirit model, and Y rails of Spirit, Spirit LS and Spirit GLS models weekly. You can purchase PS2 grease from NSK dealers worldwide.
  • Page 151 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Inject small amount of grease to this injection opening inside the linear bearing 7. Open the belt by hand and use cotton swab to clean the linear guide (make sure to clean top, bottom and surface of linear guide).

  • Page 152: Cleaning The Optics System

    The following section will illustrate the location of the four mirrors found on the LaserPro Spirit Series for cleaning. Mirror 1 Mirror #1 is located inside the bottom left access door panel of the LaserPro Spirit Series. 1) Use a #2 Phillips Screwdriver to open the access panel located on the bottom left side of the LaserPro Spirit Series.
  • Page 153 7) Tighten the thumbscrew. 8) Close and secure all the covers. For Spirit GLS Hybrid machine equipped with dual laser tubes (CO2 laser tube and Fiber laser tube), in addition to above mentioned process to access and clean mirror #1, there is an extra mirror #1 for fiber laser module needs maintenance.
  • Page 154 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Thumbscrew Mirror 2, 3, 4 These mirrors are located in the work table area of the LaserPro Spirit Series. Mirror 2 Mirror 4 Mirror 3 Mirror 2 1) Unscrew and remove the black dust cover covering mirror 2.
  • Page 155 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 1) Unscrew the three thumbscrews securing the lens carriage panel and remove the lens carriage panel to reveal mirror 4 and the focal lens. 2) Loosen the top thumbscrew to remove mirror 4 (as shown in the picture below).
  • Page 156 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 C A UTION  If the center of the mirror is scratched, contact your GCC LaserPro representatives replacement.  DO NOT apply any finger pressure or any other cleaning solutions to the mirror or focal lens surface.
  • Page 157 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 Chapter 9 FAQ 9.1 For laser machines, what factors affect cutting throughput? Explain: many factors will affect cutting throughput. See “Laser Processing Variables” image below. For laser machine users, the major factor that user can control is focusing distance. The correct focusing point will have highest power density.
  • Page 158 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 From the following picture, right focusing position will provide the maximum power density for laser cutting. About different thicknesses of materials, it needs to take different focusing positions for cutting. In general, focusing position is right on the surface for the thin materials. However,...
  • Page 159 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 For the relationship of cutting throughput and the power density, there is a lot of information we can find from Internet. One of the good examples is the “Laser-Material Interaction” image below:...
  • Page 160 Spirit/Spirit LS/Spirit GLS Maintenance Manual V.6 9.2 When cutting thick material (10mm acrylic for example), why the cutting edge is slant? Explain: The problem is that the laser beam path does not pass through the center of focus lens. It’s conventional to see some slant in the thick material cutting because of the mechanical accuracy and the lens focuses in then out.

This manual is also suitable for:

Spirit lsSpirit glsSpirit gls hybrid

Table of Contents

Save PDF
