Summary of Contents for Samcon ExCam IPP3827

  • Page 1 ® ExCam IPP3827 User Manual...
  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................4 Explosion protection .................... 4 Model variants ..................... 5 Electrical parameters of the camera ..............6 Connection cable Ex-d - Ex-e (SKD02-T/ASKD02-T) .......... 6 Video-technical characteristics ................7 Other technical data .................... 7 Safety Instructions ....................
  • Page 3 Figure 2-2 Sectional view of ASKD02-T ................7 Tab. 2-1 Other technical data .................... 7 Tab. 4-1 Mounting accessories ..................11 Figure 5-1 ExCam IPP3827 equipotential bonding ............12 Tab. 5-1 Potential equalization ..................13 Figure 5-2 Video Tutorial ExTB-3 ..................14 Tab.
  • Page 4: Introduction

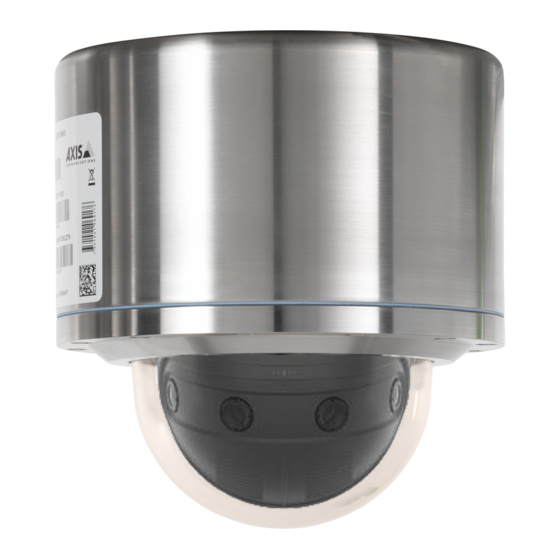

    Introduction The ExCam IPP3827 is a powerful multi-sensor camera with 7 MP resolution (3712 x 1856, 7MP@30fps) and 4 1/2.8" sensors for seamless 180° coverage. It is approved according to Directive 2014/34/EU (ATEX), IECEx, INMETRO, EAC-Ex, UKEX (and more). A panorama camera is particularly suitable for monitoring spacious terrains and large out- door areas.
  • Page 5: Model Variants

    T08- VA4.1K.PS1- LL.H- 000.X - Tab.2-1 Model key Description: ExCam IPP3827 = Functional description of the camera of the ExCam Series (technical data/ specification of the camera module) T08 = SAMCON production- type 08 VA4.1K.PS1 = Housing combination (Edelstahl 1.4404) with large diameter Ø...
  • Page 6: Electrical Parameters Of The Camera

    4 x D after relocation Data line: 4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded Quick link: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD02-T_Datasheet.pdf Figure 2-1 Sectional view of SKD02-T Doc.-ID: 230802-PT08BA-ES-ExCam-IPP3827_en_rev.00.docx, Page 6 of 32...
  • Page 7: Video-Technical Characteristics

    PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Figure 2-2 Sectional view of ASKD02-T Video-technical characteristics We use the AXIS P3827 Multisensor Camera in a pressure-resistant enclosure. For details, ® please refer to the Product Documentation, video-technical data of AXIS https://www.axis.com/products/axis-p3827-pve...
  • Page 8: Safety Instructions

    The camera is to be operated in sound conditions and in the intended way. Attention! Only original parts of SAMCON Prozessleittechnik GmbH may be used for repairs. Repairs concerning the explosion protection may only be carried out in accordance with the nationally applied regulations and by SAMCON Prozessleittechnik GmbH.
  • Page 9 Attention! The ExCam devices with model key T08-VA4.1K.PS1 (optical thermo- plastic) must generally not be used for applications in the mining in- dustry (ATEX group I), nor in other hazardous areas with potentially "high" risk of damage caused by mechanical stresses (ATEX group II)! Attention! Risk of electrostatic charging! Clean only carefully with a soft, damp cloth.
  • Page 10: Installation

    Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thor- oughly check it for any transport damage, especially on the housing and cable. Installation, electrical connection and the first start must only be carried out by qualified specialists.
  • Page 11 In case of doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-ipp3827/ Option mounting accessories WALL MOUNT EXCAM XPT (01538-001) Wall bracket Wall bracket for the T08-TNXCD and VA4.X series WMB-...
  • Page 12: Electrical Connection

    The maximum transmission range from the camera to the next active network interface is 100 meters and can be individually specified by the client. The user is NOT authorised to do electrical connection procedures inside the pressure-resistant enclosure. Equipotential bonding/Grounding Figure 5-1 ExCam IPP3827 equipotential bonding Doc.-ID: 230802-PT08BA-ES-ExCam-IPP3827_en_rev.00.docx, Page 12 of 32...
  • Page 13: Connection Work At The Device

    +48 V DC (44...54 V DC) Maximum power consumption: 18 W Typical power consumption: 12 W Potential cable terminations of the ExCam IPP3827 are: terminal box, plug or flipConnect. 5.2.1 Connection work at the terminal box Attention! Never open the Ex-e terminal box under voltage!
  • Page 14 Figure 5-2 Video Tutorial ExTB-3 The pin assignment of the SKD02-T is executed in accordance with the standard EIA/TIA- 568B for 100BaseTX and 24VDC, as follows: Camera (Ex-d) Colour Terminal Cross-sec- Comment (T568B) SKD02-T ExTB-3 tional sur- face (IEC60757) WH / OG 0.26 mm Solid conductor 0.26 mm...
  • Page 15 Bring the twisted pair composite up to about 10 mm close to the termi- nals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. Doc.-ID: 230802-PT08BA-ES-ExCam-IPP3827_en_rev.00.docx, Page 15 of 32...
  • Page 16: 5.2.1.1 External Connection And Protection

    5.2.1.1 External connection and protection There are several options of routing the ExTB-3 terminal box to a safe area: Direct routing from the ExTB-3 into the safe area In the case of direct routing from ExTB-3 to the safe area, the power supply and the volt- age signal are led from the safe area to the terminal box.
  • Page 17: Plug Assignments (Rj45)

    5.2.2 Plug assignments (RJ45) The data transfer of the ExCam IPP3827 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...
  • Page 18: Connection Work At The Device Via Flipconnect

    We show the procedures of electrical connection via flipConnect in the following video tutorial “Plug & Play Cable Connection via flipConnect” https://go.samcon.eu/flipconnect Figure 5-5 Connection via flipConnect Unscrew the red blind plug (with integrated auxiliary tool) from the housing and keep it save.
  • Page 19 Plug in the RJ45 plug with the cable pigtail into the socket until the lock engages. Remove the auxiliary tool and apply glue to the gland’s inner thread. Then screw the gland into the housing. Attention, the cable is still movable and the gland’s outer ring open. Push the cable down.
  • Page 20 Fasten the cable gland’s outer ring. Use Loctite and refer to the operating instructions of the selected gland in order to observe the appropriate fastening torques. Done. Attention! Use appropriate RJ45 plug! Pay attention to shielding, cross-section and outer diameter of the cable! Doc.-ID: 230802-PT08BA-ES-ExCam-IPP3827_en_rev.00.docx, Page 20 of 32...
  • Page 21: Appropriate Cables & Cable Entries

    The supply line must have a sufficient cross-section. The cable protec- tion must comply with national and international regulations. To see non-binding configuration and planning guidelines, please visit: https://www.samcon.eu/fileadmin/documents/en/99-Knowledgecenter/TB003-Cable-Gland-selection-for-Ex-d-enclosures.pdf Perhaps our video will help you: "Cables for flameproof devices in potentially explosive atmospheres"...
  • Page 22 If ExCam IPP3827 is delivered without cable and gland the electrical connection is made via RJ45 network socket in Ex-d through M25 entry (flipConnect). The installer / operator of the device is responsible for selecting a suitable cable - gland combination.
  • Page 23: Tests Prior To Switching On Voltage

    Tests prior to switching on voltage Attention! Prior to commissioning, all tests as indicated by the national regula- tions have to be executed. Furthermore, the correct function and instal- lation of the device has to be checked in accordance with this user man- ual and other applicable regulations.
  • Page 24: Working Inside The Camera Housing (Ex-D)

    If you think that the housing has to be opened for unforeseeable reasons, please contact our support tem at first (Sup- port@samcon.eu). Opening and closing the pressure-resistant housing Always adhere to the explosion-relevant rules: „WARNING –...
  • Page 25 Carefully pull out the dome flange strictly vertically/perpendicularly (see Figure 6-1). There is a risk of side tilt! Because of negative pressure it may be difficult to remove. H8f7 H8G7 The circular cylindrical clearance fit (in accordance with ISO 286) of the camera body and flange must not be tilted! Risk of damage to the flame-proof gap (DIN EN 60079-1)! Caution: Avoid any contact of the screw thread with skin and clothes! There is oil...
  • Page 26: Adjusting The Camera Position

    Attention! If the dome is damaged, it must no longer be used! Attention! Ensure that no foreign objects are entrapped in the housing. Exclusively use undamaged and clean original screws included in the supply. The dismantled screw locks (spring washers DIN 127A) must be used again. The Gylon gasket must be used in undamaged condition, according to the flange hole pattern.
  • Page 27: Removing / Inserting A Sd Memory Card

    Removing / inserting a SD memory card Note: The ExCam IPP3827 has a slot for a micro SDHC memory card (card not included). Saved video files can be played and deleted via the web interface. They are also available in a download list.
  • Page 28: Network Access And Visualization

    Interface, please see the User Manual for Axis or visit the following website: https://help.axis.com/axis-p3827-pve At delivery, the ExCam IPP3827 is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes.
  • Page 29: Assigning The Ip Address

    Assigning the IP address The ExCam IPP3827 is intended for use in an Ethernet network and requires an IP address to access and control it. In the most today’s networks, a DHCP server is integrated. This server automatically assigns an IP address.
  • Page 30: Cleaning The Dome

    Reparation Reparations must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. In case of doubt, send the part in question back to SAMCON Prozessleittechnik GmbH.
  • Page 31: Drawings & 3D Models

    Drawings & 3D models All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/network/excam-ipp3827/ If you wish additional technical information, please contact us at: support@samcon.eu Doc.-ID: 230802-PT08BA-ES-ExCam-IPP3827_en_rev.00.docx, Page 31 of 32...
  • Page 32 Schillerstraße 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31...
