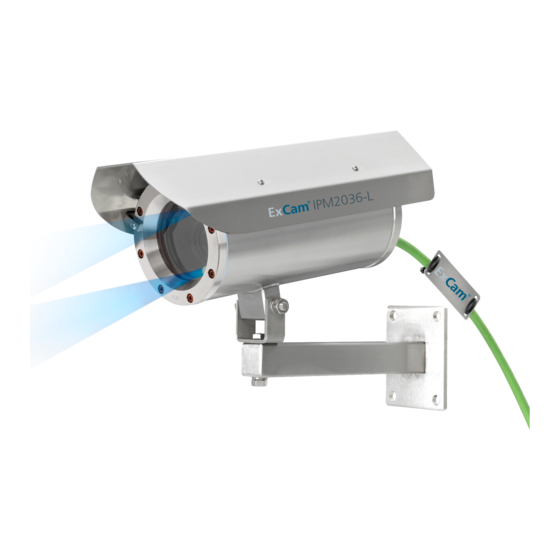

ExCam
IPM2036
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExCam IPM2036 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samcon ExCam IPM2036

  • Page 1 ® ExCam IPM2036 User Manual...
  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................4 Explosion protection .................... 4 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 Connection cable Ex-d - Ex-e ................7 2.4.1 Connection cable for models without cooling (SKD02-T/ASKD02-T)........7 2.4.2 Connection cable for model with cool.Jacket (SKD05-HT) ............
  • Page 3 Figure 6-1 Removing the weather protection roof (1/2) (this illustration is an example) .. 26 Figure 6-2 Removing the weather protection roof (2/2) (similar illustration) ....26 Figure 6-3 Opening the ExCam IPM2036 (similar illustration) ......... 27 Figure 6-4 Structure of the camera (similar illustration) ........... 28 Figure 7-1 Axis IP Utility ....................
  • Page 4: Introduction

    1, 2, 21 and 22 including the explosion groups IIC / IIIC. To see other approv- als, please visit our website at www.samcon.eu/en When designing the ExCam IPM2036, we attached a very high importance to safety, me- chanical precision and high quality of stainless steel. Technical data...
  • Page 5: Illustration Of The Model Key

    VA2.1.K1.BOR- L.HH- 005.N- 085/056/041 Table 2-1 Model key Explanations: ExCam IPM2036 = Functional camera description of the ExCam Series (technical data/ specification of the individual camera module) T08 = SAMCON Production- Type 08 VA2.1.K1.BOR = T07 ex d housing (stainless steel 1.4404) with large diameter Ø...
  • Page 6: Electrical Parameters Of The Camera

    Plug- termination (standard) CAT6, RJ-45 network plug (heavy duty), AWG 26-22, contact assignment acc. To specification EIA/TIA-568B Terminal Box termination (optional) 4 x PoE Mode A connection (camera PoE) (see chapter electrical connection) Lens options Model Lens Iris Horizontal AoV@16/9 T08-VA2.1.K1.BOR-X.X-XXX.X-X-085 (wide (standard)) Megapixel lens 3.6mm F1.8 IR...
  • Page 7: Connection Cable Ex-D - Ex-E

    10 x D after relocation Data line: 4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV- resistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Figure 2-2 Sectional view of ASKD02-T Doc.-ID: 220607-PT08BA-ES-ExCam IPM2036_en_rev.00.docx, Page 7 of 36...
  • Page 8: Connection Cable For Model With Cool.jacket (Skd05-Ht)

    4 x 2 x AWG26/7 CAT.6 Properties: FEP, flame-retardant, UV-resistant, chemical resistance, for extreme hot temperatures Quick link: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD05-HT_Datasheet.pdf Figure 2-3 Sectional view of SKD05-HT Video-technical characteristics We use the AXIS M2036-LE Network Camera in a pressure-resistant enclosure. For de- ®...
  • Page 9: Ir-Led Illumination

    IR-LED illumination When switching to night mode, the camera uses both visible and near-infrared light to deliver bright and detailed black and white images instead of color images. 2x high efficiency LEDs IR-LEDs with optimized infrared spectral component (λcentroid = 850 [nm]), enable high- contrast black and white camera images in the dark and under difficult lighting conditions (max.
  • Page 10: Illumination Tests

    2.7.3 Illumination tests Tests with IR illumination ON 85° 56° 41° With low light Object distance 0.5m Dark- ness Object distance 0.5m Dark- ness Object distance Dark- ness Object distance Dark- ness Object distance In absolute darkness, the internal infrared illumination can only be used up to a maximum object distance of 2.0 m.
  • Page 11: Safety Instructions

    Please absolutely observe the installation instruction’s safety directions of the T08 ExCam series! Quick link: https://www.samcon.eu/fileadmin/documents/en/22-Ex-Network-Cameras/ExCam-Series-T08-EX-Installation-Manual-2020.pdf It is absolutely mandatory to adhere to the national safety regulations and regula- tions for prevention of accidents, as well as to the safety instructions given below...
  • Page 12: Installation

    Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thoroughly check it for any transport damage, especially on the housing and cable. Instal- lation, electrical connection and the first start must only be carried out by qualified spe- cialists.
  • Page 13 In case of doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-ipm2036/ Optional mounting accessories WALL MOUNT WMB-VA2.1/2.2 Wall bracket Wall bracket for cameras of the T08-VA2.1-Series WMB-...
  • Page 14: Electrical Connection

    The user is NOT authorised to do electrical connection procedures inside the pressure-resistant enclosure. Potential equalization Figure 5-1 ExCam IPM2036 Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw termi- nal is provided at the rear side, at the bottom (right) (see Figure 5-1).
  • Page 15: Connection Work At The Device (Terminal Box) And Fuses

    Maximum power consumption: 12.95 W Typical power consumption: 5.0 W The figures 5.2 and 5.3 illustrate the potential cable terminations of the ExCam IPM2036. Possible terminations are: terminal box or plug. Figure 5-2 ExCam IPM2036 T08-VA2.1.K1.BOR-L.H-xxx.N-T Figure 5-3 ExCam IPM2036 T08-VA2.1.K1.BOR-L.H-xxx.N-P...
  • Page 16 Adhere to attached separate User Manual for the Ex-e terminal box. Video Tutorial: Observe our video tutorial: “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Figure 5-5 Video Tutorial ExTB-3 Doc.-ID: 220607-PT08BA-ES-ExCam IPM2036_en_rev.00.docx, Page 16 of 36...
  • Page 17 The pin assignment of the SKD02-T is executed in accordance with the standard EIA/TIA-568B as follows: Camera (Ex-d) Colour Terminal Cross- Comment (T568B) SKD02-T ExTB-3 sectional surface (IEC60757) WH / OG 0.26 mm Solid conductor 0.26 mm Solid conductor WH / GN 0.26 mm Solid conductor 0.26 mm...
  • Page 18 SKD02-T SKD02-T ExCam IPM2036 Figure 5-6 Sample circuit of terminal box ExTB-2 PoE(+) 802.3af 100 BASE TX Ethernet Figure 5.7 – Connection to the terminal box Doc.-ID: 220607-PT08BA-ES-ExCam IPM2036_en_rev.00.docx, Page 18 of 36...
  • Page 19: External Connection And Protection

    Bring the twisted pair composite up to about 10 mm close to the ter- minals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. External connection and protection There are several options of routing the ExTB-2/3 terminal box to a safe area: 5.3.1...
  • Page 20: Routing Via Exconnection Rail (Optional Accessories)

    Attention! Cables and wires must comply with the requirements of the IEC 60079- 0/1/7 & 14. Attention! The supply line must have a sufficient cross-section. The cable pro- tection must comply with national and international regulations. 5.3.2 Routing via ExConnection Rail (optional accessories) Figure 5-9 ExTB-3 ->...
  • Page 21: Appropriate Cables & Cable Entries

    Perhaps our video will help you: "Cables for flameproof devices in potentially explosive atmospheres" http://go.samcon.eu/video-cable-ex Figure 5-10 Ex-d cable selection Particularly for installations requiring a suitable barrier gland, make sure that you handle them correctly and observe the rules and notes given in the respective mounting and as- sembly instructions.
  • Page 22: Fusing

    We show the essential procedures in the following video tutorial: Video Tutorial: Please note our video tutorial: “SAMCON 02 Mounting and installing Ex-d barrier glands to ExConnection Rails” https://go.samcon.eu/v02 Figure 5-11 Barrier gland 5.3.4 Fusing PoE power supply requires no fuses. The power supply fusing depends on the cable cross-section and length.
  • Page 23: Plug Assignments (Rj45)

    5.3.5 Plug assignments (RJ45) The data transfer of the ExCam IPM2036 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...
  • Page 24: Tests Prior To Switching On Voltage

    5.3.6 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the na- tional regulations. Furthermore, check the correct function and instal- lation of the device in accordance with this User Manual and other ap- plicable regulations.
  • Page 25: Working Inside The Camera Housing (Ex-D)

    Pay attention not to damage the housing seals. Keep them clean! If the ExCam IPM2036 is equipped with a weather protection roof this has to be removed prior to starting your work! To do so, loosen the 4x12mm button head screws M4*0.7 at the front and rear sides of the bracket holders (Figure 6-1).
  • Page 26 Figure 6-1 Removing the weather protection roof (1/2) (this illustration is an example) Figure 6-2 Removing the weather protection roof (2/2) (similar illustration) To open the stainless-steel housing (T07 VA2.1.x.x) of ExCam IPM2036, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Figure 6-3).
  • Page 27 Figure 6-3 Opening the ExCam IPM2036 (similar illustration) Carefully pull out the cable and supply flange to the rear, as straight as possible. Be- cause of negative pressure, it may be difficult to remove the flange. The cylindrical clear- ance fit (H8f7 - DIN ISO 286) of the camera body and flange may not be tilted! Risk of damage to the flame-proof gap (DIN EN 60079-1:2012)! Attention: The mounting adapter with the housing’s PTC heater, camera module and op-...
  • Page 28: Removing / Inserting A Sd Memory Card

    Removing / inserting a SD memory card Note: The ExCam IPM2036 has a slot for a micro SDHC memory card (card not included). Saved video files can be played and deleted via the web interface. They are also availa- ble in a download list. Moreover, the videos available in the memory card can also be accessed via FTP server in the network.
  • Page 29: Hardware Reset

    Hardware Reset To set all the parameters of the ExCam IPM2036 (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be performed manually.
  • Page 30 The GYLON® gasket must be used in undamaged condition, according to the flange hole pattern, and placed between the flange and the hull. The lateral position of the flat sur- face / contact surface is arbitrary. If, when closing the housing, you see that the surface of the fitting gap is dirty or insuffi- ciently lubricated, clean it with a clean cloth and de-grease it with a suitable cleaning agent.
  • Page 31: Network Access And Visualization

    Assigning the IP address The ExCam IPM2036 is intended for use in an Ethernet network and requires an IP ad- dress to access and control it. In the most today’s networks, a DHCP server is integrated. This server automatically assigns an IP address.
  • Page 32: Password/ Identification

    It can also be used to manually assign a static IP address. For this purpose, the ExCam IPM2036 network camera has to be installed in the same physical network segment (physical subnet) as the computer on which the AXIS IP Utility is run- ning.
  • Page 33: Disposal / Recycling

    Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. In case of doubt, send the part in question back to SAMCON Prozessleittechnik GmbH. Reparations concerning the explosion protection must only be carried out in accordance with nationally applied regulations by SAMCON Prozessleittechnik GmbH or by an au- thorised electrical technician authorised by SAMCON Prozessleittechnik GmbH.
  • Page 34: Certificates And Further Documentation

    If you wish additional technical information, please contact us at: support@samcon.eu Certificates and further documentation Certificates and further documentation are available in the download area at the product website: https://www.samcon.eu/en/products/network/excam-ipm2036 Doc.-ID: 220607-PT08BA-ES-ExCam IPM2036_en_rev.00.docx, Page 34 of 36...
  • Page 35: Notes

    Notes Doc.-ID: 220607-PT08BA-ES-ExCam IPM2036_en_rev.00.docx, Page 35 of 36...
  • Page 36 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
