  • Page 1 ® RoughCam IPM2036 User Manual...
  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................4 Illustration of the model key ................. 4 Electrical parameters of the camera ..............6 Connection cable....................6 2.3.1 Connection cable for models without cooling (SKD01-T/ASKD02-T)........6 2.3.2 Connection cable for model with cool.Jacket (SKD05-HT) ............7 Video-technical characteristics ................
  • Page 3 Figure 6-1 Removing the weather protection roof (1/2) (this illustration is an example) .. 21 Figure 6-2 Removing the weather protection roof (2/2) (similar illustration) ....21 Figure 6-3 Opening the RoughCam IPM2036 (similar illustration) ........22 Figure 6-4 Structure of the camera (similar illustration) ........... 23 Figure 7-1 Axis IP Utility ....................
  • Page 4: Introduction

    To see other approvals, please visit our website at www.samcon.eu/en When designing the RoughCam IPM2036, we attached a very high importance to me- chanical precision and high quality of stainless steel. Technical data...
  • Page 5 VA2.1.K1.BOR = T11 VA2.1 housing with medium body length (L = 210.20mm) VA2.1.K1.BOR = K1 cable gland flange VA2.1.K1.BOR = Borosilicate sight glass DIN7080 (standard, for video cameras within visible spectral range: λ = 350…2000 [nm] and photografical infrared range (NIR), not suitable for thermographic applications (MIR/ FIR) L.X = Low ambient temperature range, standard heater installed (T...
  • Page 6: Electrical Parameters Of The Camera

    Electrical parameters of the camera Power supply of the camera via Ethernet (PoE): Voltage supply: PoE, IEEE 802.3af/802.3at type 1 class 3 Reference voltage: +48 V DC (44...54 V DC) Maximum power consumption: 12.95 W Typical power consumption: 5.0 W Supply of the camera with heating (PoE+): Voltage supply: PoE, IEE 802.3at type 2 class 4...
  • Page 7: Connection Cable For Model With Cool.jacket (Skd05-Ht)

    Properties: PUR halogen-free, flame-retardant, UV- resistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Figure 2-2 Sectional view of ASKD02-T 2.3.2 Connection cable for model with cool.Jacket (SKD05-HT) Description: Data transfer and power supply of the camera module (compliant with DIN EN 60079-14)
  • Page 8: Video-Technical Characteristics

    (max. distance in complete darkness 2m, otherwise typical range depends on lighting conditions (residual light) and Scene). See test protocol for illumination. This model requires the SAMCON cool.Jacket. In the case of IR LED illumination, the viewing angle may be minimally restricted or a shadow/reflection may be visible, depending on the lens, the adjustment of the illumination angla and the residual light.
  • Page 9: Settings For Automatic Switching To Night Mode

    Attention! Infrared radiation may emanate from this product. Do not look directly at the operating lamp. 2.6.1 Settings for automatic switching to night mode 1. Set the IR-cut filter to Auto: go to Video > Image > Day-night mode 2. Determination of the light level from which the camera should switch to night mo- de: move the Thresold slider towards Bright or Dark.
  • Page 10: Illumination Tests

    2.6.3 Illumination tests Tests with IR illumination ON 85° 56° 41° With low light Object distance 0.5m Dark- ness Object distance 0.5m Dark- ness Object distance Dark- ness Object distance Dark- ness Object distance In absolute darkness, the internal infrared illumination can only be used up to a maximum object distance of 2.0 m.
  • Page 11: Safety Instructions

    Safety Instructions Please observe the national safety regulations and regulations for prevention of accidents, as well as to the safety instructions given below in this User Manual! Attention! Repairs may only be carried out by using original parts from the man- ufacturer.
  • Page 12 In case of doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/roughcam/roughcam-ipm2036/ Optional mounting accessories WALL MOUNT WMB-VA2.1/2.2 Wall bracket Wall bracket for cameras of the T10-VA2.1-Series WMB-...
  • Page 13: Electrical Connection

    Potential equalization Figure 5-1 RoughCam IPM2036 Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw termi- nal is provided at the rear side, at the bottom (right) (see Figure 5-1).
  • Page 14: Connection Work At The Device (Terminal Box) And Fuses

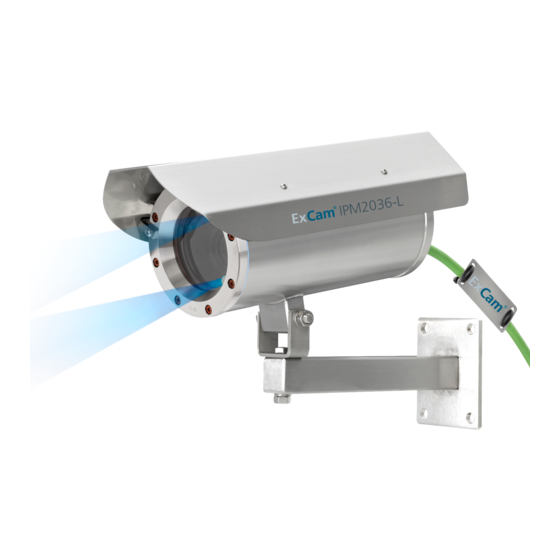

    The figures 5.2 and 5.3 illustrate the potential cable terminations of the RoughCam IPM2036. Possible terminations are: terminal box or plug. Figure 5-2 RoughCam IPM2036 T10-VA2.1.K1.BOR-L.H-xxx.N-T Figure 5-3 RoughCam IPM2036 T10-VA2.1.K1.BOR-L.H-xxx.N-P Figure 5.4 shows RoughCam IPM2036 with active cooling cool.Jacket. Doc.-ID: 220815-PT10BA-ES-RoughCam IPM2036_en_rev.00.docx, Page 14 of 28...
  • Page 15 Figure 5-4 RoughCam IPM2036 T10-VA2.1.K1.BOR-L.HH-010.N-T Video Tutorial: Observe our video tutorial: “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Figure 5-5 Video Tutorial ExTB-3 The pin assignment of the SKD01-T is executed in accordance with the standard...
  • Page 16 (PoE GND) 0.26 mm Solid conductor GND/SHD YE / GN 2.5 mm Flex Table 5-3 Wire assignment of terminal box ExTB-2/3 (ASKD02-T) SKD02-T SKD02-T RoughCam IPM2036 Figure 5-6 Sample circuit of terminal box ExTB-2 Doc.-ID: 220815-PT10BA-ES-RoughCam IPM2036_en_rev.00.docx, Page 16 of 28...
  • Page 17 Finally, check your network installation with a Class-D Link Test. Note: If the camera is equipped with a camera cooling system (SAMCON cool.Jacket for model key type X.HH), the wiring is executed via the cable SKD05-HT. An appropriate water supply has to be provided by the customer.
  • Page 18: Fusing

    The pin assignment of the SKD05-HT is executed in accordance with the standard EIA/TIA-568B as follows: Camera Colour Terminal Cross- Comment (T568B) SKD05-HT sectional (IEC60757) surface WH / OG 0.14 mm Solid conductor 0.14 mm Solid conductor WH / GN 0.14 mm Solid conductor 0.14 mm...
  • Page 19: Plug Assignments (Rj45)

    5.2.2 Plug assignments (RJ45) The data transfer of the RoughCam IPM2036 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...
  • Page 20: Tests Prior To Switching On Voltage

    5.2.3 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the na- tional regulations. Furthermore, check the correct function and instal- lation of the device in accordance with this User Manual and other ap- plicable regulations.
  • Page 21: Working Inside The Camera Housing

    Opening the housing If the RoughCam IPM2036 is equipped with a weather protection roof this has to be re- moved prior to starting your work! To do so, loosen the 4x12mm button head screws M4*0.7 at the front and rear sides of the bracket holders (Figure 6-1).
  • Page 22 To open the stainless-steel housing (T11 VA2.1.x.x) of RoughCam IPM2036, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Figure 6-3). Cau- tion: do not touch the screw threads with your skin or clothes! On the threads, there is LOCTITE®...
  • Page 23: Removing / Inserting A Sd Memory Card

    Removing / inserting a SD memory card Note: The RoughCam IPM2036 has a slot for a micro SDHC memory card (card not included). Saved video files can be played and deleted via the web interface. They are also availa- ble in a download list. Moreover, the videos available in the memory card can also be accessed via FTP server in the network.
  • Page 24: Hardware Reset

    Hardware Reset To set all the parameters of the RoughCam IPM2036 (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be performed manually.
  • Page 25: Network Access And Visualization

    Assigning the IP address The RoughCam IPM2036 is intended for use in an Ethernet network and requires an IP address to access and control it. In the most today’s networks, a DHCP server is inte- grated. This server automatically assigns an IP address.
  • Page 26: Password/ Identification

    It can also be used to manually assign a static IP address. For this purpose, the RoughCam IPM2036 network camera has to be installed in the same physi- cal network segment (physical subnet) as the computer on which the AXIS IP Utility is running.
  • Page 27: Disposal / Recycling

    Drawings, 3D models, certificates & further documentation All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/roughcam/roughcam-ipm2036/ If you wish additional technical information, please contact us at: support@samcon.eu...
  • Page 28 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
