- Page 1 IPM1145-(L) ExCam User manual...
-
Page 2: Table Of Contents
Introduction ......................5 Technical Data ......................6 Parameters of the explosion protection ............... 6 Electrical parameters of the camera module ............7 2.2.1 ExCam IPM1145-(L) (PoE+) (Camera and Heater) ..............7 2.2.2 ExCam IPM1145 ........................7 2.2.3 ExCam IPM1145-L ........................7 Electrical parameters of the PTC heat load circuit (optional) ....... - Page 3 Table 5.5 – Status and control LED ................. 26 Figure 5.8 – Remote Zoom control of the ExCam IPM1145-L ......... 26 Figure 5.9 – Live View with IR control of the ExCam IPM1145-L ........27 Table 5.6 – Lens data ...................... 27 Figure 5.10 –...
- Page 4 Revisions: Termination of ExCam IPM1144-L, Deletion of the document overview Nov. 06 2018 S.Seibert Adding the PoE+ Versions Digital unterschrieben von Steffen Seibert DN: cn=Steffen Seibert, o=SAMCON, ou, email=s.seibert@samcon.eu, c=DE Datum: 2019.01.29 16:32:58 +01'00' Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 4 of 40...
-
Page 5: Introduction
P-Iris aperture control as well as optional I/O inter- faces. The highly efficient infrared LEDs of the ExCam IPM1145-L are adjustable to meet the individual application requirements to allow a surveillance of objects also in complete darkness. -
Page 6: Technical Data
Test report IECEx: DE/TUR/ExTR14.0026/01 Quality Assessment Report: DE/BVS/QAR14.0006/00 Maximum ambient temperature range relevant for explosion protection might deviate to the maximum functional temperature range. For maximum functional temperature range (MTBF) see chapter 3.12 Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 6 of 40... -
Page 7: Electrical Parameters Of The Camera Module
48 V DC (44...54 V DC) Maximum power input: 6.0 W 2.2.3 ExCam IPM1145-L Power supply: PoE, IEEE 802.3af/ 802.3at type 1 class 3 Reference power: 48 V DC (44...54 V DC) Maximum power input: 10.5 W Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 7 of 40... -
Page 8: Electrical Parameters Of The Ptc Heat Load Circuit (Optional)
/ compound grouting does not depend anymore on the marked gas explosion group (IIB, IIC) or the Ex d pressure , ≥2000cm ) but solely on the length of the suitable connection cable (<3m, ≥3m) chamber volume (<2000cm Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 8 of 40... - Page 9 8 x single conductors twisted pair (solid conduc- tor A=0.33mm , ø=0.64 mm approx. 6 mm stripped), 1 x shield (Cu braid tinned 1.5 mm ferule color code according to DIN 46228) 10BASE-T/ 100BASE-TX PoE Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 9 of 40...
-
Page 10: Power Supply Cable (Optional)
/ compound grouting does not depend anymore on the marked gas explosion group (IIB, IIC) or the Ex d pressure , ≥2000cm ) but solely on the length of the suitable connection cable (<3m, ≥3m) chamber volume (<2000cm Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 10 of 40... -
Page 11: Technical Specification Of The Camera Modules
T08 ExCam user manual. 2.6.1 Axis M1145 Data sheet: http://www.axis.com/files/datasheet/ds_M1145_1480602_en_1604.pdf User manual: http://www.axis.com/files/manuals/um_m1145_57266_en_1512.pdf 2.6.2 Axis M1145-L Data sheet http://www.axis.com/files/datasheet/ds_m1145l_1480603_en_1506.pdf User manual: http://www.axis.com/files/manuals/um_m1145l_57268_en_1512.pdf Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 11 of 40... -
Page 12: Ir-Led Illumination

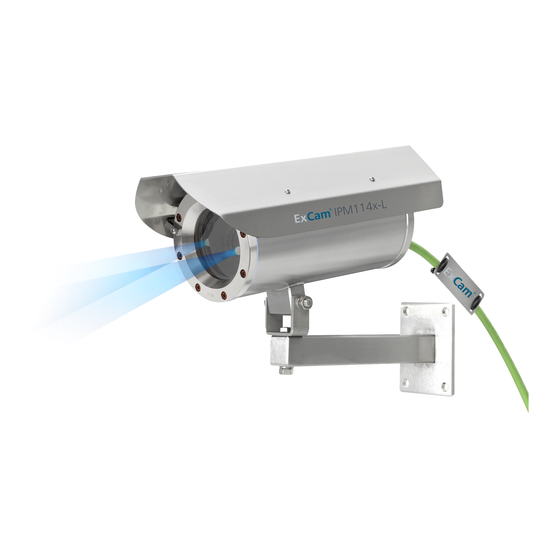

Figure 2.1 – ExCam IPM1145-L Depending on the adjusted illumination angle, it is possible that at turned on IR LED illumination, the angle of view is slightly restrict- ed or a minor shadowing is noticeable Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 12 of 40... -
Page 13: Temperature Range (Mtbf)
An electro-polished or powder-coated surface in various RAL colors (standard: RAL7035) is possible. Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 13 of 40... - Page 14 0.2mm (IIC)/ 2mm (IIB). Due to the surface coating, the thermal value and the convection cooling changes. The maximum permitted power loss feed into the housing is not affected by it! Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 14 of 40...
- Page 15 DIN EN 60079-1: 2008 [5.3] table 3 „Cylindrical gaps“) Dimension stainless steel housing T07 VA2.1.x.x with mounting, without cable gland, without external accessories, for further / more detailed dimension please refer to chapter 10 – Technical Drawings Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 15 of 40...
-
Page 16: Safety Guidelines
To increase the corrosion characteristics it is also possible to electro-polish the applicable components - Safety guidelines Please observe the safety guidelines indicated in the current version of the T08 ExCam series EX installation manual! Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 16 of 40... -
Page 17: Illustration Of The Model Key
VA2.2.K1.BOR- Table 4.1 – Model key Explanation: ExCam IPM1145-(L) = Functional camera description of the T08 ExCam Series regarding the installed camera module and characteristics: Sensor resolution, light sensi- tivity, camera angle of view, aperture control, power intake, zoom charac- teristics (wide/tele range, optical/digital, motor controlled/varifocal), special features (e.g. - Page 18 Currently, model options ExCam IPM1145 and the ExCam IPM1145-L are available. For the ExCam IPM1145-L, the upper temperature limit is reduced to: …+65°C (T5).
-
Page 19: Commissioning
Please observe the national regulations regarding security, installa- tion, and accident prevention (e.g. DIN EN 60079-14 VDE 0118-1:2010- 02), as well as the safety guidelines described in this user manual and the EX installation manual! Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 19 of 40... -
Page 20: Potential Equalization
Cu conductors or furnished with a plug. 5.2.1 Potential equalization Figure 5.1 – ExCam IPM1145-(L) potential equalization The potential equalization / earthing of the camera housing is mandatory in order to avoid electrostatic charging and hence spark generation. The screw terminal at the lower right hand side of the housing’s rear side is intended for that purpose (q.v. -
Page 21: Connection And Protection
SKD02-T - digital video stream, relays control (build-to-order) control and power supply (PoE) of the camera module Figure 5.2 – Cable glands and supply cable Figure 5.3 – ExCam IPM1145-(L) T08-VA2.1.K1.BOR-C-XXX-K-X Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 21 of 40... -
Page 22: Figure 5.4 - Excam Ipm1145-(L) T08-Va2.1.K1.Bor-C-Xxx-P-X
Use PoE PSE for 802.3at type 1 class 3 or Use PoE PSE for 802.3at type 2 class 4 (30W) ExCam IPM1145(-L) PoE+ Use PoE PSE for 802.3at type 2 class 4 (30W) Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 22 of 40... -
Page 23: Figure 5.6 - Rj45 Contact Assignment
Figure 5.6 – RJ45 Contact assignment Particularly in EMC critical environments, it is important to earth the shield at the terminal block side (q.v. figure 5.3 – pin with black shrink tubing and blue ferule). Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 23 of 40... -
Page 24: Figure 5.7 - Skd02-T Pin Assignment
Power supply fuse type H q.v. table 5.4 or upon request available! Note: If the camera is equipped with a pneumatic camera cooling system (SAMCON cool.Jacket for model key type H), also an additional cable gland at the camera housing is required. -
Page 25: Tests Prior To Switching On Voltage
The camera module’s status LED is located in the back of the stainless steel enclosure and is only visible when the housing is open. The status of the ExCam IPM1145-(L) is reflected by the LED indicators is as follows: Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 25 of 40... -
Page 26: Step 3: Adjusting The Lens
Web Interface or the visualization software. Mechanical adjustments at the varifo- cal lens by the user are not possible. The camera models ExCam IPM1145 and ExCam IPM1145-L dispose of a so called „remote Zoom“ functionality (q.v. figure 5.8) The remote zoom function is less capable than a motor zoom lens (slower response time, lower range) but more compact. -
Page 27: Figure 5.9 - Live View With Ir Control Of The Excam Ipm1145-L
Figure 5.9 – Live View with IR control of the ExCam IPM1145-L IPM1145 IPM1145-L Vario-Focus-lens, integrated infrared cut filter, lens fixed installed in Lens type the module (no CS mount), motorized remote zoom and remote focus P-Iris, F1.4 / f3.0 – 10.5 mm... -
Page 28: Work Preparation
5.4.2 Opening the pressure-resistant housing Opening the pressure resistant housing (DIN EN 60079-1: 2008) of the ExCam IPM1145- (L) is only allowed for exchanging/extracting the SD storage card or in case a “Hardware Reset“ of the camera module is necessary. -
Page 29: Figure 5.10 - Removing The Protection Roof (1/2)
If the T08 ExCam IPM1145-L is equipped with a protection roof, this has to be removed first. To do so, loosen the 4 x 8mm screws M4*0.7 situated on the both ends of the brackets (figure 5.10 and 5.11). Figure 5.10 – Removing the protection roof (1/2) Figure 5.11 –... -
Page 30: Figure 5.12 - Opening The Excam Ipxxx
Beware not to damage the surface of bore hole and shaft (fit) at the flame proof gap preventing the transmission of ignition. Attention! Please make sure not to damage housing sealings and to keep them clean. Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 30 of 40... -
Page 31: Figure 5.13 - Excam Ipm1145-L Installation Components
IR Anti reflexion adapter (flexible) (chloroprene rubber) Auxiliary relays for magnet valve (control for type H) PTC heating element DBK-HP05 Polyoxymethylen T08 Universal adapter 4 mm Aluminium AlMgSi1 isolator Figure 5.13 – ExCam IPM1145-L installation components Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 31 of 40... -
Page 32: Extracting/Inserting An Sd Storage Card
Extracting/inserting an SD storage card Note: The ExCam IPM1145-(L) can at a customers request be delivered with a 16GB mi- croSDHC storage card. Saved video files can be viewed or deleted via the web interface; they are also available in a download list or as an ftp file to the network. The videos saved on the storage card can be accessed also via the FTP server within the network. -
Page 33: Hardware Reset
5.4.4 Hardware Reset In order to change all parameters, including the IP address, of the ExCam IPM1145-(L), to the default settings, a hardware reset has to be carried out. It is possible to reset the parameters either via the web interface or manually. If the cam- era cannot be accessed anymore via the network or in an uncontrollable state, the reset has to be done manually. - Page 34 3 Nm Please avoid extensive tightening – this might lead to a torn screw etc. affecting improperly the enclosure’s pressure resistance (Ex). For the fixed installation of the ExCam IPM1145-(L), either with a wall mount bracket, with a hinge attachment for sight-glass installations or for the optional installation of a roof, please observe the instructions of the EX installation manual! Additional accessories are available upon request.
-
Page 35: Network Access And Visualization
JVM (J2SE) 1.5 or higher, or JRE (J2SE) 5.0 or higher. At delivery, the ExCam IPM1145-(L) is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes. -
Page 36: Assigning The Ip Address
Assigning the IP address The ExCam IPM1145-(L) s an Ethernet network camera requiring an IP address to ac- cess it. Usually a DHCP server is integrated in most networks which automatically as- signs an IP address. In case there is no DHCP server available in the network, the ExCam IPM1145-(L)’s default address “192.168.0.90”... -
Page 37: Password / Identification
Enter the previously determined password and click on „OK“. In case you have forgotten the password, the ExCam IPM1145-(L) has to be reset to default settings Click on „Yes“ in order to install AMC (AXIS Media Control). After the completion... -
Page 38: Maintenance / Servicing / Alterations
Repairs and Maintenance Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. If in doubt, return the applicable part to SAMCON Prozessleittechnik GmbH. -
Page 39: Notes
Notes Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 39 of 40... - Page 40 Schillerstraße 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31 Doc.-ID: 150903-PT08BA-TG-ExCam IPM1145-(L)_en_rev.02.docx, page 40 of 40...
