Summary of Contents for Samcon RoughCam IPM1145

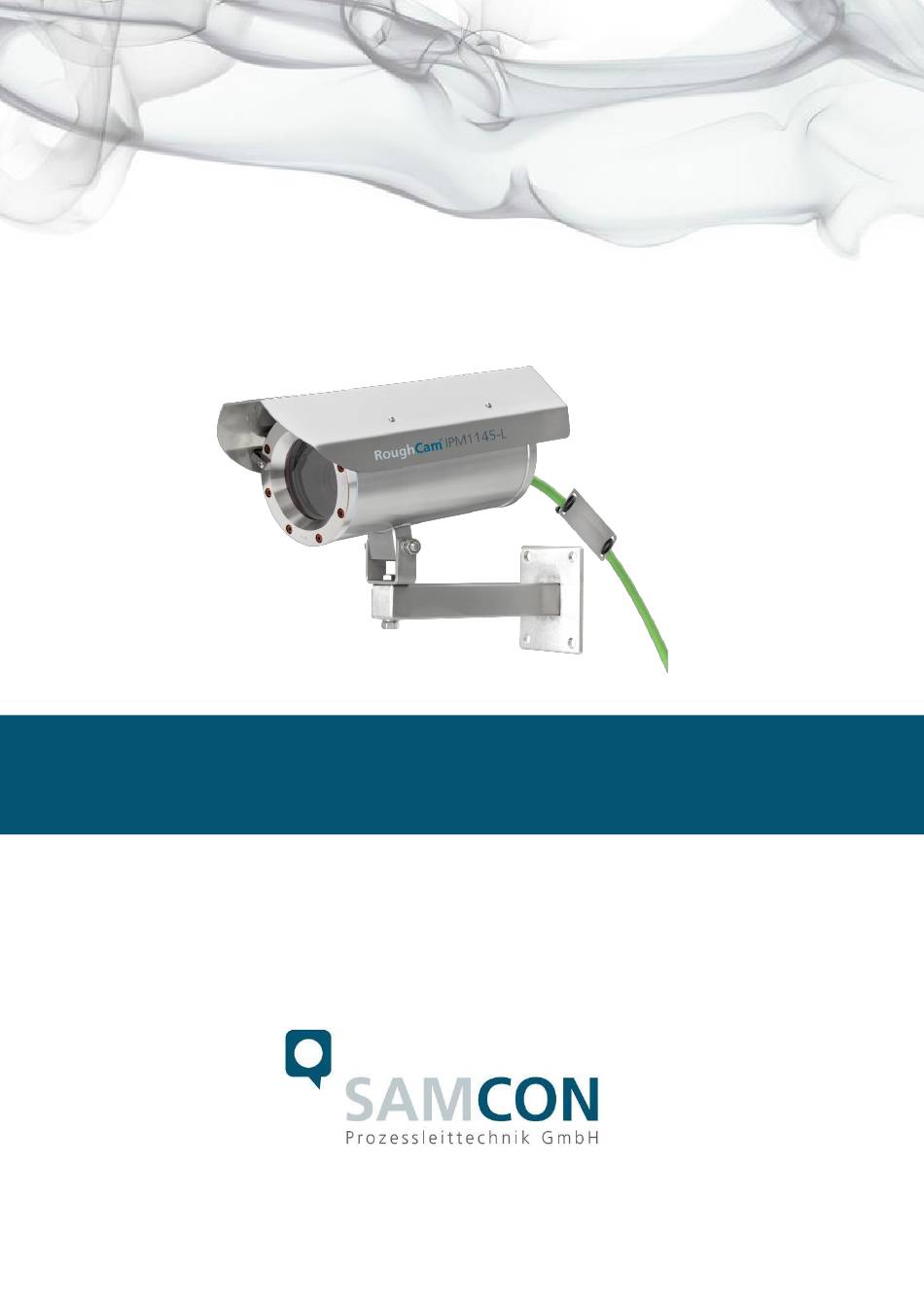

- Page 1 RoughCam IPM1145-(L) User manual...
-
Page 2: Table Of Contents
Content Introduction ......................5 Technical Data ......................6 Electrical parameters of the camera module ............6 2.1.1 RoughCam IPM1145-(L) (PoE+) (Camera and Heater) ............6 2.1.2 RoughCam IPM1145 ......................... 6 2.1.3 RoughCam IPM1145-L ......................6 Electrical parameters of the PTC heat load circuit (optional) ....... 6 Connection cable SKD01-T ................. - Page 3 Table of Figures Figure 1.1 – RoughCam IPM1145-L with wall mount bracket and roof ......5 Figure 2.1 – RoughCam IPM1145-L ................10 Table 4.1 – Model key ..................... 13 Figure 5.1 – RoughCam IPM1145-(L) potential equalization ........... 16 Table 5.1 – Potential equilization ..................16 Figure 5.2 –...
- Page 4 Derived from the following docu- May 16, 2018 E. Schneider ment150903-PT08BA-TG-ExCam IPM1145_en_rev.01.docx Adding the PoE+ Versions Digital unterschrieben von Steffen Seibert Dec. 20, 2018 E.Schneider DN: cn=Steffen Seibert, o=SAMCON, ou, email=s.seibert@samcon.eu, c=DE Datum: 2019.01.29 16:33:25 +01'00' Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 4 of 40...
-
Page 5: Introduction

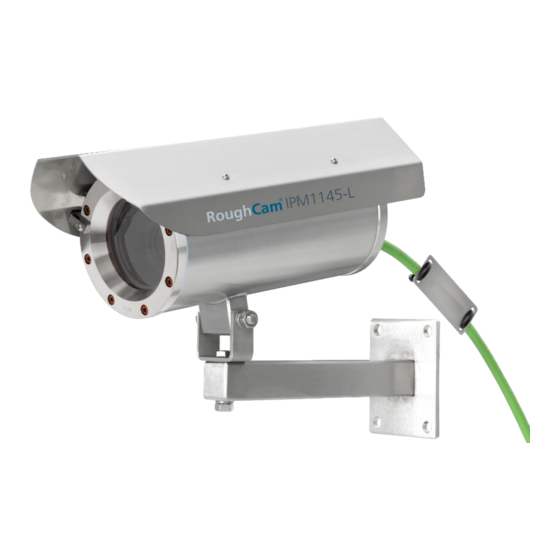

P-Iris aperture control as well as optional I/O inter- faces. The highly efficient infrared LEDs of the RoughCam IPM1145-L are adjustable to meet the individual application requirements to allow a surveillance of objects also in complete darkness. -
Page 6: Technical Data
The typical start-up peak at the low temperature range (1x HP05 heating element) is > 4000mA ! The typical start-up peak at the artic temperature range (2x HP05 heating element) is = KxAxT (K=5.5W/m HP05 Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 6 of 40... -
Page 7: Connection Cable Skd01-T
8 x single conductors twisted pair (solid conduc- tor A=0.33mm , ø=0.64 mm approx. 6 mm stripped), 1 x shield (Cu braid tinned 1.5 mm ferule color code according to DIN 46228) 10BASE-T/ 100BASE-TX PoE Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 7 of 40... -
Page 8: Power Supply Cable (Optional)
/ shrink tubing Further cables available upon request, e.g. „Ölflex® Petro FD 865 CP“ (high resistance against oil and drilling liquids) or „XPLE Armoured 3 x 2.5“ (extremely robust, particularly designed for offshore environments) Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 8 of 40... -
Page 9: Technical Specification Of The Camera Modules
Depending on the adjusted illumination angle, it is possible that at turned on IR LED illumination, the angle of view is slightly restrict- ed or a minor shadowing is noticeable Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 9 of 40... -
Page 10: Temperature Range (Mtbf)
Functional temperature range concerning the operational temperature range of the installed non-Ex components according to AXIS manufacture declarations (MTBF – mean time between failures) under consideration of thermal power loss and the temperature coef- ficient of the housing. Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 10 of 40... -
Page 11: Other Technical Data
An electro-polished or powder-coated surface in various RAL colors (standard: RAL7035) is possible. Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 11 of 40... - Page 12 Dimension stainless steel housing T11 VA2.1.x.x with mounting, without cable gland, without external accessories, for further / more detailed dimension please refer to chapter 10 – Technical Drawings Dimension camera housing T11 VA2.1 with wall mount bracket WMB-L and hood WPR-VA2.1 (axially aligned, maximum depth) Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 12 of 40...
-
Page 13: Safety Guidelines
Attention! If components have to be repaired this must be done with original components of the Samcon Prozessleittechnik GmbH. Illustration of the model key The following model options are currently available for the T10 RoughCam IPM1145-(L): Model options Type Housing... - Page 14 Lowest ambient temperature range (MTBF): : -60 to +40 [°C] AMB_LL High ambient temperature range (MTBF): 0 to +70 [°C] AMB_H LH = Broad ambient temperature range (MTBF): : -30 to 70 [°C] AMB_LH Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 14 of 40...
-
Page 15: Commissioning
Step 1: Installation ® Install the RoughCam IPM1145-(L) at the desired location. More detailed description of mounting options and accessories you can find on http://www.samcon.eu. Step 2: Electrical connection Attention! The electrical connection of the equipment must be executed by quali-... -
Page 16: Potential Equalization
5.2.1 Potential equalization Figure 5.1 – RoughCam IPM1145-(L) potential equalization The potential equalization / earthing of the camera housing is mandatory in order to avoid electrostatic charging and hence spark generation. The screw terminal at the lower right hand side of the housing’s rear side is intended for that purpose (q.v. figure 5.1). The pro- file of the potential equalization has to reflect the national grounding instructions (min. -
Page 17: Connection And Protection
SKD01-T - digital video stream, relays control (build-to-order) control and power supply (PoE) of the camera module Figure 5.2 – Cable glands and supply cable Figure 5.3 – RoughCam IPM1145-(L) T10-VA2.1.K1.BOR-XXX-K-X Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 17 of 40... -
Page 18: Figure 5.4 - Roughcam Ipm1145-(L) T10-Va2.1.K1.Bor-Xxx-P-X
In order to guarantee the power supply (Power Device, PD) of the RoughCam IPM1145-(L), a Power-over-Ethernet component (Power Sourcing Equipment, PSE) has to be available at the connecting side (e.g. a PoE Switch, a PoE Injector, or Midspan) Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 18 of 40... -
Page 19: Table 5.2 – Pin Assignment Skd01-T And Plug Contact Rj45
„power ON“ priority which has to be observed. In case the RoughCam IPM1145-(L) disposes of a terminal block termination, the correct connection of the individual pins in accordance with EIA/TIA-568B has to be observed (q.v. -
Page 20: Figure 5.6 - Rj45 Contact Assignment
GND) Figure 5.7 – SKD01-T Pin assignment In case the RoughCam IPM1145-(L) is supplied via a PoE capable device, an additional safeguarding of the power supply is not necessary. The power supply is executed by the PoE network device via an electronic with intelligent set-up. The camera as well as the connection is permanently monitored in order to avoid any failure or defects in case of a short-circuit fault. -
Page 21: Tests Prior To Switching On Voltage
Power supply fuse type H q.v. table 5.4 or upon request available! Note: If the camera is equipped with a pneumatic camera cooling system (SAMCON cool.Jacket for model key type H), also an additional cable gland at the camera housing is required. -
Page 22: Testing Of The Status Led
The camera module’s status LED is located in the back of the stainless steel enclosure and is only visible when the housing is open. The status of the RoughCam IPM1145-(L) is reflected by the LED indicators is as follows: Status LED... -
Page 23: Figure 5.8 - Remote Zoom Control Of The Roughcam Ipm1145-L
Concerning the configuration and the additional camera settings please refer to chapter 2.6.1 and 2.6.2 Figure 5.8 – Remote Zoom control of the RoughCam IPM1145-L Figure 5.9 – Live View with IR control of the ExCam IPM1145-L Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 23 of 40... -
Page 24: Work Preparation
(high picture quality, high bandwidth re- quirement). The focus is optimized for a distance of approx. 10 m It is possible to individually adjust the RoughCam IPM1145-(L) set- tings to meet the requirements of objects, environmental conditions, or network and hardware performances. -
Page 25: Opening The Housing
If the T10 RoughCam IPM1145-L is equipped with a protection roof, this has to be re- moved first. To do so, loosen the 4 x 8mm screws M4*0.7 situated on the both ends of the brackets (figure 5.10 and 5.11). -
Page 26: Figure 5.12 - Opening The Roughcam Ipxxx
Attention! Beware not to damage the surface of bore hole and shaft (fit). Attention! Please make sure not to damage housing sealings and to keep them clean. Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 26 of 40... -
Page 27: Figure 5.13 - Roughcam Ipm1145-L Installation Components
IR Anti reflexion adapter (flexible) (chloroprene rubber) Auxiliary relays for magnet valve (control for type H) PTC heating element DBK-HP05 Polyoxymethylen T10 Universal adapter 4 mm Aluminium AlMgSi1 isolator Figure 5.13 – RoughCam IPM1145-L installation components Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 27 of 40... -
Page 28: Extracting/Inserting An Sd Storage Card
Extracting/inserting an SD storage card Note: The RoughCam IPM1145-(L) can at a customers request be delivered with a microSDHC storage card (not included). Saved video files can be viewed or deleted via the web inter- face; they are also available in a download list or as an ftp file to the network. The videos saved on the storage card can be accessed also via the FTP server within the network. -
Page 29: Hardware Reset
5.4.4 Hardware Reset In order to change all parameters, including the IP address, of the RoughCam IPM1145- (L), to the default settings, a hardware reset has to be carried out. It is possible to reset the parameters either via the web interface or manually. If the cam- era cannot be accessed anymore via the network or in an uncontrollable state, the reset has to be done manually. - Page 30 3 Nm. Please avoid extensive tightening – this might lead to a torn screw. For the fixed installation of the RoughCam IPM1145-(L), either with a wall mount bracket, with a hinge attachment for sight-glass installations or for the optional installation of a roof, please observe the instructions of the installation manual! Additional accessories are available upon request.
-
Page 31: Network Access And Visualization
JVM (J2SE) 1.5 or higher, or JRE (J2SE) 5.0 or higher. At delivery, the RoughCam IPM1145-(L) is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes. -
Page 32: Assigning The Ip Address
Assigning the IP address The RoughCam IPM1145-(L) is an Ethernet network camera requiring an IP address to access it. Usually a DHCP server is integrated in most networks which automatically as- signs an IP address. In case there is no DHCP server available in the network, the RoughCam IPM1145-(L)’s default address “192.168.0.90”... -
Page 33: Password / Identification
„root“) Enter the previously determined password and click on „OK“. In case you have forgotten the password, the RoughCam IPM1145-(L) has to be reset to default set- tings Click on „Yes“ in order to install AMC (AXIS Media Control). After the completion... -
Page 34: Maintenance / Servicing / Alterations
Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. If in doubt, return the applicable part to SAMCON Prozessleittechnik GmbH. Repairs must only be carried out by SAMCON Prozessleittechnik GmbH or a qualified electrical technician authorized by SAMCON Prozessleittechnik GmbH in accordance with nationally applied regulations. -
Page 35: Drawings
Drawings Attention: For the cable gland execution K2 the dimensions deviate slightly. The drawings below exclusive- ly show gland execution K1 flange (standard)! T10-VA2.1.K1.BOR-XXX-X-XX Figure 10.1 – Dimensions T10 RoughCam IPM1145-(L) Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 35 of 40... -
Page 36: Figure 10.2 - Dimensions T10 Roughcam Ipm1145-(L) Accessories
T10-VA2.1.K1.BOR-XXX-X-XX with accessories Figure 10.2 – Dimensions T10 RoughCam IPM1145-(L) accessories Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 36 of 40... -
Page 37: Figure 10.3 - Cool.jacket (Example)
„active housing cooling“ Figure 10.3 – cool.Jacket (example) Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 37 of 40... -
Page 38: Notes
Notes Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 38 of 40... - Page 39 Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 39 of 40...
- Page 40 Schillerstraße 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31 Doc.-ID: 180516-PT10BA-ES-RoughCam IPM1145-(L)_en_rev.01.docx, page 40 of 40...
