Summary of Contents for Samcon RoughCam IPP1275

  • Page 1 ® RoughCam IPP1275 User Manual...
  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................5 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 System cable SKD04-T.flex ................6 Video-technical characteristics ................7 Other technical data .................... 7 Safety Instructions ....................8 Installation ........................
  • Page 3 Figure 5-2 RoughCam IPP1275 T10-VA0.1.K1.BOR-N.N-xxx.N-P ......... 11 Table 6-2 Pin assignment of the RJ12 plug (SKD04-T.flex) ..........12 Figure 6.1 – Opening the RoughCam IPP1275 (Fig. similar)........... 13 Figure 6-2 Structure of the main unit P12 MkII ..............14 Figure 7-1 Axis IP Utility ....................17 History of revisions ®...
  • Page 4: Introduction

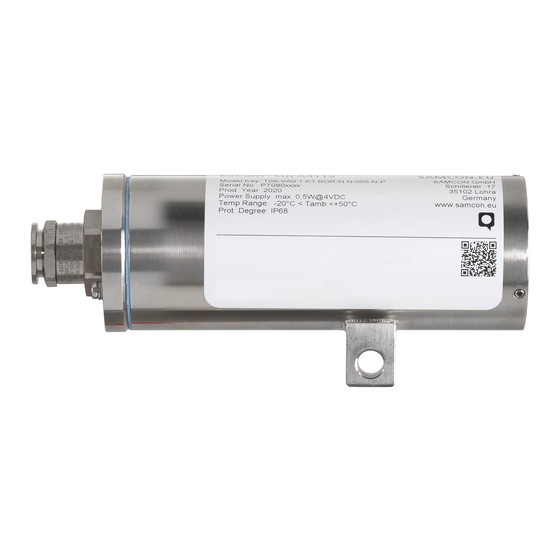

    Introduction RoughCam IPP1275 is an unltra compact varifocal-camera for use in industrial areas. The camera has a high-definition television resolution (1920x1080) and is equipped with a powerful vario focus lens. RoughCam IPP1275 is a modular ex-network-camera. This means that it consists of two units: the ultra compact sensor unit (lens and image sensor) and the main unit (network, power and memory card slot).
  • Page 5: Technical Data

    N.N- 005.N- IPP1275 Table 2-1 Model key Explanations: RoughCam IPP1275 = Functional camera description of the RoughCam Series (technical data/ specification of the individual camera module) T10 = SAMCON Production- Type 10 cameras for safe areas VA0.1.K1.BOR = T11 housing (stainless steel 1.4404) with small diameter Ø...
  • Page 6: Electrical Parameters Of The Camera

    Copper, tinned wire 0.10, optical cov. app. 80% Outer jacket/ Properties: PUR FHF, halogen-free, flame-retardant (EN 60332-1-2), EMV shielded, suitable for drag chains, (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD04-T.flex_Datasheett.pdf Figure 2-1 Sectional view of SKD04-T.flex Doc.-ID: 210212-PT10BA-ES-RoughCam IPP1275_en_rev.00.docx, Page 6 of 20...
  • Page 7: Video-Technical Characteristics

    Other technical data Protection class: IP 68/IP66 (IEC /EN 60529) 0°C…+50°C Transport/storage temperature: Ambient temperature (EX): -20°C…+50°C Other technical data see: https://www.samcon.eu/en/products/roughcam/roughcam-ipp1275/ Sensor Unit (Ex-d) Main Unit -20°C … +50°C -20°C … +50°C Permissible ambient temperature Protection class as per EN IP68...
  • Page 8: Safety Instructions

    Safety Instructions Please observe the national safety regulations and regulations for prevention of accidents, as well as to the safety instructions given below in this User Manual! Attention! Repairs may only be carried out by using original parts from the man- ufacturer.
  • Page 9 Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/roughcam/roughcam-ipp1275/ Optional mounting accessories WALL MOUNT EXCAM VA1.x Wall bracket Wall bracket for devices of T08-VA0-series WMB-... Suitable for hanging the camera on walls.
  • Page 10: Electrical Connection

    NOT authorised to do electrical connection procedures inside the pressure- resistant enclosure. Potential equalization Figure 5-1 RoughCam IPP1275 Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw termi- nal is provided at the rear side, at the bottom (right) (see Figure 5-1).
  • Page 11: Connection Work At The Device (Terminal Box) And Fuses

    Maximum power consumption: 4.0 W Typical power consumption: 2.5 W The figure 5.2 illustrates the cable termination of the RoughCam IPP1275. Figure 5-2 RoughCam IPP1275 T10-VA0.1.K1.BOR-N.N-xxx.N-P 5.2.1 Direct routing At the cable end of the sensor unit, the cable is equipped with an RJ12 ethernet plug with Power over Ethernet (PoE).
  • Page 12: Tests Prior To Switching On Voltage

    Table 6-2 Pin assignment of the RJ12 plug (SKD04-T.flex) It is necessary to make sure that the cable shield is grounded on side of the terminal block ! Attention! Finally, check your network installation with a Class-D Link Test. Particularly in EMC critical environments, it is necessary to make sure that the cable shield is grounded on side of the terminal block ! The maximum cable length between camera and terminal box is 25 m.
  • Page 13: Working Inside The Housing

    Opening the sensor unit`s housing is only permitted to change the focus. Afterwards, the housing has to be closed again! The steps below have to be followed very carefully. Figure 6.1 – Opening the RoughCam IPP1275 (Fig. similar) Loosen the six M3 cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange.
  • Page 14: Main Unit

    6.3.1 Hardware Reset To set all the parameters of the RoughCam IPP1275 (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be performed manually.
  • Page 15: Removing / Inserting A Sd Memory Card

    Removing / inserting a SD memory card Note: The RoughCam IPP1275 has a slot for a micro SDHC memory card (card not included). Saved video files can be played and deleted via the web interface. They are also availa- ble in a download list. Moreover, the videos available in the memory card can also be accessed via FTP server in the network.
  • Page 16: Network Access And Visualization

    Assigning the IP address The RoughCam IPP1275 is intended for use in an Ethernet network and requires an IP address to access and control it. In the most today’s networks, a DHCP server is inte- grated. This server automatically assigns an IP address.
  • Page 17: Password/ Identification

    It can also be used to manually assign a static IP address. For this purpose, the RoughCam IPP1275 network camera has to be installed in the same physi- cal network segment (physical subnet) as the computer on which the AXIS IP Utility is running.
  • Page 18: Disposal / Recycling

    Drawings & 3D models All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/roughcam/roughcam-ipp1275/ If you wish additional technical information, please contact us at: support@samcon.eu Certificates and further documentation...
  • Page 19: Notes

    Notes Doc.-ID: 210212-PT10BA-ES-RoughCam IPP1275_en_rev.00.docx, Page 19 of 20...
  • Page 20 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
