- Page 1 RoughCam IPM3016 User Manual...
-
Page 2: Table Of Contents
Content Introduction ......................4 Technical Data ......................4 Illustration of the model key ................. 4 Electrical parameters ................... 5 System cable ....................... 6 Technical specification of the camera module ............. 6 Other technical data .................... 7 Safety guidelines ...................... 8 Commissioning ...................... - Page 3 Figure 5.1 – Opening the RoughCam IPM3016 ............... 17 Figure 5.2 – Location of the control button ..............18 Figure 5.3 – Disconnecting the mounting adapter ............18 Figure 10.1 – Dimensions of the T10 RoughCam IPM3016 ..........23 Revision history Product:...
-
Page 4: Introduction

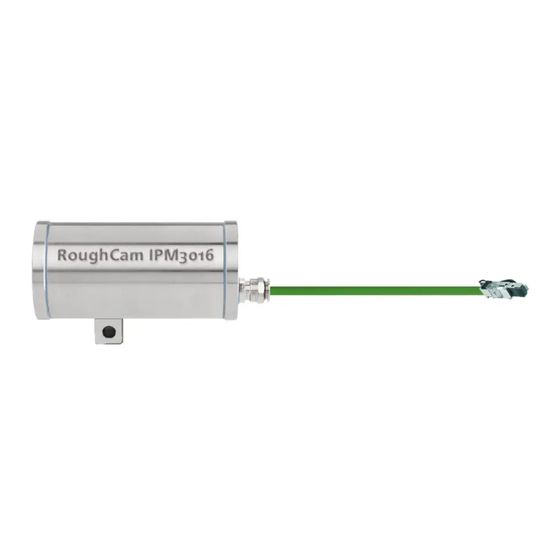

Introduction The RoughCam IPM3016 is a very compact and robust digital camera (type T10) which is manufactured by SAMCON Prozessleittechnik GmbH and can be used very flexibly for various applications. Due to its dimensions and adaption options as well as the exchange- able lenses with various angle of views, focal length and areas of focus, even sight glass applications and process observations with only little object distances are possible. -
Page 5: Electrical Parameters
model key -N- and 001…005 [m] for model key -LL- 005.N = Non armoured cable Plug- termination (standard) CAT6, RJ-45 network plug (heavy duty), AWG 26-22, contact assignment acc. to specification EIA/TIA-568B Attention: Only possible for model key N (without heating). Terminal box termination (optional) 4 x PoE Mode A Anbindung (Camera PoE) 24VDC (Heater) (see chapter 4.2 electrical connection) -
Page 6: System Cable
System cable Outer diameter: 8.7 ± 0.3mm Bending radius: 8 x outer diameter at installation 4 x outer diameter after installation Temperature range: -25°C to +80°C (at point of installation) -60°C to +80°C (fixed installed) Conductor design: 4 x 2 x AWG24/7 blank, CAT.6 Shielding: Copper braid, multiple wires 0-10 vz, opt. -
Page 7: Other Technical Data
Other technical data Protection level: IP 68 (IEC/ EN 60529) 5°C … +55°C Transportation / storage temperature: -60°C … +55°C (Type:…LL.N…) Ambient temperature: -5°C … +55°C (Type:…N.N…) Housing material of the enclosure according to DIN EN 10027-2: 2015-07 (designation system for steel): Housing material (standard) MNo.: 1.4404 (X2CrNiMo17-12-2), AISI 316L / V4A... -
Page 8: Safety Guidelines
Attention! Only original parts of SAMCON Prozessleittechnik GmbH may be used for repairs. Repairs only be carried out in accordance with the nationally applied regulations and by SAMCON Prozessleittechnik GmbH. -
Page 9: Commissioning
Please observe the national regulations regarding security, installation, and accident prevention as well as the safety guidelines described in this user manual! Step 1: Installation Install the RoughCam IPM3016 at the desired location. You can found mounting options and additional accessories at http://samcon.eu Attention! -
Page 10: Potential Equalization
4.2.1 Potential equalization Figure 4.1 – PE connection RoughCam IPM3016 The potential equalization (graunding of the camera housing) is mandatory in order to avoid electrostatic charging and hence spark generation. The screw terminal on the housing’s rear side is intended for this purpose (q.v. figure 4.1). The profile of the potential equalization has to reflect the national grounding instructions (min. -
Page 11: Connection And Protection
IPM3016. Possible cable terminations are terminal block, plug, or the hybride execution for the optional heating (attention: IEEE PoE specification then does not apply anymore!) Figure 4.3 – RoughCam IPM3016 T10-VA1.2.K1.BOR-N.N-xxx.N-T-0xx Figure 4.4 – RoughCam IPM3016 T10-VA1.2.K1.BOR-N.N-xxx.N-P-0xx Doc.-ID: 181210-PT10BA-ES-RoughCam IPM3016_en_rev.00.docx, page 11 of 24... -
Page 12: Connector Pin Assignment (Rj45)
Equipment, PSE) has to be available at the connecting side (e.g. a PoE Switch, a PoE Injector, or Midspan) which meets the specification IEEE 802.3af or 802.3at type 1 class . The interface of the RoughCam IPM3016 uses a 100 Mbit/s „Fast Ethernet“- connec- tion for the data transfer (100BASE-TX). -
Page 13: Connection Work On The Terminal Box
The T10 RoughCam Series supports both modes and the used power source (PSE) determines the mode. Important: If the RoughCam IPM3016 is delivered with a heating (model key LL, figure 4.5), only four wires are available for PoE. In this case, the PSE has to be operated in mode A (phantom power - q.v. -
Page 14: Table 4.2 – Electrical Connection For Model Key „N.n
For model key „N“ (RoughCam without PTC heating) the pin assignment is in accord- ance with the standard EIA/TIA-568B for 100BaseTX with PoE (IEEE 802.3af/at): Camera side / Internal Wiring System Cable Junction Pin/ Potential Color Plug Profile Terminal Comments 100BaseTx/PoE (IEC60757) contact... -
Page 15: Table 4.3 – Electrical Connection For Model Key "Ll.n
Attention! Bring the twisted pair composite approximately 10mm close to the ter- minals, in order to ensure the immunity to disturbance. Attention! Use only terminals approved by SAMCON. Doc.-ID: 181210-PT10BA-ES-RoughCam IPM3016_en_rev.00.docx, page 15 of 24... -
Page 16: Tests Prior To Switching On Voltage
Attention! Finally, check your network installation by per Class-D Link Test. PoE 802.3af Power 100 BASE TX heating Ethernet Figure 4.8 – Connection to the terminal box (models with heating) 4.2.5 Tests prior to switching on voltage Attention! Prior to commissioning, all tests as indicated by the national regula- tions have to be executed. -
Page 17: Hardware Reset
Opening the camera housing is only allowed to carry out the hardware reset of the M3016 camera module. The steps below have to be followed very carefully: Figure 5.1 – Opening the RoughCam IPM3016 Doc.-ID: 181210-PT10BA-ES-RoughCam IPM3016_en_rev.00.docx, page 17 of 24... -
Page 18: Figure 5.2 - Location Of The Control Button
Attention! Beware not to damage the surface of bore hole and shaft (fit). Attention! Please make sure not to damage housing sealings and to keep them clean. The two control buttons are located on the Axis modules main board (q.v. Figure 5.2); the outer push button is used for carrying out the hardware reset. -
Page 19: Closing Of The Housing
Attention: Via a „heavy duty“ RJ45 network plug, the hardware is connected to the system cable. For low temperature models, there are also two further wires (BK) and an additional plug connection (WH) to the heating module. It is not mandatory to unplug the RJ45 plug but it might facilitate the handling. -
Page 20: Network Access And Visualization
At delivery, the RoughCam IPM3016 is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes. In such a case, the applicable settings have to be carried out within the menu “System Options >... -
Page 21: Password / Identification
Repairs and Maintenance Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Repairs must only be carried out by SAMCON Prozessleittechnik GmbH or a qualified electrical technician authorized by SAMCON Prozessleittechnik GmbH in accordance with nationally applied regulations. -
Page 22: Drawings
Drawings The drawings below are technical drawings of the T10 RoughCam IPM3016. For our RoughCam Series we have the same configuration options as for our ExCam Se- ries. Further drawings also for additional accessories, 3D models, STEP files and DXF shapes are available on the SAMCON homepage: https://www.samcon.eu/en/products/network/excam-ipm3016/... -
Page 23: Figure 10.1 - Dimensions Of The T10 Roughcam Ipm3016
Figure 10.1 – Dimensions of the T10 RoughCam IPM3016 Doc.-ID: 181210-PT10BA-ES-RoughCam IPM3016_en_rev.00.docx, page 23 of 24... - Page 24 Schillerstraße 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31...
